Rectangular Weep Hole Cover (w/bug flap)
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
16 min
1 plate
Open in Bambu Studio
Boost
2
8
2
0
12
10
Released
Description

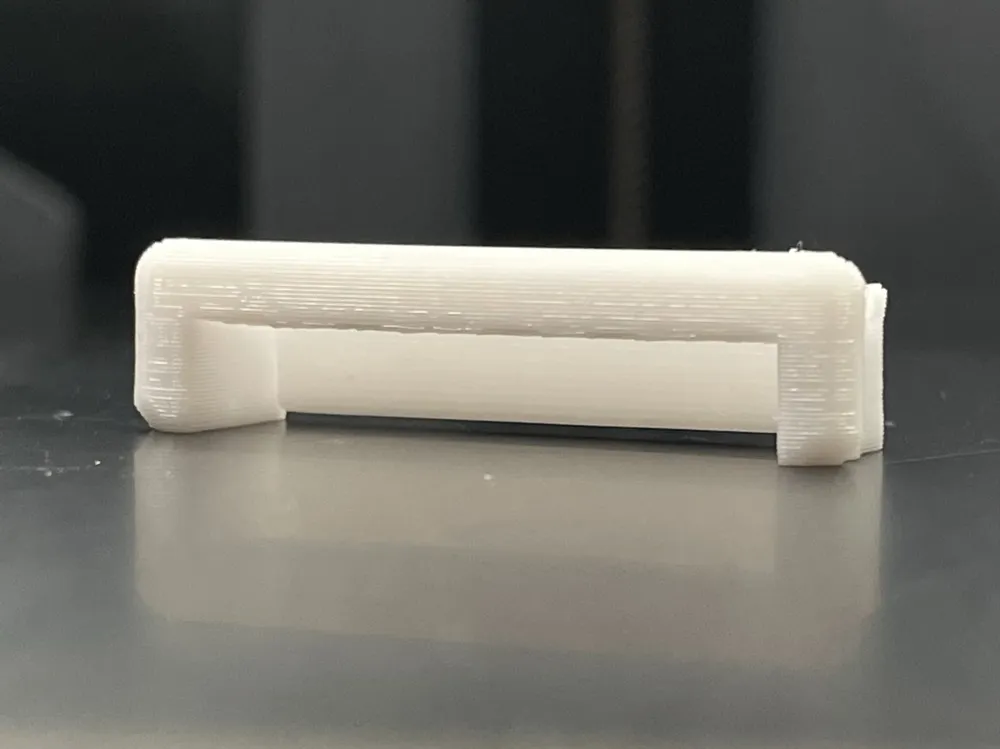

Replacement Rectangular Weep Hole Cover (w/bug flap)
The bug flap is designed to move outwards only and to also resist popping loose when pushed outwards by water flow.
Printing
- Supports required (Narrow tree supports work well)
- PETG recommended due to flexibility requirements
- Print in the orientation indicated in the print profile for greatest horizontal strength
Assembling

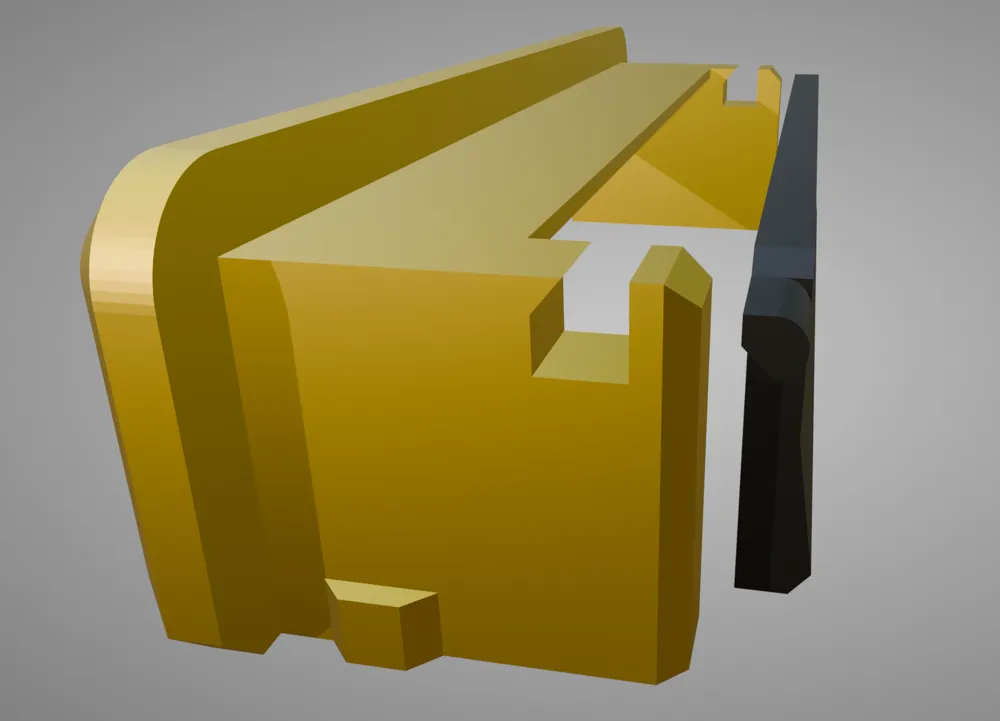

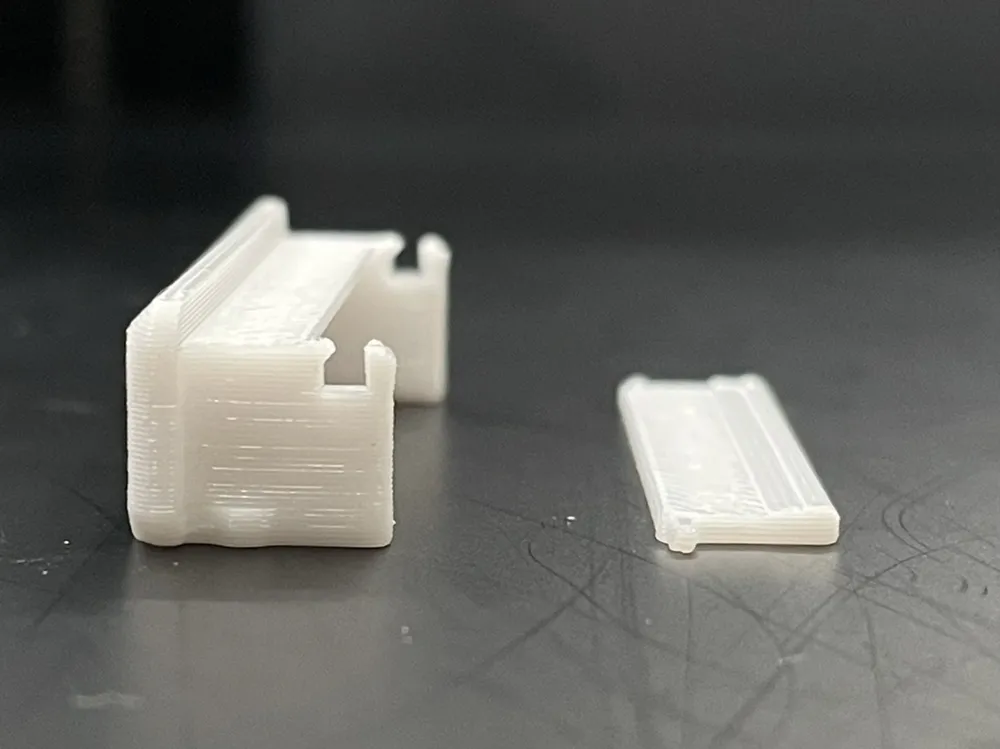

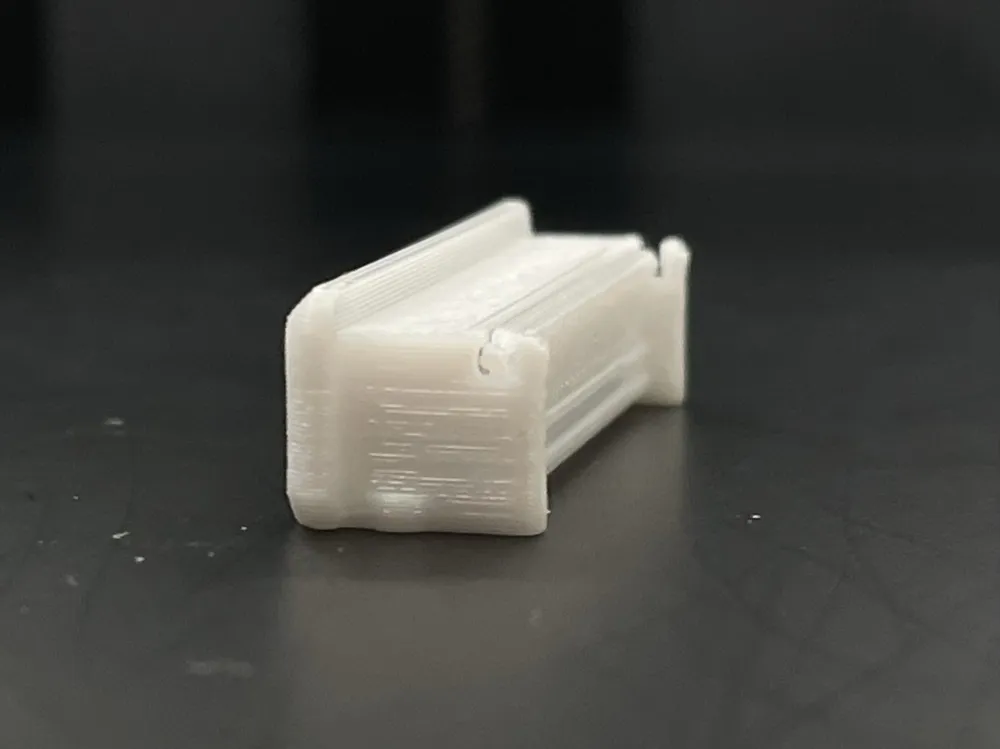

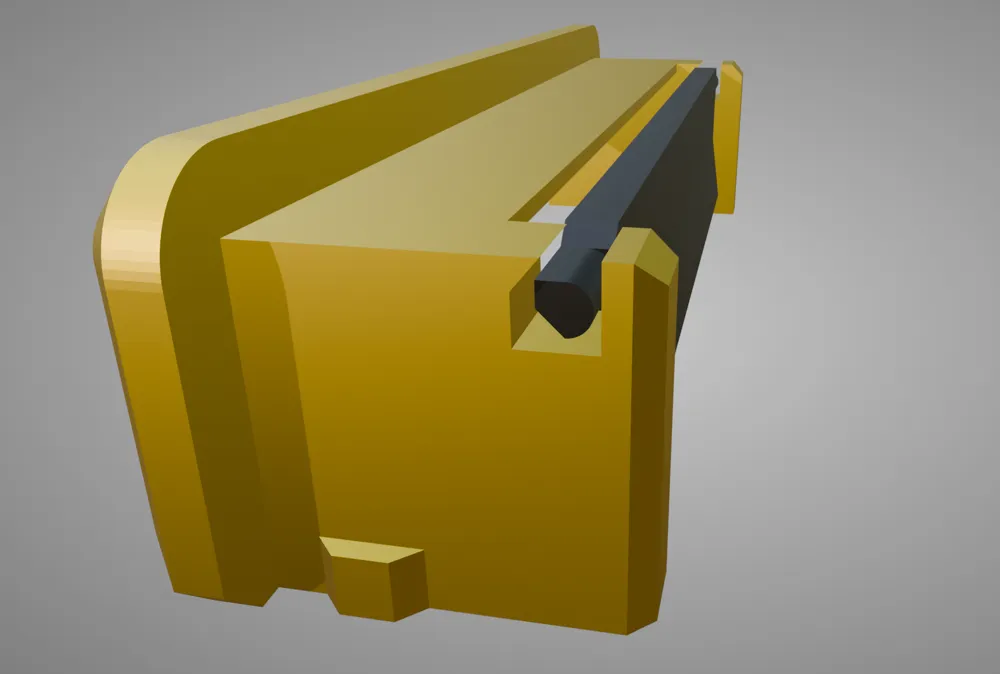

- Orient the flap so the flat side faces outward and gently push the flap downwards into the gap at the rear of the case (see images)

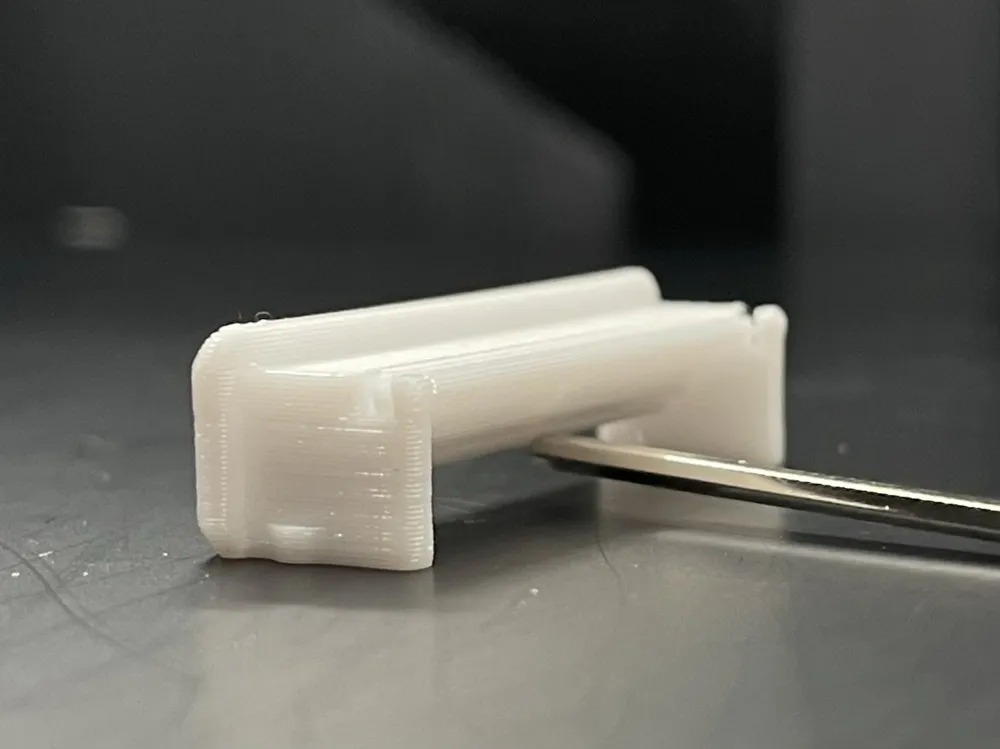

- Test the motion of the flap as it should only open outwards as shown in the images
Installation

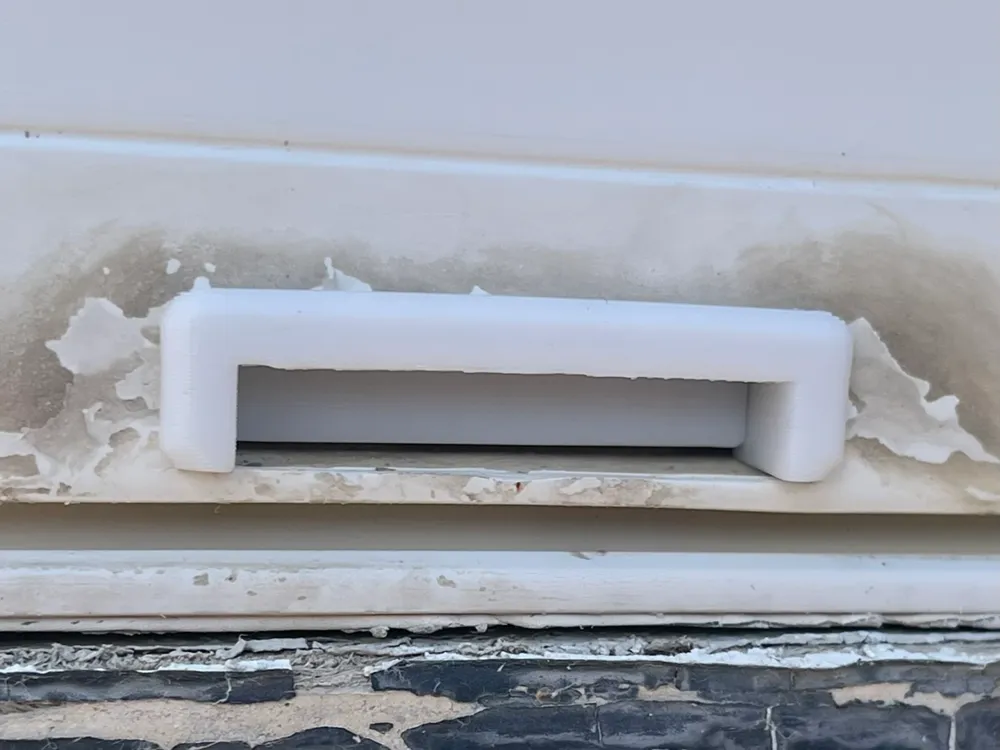

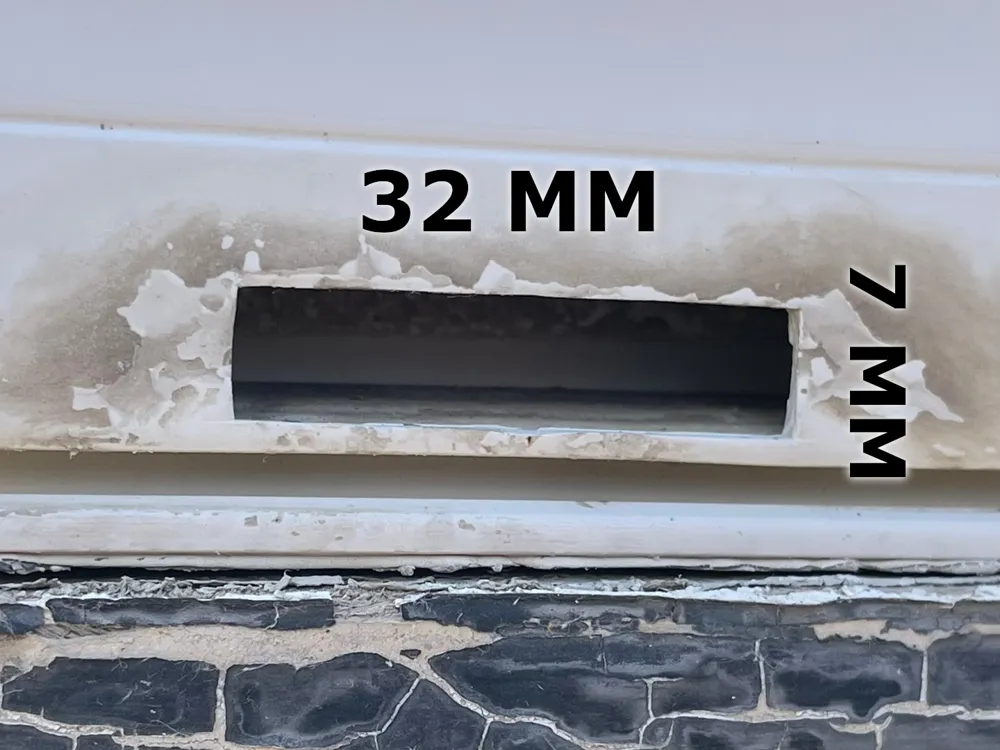

- Keeping the assembled unit upright, gently flex it as you install it into the weep hole
- Confirm visually that the bottom of the flap remains even which indicates that it remained seated in the case during installation
