Dual AMS Drawer-style Mobile Workstation - for Bambu Lab P1S / X1C [Aluminum Profile]
Print Profile(1)
Description
Introduction

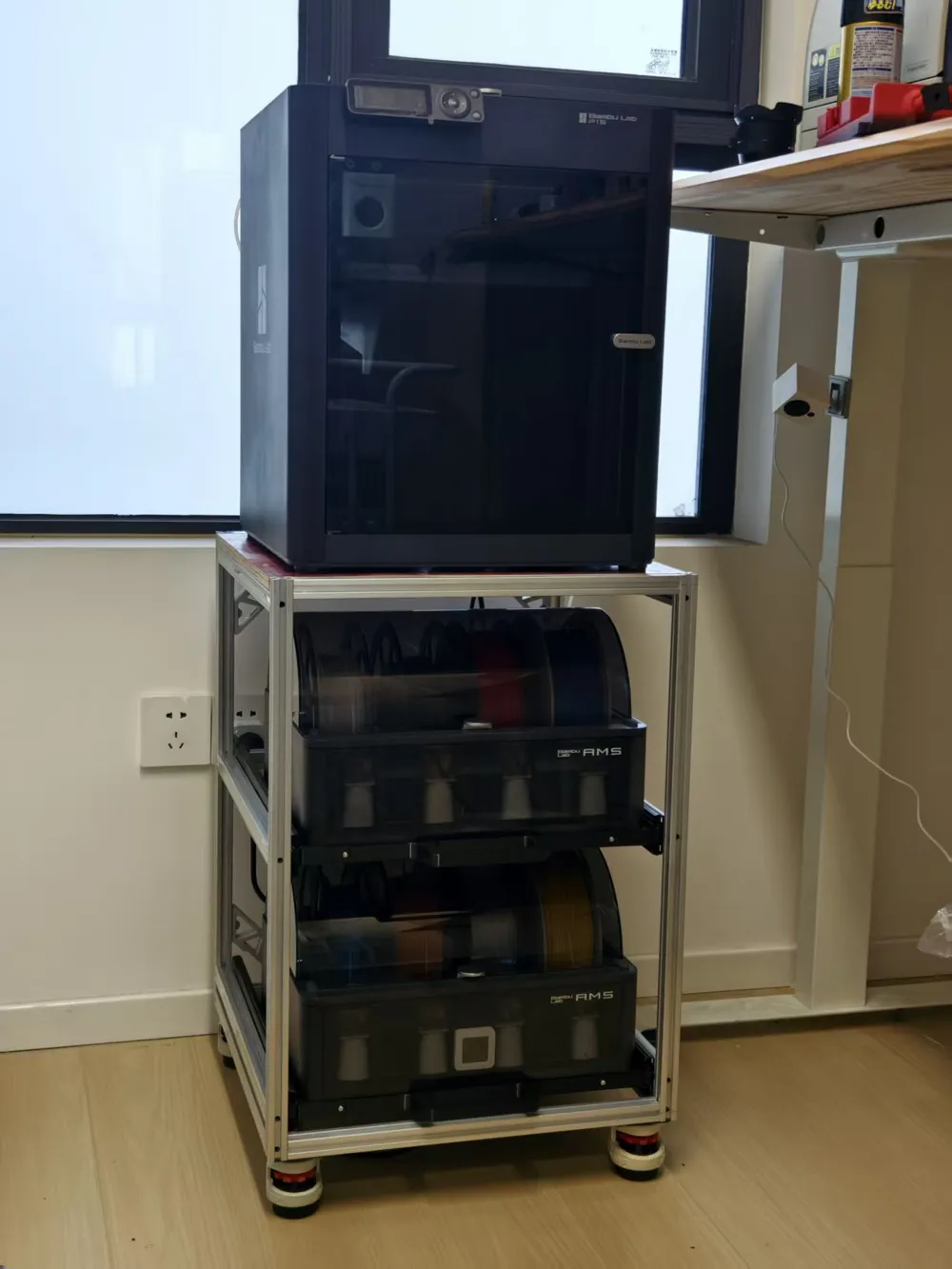

This is a mobile 3D printing workstation designed for Bambu Lab P1S/X1C users. It addresses the challenges of printer placement and movement, as well as stacking multiple AMS units, doubling space utilization! It also provides the STEP source files for the tray, allowing for self-modification to adapt to P2S and AMS 2 PRO.

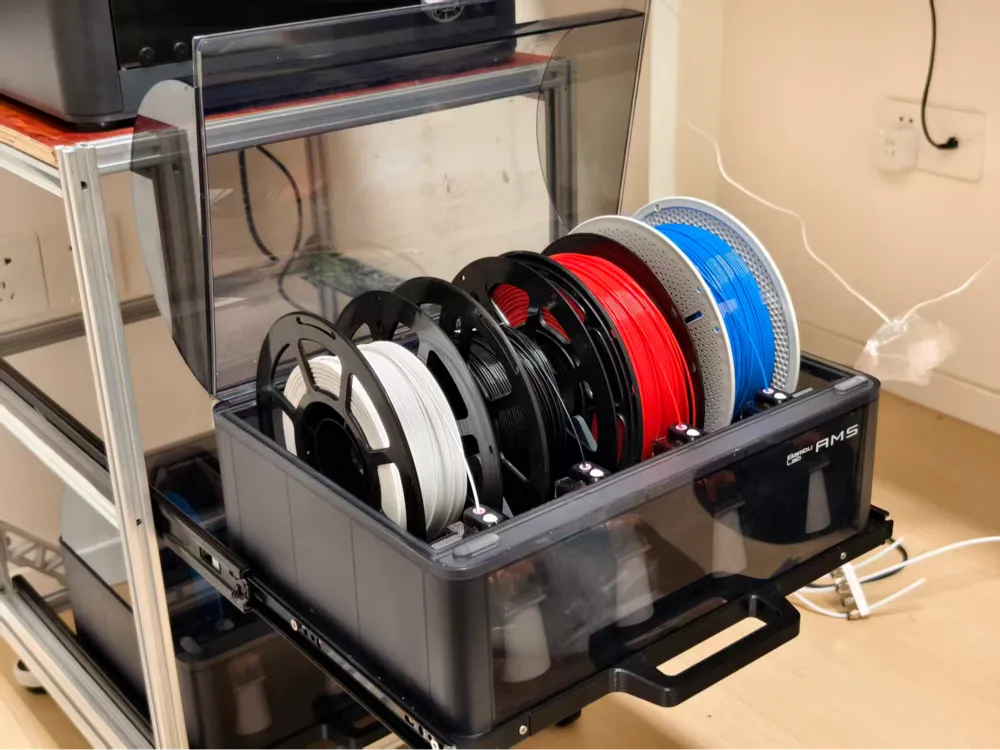

- Drawer Structure: The lower part can accommodate two AMS units. By installing 40CM (16-inch) three-section buffered slides, you can easily pull out the AMS units like drawers for filament changes, without affecting the operation of the printer above.
- Profiles: Offers two aluminum profile options: 2020 or 3030, allowing flexible selection based on available materials.
- Compatibility: The internal width of the tray is 7mm wider than the AMS, theoretically allowing for AMS2 Pro. STEP files are also provided, making it convenient for users to modify based on different slide thicknesses.
- Rock-Solid Stability: The bottom features 4 40F leveling casters, which are rock-solid after leveling, transforming into a 'mobile workstation' by retracting the support feet.
Open Source: Provides the original STEP files for the tray, facilitating secondary development based on personal slide specifications or AMS models.
Note: Installing the dual AMS drawer requires additional AMS extension cables and PTFE tubing. All profile connections use end screws, and the profiles have wrench holes; refer to the BOM for hole spacing.
BOM List

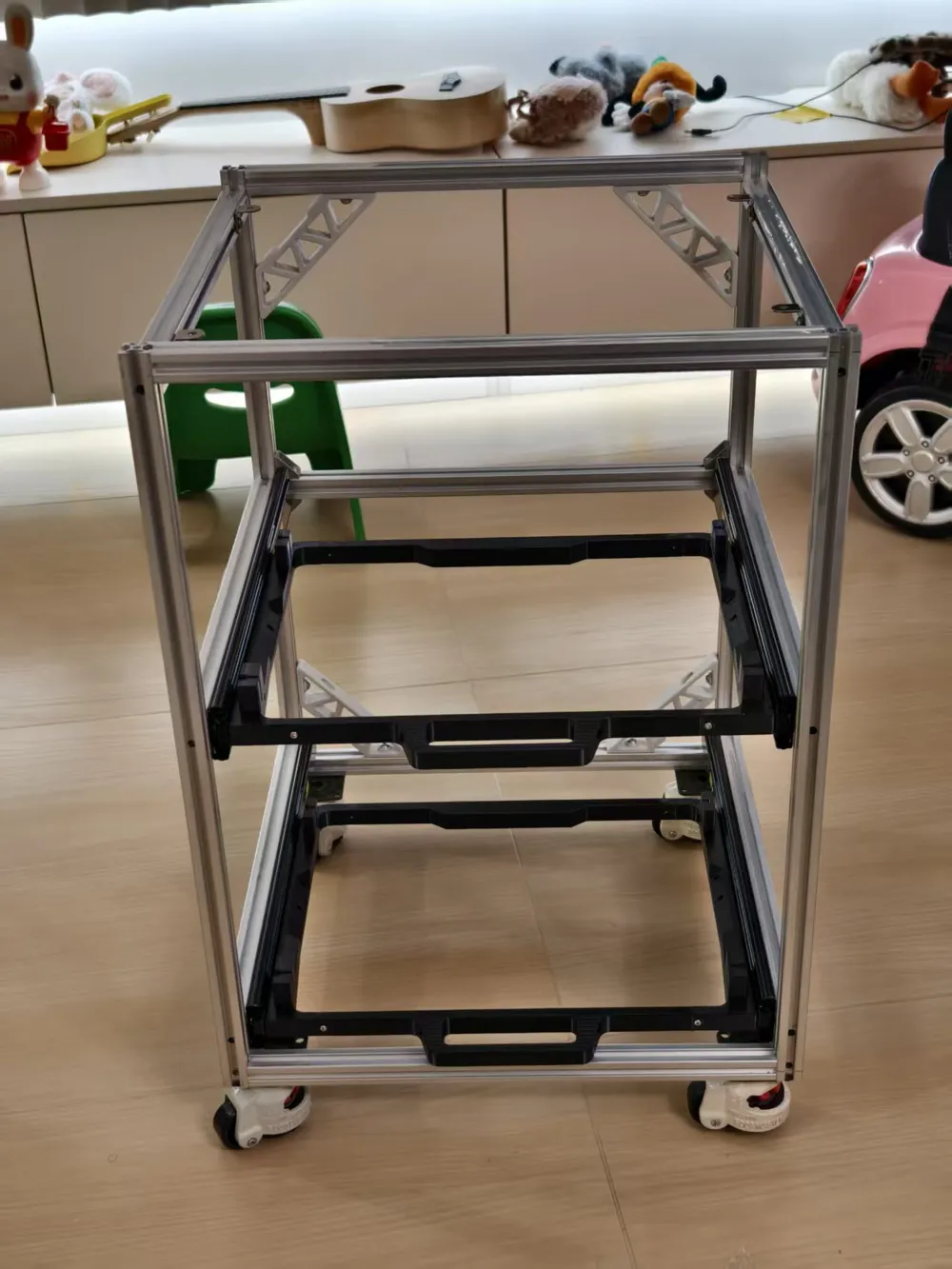

1. Structural Profiles - Choose One
- 2020 Profile Scheme:
- 2020-L400-DA (tapped on both ends) × 13
- 2020-L600-LK-A10-B32.5-C282.5-D250-LM-A10-B580（wrench hole spacing） × 2
- 2020-L600-LK-A10-B32.5-C282.5-D250-LM-A10-B315-C265（wrench hole spacing） × 2
- 3030 Profile Scheme:
- 3030-L400-DA (tapped on both ends) × 13
- 3030-L600-LK-A15-B37.5-C272.5-D245-LM-A15-B570（wrench hole spacing） × 2
- 3030-L600-LK-A15-B37.5-C272.5-D245-LM-A15-B310-C260（wrench hole spacing） × 2
2. Hardware Components
- Slides: 14-inch buffered three-section slides × 2 pairs (single side thickness 1.25cm)
- Casters: 40F leveling casters × 4
- Screws and Nuts:
- M6 × 12 button head screw × 26 (for 2020 profile connection, choose one)
- M8 × 14 button head screw × 26 (for 3030 profile connection, choose one)
- M4 × 8 flat head screw × 16
- M5 × 8 button head screw × 8
- M4 T-nut × 8 (compatible with 2020 or 3030 profiles)
- M5 T-nut × 8 (compatible with 2020 or 3030 profiles)
- M4 × 5 × 5.5 heat-set insert × 8
- Top Panel: 15mm thick (2020 version: 440×400mm / 3030 version: 460×400mm) × 1
3. 3D Printed Components
- AMS Support Tray (one left, one right, select based on profile version)
- Profile Connection Reinforcements (optional)
Installation Tips
- Heat-set Inserts: Please embed M4 heat-set inserts into the corresponding holes of the printed tray to secure the slides.
- Slide Installation: Ensure the slides are installed horizontally to guarantee smooth drawer operation.
- Cable Routing: It is recommended to reserve sufficient length for AMS data cables and PTFE tubing to prevent excessive pulling when the drawer is extended.

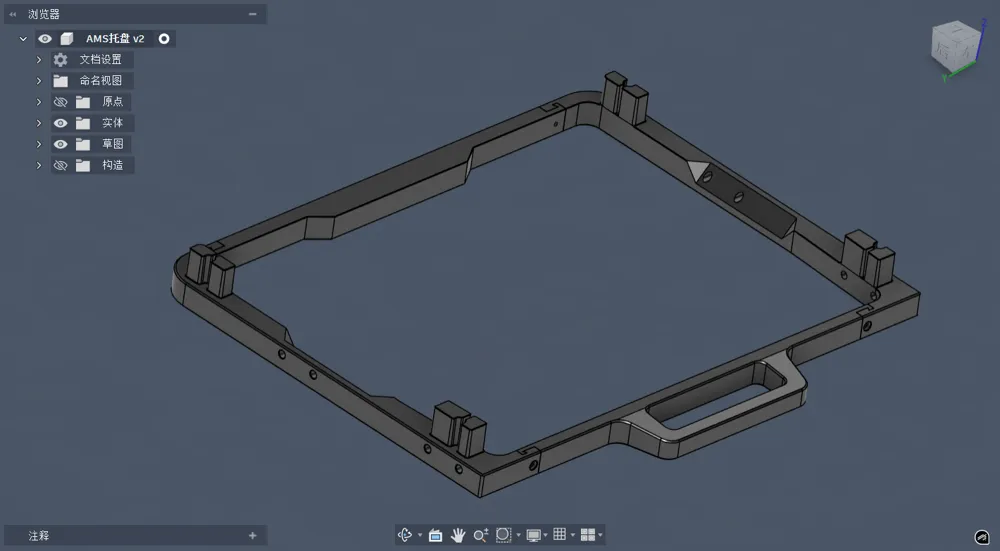

- File Description: .STEP files have been uploaded; if you are using different slide specifications, you can easily modify the tray width.
