Lumina-Layers 6-Color Benchmark Model
Print Profile(1)
Bill of Materials
Description

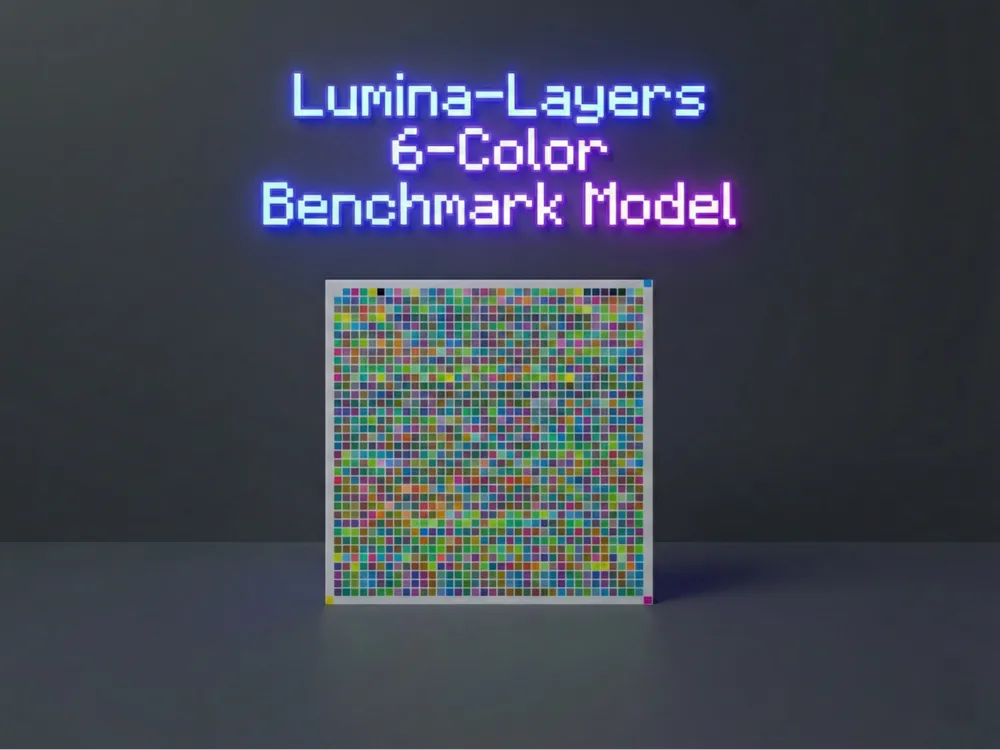

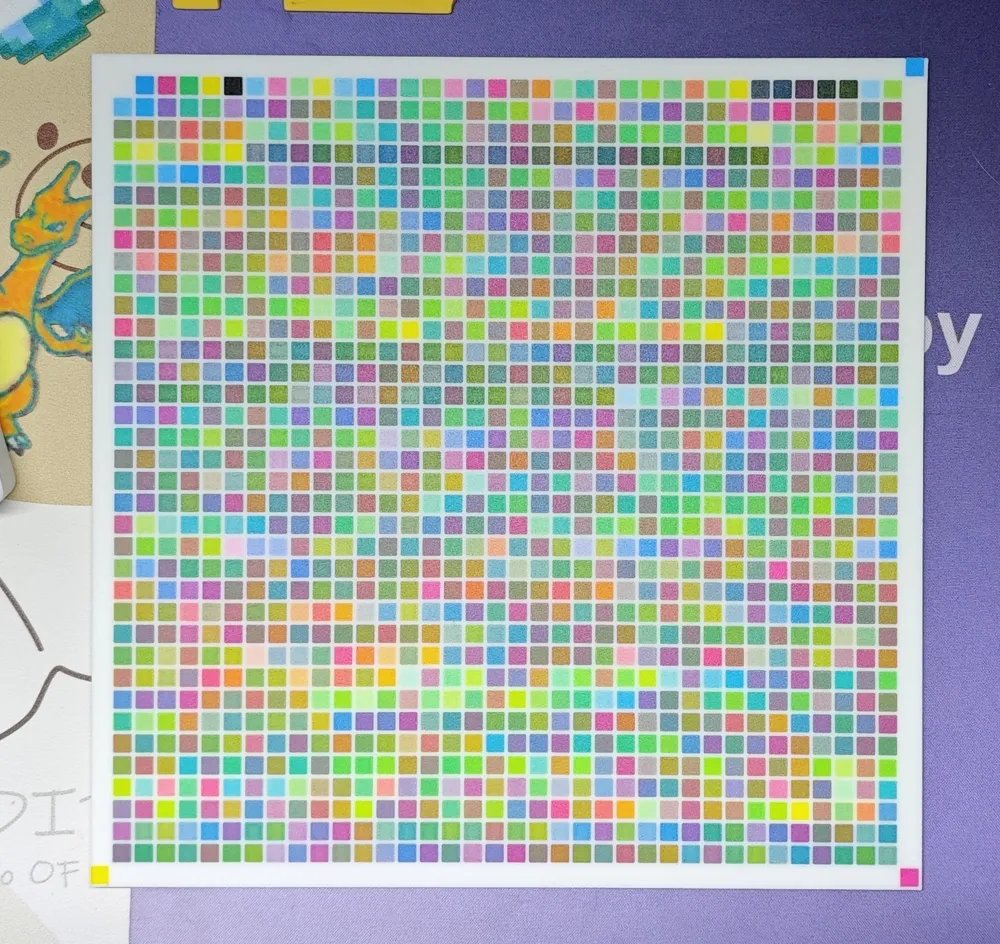

✨ Official 6-Color Benchmark Model for Lumina-Layers
This is the official benchmark model specifically designed for the Lumina-Layers blending engine. Use this model to visually verify the stacking effects of 6-color filaments and calibrate your Transmission Distance (TD) settings for perfect results.
🎨 Why 6 Colors? The core power of Lumina-Layers lies in breaking the limits of traditional CMYW lithophanes. By introducing 2 extension colors (such as Green, Deep Blue, or Red), we massively expand the printable color gamut for smoother and richer gradients.
⚙️ Filament Setup (Flexible) The model is sliced with the following default configuration, but feel free to swap filaments within the same color family:
- Base: ⚪White + ⚫Black + 🟡Yellow + 🟢Green
- Variable Group:
- Default: 🔵Cyan + 🔴Magenta
- Blue Theme: Swap for Deep Blue + Sky Blue
- Red Theme: Swap for Red + Orange
🖨️ Print Settings (Critical!) This model is highly sensitive to layer height. Please strictly follow these settings:
- Layer Height: 0.08mm
- First Layer Height: 0.08mm (⚠️Important: Do NOT use the default 0.2mm, or the color blending will be inaccurate.)
- Backing Layer: The 3MF file includes a pre-configured Height Modifier. The backing base will automatically print at 0.2mm for speed and strength.
- Infill: 100% (Rectilinear)
