P2S/X2D hotend case
Print Profile(3)
Description

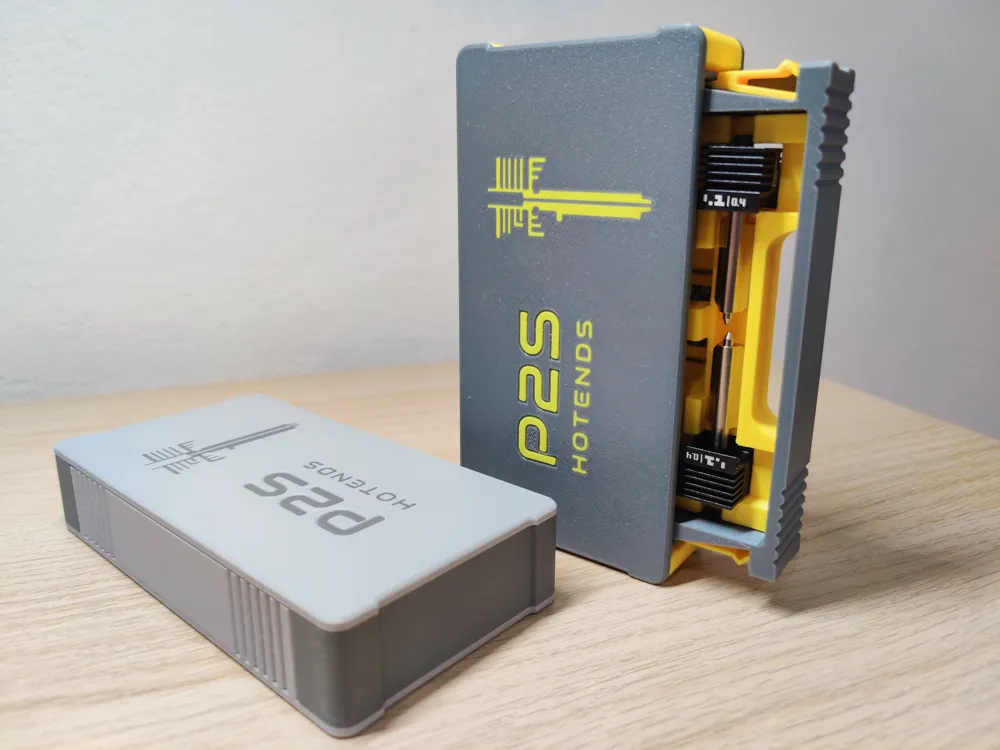

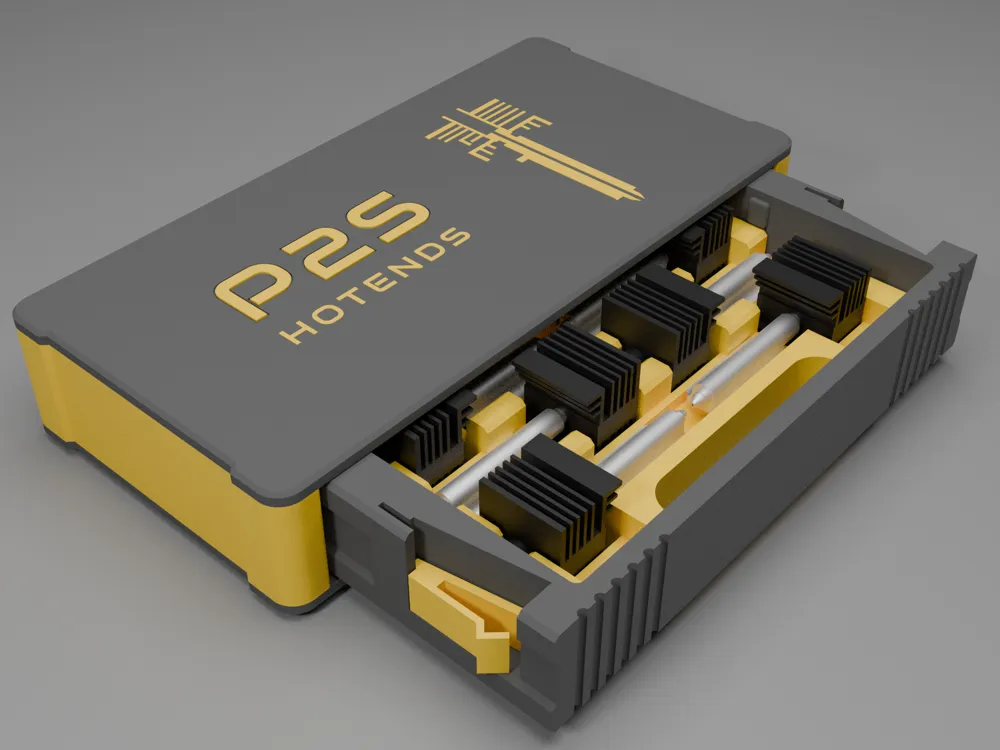

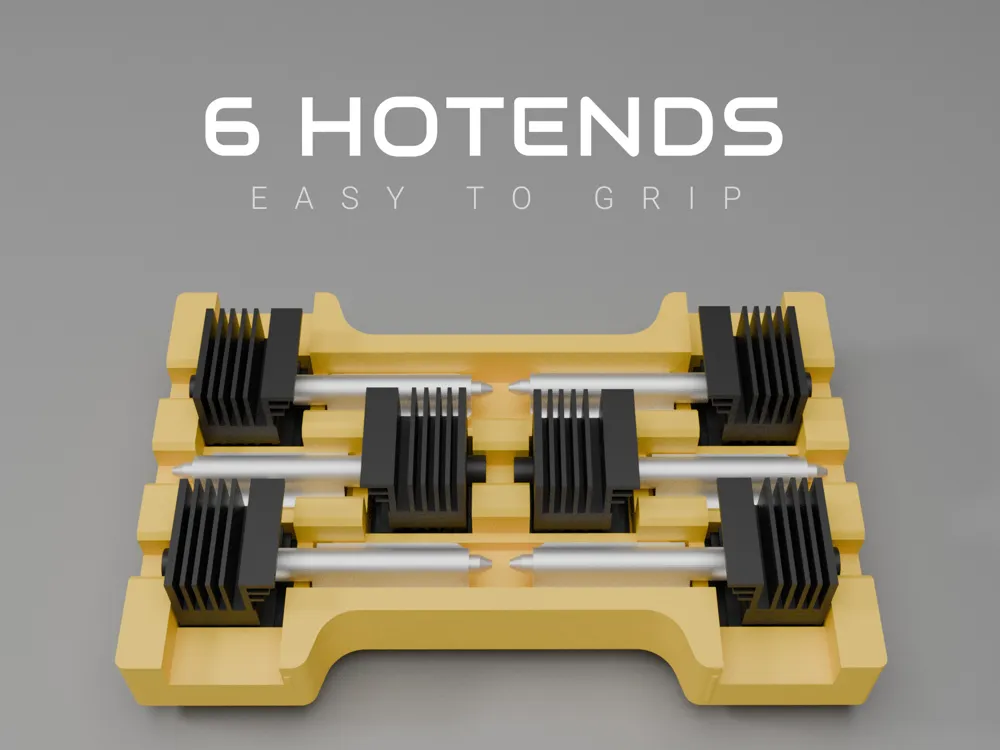

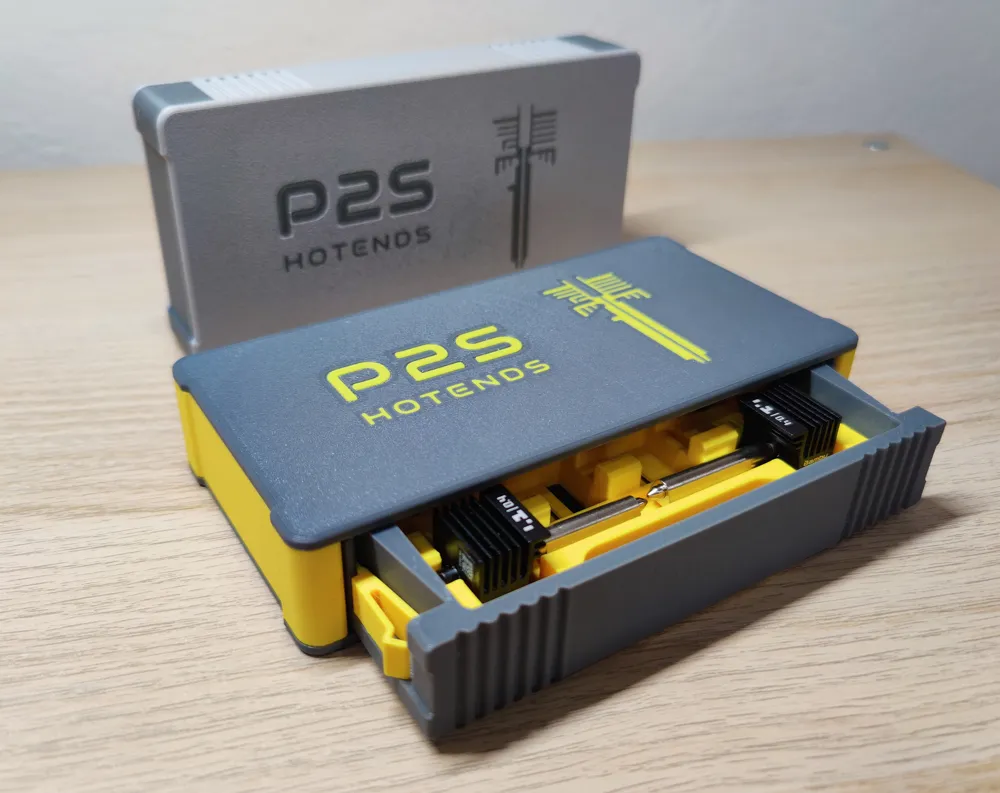

A case for 6 hotends easy printable in PLA or PETG, no support needed.
It closes with a click and holds the hotends firmly in the box.

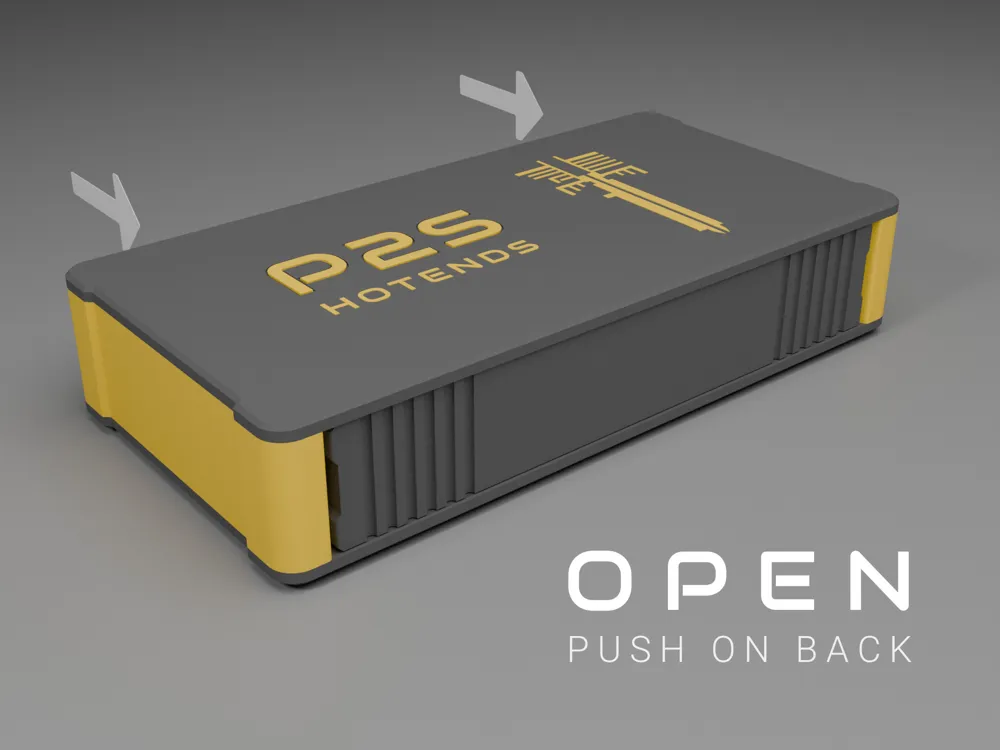

To open it agein just push from the back side ( left and right simultaneously )

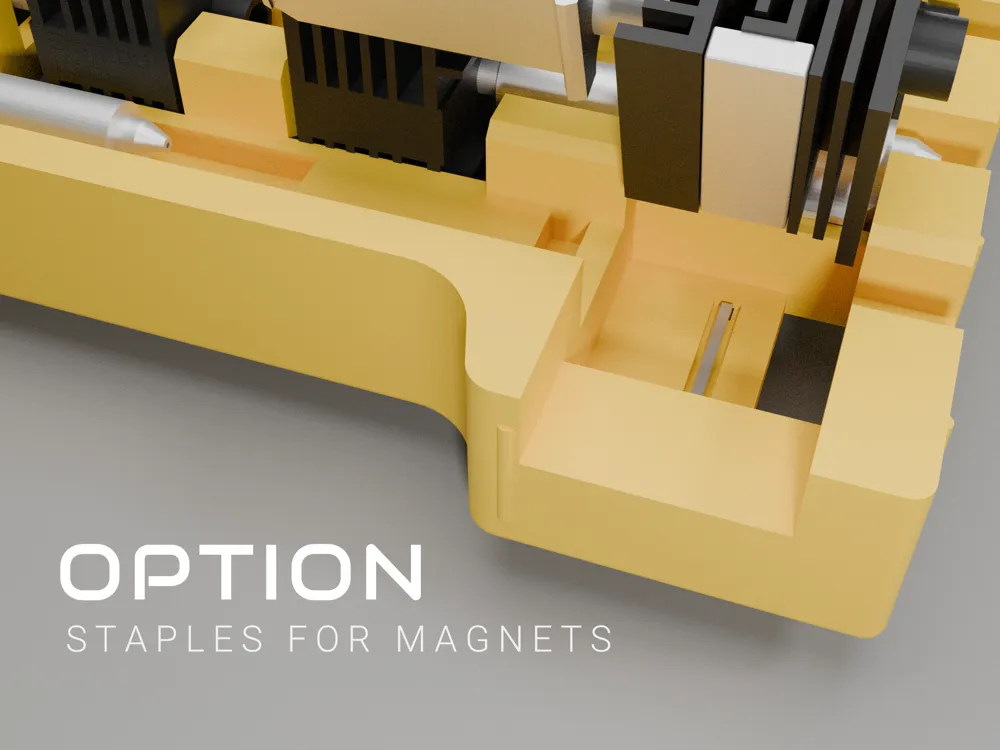

Optional you can insert standard staples ( 24/6 ) to hold the hotends by their magnets.
Assembly ( details can be found in the provided PDF ):
No screws or glue needed, just press them together with little force.
The round pins are for alignment and the small pins holding the parts together ( press fit )
Plate 1
Nozzle holder and tool for easier inserting staples
Plate 2
Drawer with lock pins for holder
Plate 3
Plate connectors and lock pins
Plate 4
Top and bottom plates ( top has text and logo )
Update 26.04.2026 - added logo for X2D ( share the same nozzles )
Check out a holder for IKEA Skadis (from MODELU.)
https://makerworld.com/en/models/2815062-skadis-holder-for-p2s-x2d-nozzle-toolbox#profileId-3134008
Have fun
