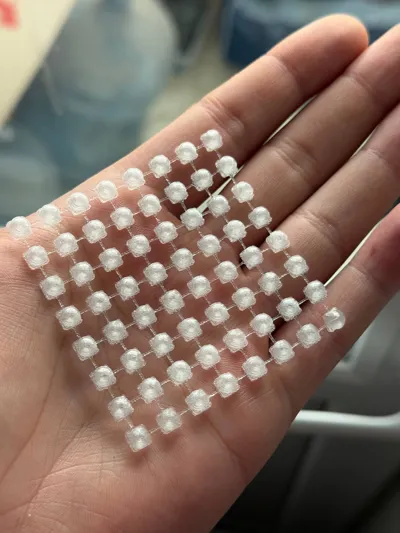

Led difuser
Designer
59 min
1 plate
Open in Bambu Studio
Boost
17
39
0
3
40
17
Released
Description

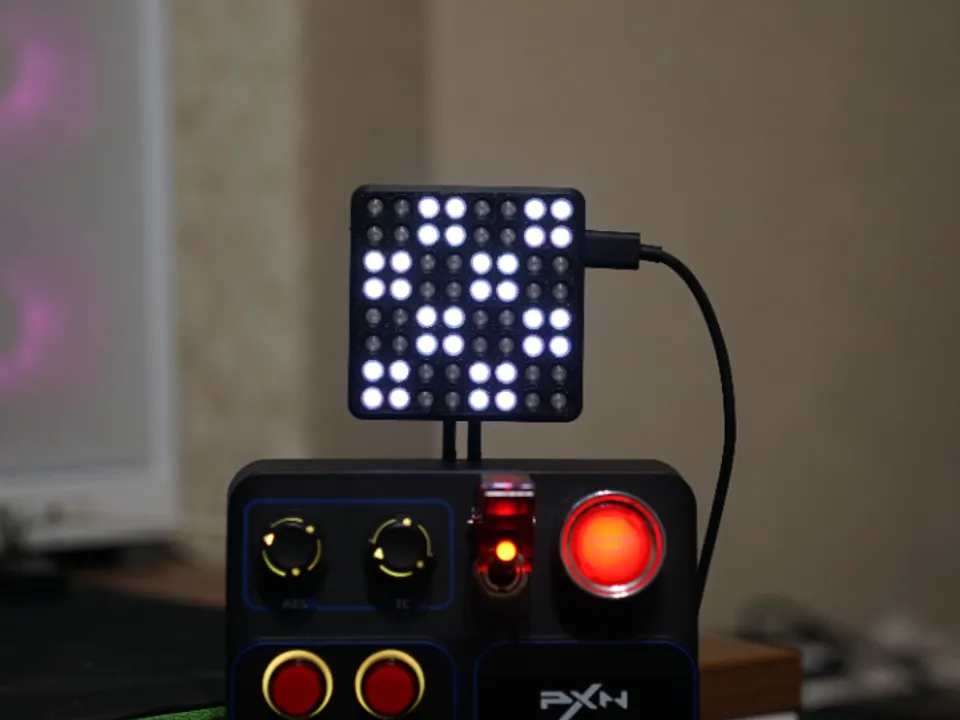

This is a SimHub-compatible Race Flag LED module designed specifically for mounting on the PXN CB1 button box.

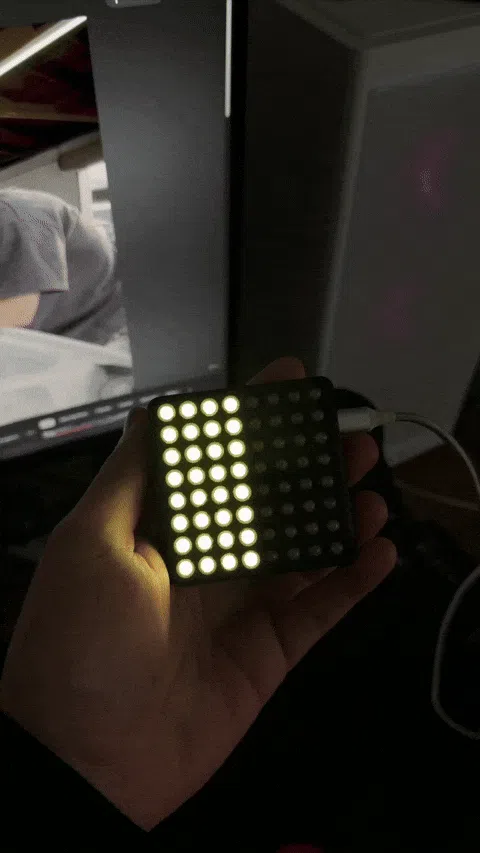

It uses an 8x8 WS2812 RGB LED matrix driven by an Arduino Nano, and provides clear, bright flag indications directly in your field of view while racing.
Features
- Compatible with SimHub
- Uses WS2812 RGB 8x8 LED matrix

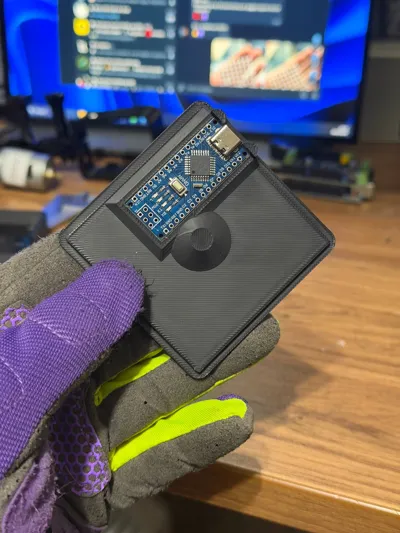

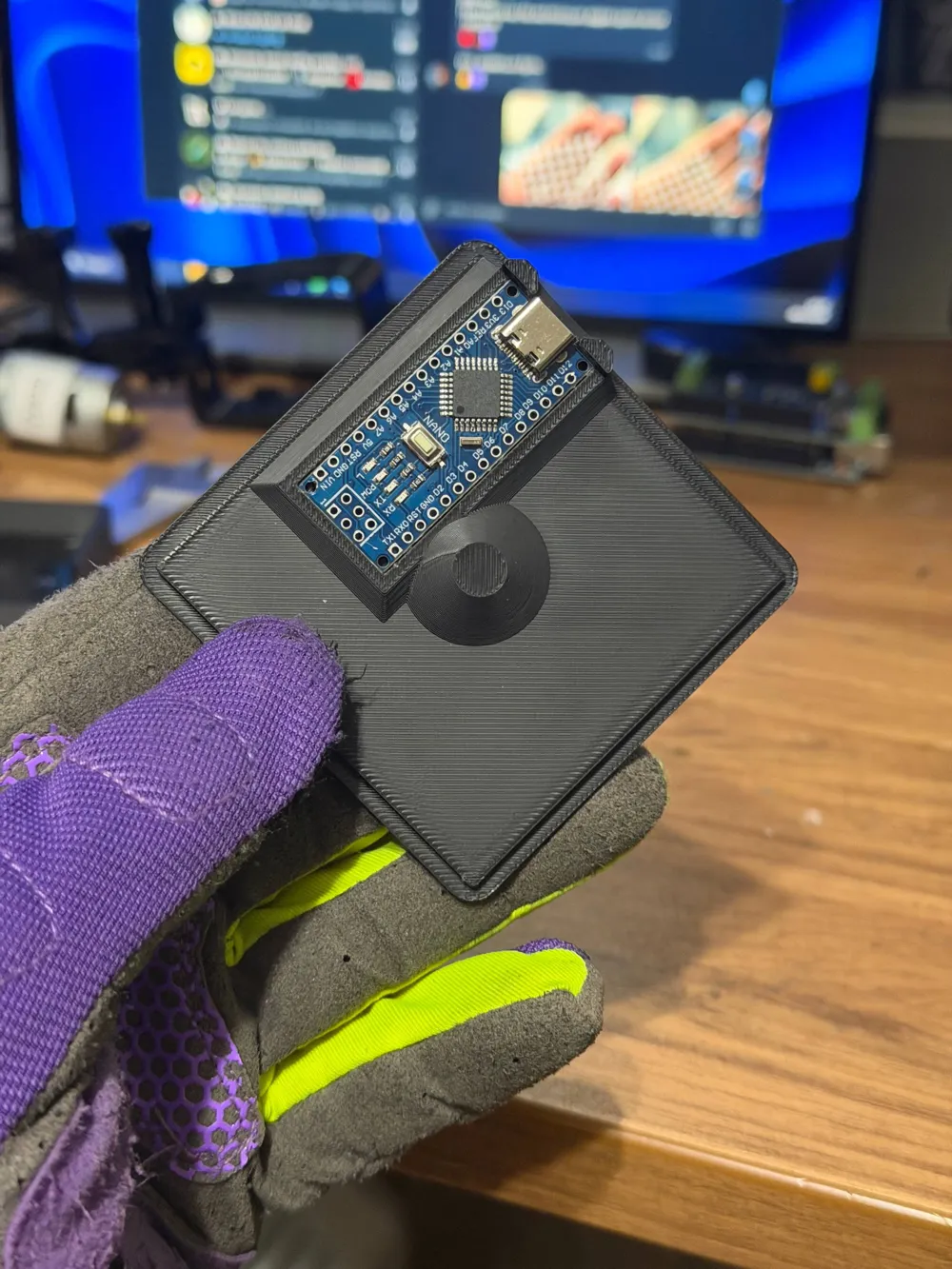

- Controlled by Arduino Nano

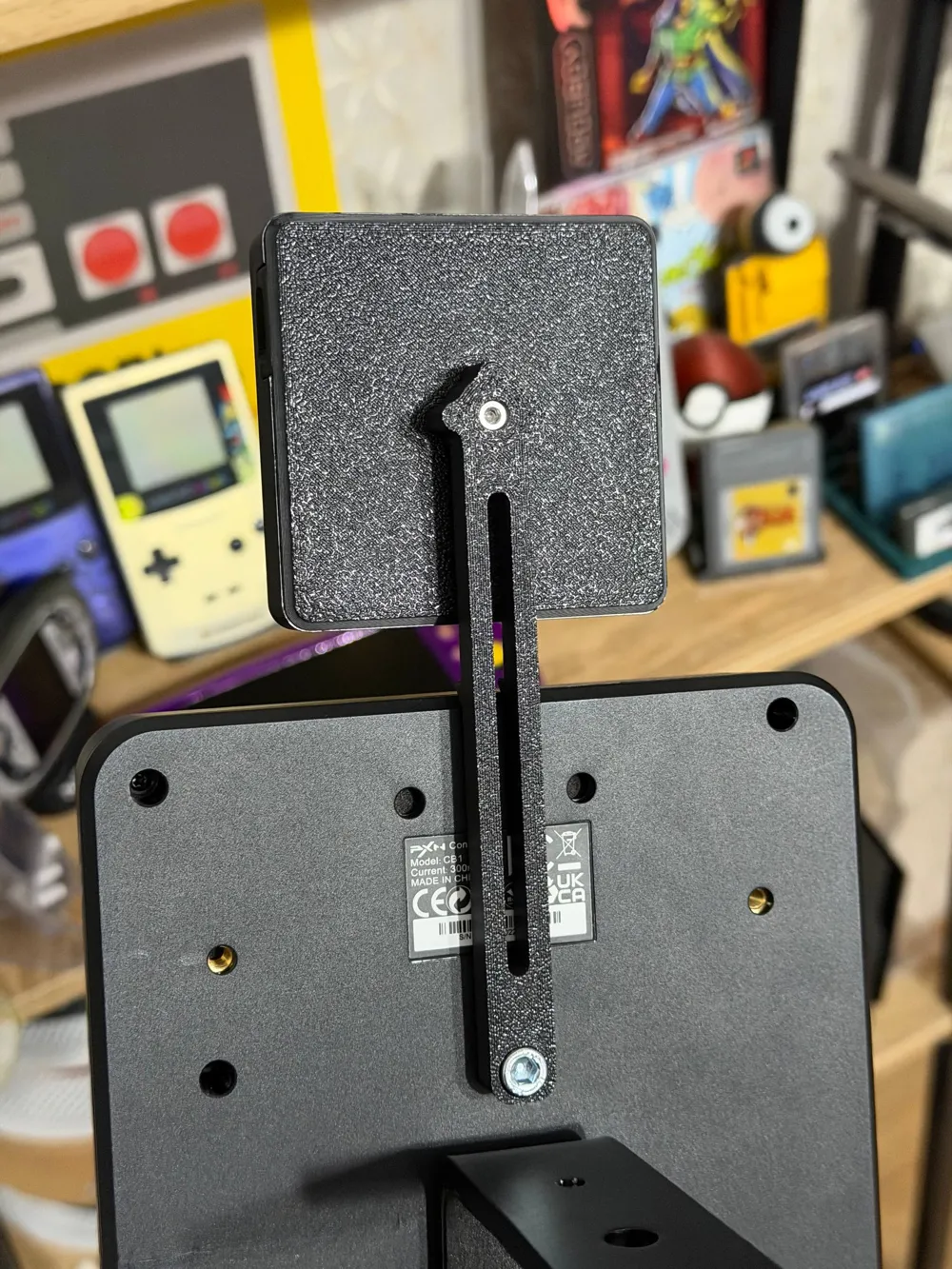

- Adjustable mounting bracket for correct viewing angle

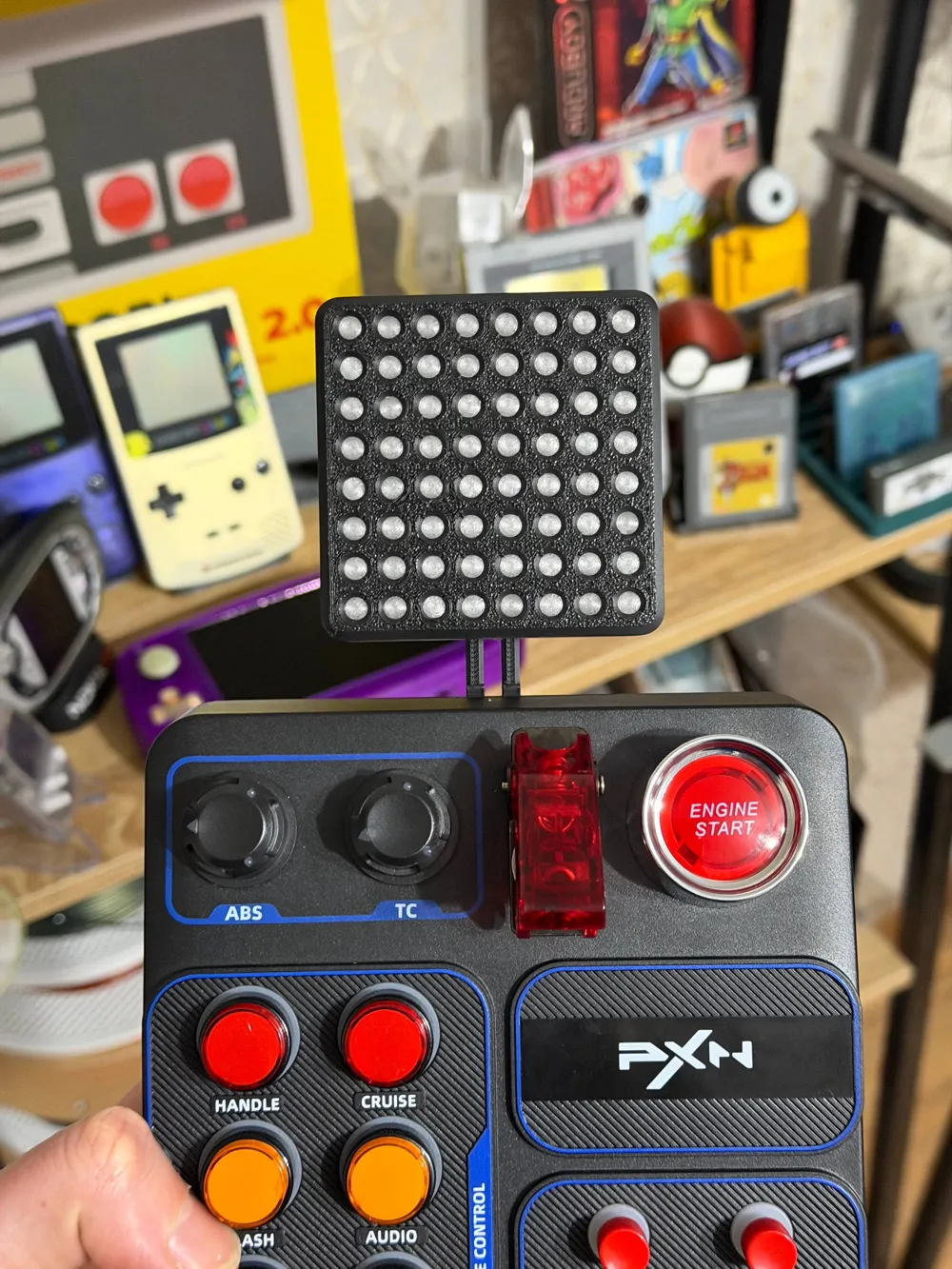

- Clean integration with PXN CB1
- Compact enclosed housing

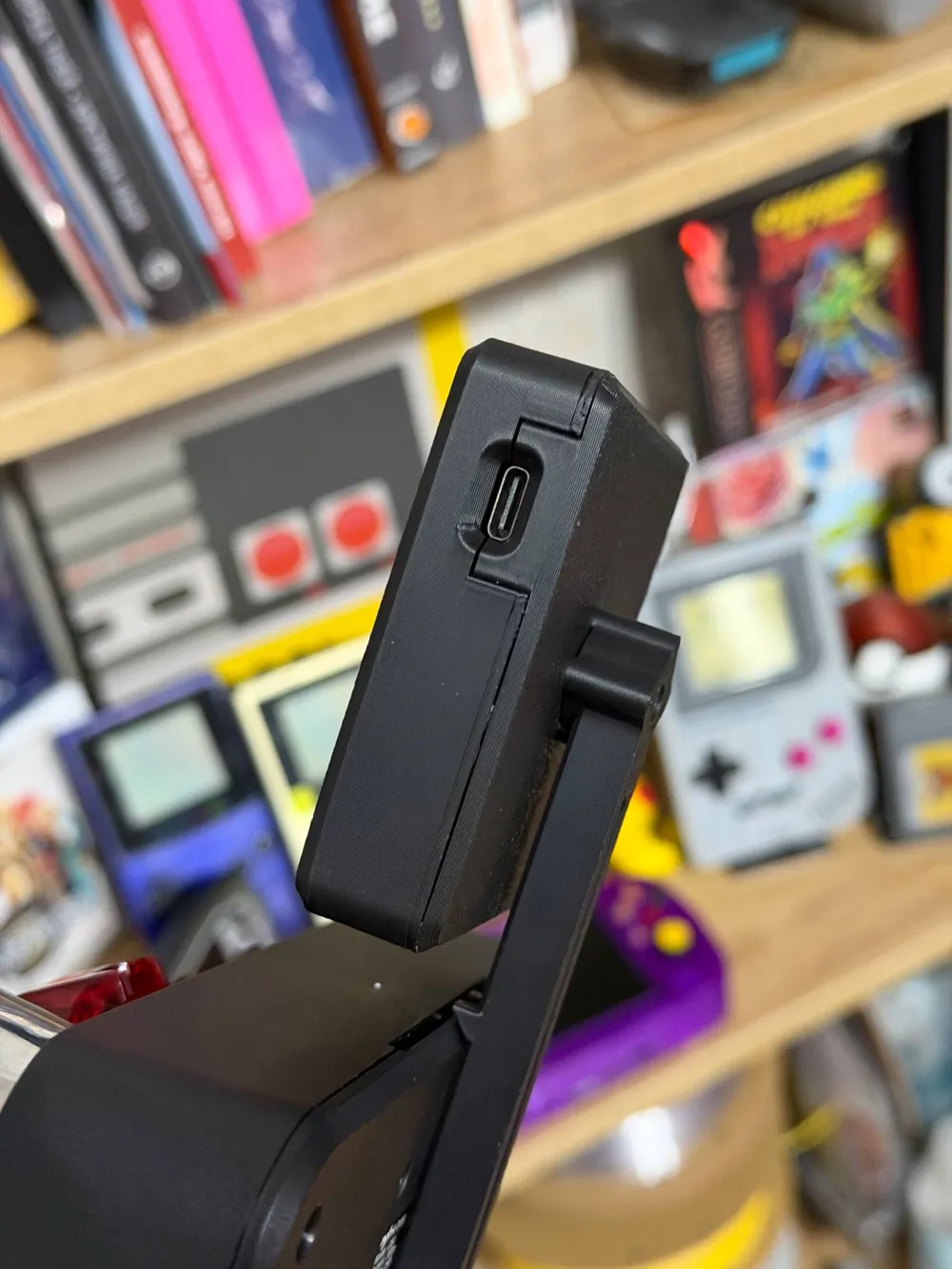

- Rear USB-C access (depending on Nano variant)
Hardware Required
- WS2812 RGB LED Matrix (8x8)
- Arduino Nano
- 1x M3x12 socket hex screw
- 1x M3 threaded insert
- 1x M5x10 screw (for PXN CB1 mounting)
