Hybrid Pickleball Paddle V2 - XL Version
Print Profile(1)
Bill of Materials
- Aluminum Bar 1/8" x 5/16" x 1: https://amzn.to/3JmTAuq
- Paddle Grips x 1: https://amzn.to/4o4hQ3S
- Plastic Bonder x 1: https://amzn.to/4qxV18W
Description

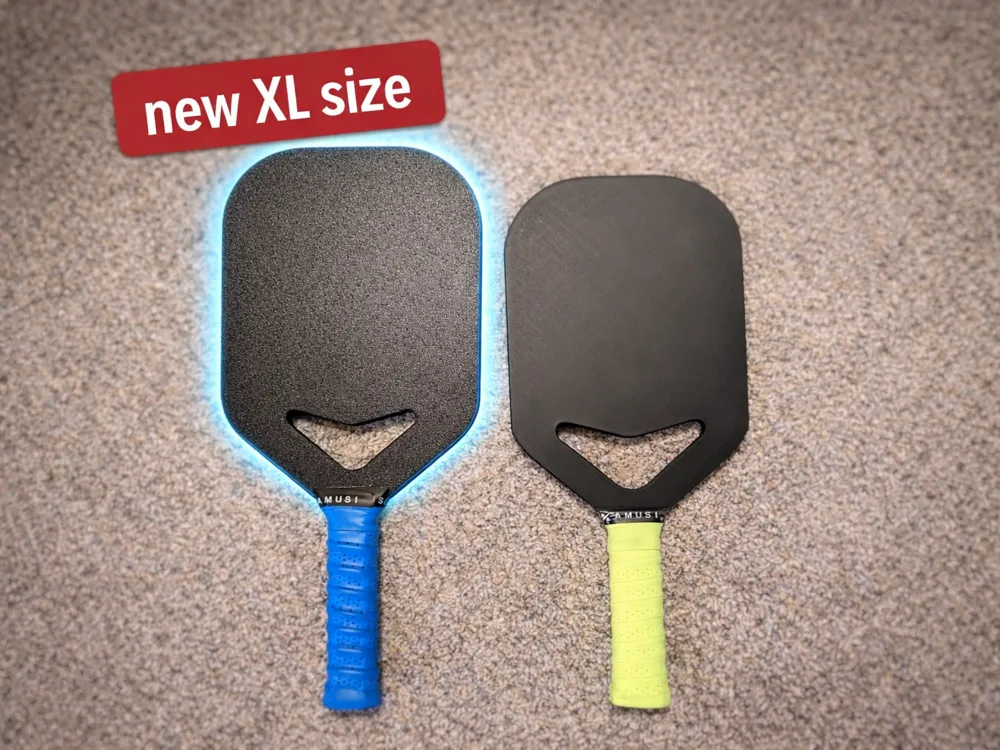

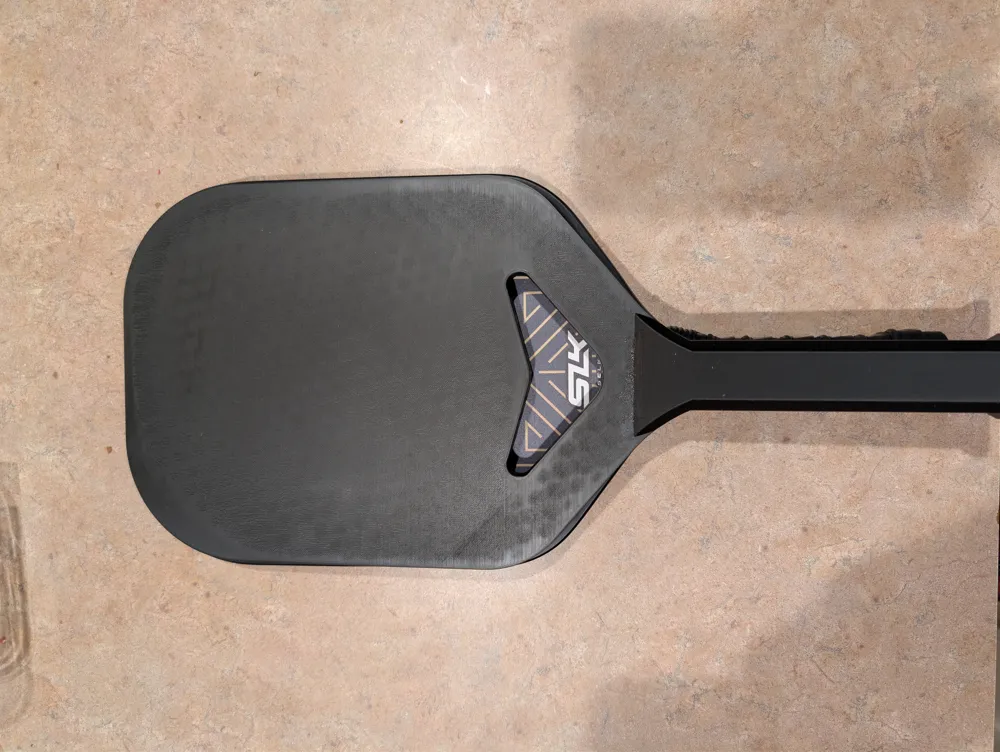

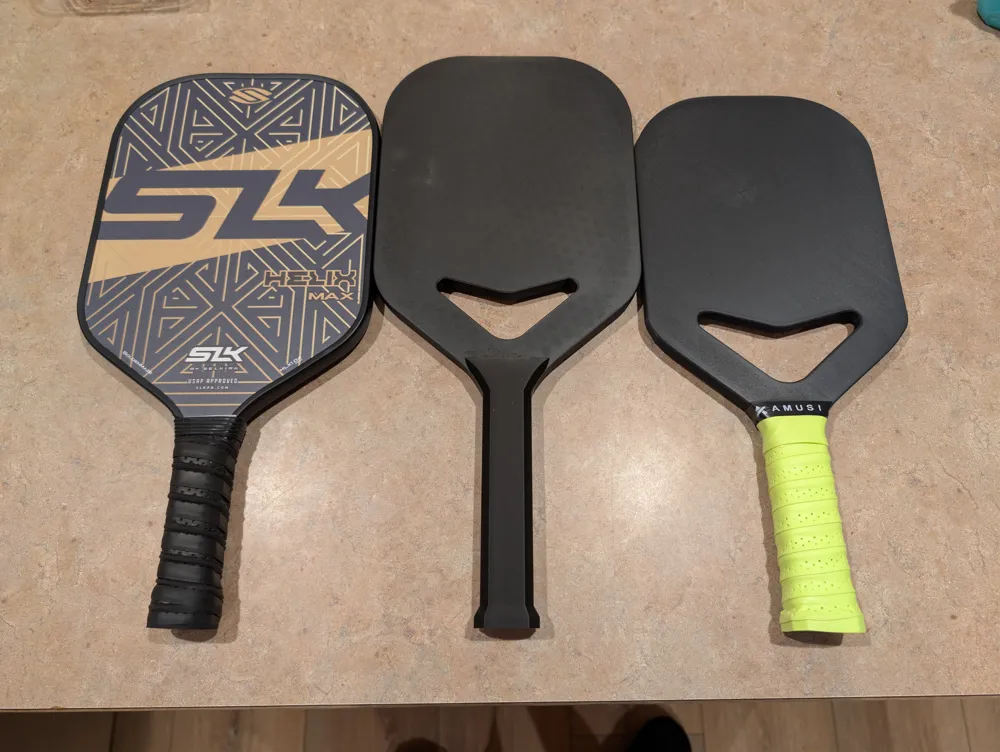

3D-Printed Hybrid Pickleball Paddle V2 | ***NOW in XL***
Lightweight • Durable • Easy to Print
This second-generation hybrid pickleball paddle has been completely redesigned for easier printing, faster assembly, and improved endurance. Built for makers and athletes alike, this paddle balances strength, control, and printability to deliver real-world performance straight off your 3D printer.
Key Features
- V2 XL Upgrade: Re-engineered internal structure for better strength-to-weight ratio (<250grams)
- Weight is centered toward the end of the paddle to deliver power better to the ball
- 15% Thicker Core: New thicker core creates more bounce
- Physics: The longer paddle creates more force naturally at point of ball contact
- Triple Handle Options: Choose between 5.75, 5.50", or 5.25 handle options

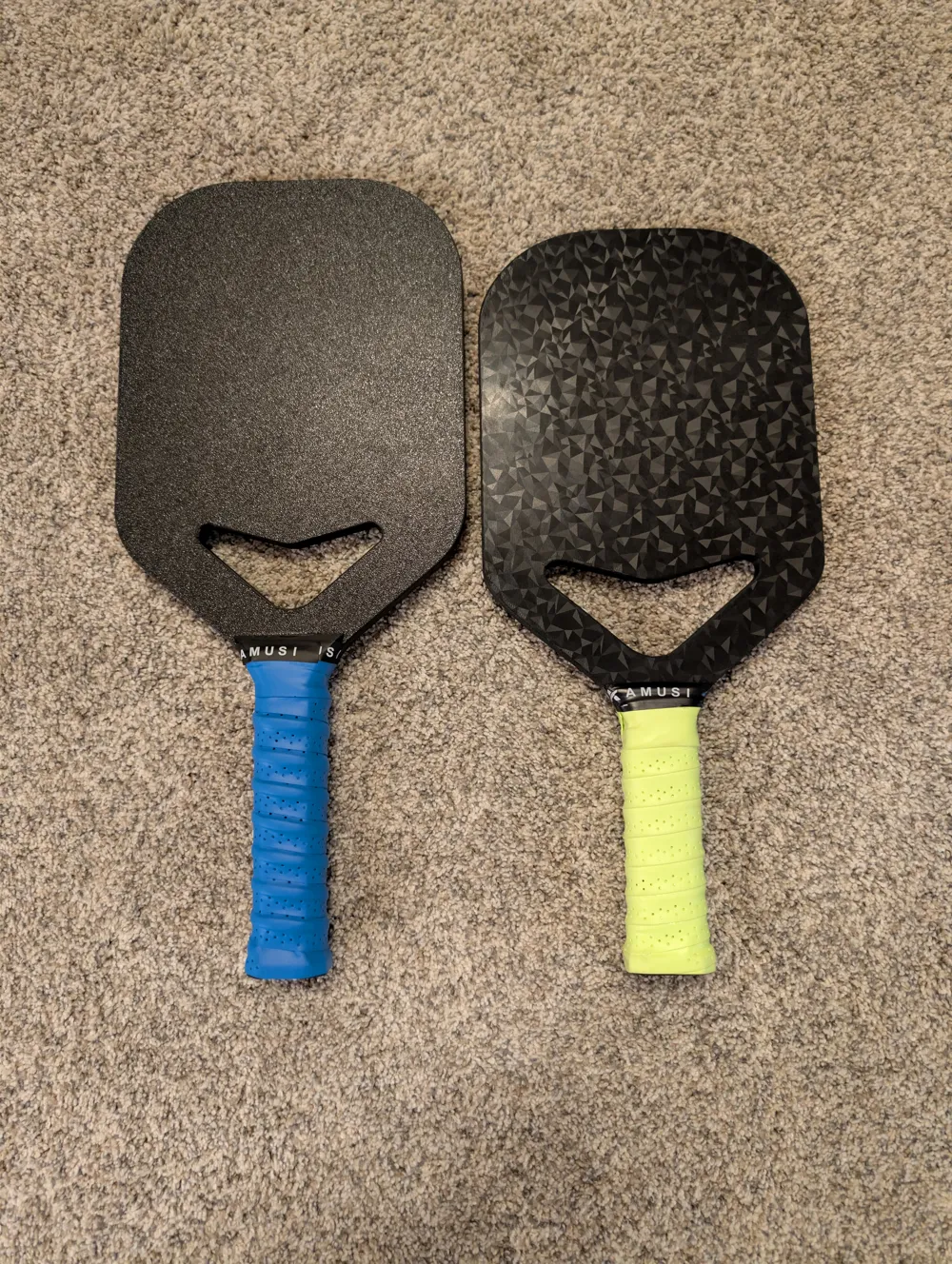

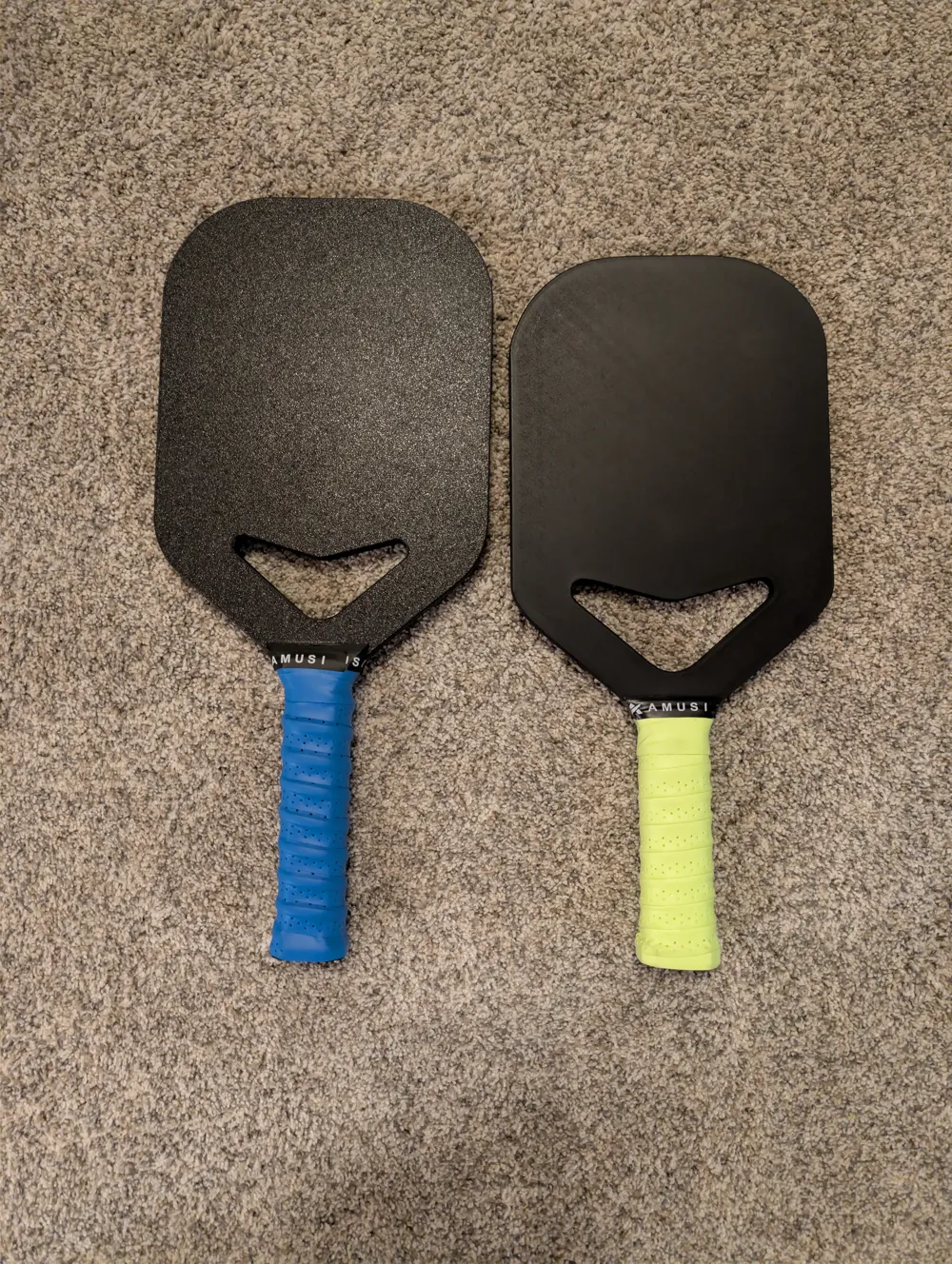

- Material Testing: Currently testing PLA 2.0 (Sunlu) and PLA-CF (Bambu) versions for endurance on both the handle and paddle face
- Durability: Unit is performing reliably through on-going playtesting and endurance trials
- 4 games currently played on new design
Assembly

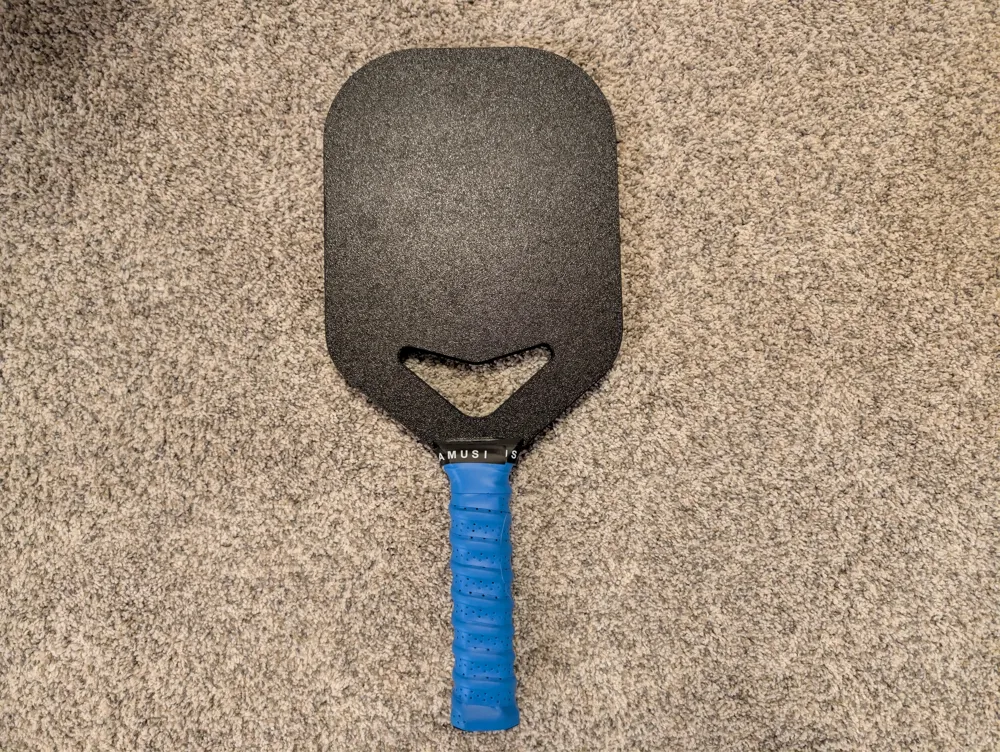

- Add a standard grip wrap or over grip of choice

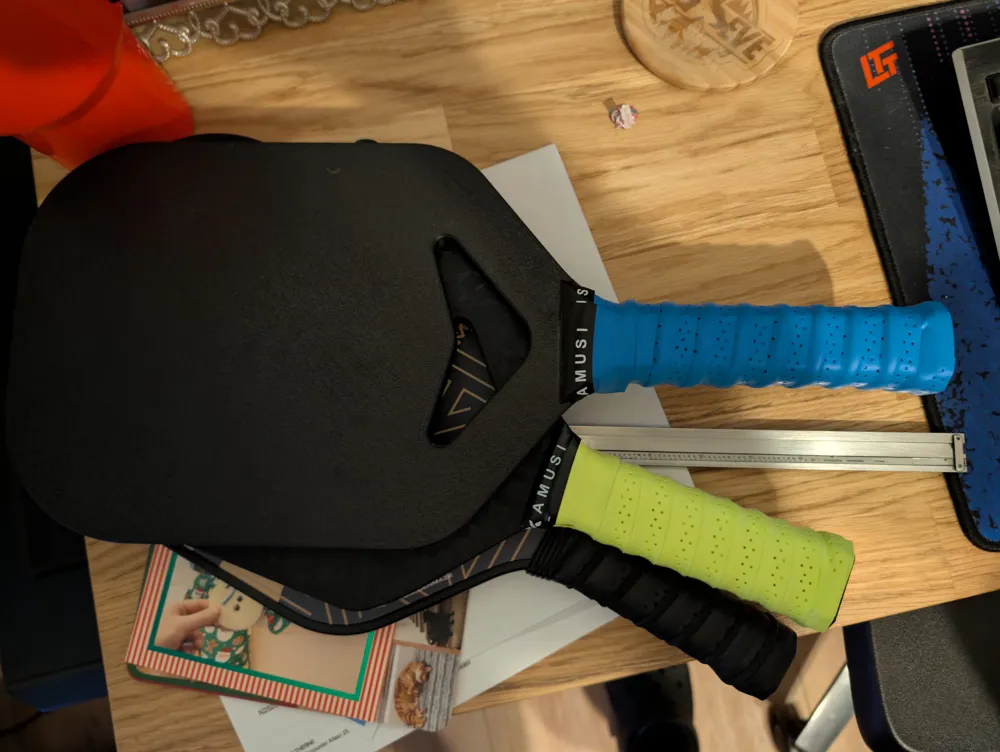

- Add an 4.5" inch aluminum bar in handle for increased strength
- Edge tape or guard recommended for long-term use
- Use adhesive of choice - (recommend plastic epoxy)
Maker-engineered. Player-tested. Competition-inspired.
Print your own hybrid pickleball paddle and experience the blend of innovation, customization, and durability that defines this next-gen design.
Design falls within the USAPA guidelines for paddle design.
- Maximum combined length and width of 24 inches
- Maximum length of 17 inches
- No reflective surfaces
- Surface roughness <30 microns (smooth pei plate required)
- No rubber or synthetic rubber or moving parts
