Nozini

cover

1.6mm Carton (Filament Box).jpg



Universal-Connector 02.png

Universal-Connector 01.png

Universal-Connector 03.png


1mm Walls (Chipboard) 1x15x20


1.6mm Walls (Filament Box Cartons) 1.6x15x20


2.0mm Wall (Acrylic Plastics) 1.6x25x25


3.0mm (Shipping Box, Foam Board) 2x25x25


4.0 mm (Heavy Carton) 2.5x25x25


5.0 mm (Foam Board, Acrylic) 2.5x30x30


6.5 mm (Double‑Wall Carton, MDF) 2.5x40x40


10.0 mm (Thick Foam Board)



<h3> Parametric Defaults</h3><ul><li>slot_thickness: 1.6 mm (matches most filament box carton walls)</li><li>slot_depth: 20 mm (secure vertical engagement)</li><li>body_width: 1.6 mm (lightweight but sufficient for carton strength)</li><li>connector_span: 15 mm (horizontal width of connector body)</li></ul><h3>Printer &amp; Slicer Settings</h3><ul><li>Layer Height: 0.2 mm</li><li>Wall Count: 3 perimeters (ensures durability even with thin body width)</li><li>Top/Bottom Layers: 4</li><li>Infill Density: 20–25% (Grid or Gyroid pattern)</li><li>Supports: Not required</li><li>Nozzle Size: 0.4 mm standard</li></ul><h3>Material Recommendations</h3><ul><li>PLA – best for carton prototypes; easy to print, low warping.</li><li>PETG – stronger, slightly flexible; good if carton partitions need more durability.</li><li>ABS/ASA – optional for outdoor or high‑stress use, though not necessary for carton builds.</li></ul><h3>Bed &amp; Adhesion</h3><ul><li>Bed Temp: 60 °C for PLA, 70–80 °C for PETG/ABS</li><li>Adhesion: Brim optional for taller connectors</li></ul><h3>Usage Notes</h3><ul><li>Designed specifically for filament box carton partitions (1.6 mm thick).</li><li>Test one connector first to confirm fit; adjust tolerance if carton is slightly compressed or varies in thickness.</li><li>For lightweight organizers, 20 mm slot depth ensures stability without over‑printing.</li><li>Connector span of 15 mm balances strength and print efficiency</li></ul>

0.2mm layer, 2 walls, 15% infill (1.6mm Filament Box Carton)

90° Corner – for simple right‑angle joins

T‑Connector – for three‑way intersections

Cross Connector – for four‑way grid layouts

H‑Connector – for parallel partitions and double‑lane structures

1.6x20 connecotr.jpg

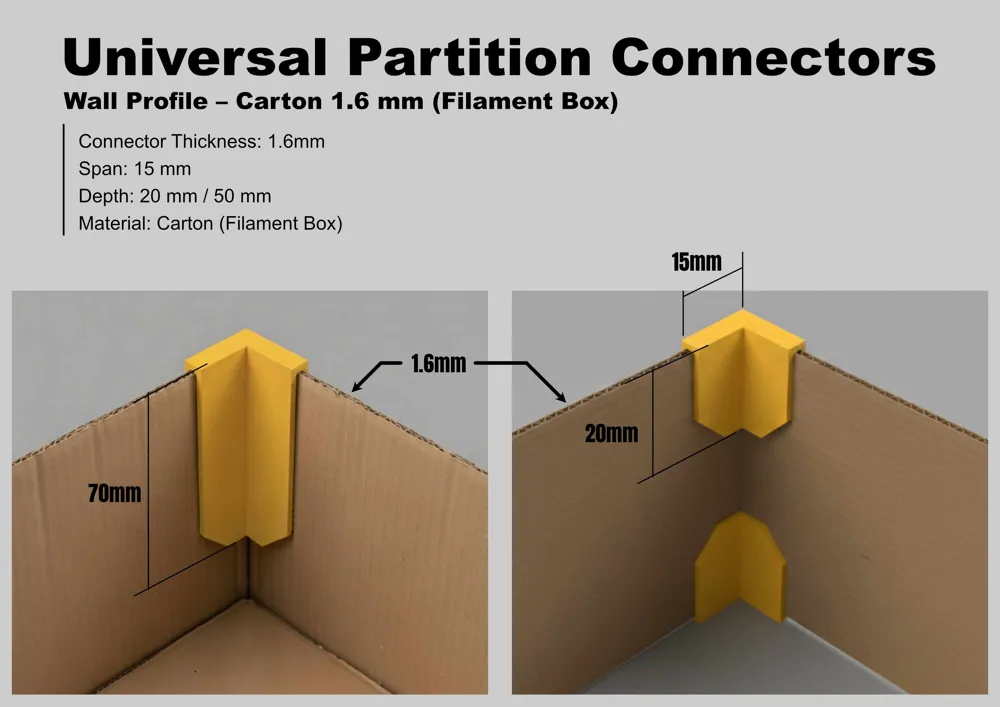

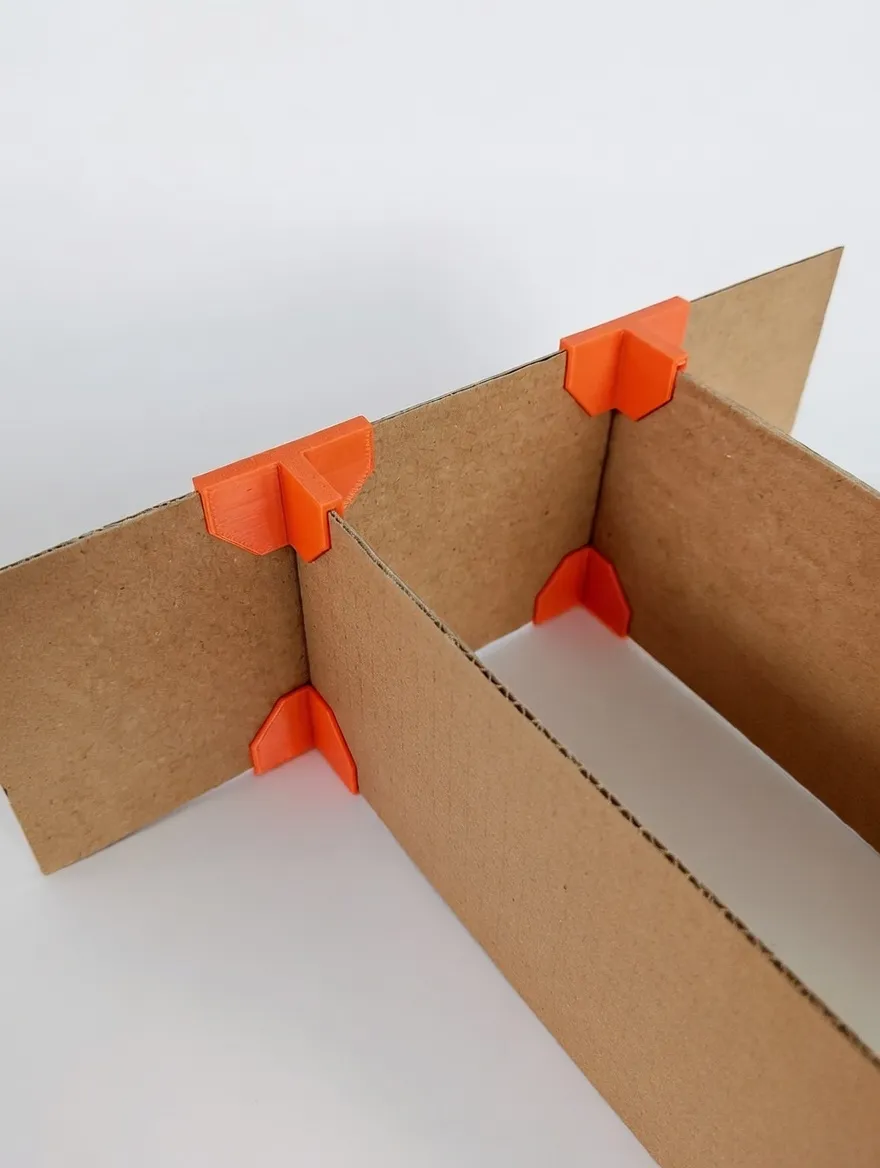

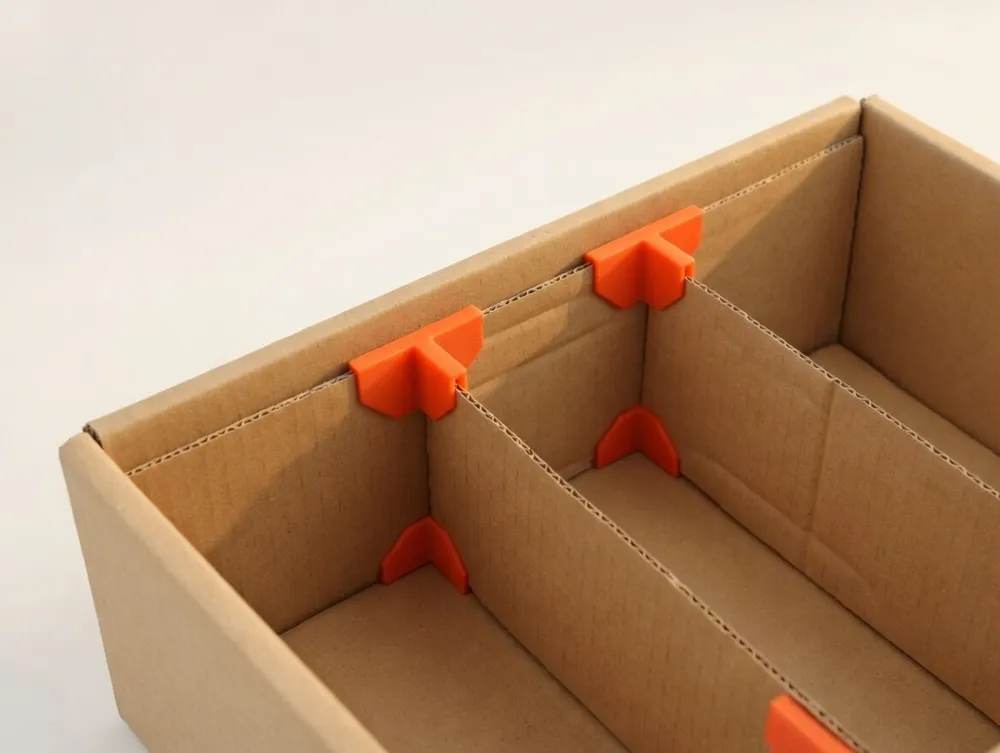

Turn filament box carton into modular walls – secure fit with 20 mm depth, quick top‑grip with 50 mm depth.&nbsp;Purpose‑built for reusing filament box carton walls, this profile features a 15 mm connector span with half‑span chamfered entries for smooth insertion and a secure friction‑tight fit. The natural compressibility of carton ensures a perfect lock without added tolerance, making joints stable while saving filament.<ul><li>Default Depth – 20 mm: Designed for secure use both ways (top and bottom), firmly locking panels in place.</li><li>Extended Depth – 50 mm: Ideal for temporary setups where only the top grip is needed and the bottom slot can be disregarded.</li></ul>For more permanent builds, consider applying glue to reinforce the joint. This profile is perfect for eco‑friendly projects that transform discarded filament packaging into modular, lightweight structures.

Wall Profile – Carton 1.6 mm (Filament Box)

1.0mm chipboard connecotr.jpeg

Chipboard Connector 1.0 mm Profile Designed for lightweight builds using thin chipboard sheets, this profile features a 15 mm connector span with half‑span chamfered entries for smooth insertion and secure friction fit. No tolerance is added—chipboard’s natural compressibility ensures a tight lock that saves filament while keeping joints stable. Ideal for eco‑friendly, modular assemblies where efficiency and simplicity matter.

Wall Profile – Chipboard 1.0 mm

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

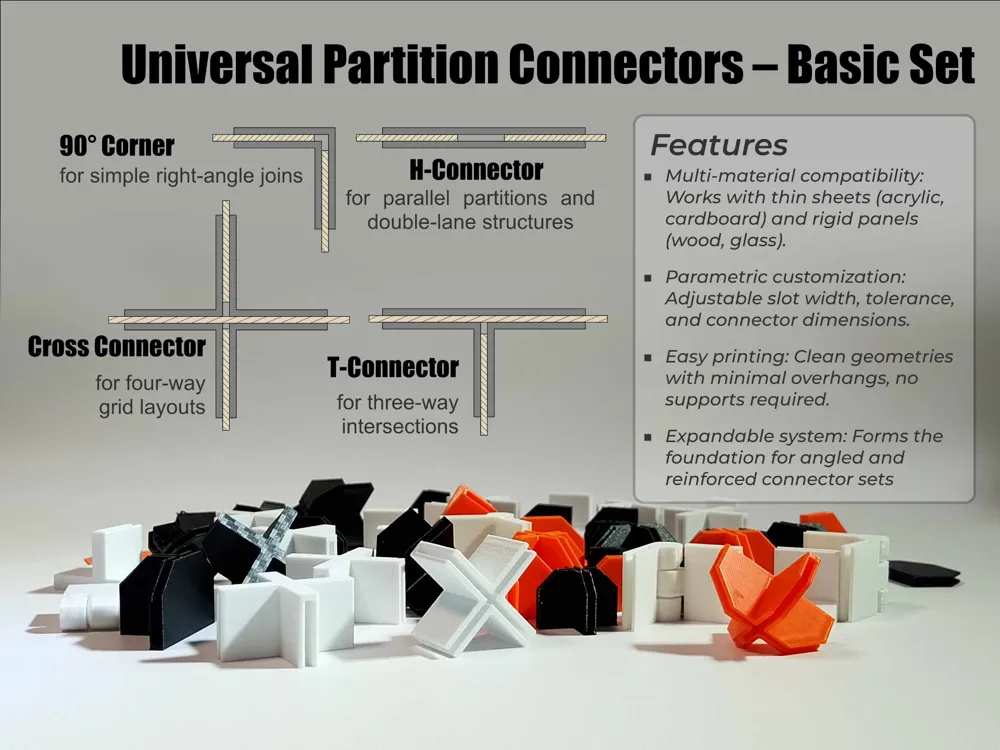

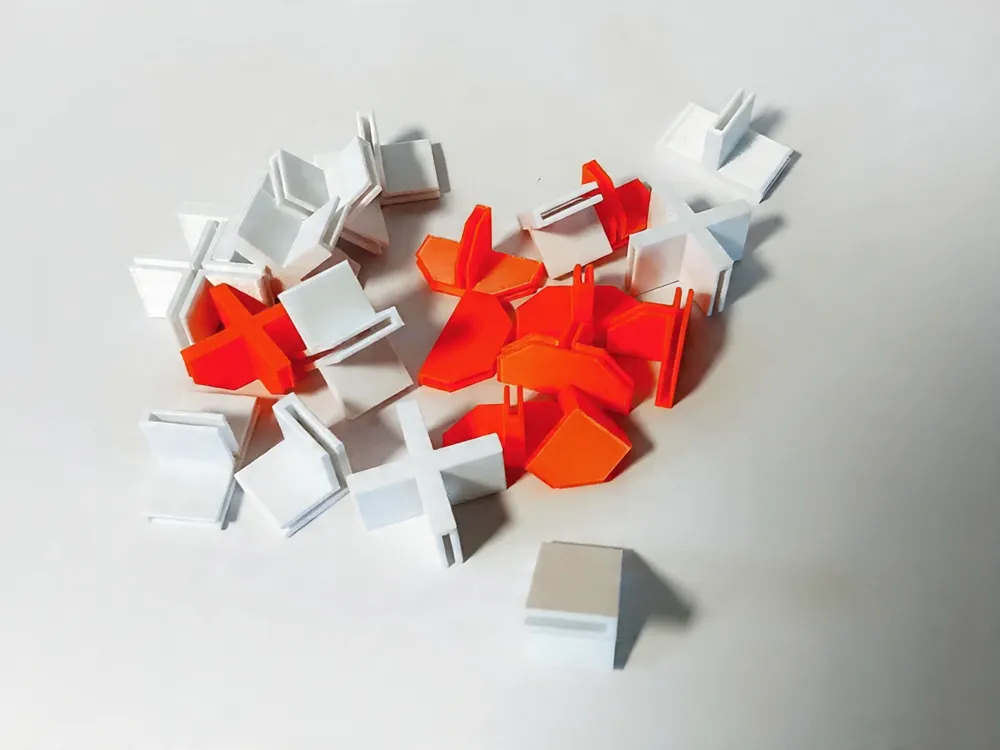

A starter kit of parametric modular connectors designed for universal partitioning across multiple materials—wood, acrylic, glass, cardboard, and more. This set includes the four essential shapes:<ul><li>90° Corner – for simple right‑angle joins</li><li>T‑Connector – for three‑way intersections</li><li>Cross Connector – for four‑way grid layouts</li><li>H‑Connector – for parallel partitions and double‑lane structures</li></ul>All models are parametric, allowing you to adjust slot width, tolerance, and wall thickness to fit your chosen material.<h3>Features</h3><ul><li>Multi‑material compatibility: Works with thin sheets (acrylic, cardboard) and rigid panels (wood, glass).</li><li>Parametric customization: Adjustable slot width, tolerance, and connector dimensions.</li><li>Easy printing: Clean geometries with minimal overhangs, no supports required.</li><li>Expandable system: Forms the foundation for angled and reinforced connector sets</li></ul><h3>Print Settings</h3><ul><li>Layer height: 0.2 mm recommended</li><li>Infill: 20–30% (higher for load‑bearing use)</li><li>Supports: Not required</li><li>Material: PLA, PETG, ABS depending on application</li></ul>

Universal Partition Connectors – Basic Set
