Deck Screw Marking Jig | TimberTech Composite 5.5"
Print Profile(1)
Description

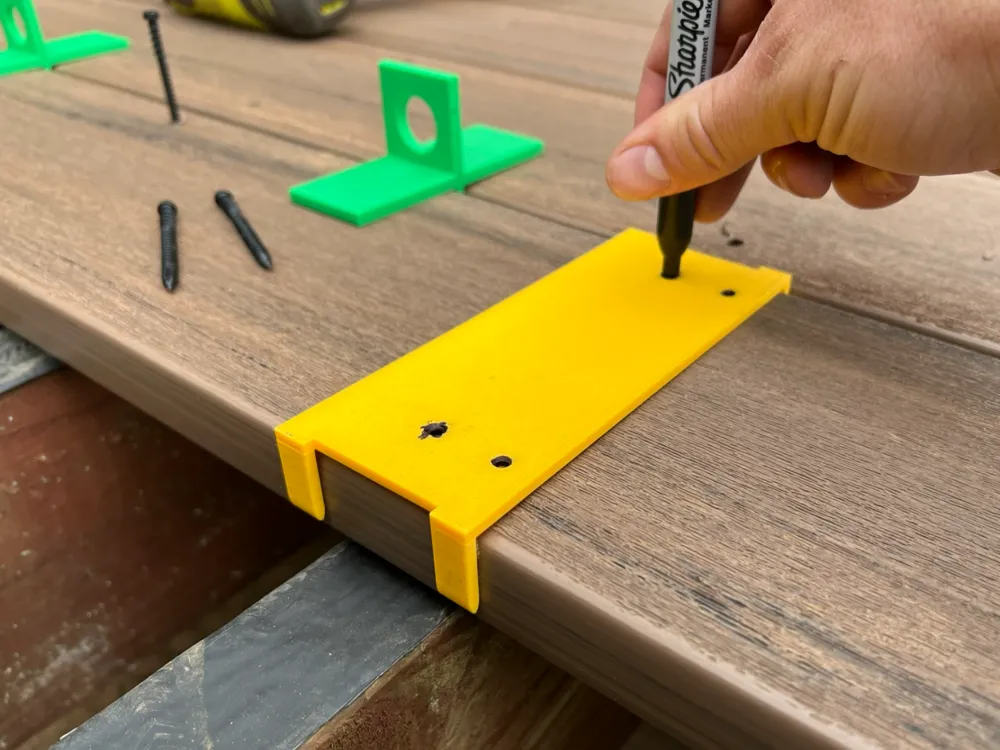

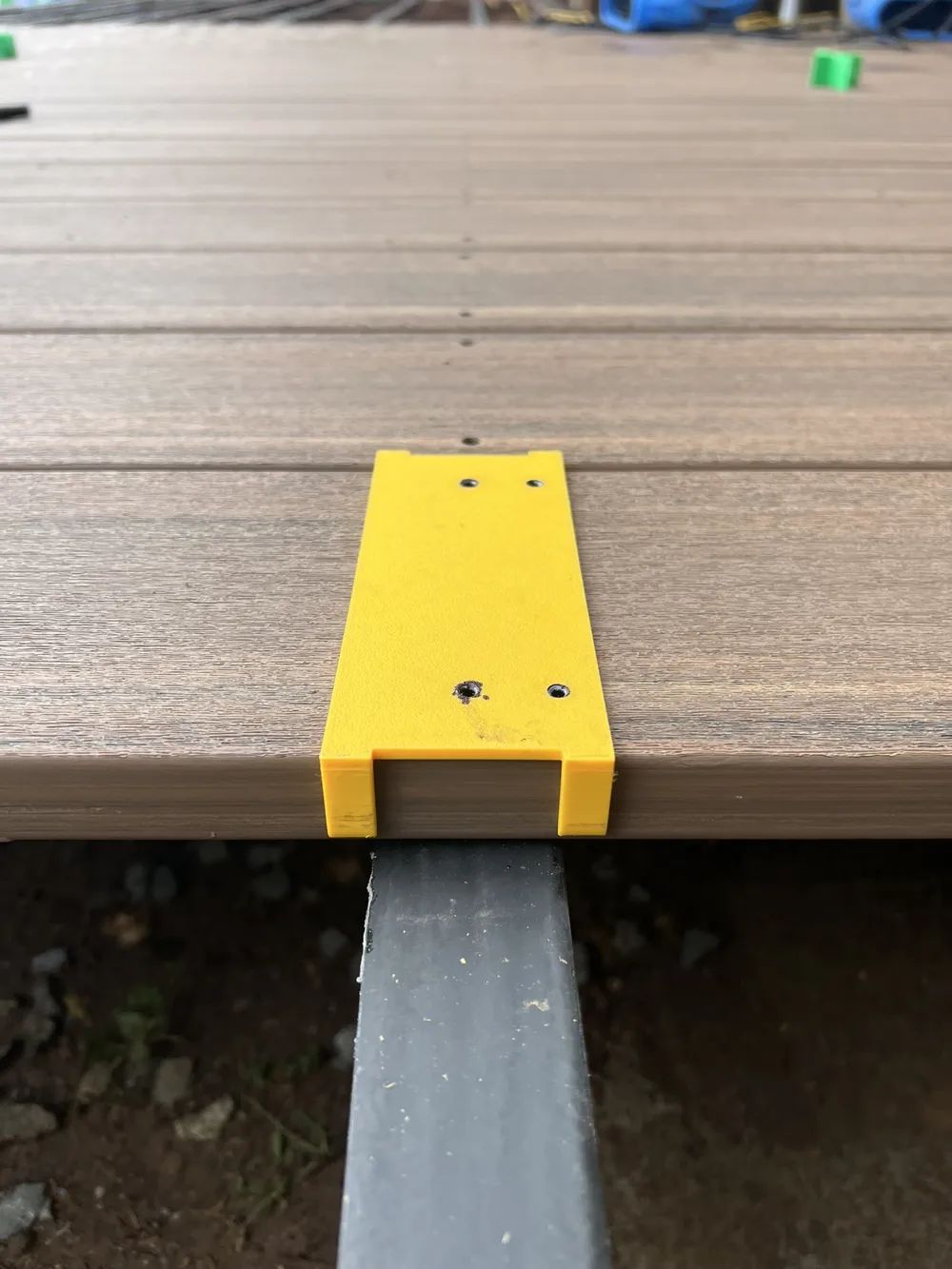

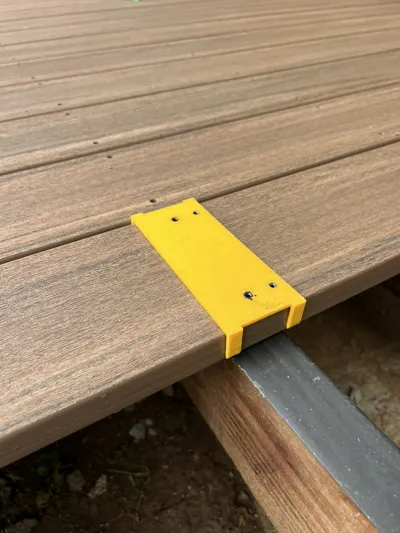

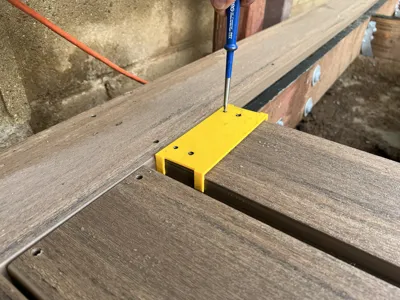

Jig for marking the screw locations of TimberTech Standard 5.5" composite boards. Use the visual of the gap on the overhangs to find the center of the joist board below. Then use the holes to mark ¾" in from each side. The other holes near the edge are 3/8" from the end and used to mark the screw locations for the end of a board. The overhangs are 1/8" thick to fit in the recommended gap.
