Modular Storage Drawer for Small Parts – Part 1

Description:

Inspired by a project by LM Atelier on Maker World, I redesigned this drawer organizer because the original dimensions were not suitable for my needs.
This new version has been made fully modular, with 4 different container formats that can be combined, stacked, and expanded as needed.

For simplicity, I divided the project into 4 parts, all available on my profile:
Part 1 – 2 – 3 – 4.

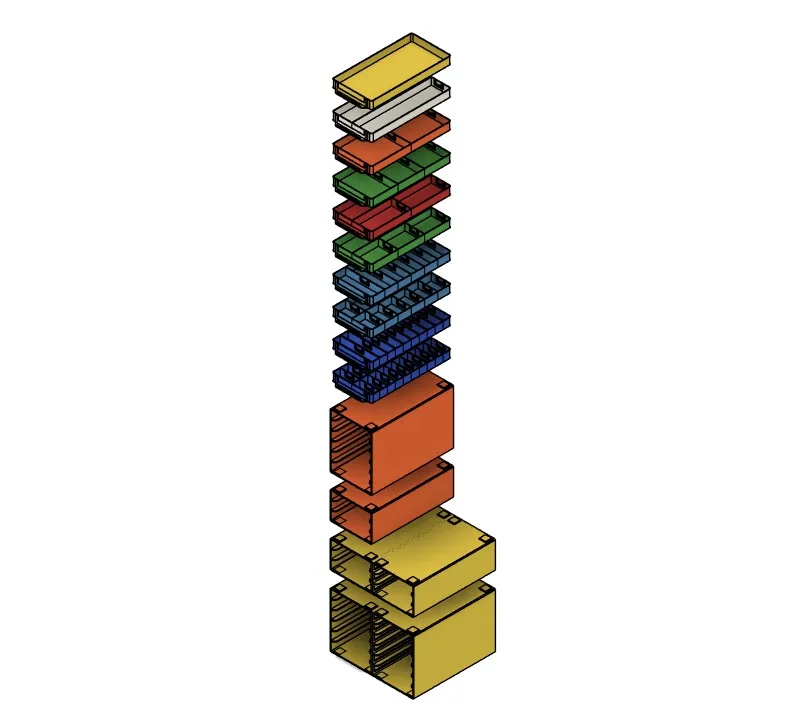

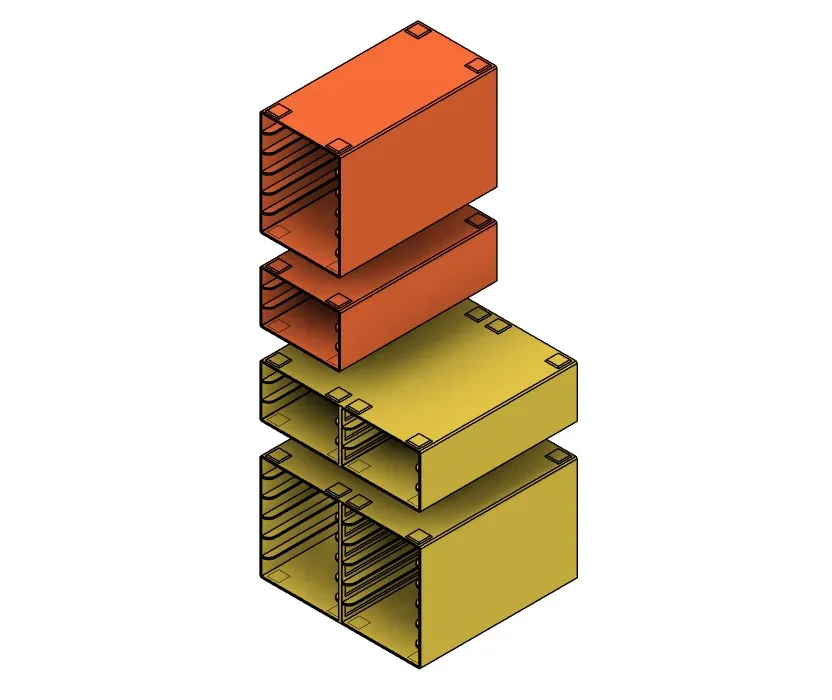

All modules are compatible with each other and can be stacked or arranged in multiple configurations.

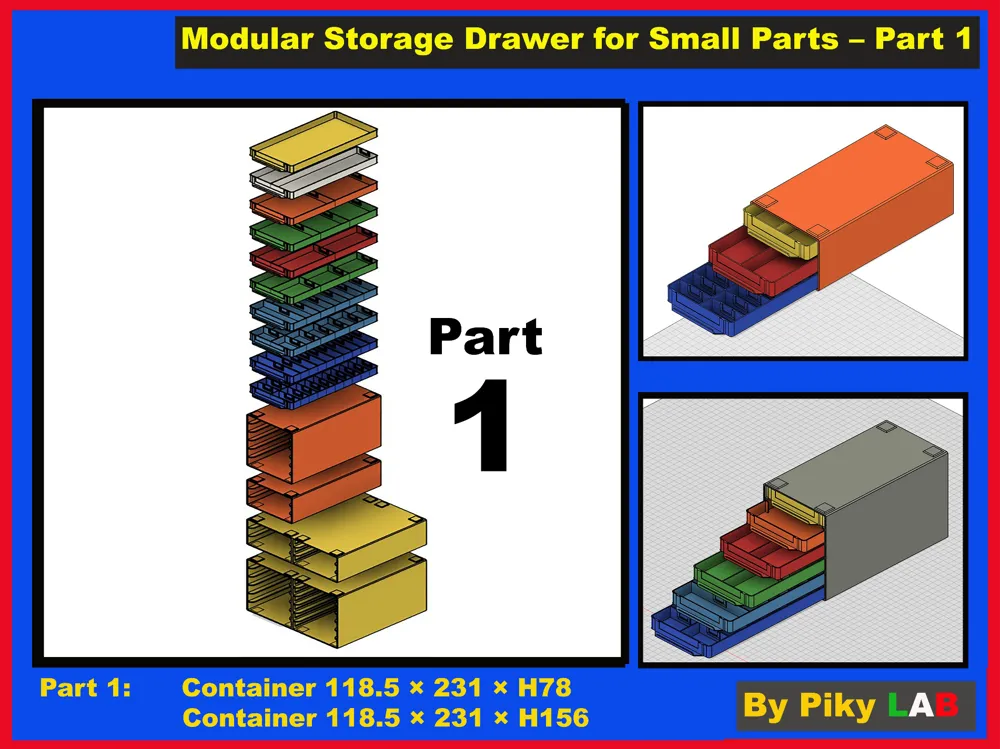

Part 1 Includes:

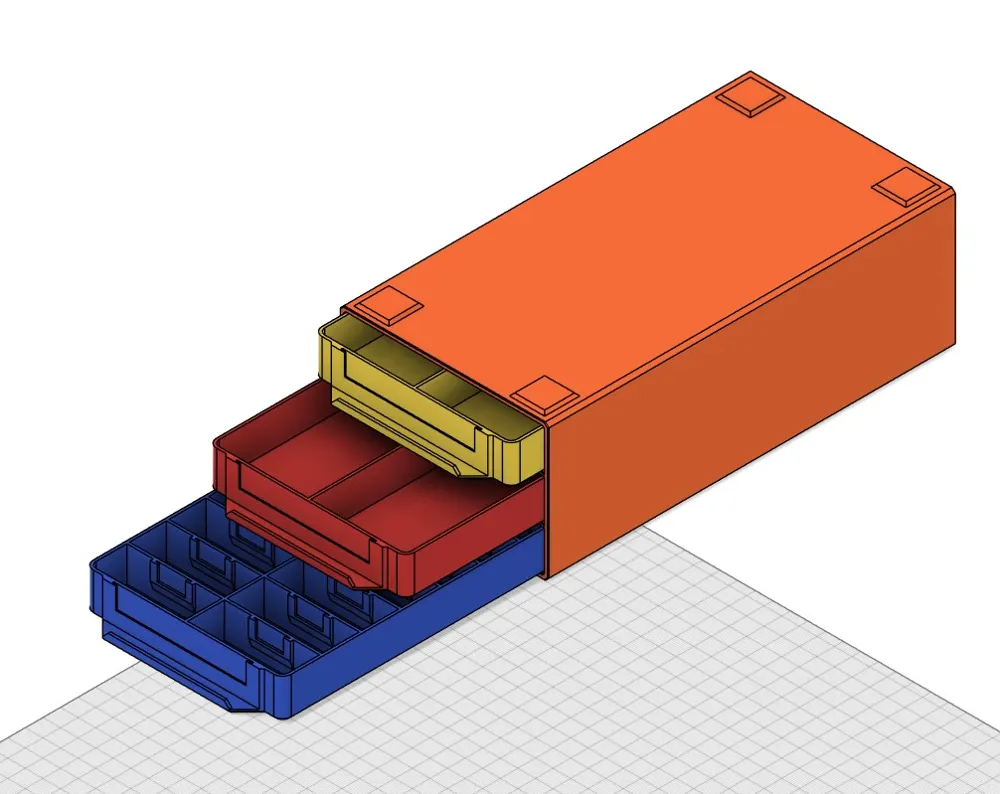

Container 118.5 × 231 × H78 mm for 3 drawers 226 × 112 × H22 mm

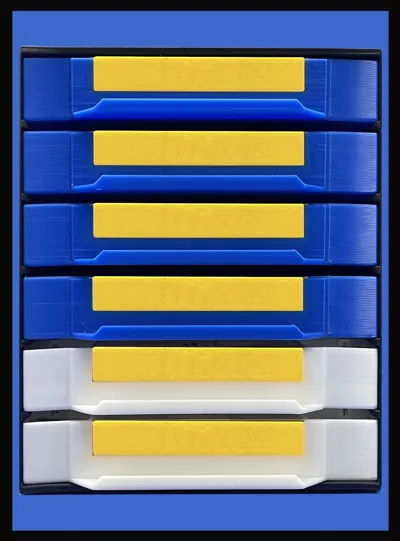

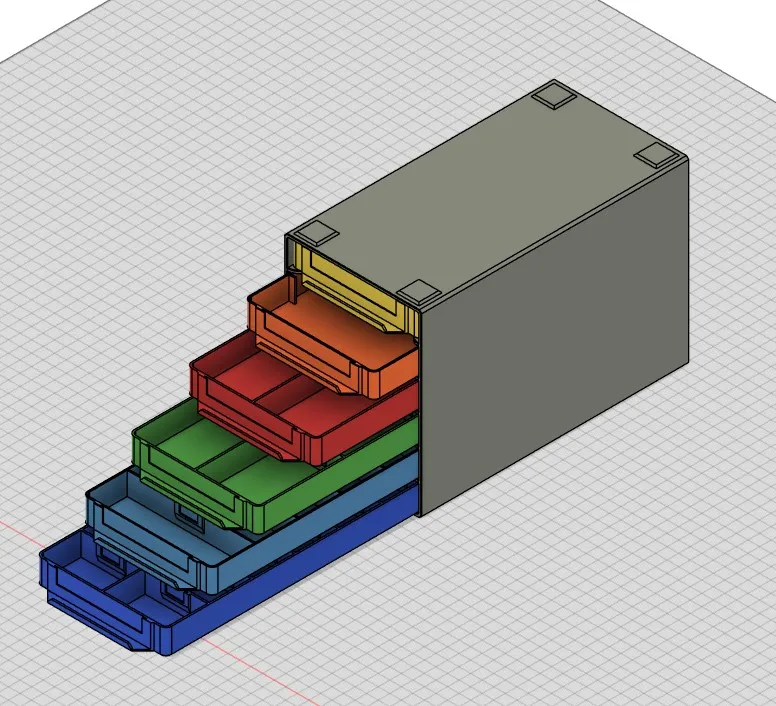

Container 118.5 × 231 × H156 mm for 6 drawers 226 × 112 × H22 mm

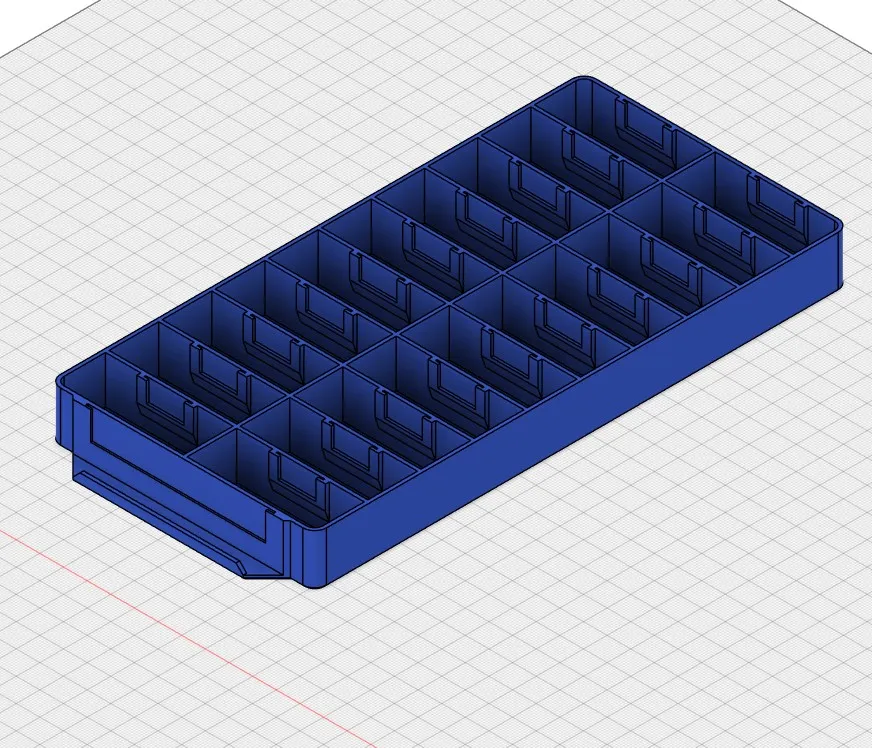

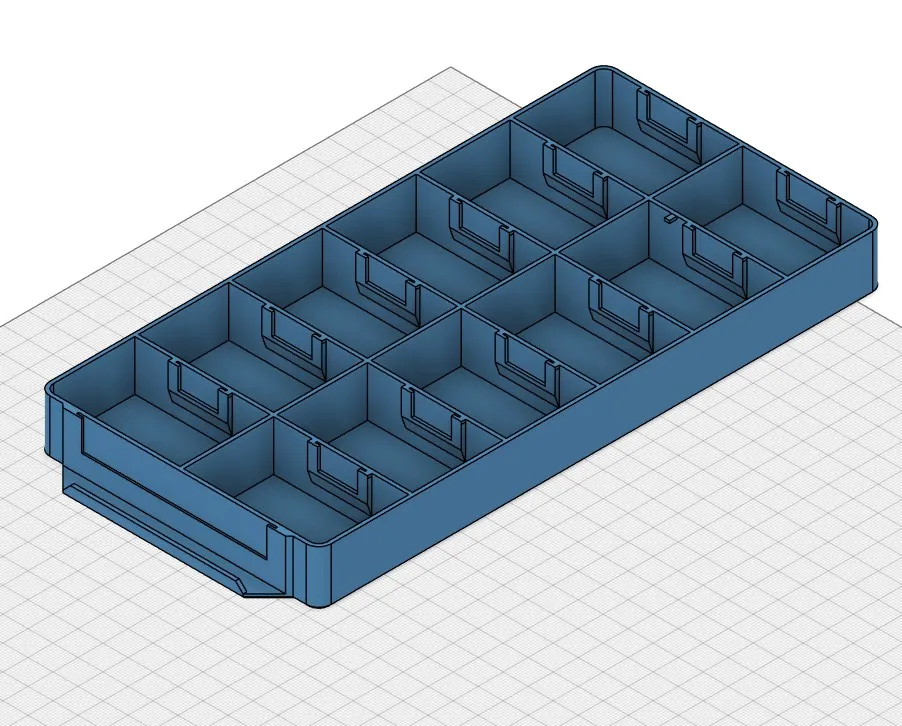

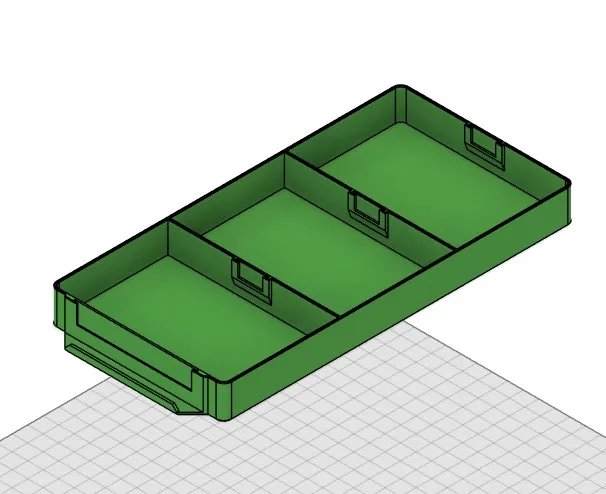

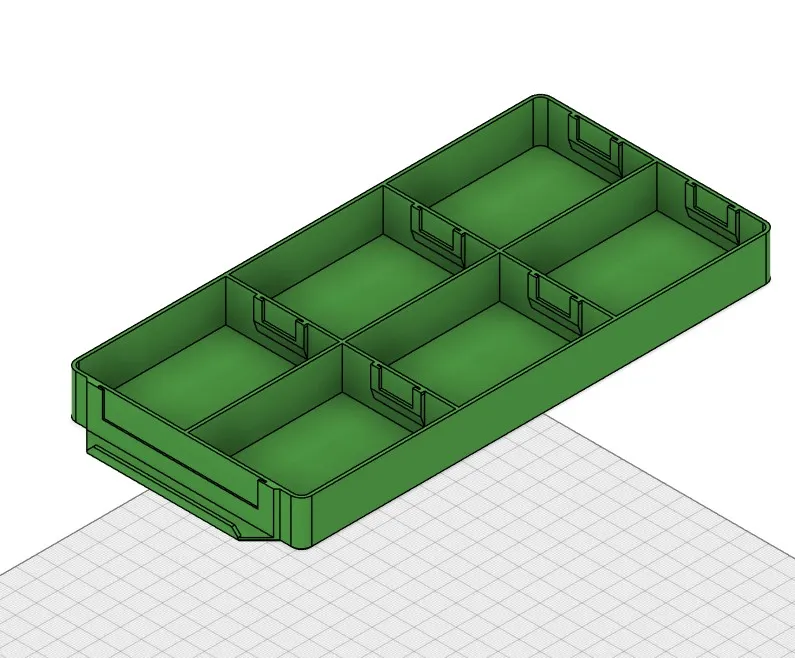

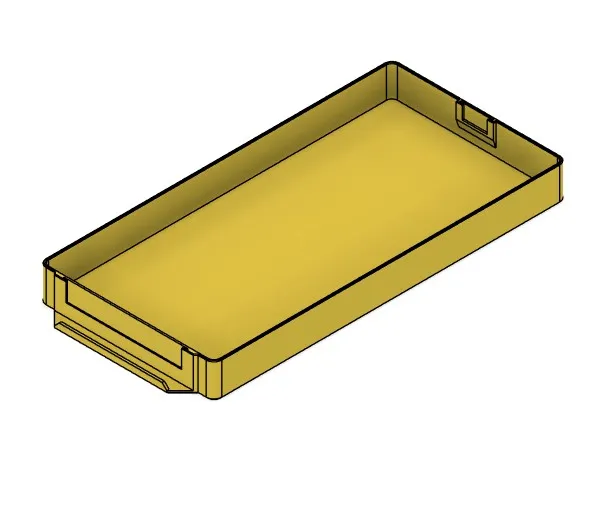

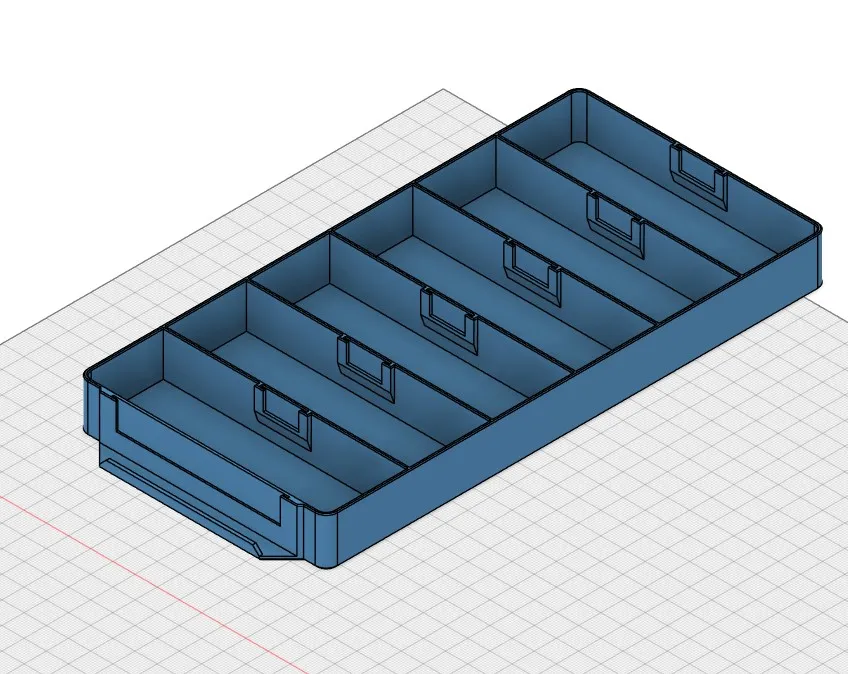

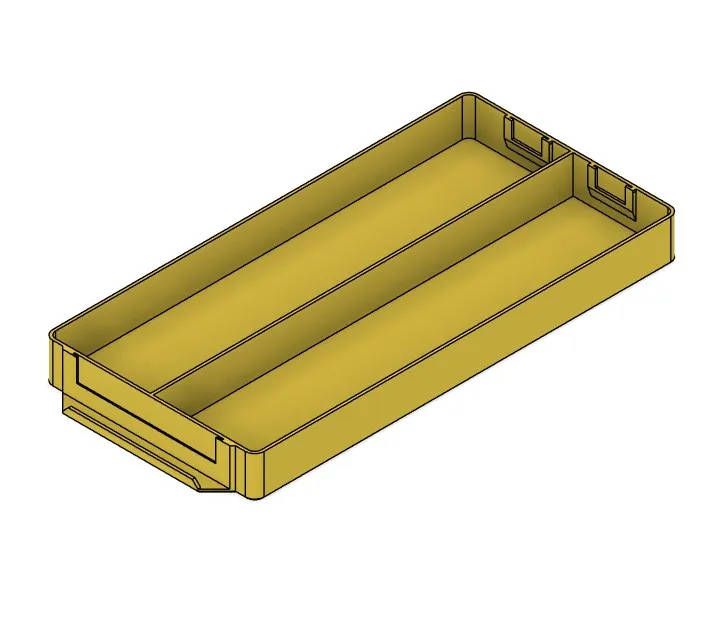

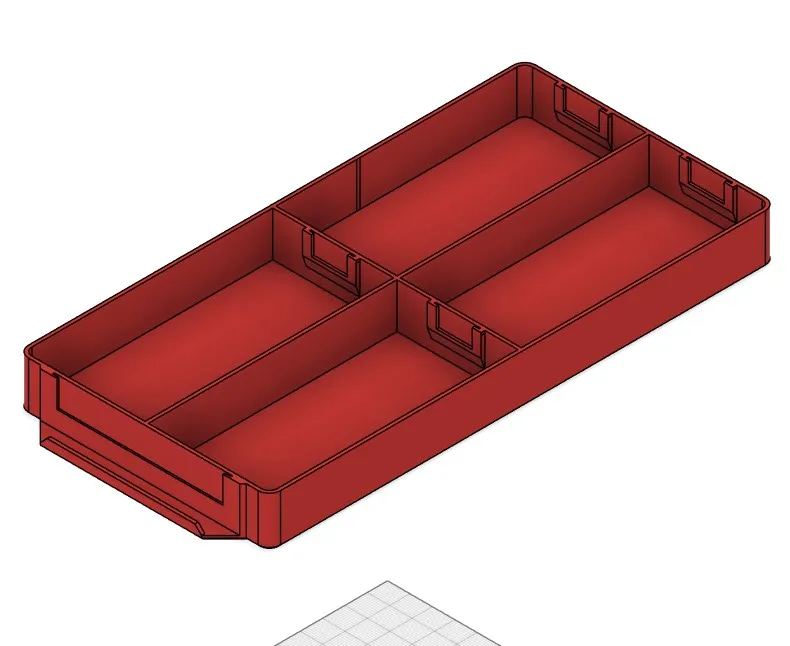

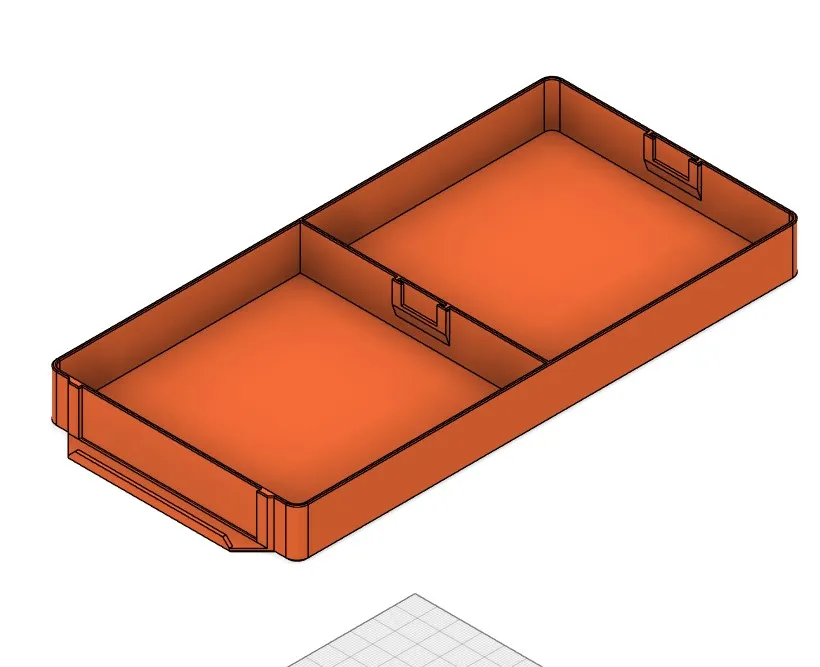

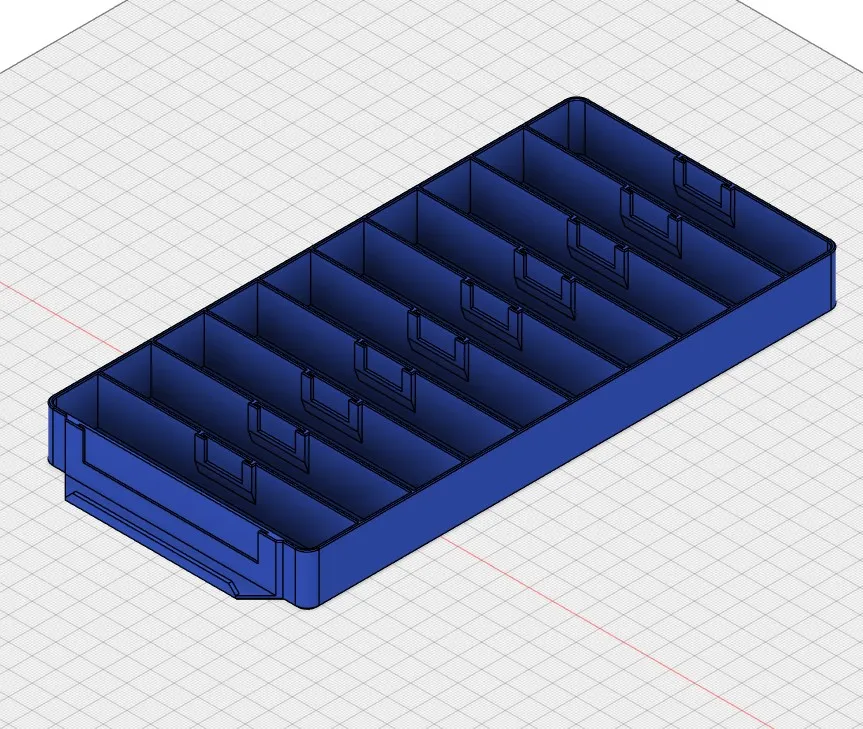

10 drawers 226 × 112 × H22 mm with different internal divider versions:
1 – 2 – 2L – 3 – 4 – 6 – 6L – 12 – 10 – 20
-NEW  23-03-2026 - Container 118.5 x 231 x H.78mm per 6 cassetti in orr. 226 x 112 x H.22mm
-NEW  23-03-2026 - Container 118.5 x 231 x H.156mm per 12 cassetti in orr. 226 x 112 x H.22mm

Part 2 Includes:
Container 118.5 × 231 × H156 mm for 4 drawers 226 × 112 × H35 mm
10 drawers 226 × 112 × H35 mm with divider versions:
1 – 2 – 2L – 3 – 4 – 6 – 6L – 12 – 10 – 20
NEW 23-03-2026 - Container 118.5 × 231 × H78 mm for 2 drawers 226 × 112 × H35 mm
NEW 23-03-2026 - Container 118.5 × 231 × H78 mm Orr. for 4 drawers 226 × 112 × H35 mm
NEW 23-03-2026 - Container 118.5 × 231 × H156 mm Orr. for 8 drawers 226 × 112 × H35 mm

Part 3 Includes:
Container 237 × 231 × H78 mm for 3 drawers 226 × 331 × H22 mm
Container 237 × 231 × H156 mm for 6 drawers 226 × 331 × H22 mm
6 drawers 226 × 331 × H22 mm with divider versions:
1 – 2 – 3 – 9 – 18 – 30

Part 4 Includes:
Container 237 × 231 × H156 mm for 4 drawers 226 × 331 × H35 mm
6 drawers 226 × 331 × H35 mm with divider versions:
1 – 2 – 3 – 9 – 18 – 30
NEW 23-03-2026 - Container 237 × 231 × H78 mm for 2 drawers 226 × 331 × H35 mm

I may create additional versions in the future, but they will always remain compatible with this modular system.

The Fusion 360 (.f3d) source file is included so anyone can freely modify and customize the design.

Print Settings:
-Profile:      Standard Profile
-Layer Height: 0.20 mm
-Perimeters:   2 walls
-Infill:       15%

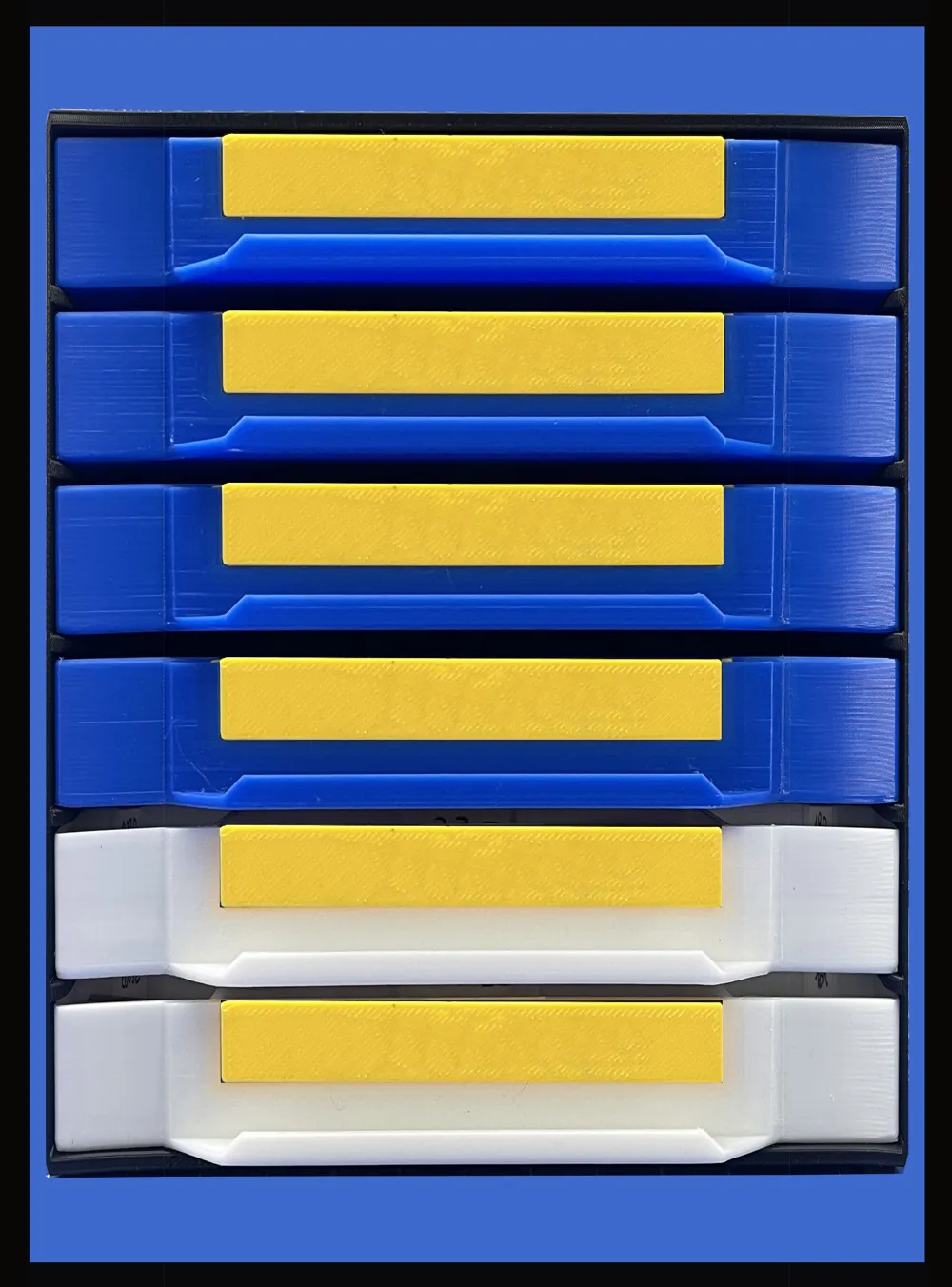

This model was printed with Bambu Lab PLA Basic in the following colors:
