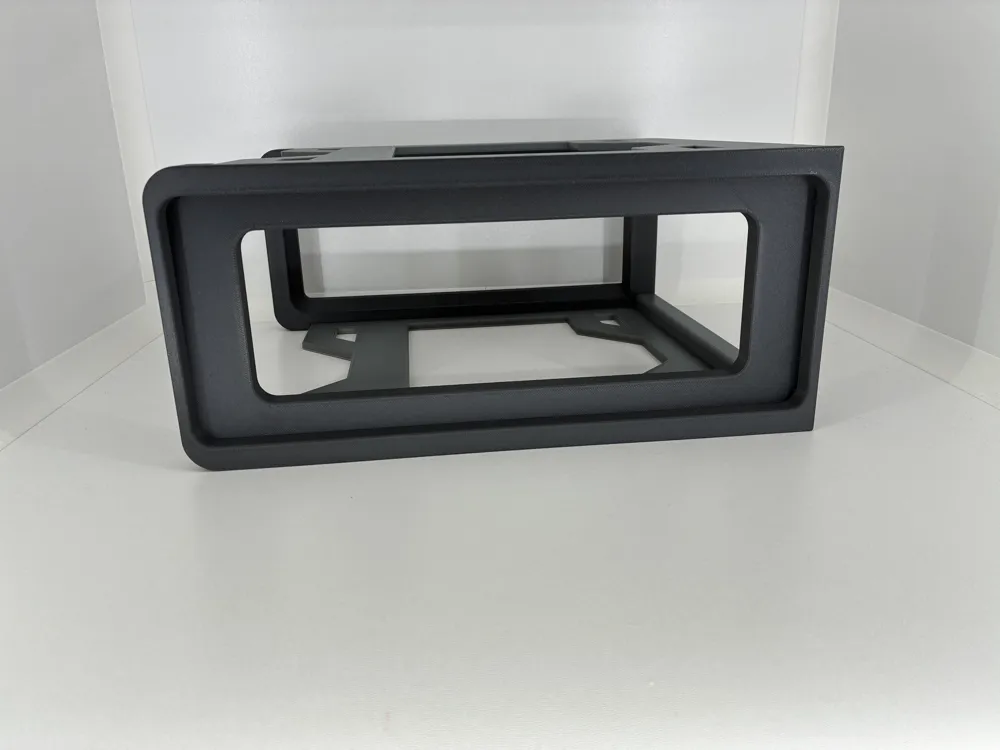

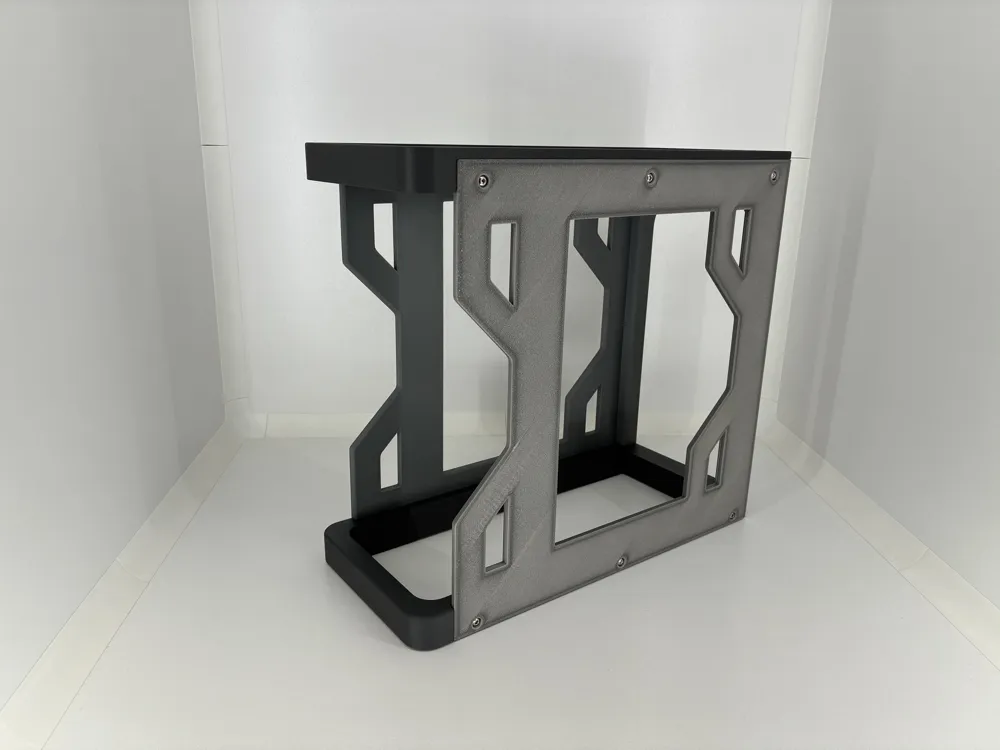

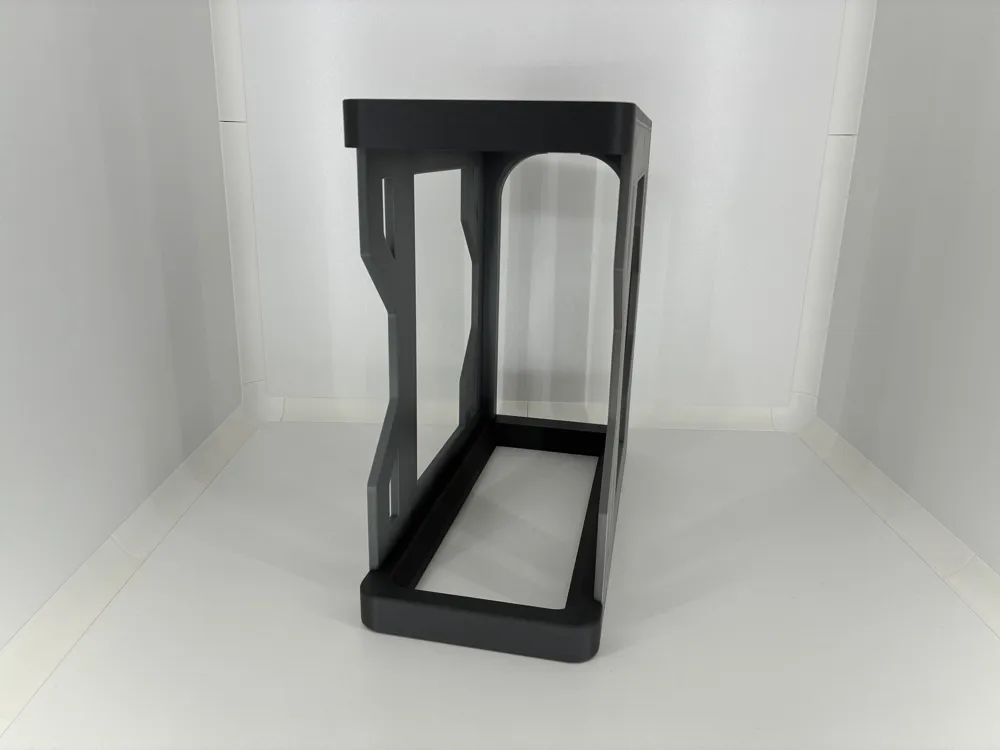

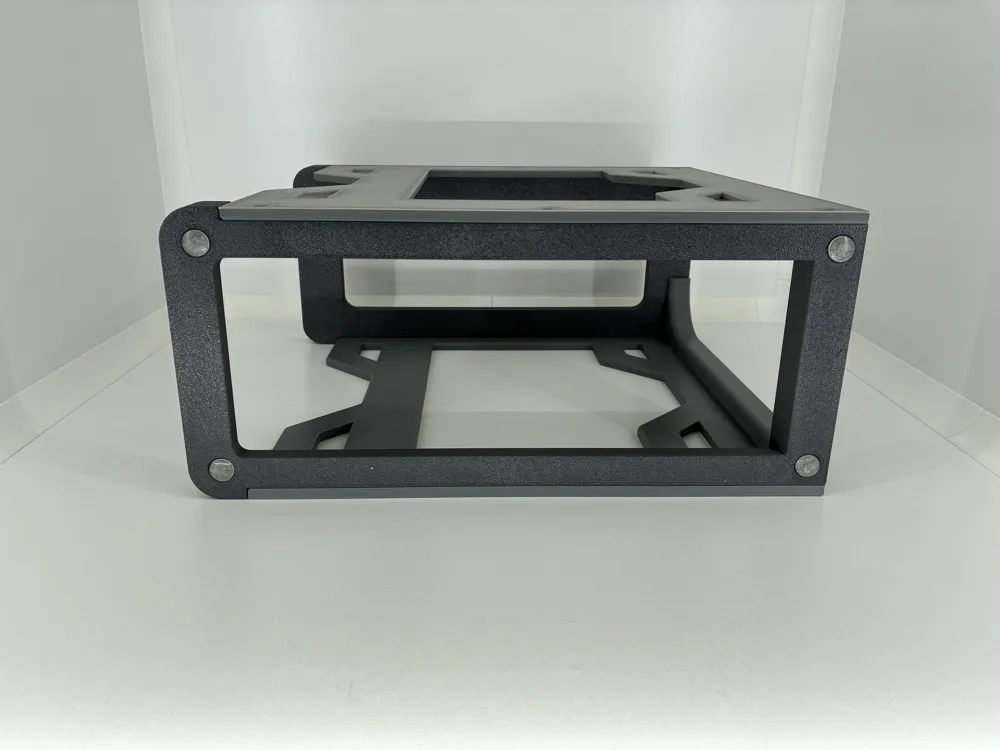

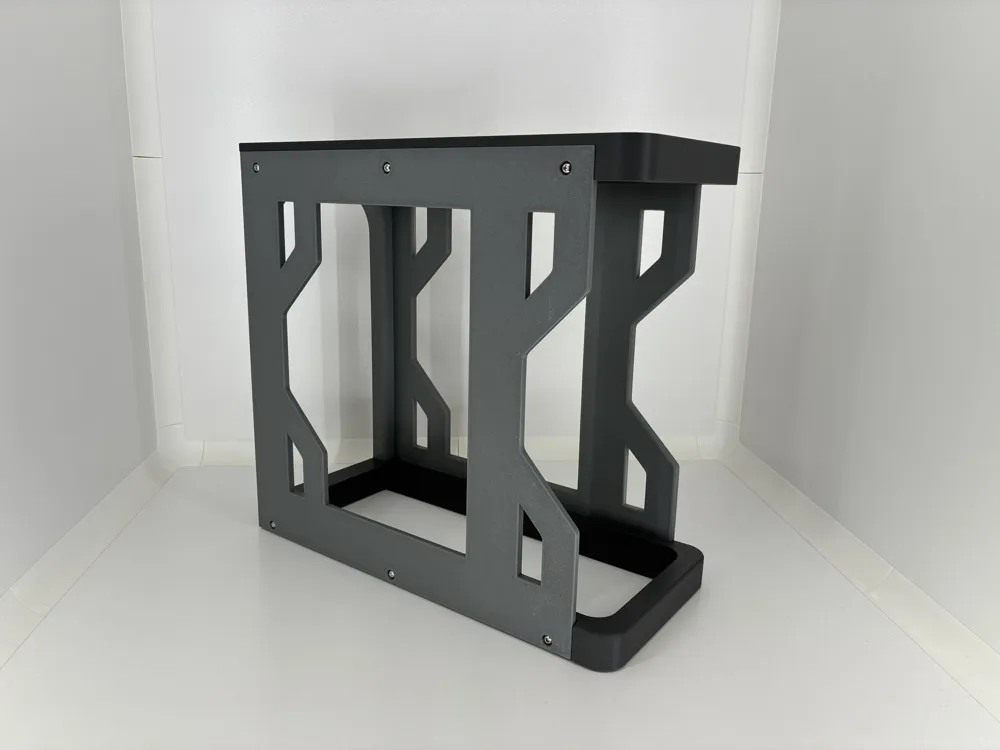

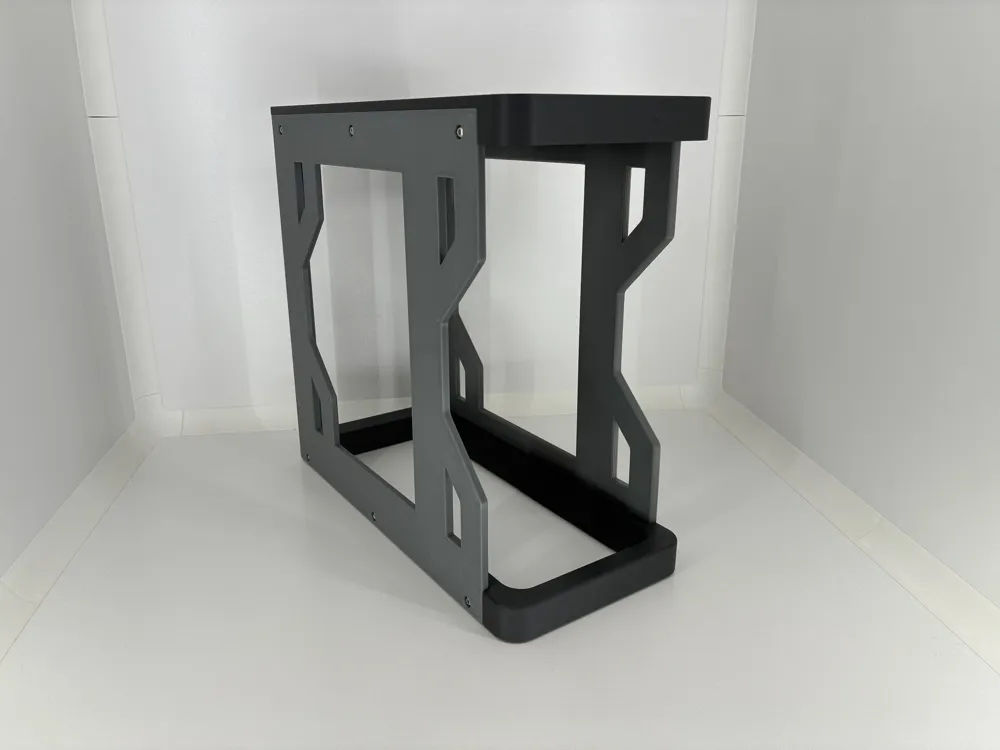

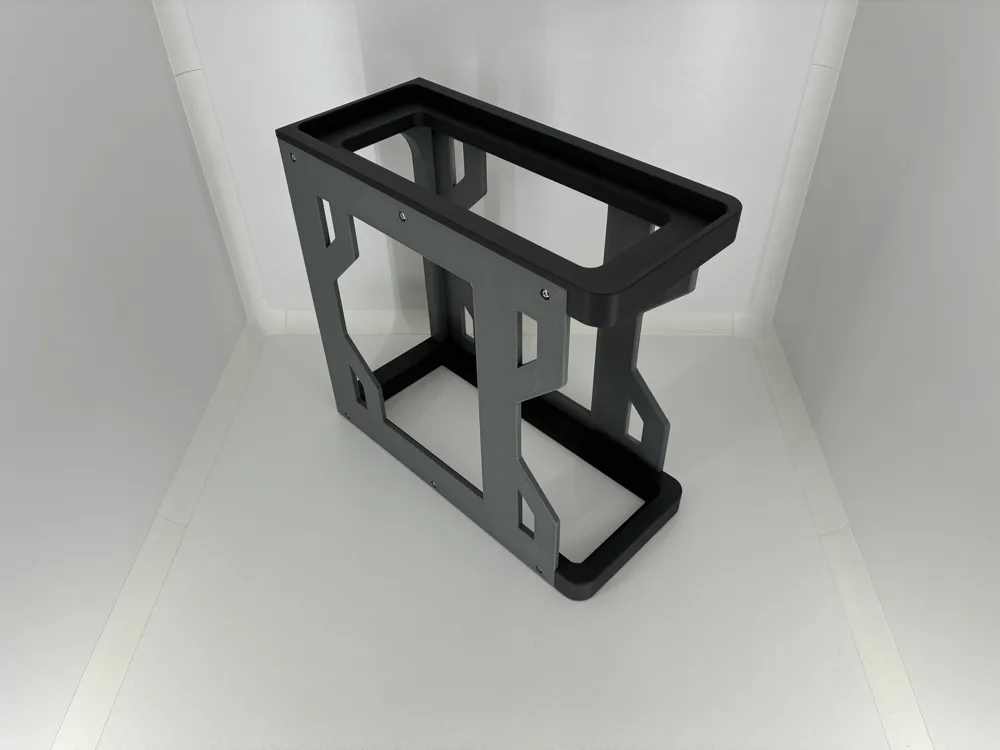

AMS HT Stand

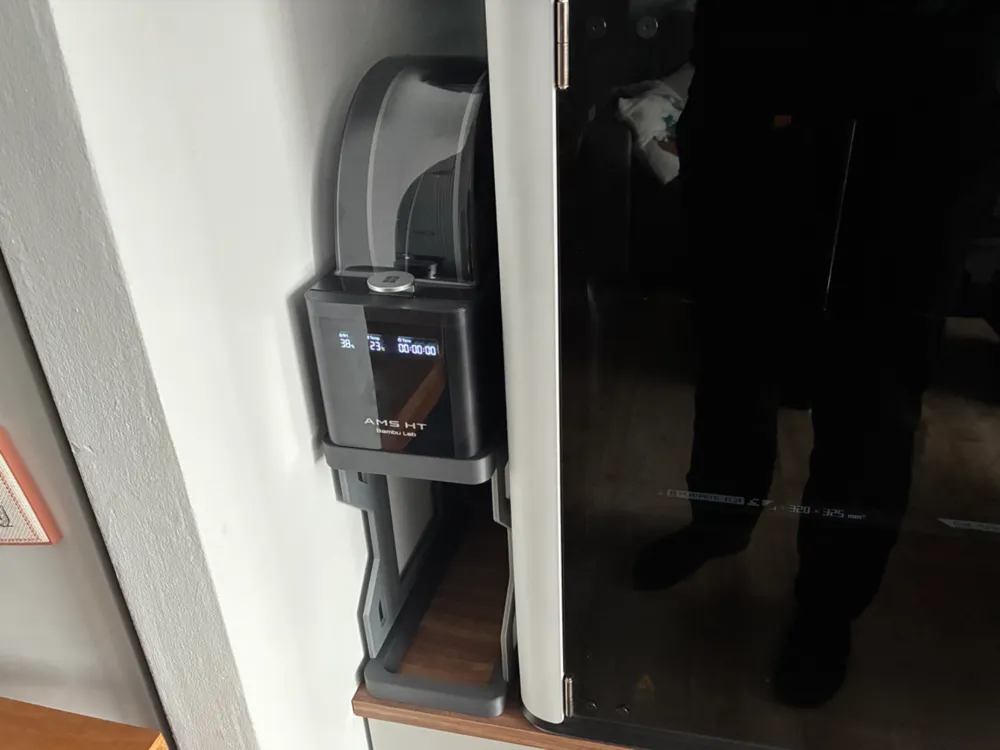

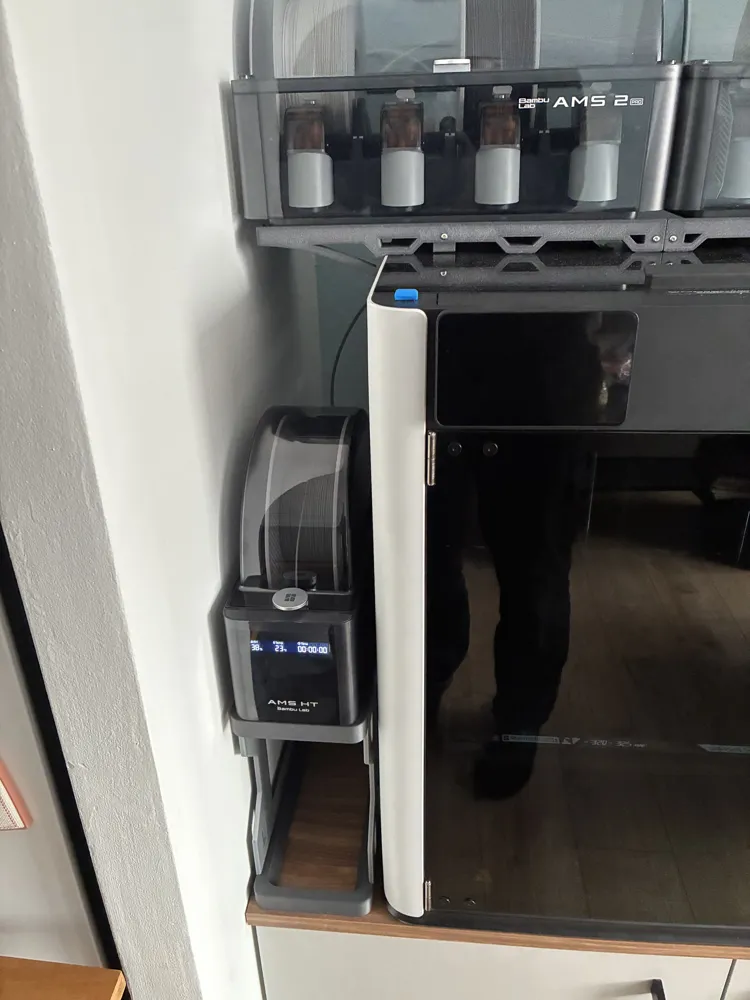

When I bought the second AMS 2 Pro and put it on top next to the first one, there was no room for AMS HT. The most reasonable place is, of course, on the left side of the printer, but there is also a container for poop. For this reason, this stand was created on AMS HT.
Features:
- Allows access to the container for poop.
- Trouble-free opening of AMS HT despite two AMS 2 Pro on top.
- Relatively short connection to the printer.
- At the bottom, there are recesses for 10 mm diameter silicone feet.
Print with at least PETG due to the fact that high temperatures may occur during drying in AMS HT. I recommend PETG HF - Dark Gray.
M3x14 screws are required for assembly.
The lower part has been profiled so that in the future I can make a container there, but so far I have no idea for it.
