F Clamp Holder for French Cleat Wall
Print Profile(1)
Bill of Materials
- M4 Heat Insert x 2: Optional, if Cleat Lock is used
- M4x10mm Countersunk Screw x 2: Optional, if Cleat Lock is used
Description
Boost Me (for free)
If you are happy with my work, I will be grateful for a rating of the print profile. In case you are really, really happy with my work, feel free to give me a BOOST, a like, a comment or a download of one of my other models. This will help me to continue providing high quality models to the community.
To make sure that the model fits your specific needs, please read the description and especially the information about sizes carefully before printing.

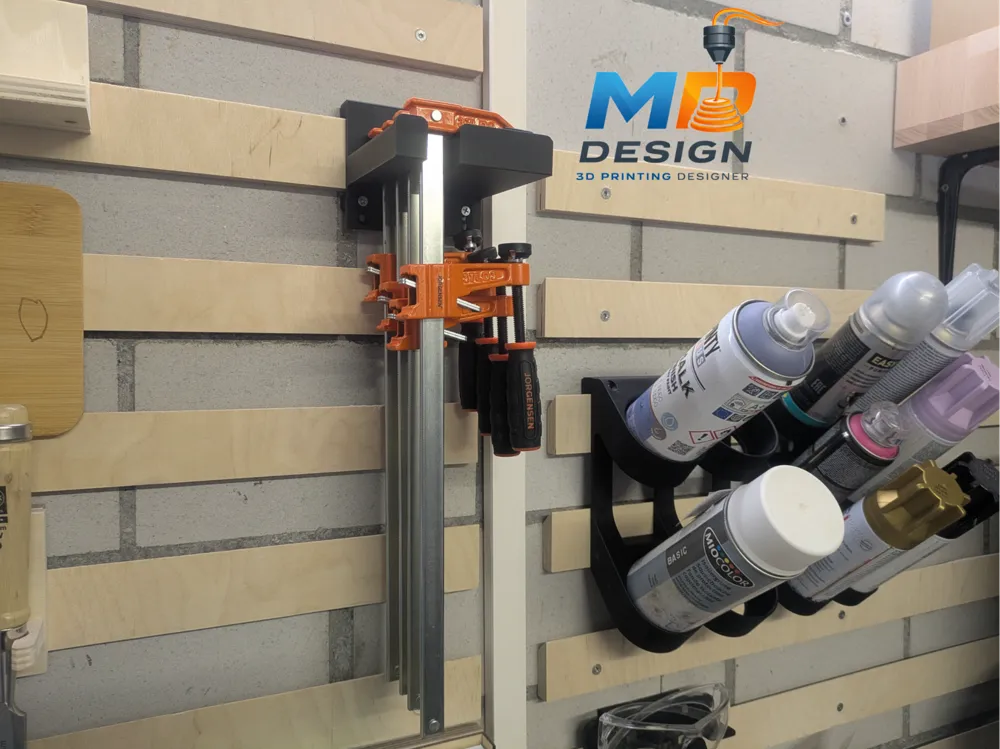

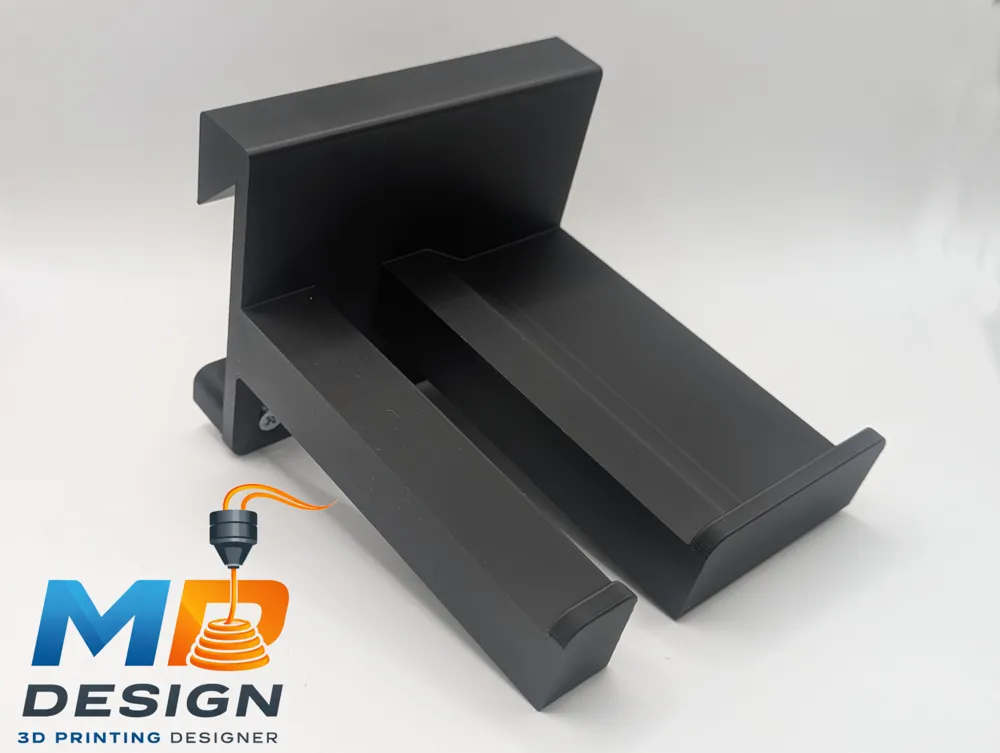

Tidy up your workspace with this F Clamp Holder for French Cleat Walls.

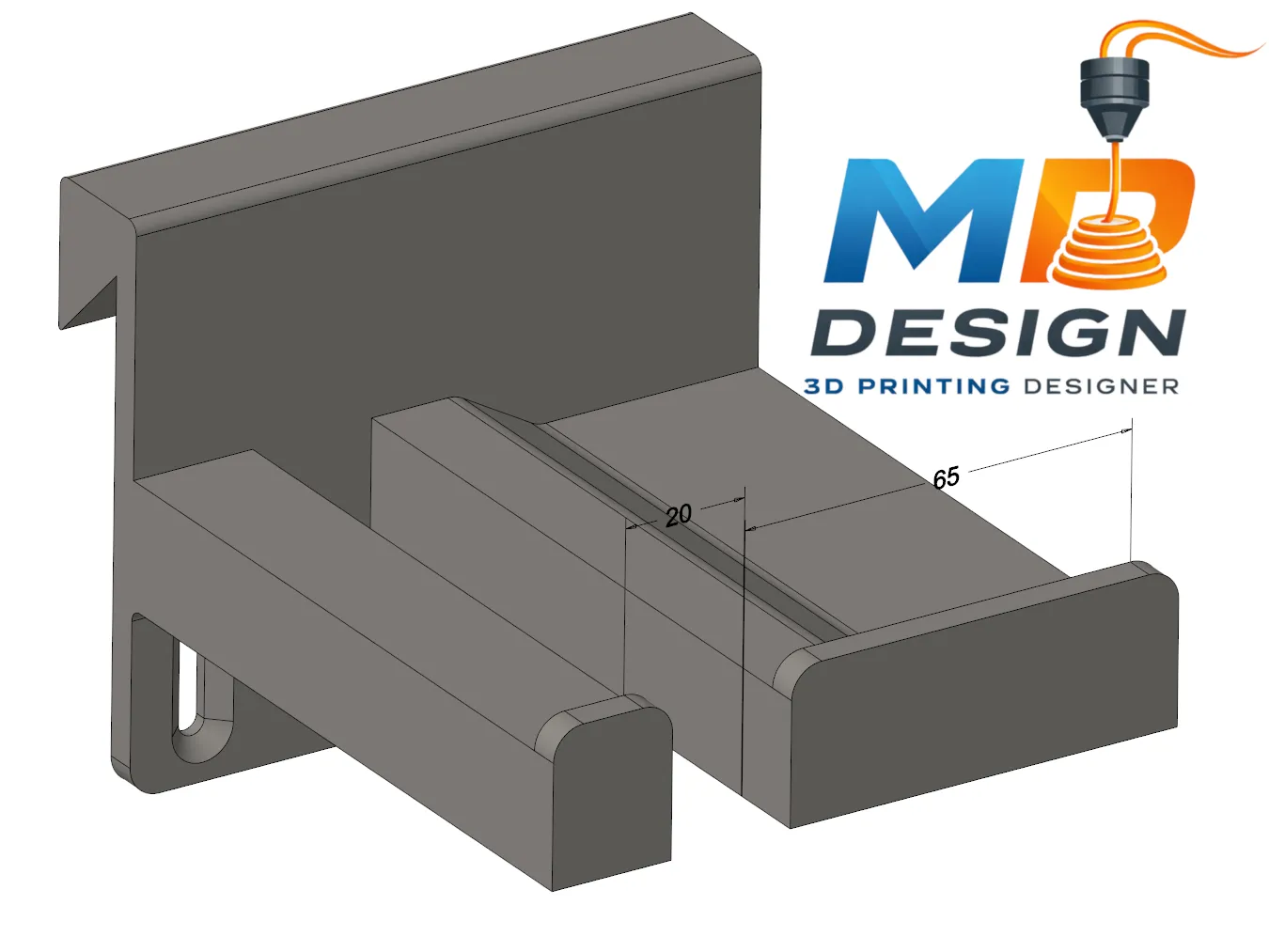

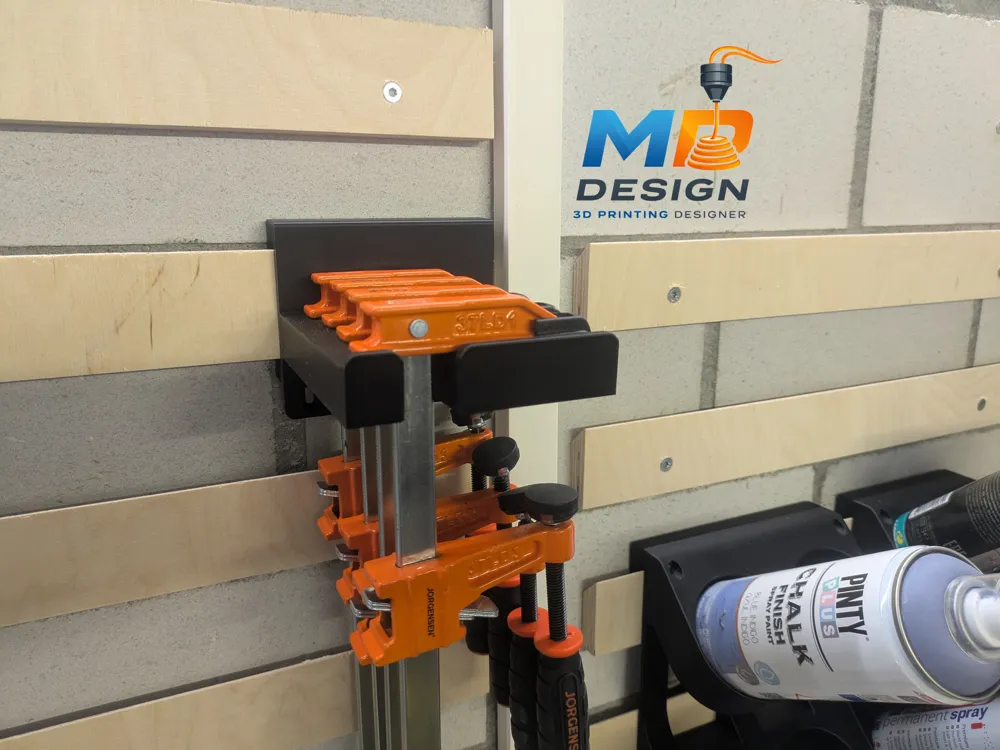

This holder was designed to accommodate 4 Jorgensen F Clamps with 60mm throat depth. However, it will fit most F Clamps as long as the bar is not wider than 20mm.
The model is printed on its side for maximal strength (therefore, it must be printed with supports).

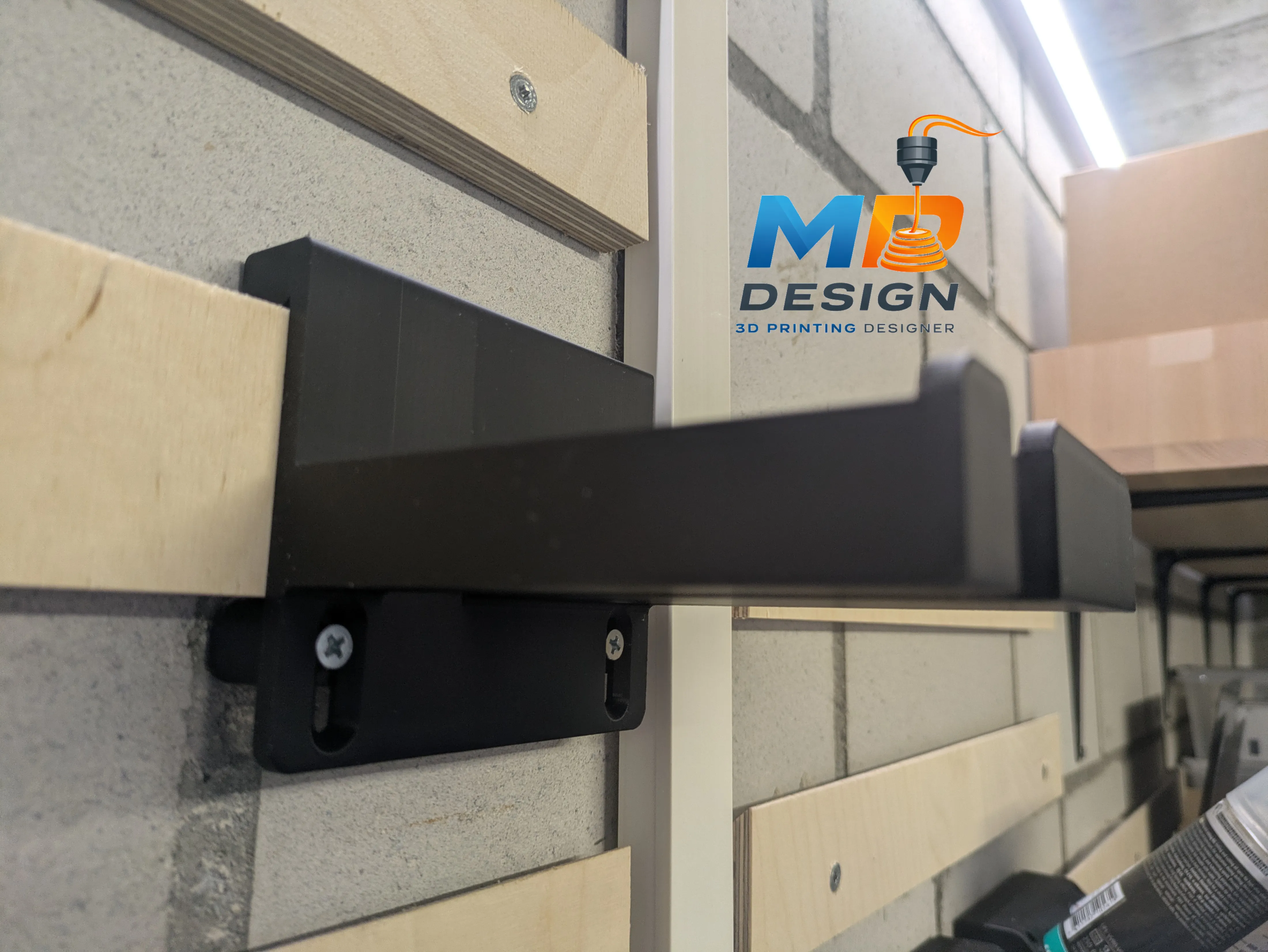

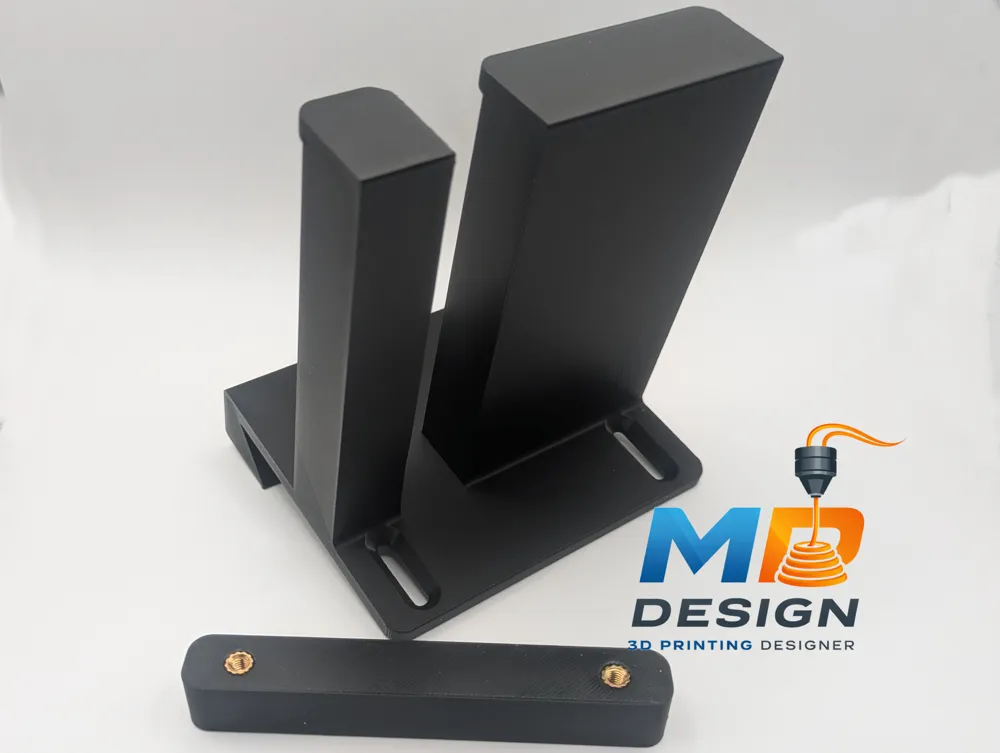

An optional Cleat lock can be printed and attached to the holder to prevent accidental lifting of the holder. The lock is designed to account for different heights of french cleat bars.
If you want to utilize this Cleat lock, you will need 2x M4 Heat Inserts and 2x M4x10mm Countersunk screws.
