Spring Clamp Holder, small, for French Cleat/Wall
Print Profile(3)
Bill of Materials
- Heat Insert M3 x 4: For version 1
- Countersunk Screw M3x10mm x 4: For Version 1
- Heat Insert M3 x 2: For version 2
- Countersunk Screw M3x10mm x 2: For Version 2
- Countersunk Screw Diameter 3mm x 2: For Version 3. 2 or 3 screws
Description
Boost Me (for free)
If you are happy with my work, I will be grateful for a rating of the print profile. In case you are really, really happy with my work, feel free to give me a BOOST, a like, a comment or a download of one of my other models. This will help me to continue providing high quality models to the community.
To make sure that the model fits your specific needs, please read the description and especially the information about sizes carefully before printing.

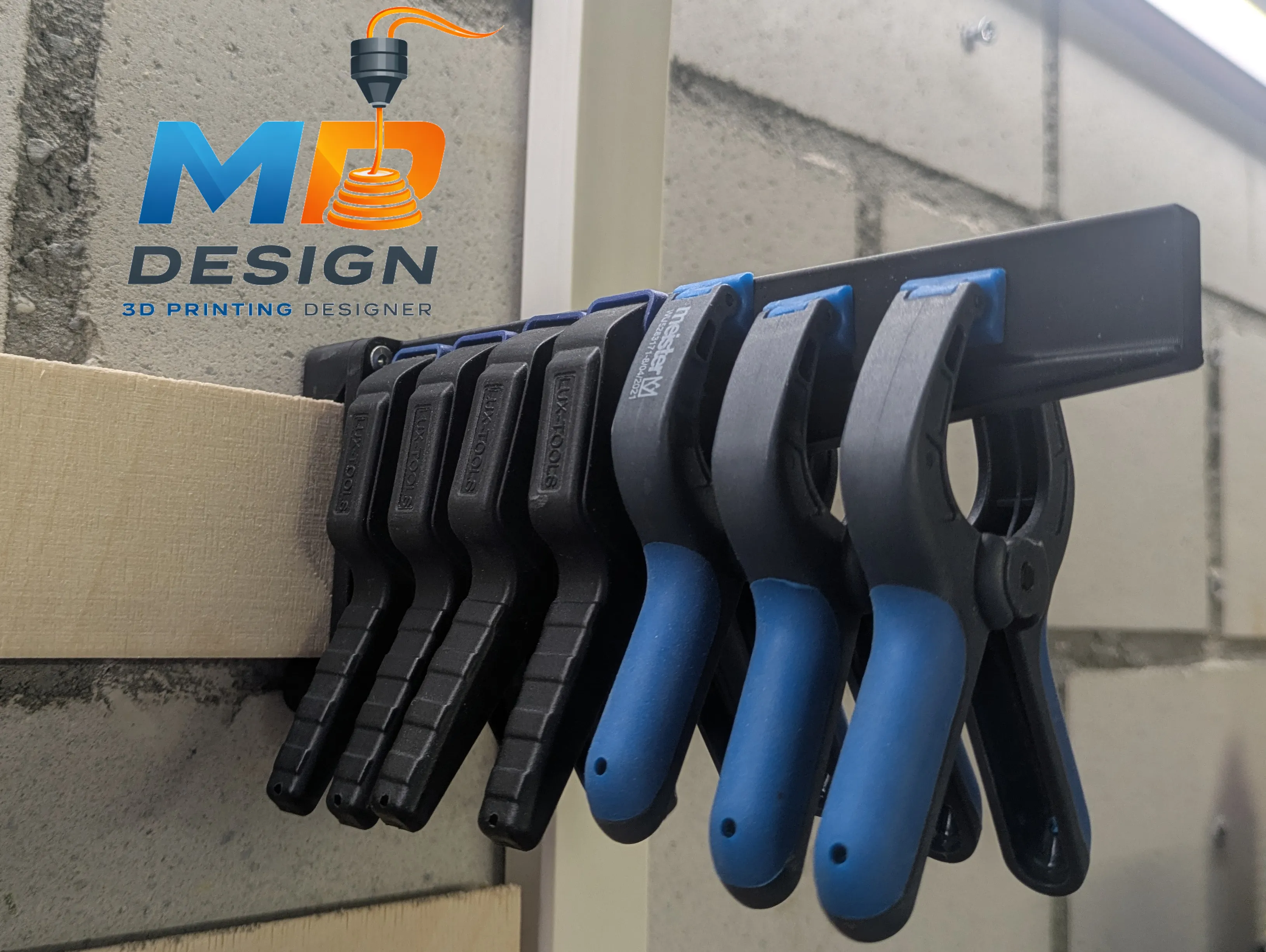

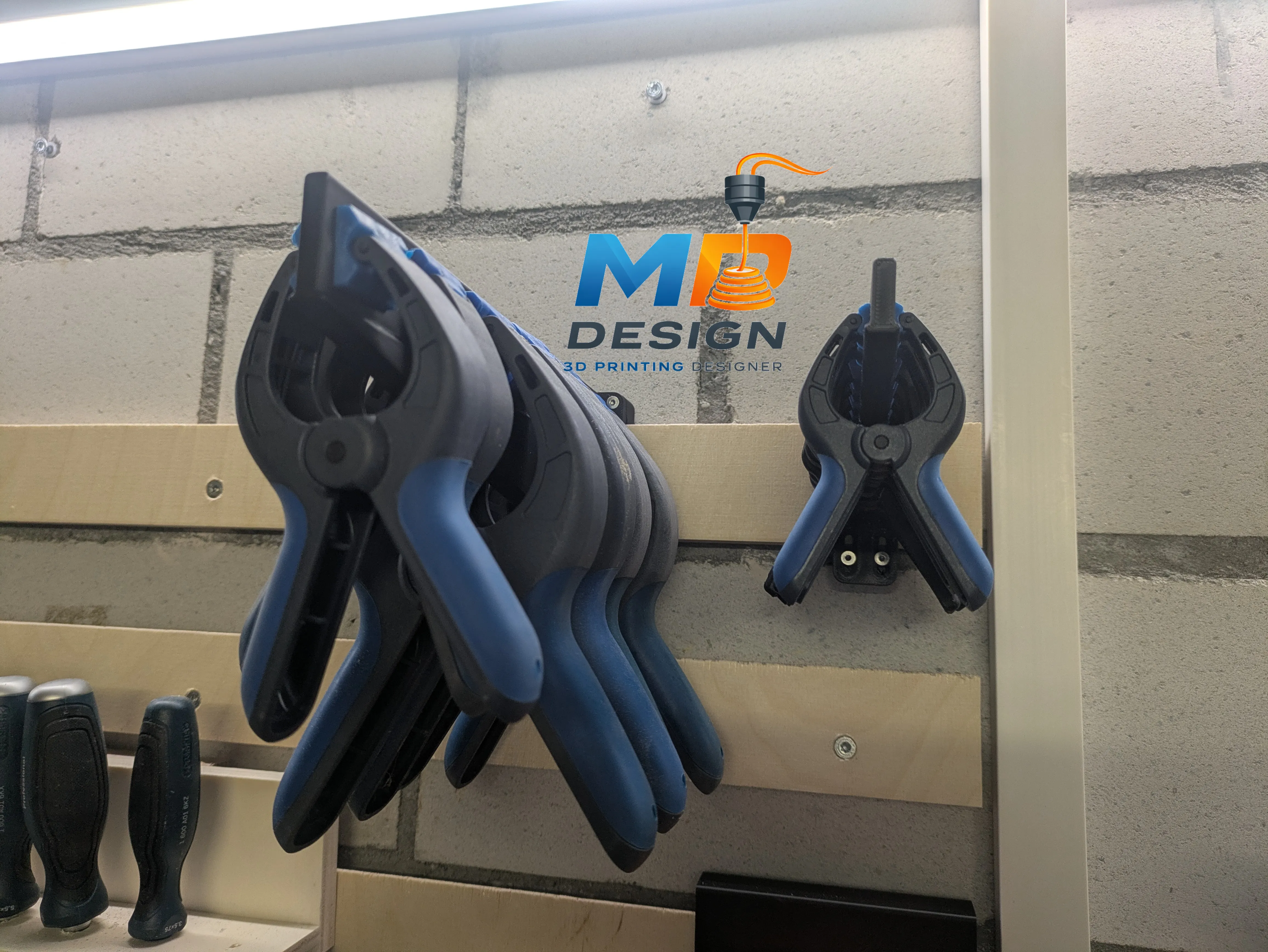

Tidy up your workspace with this Spring Clamp Holder
Tired of spring clamps being everywhere in your workspace? Use this Spring Clamp Holder instead.
This holder is designed to be space efficient with your wall space, storing the Spring Clamps perpendicular to the wall.
The holder is available in 3 different versions. All versions print without supports:

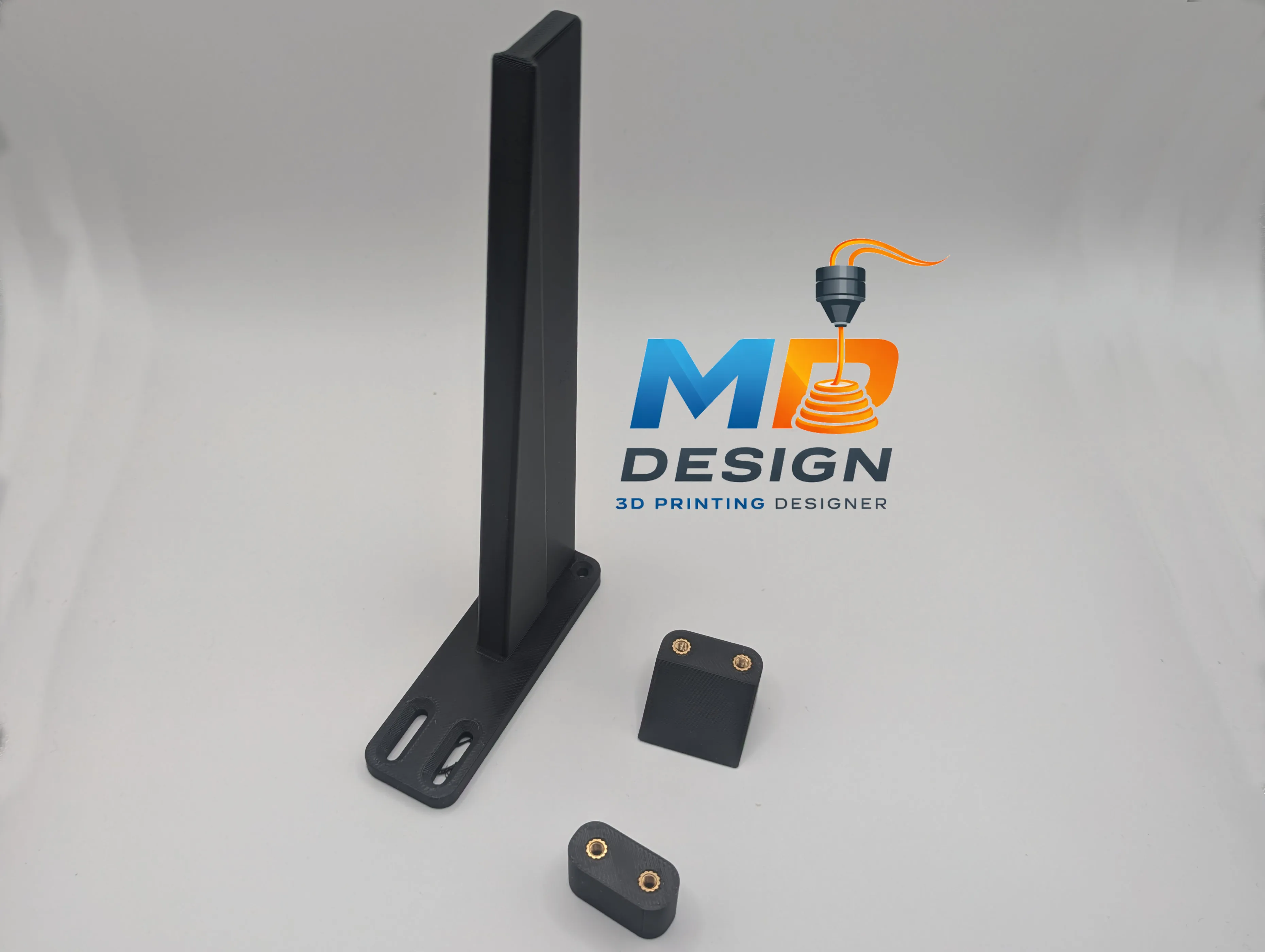

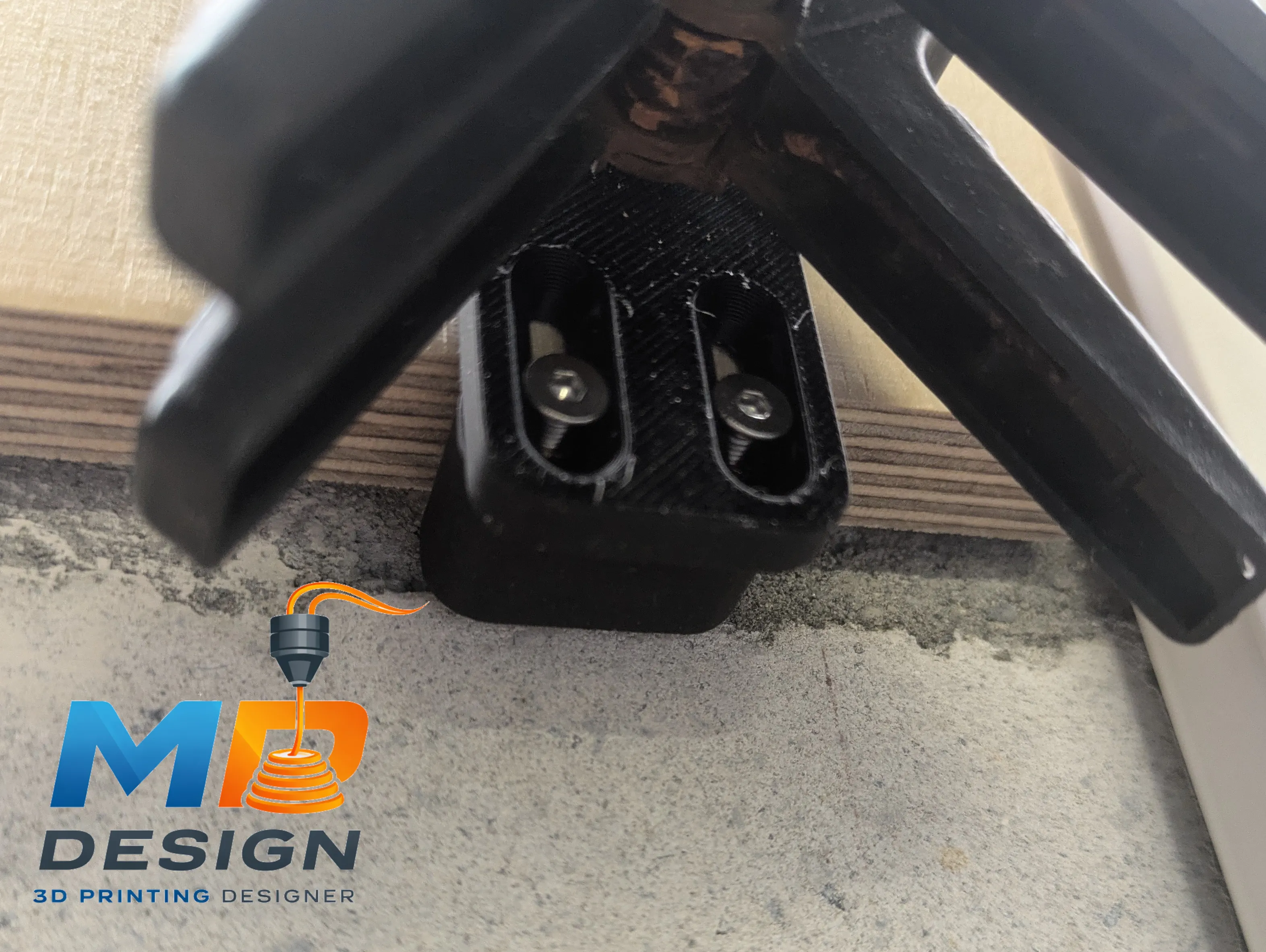

|  |  | For French Cleat Walls, with additional lock
This version was designed for French Cleat walls and features an adaptable lock, which prevents accidentally lifting of the holder. |

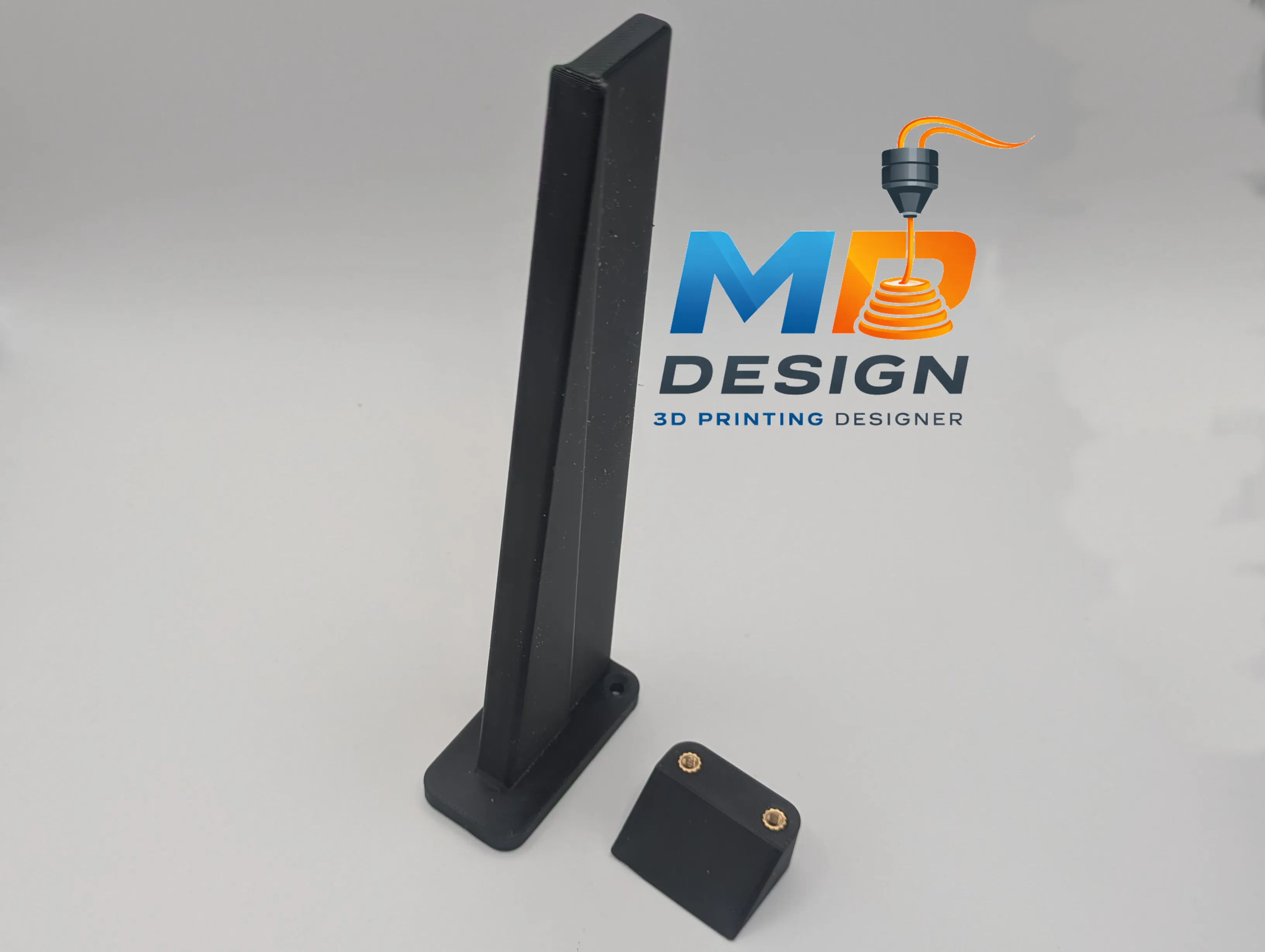

|  | For French Cleat Walls, without additional lock
This version was designed for French Cleat walls. Without the additional lock. | |

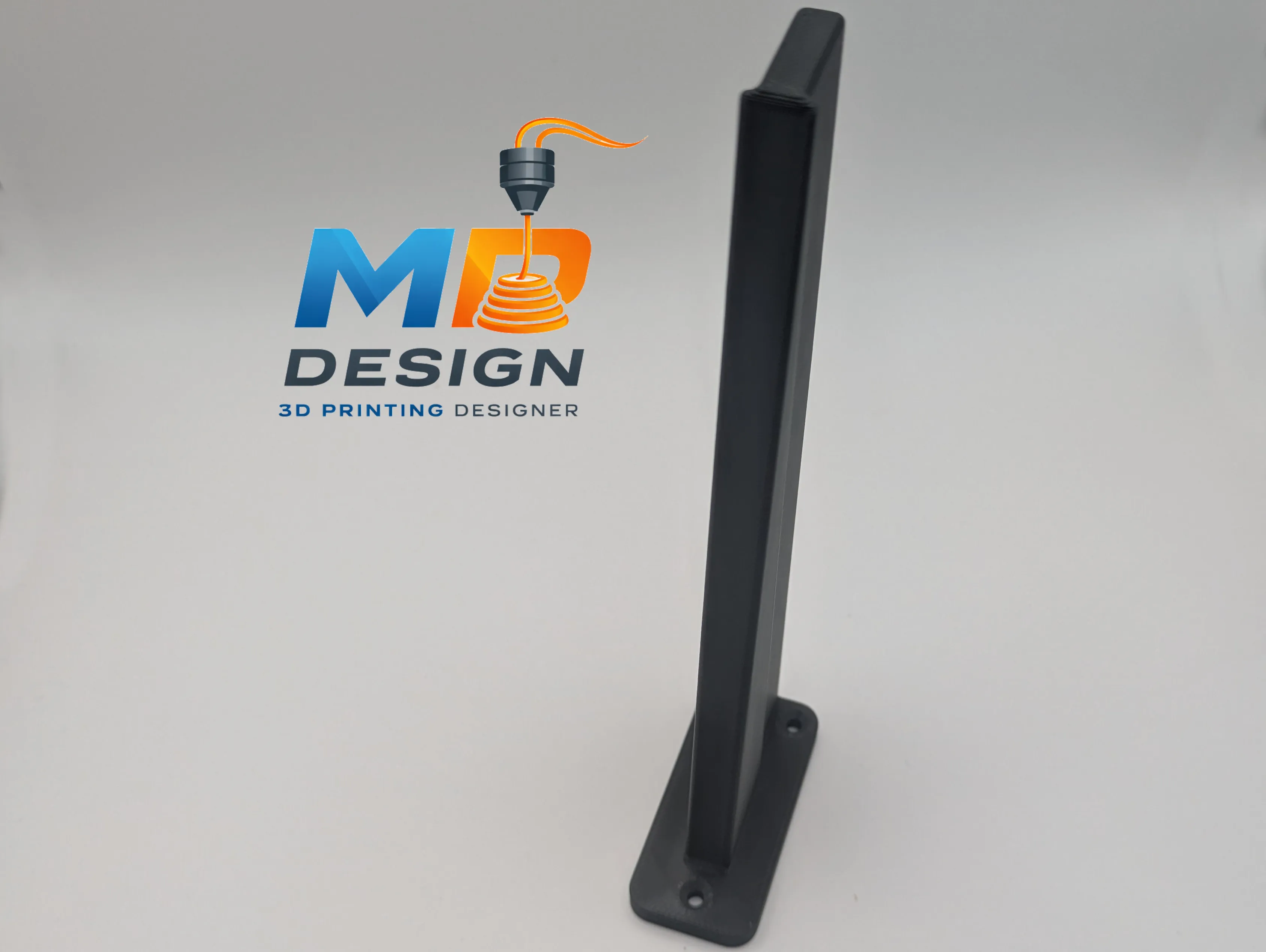

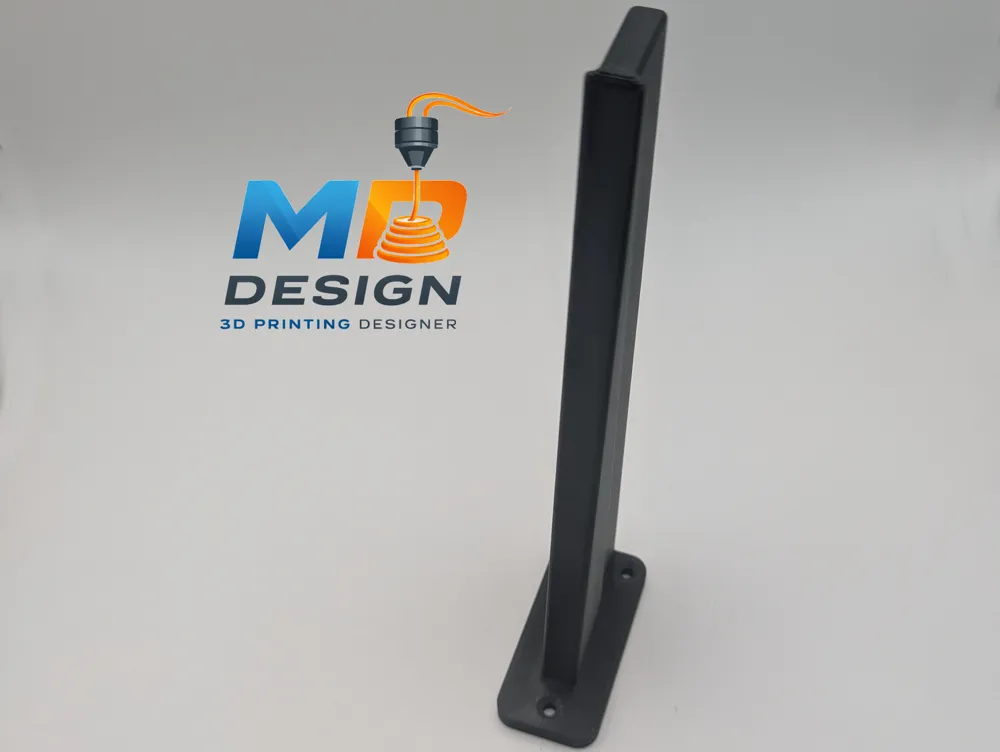

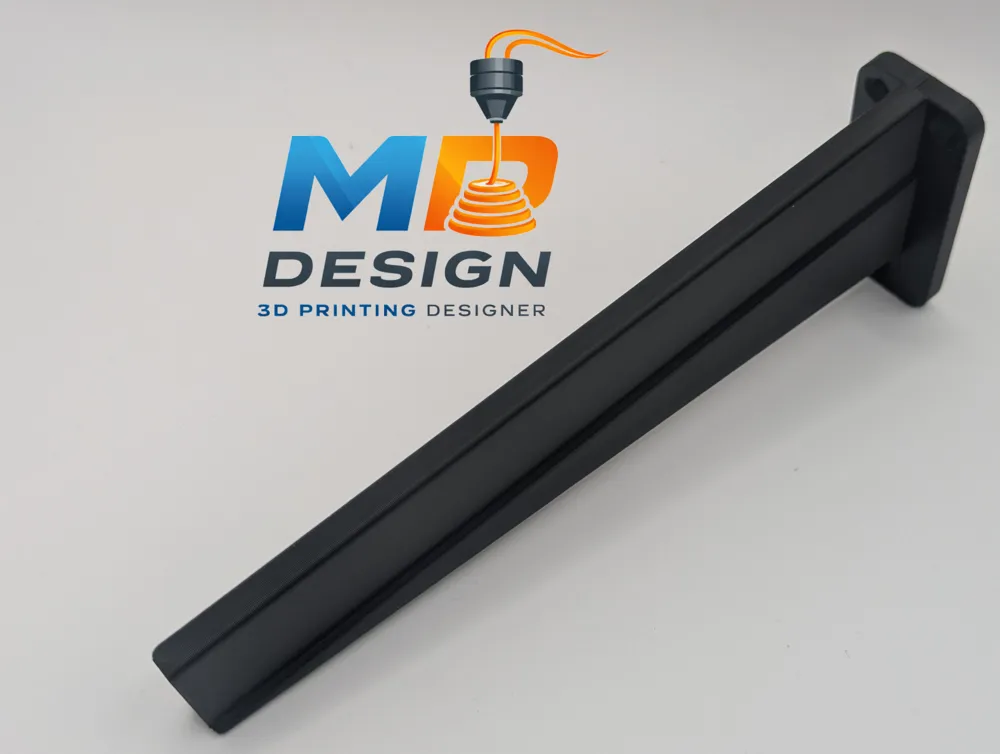

|  | For direct Wall mounting
This version was designed for direct wall mounting with 2 or 3 diameter 3mm Countersunk Screws. | |
Additional hardware needed for the different versions:
|
|
|
|
|
|

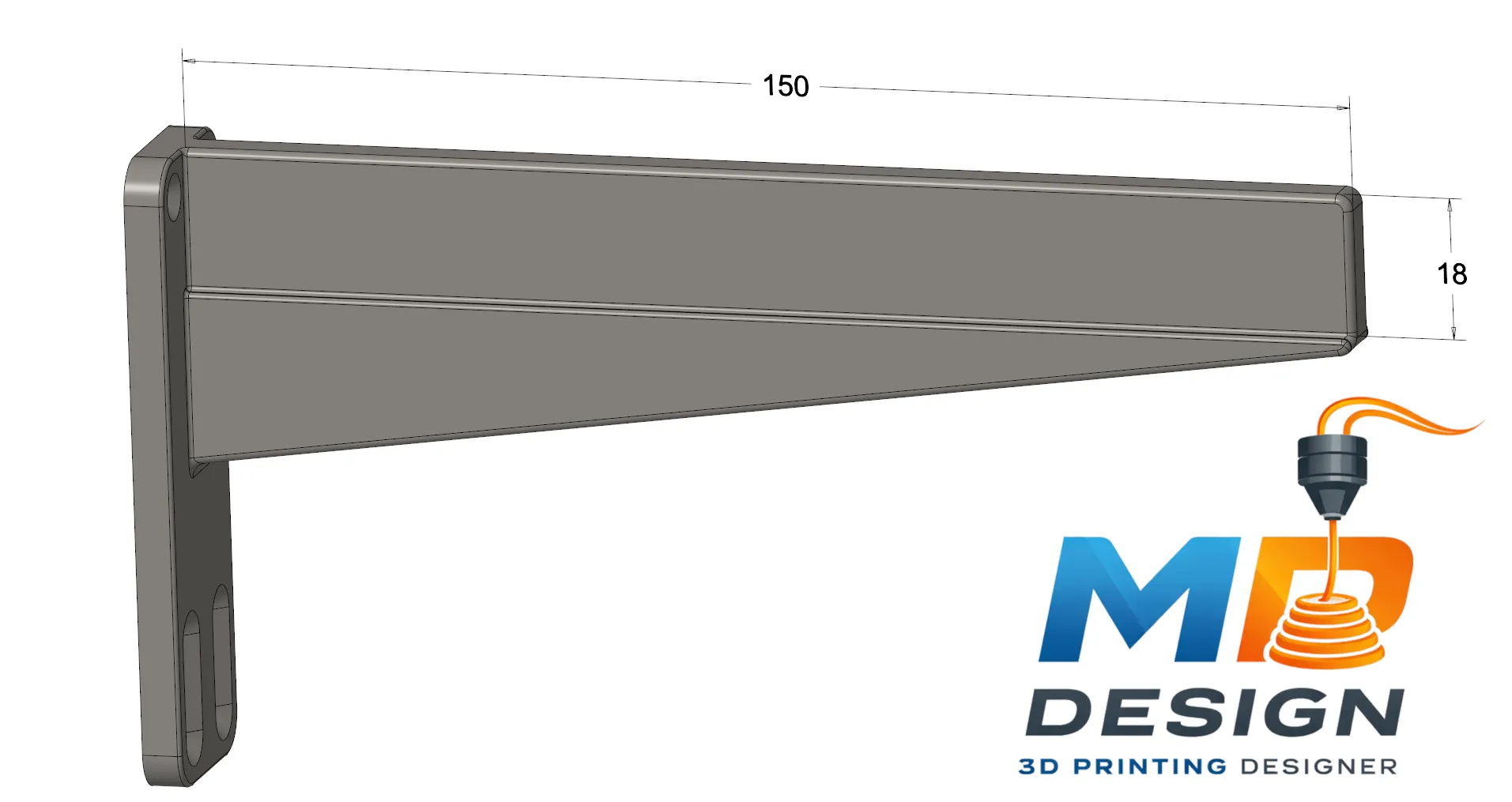

This is the holder for smaller Spring Clamps. See below for the dimensions:
There is also a larger version available. Please check it out here: Spring Clamp Holder, large, for French Cleat/Wall
