Gewächshaus

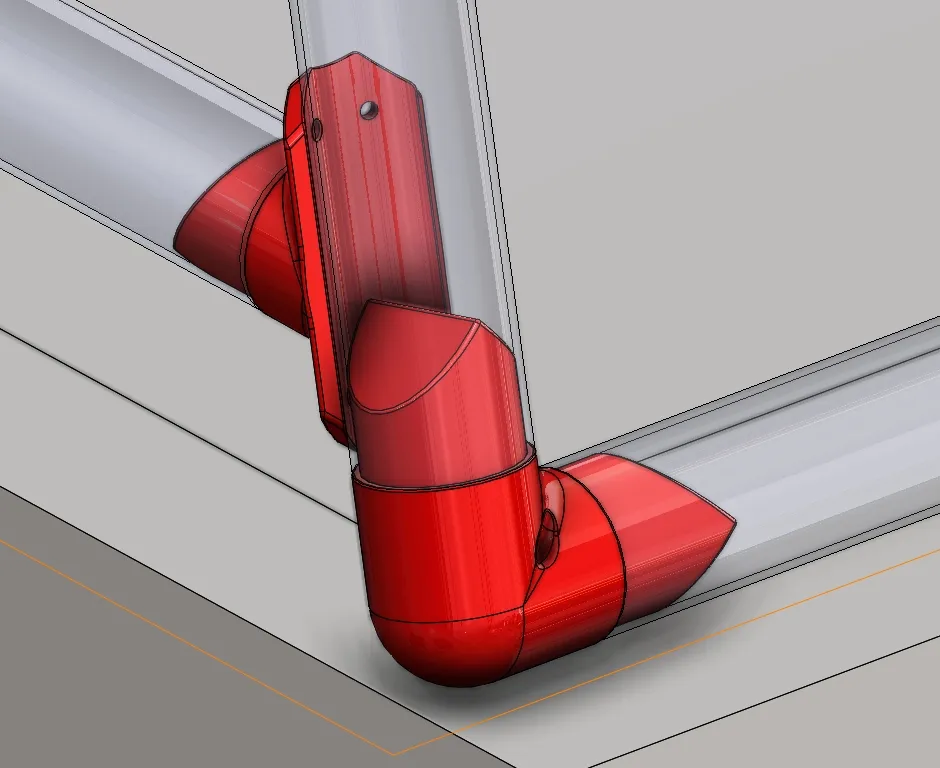

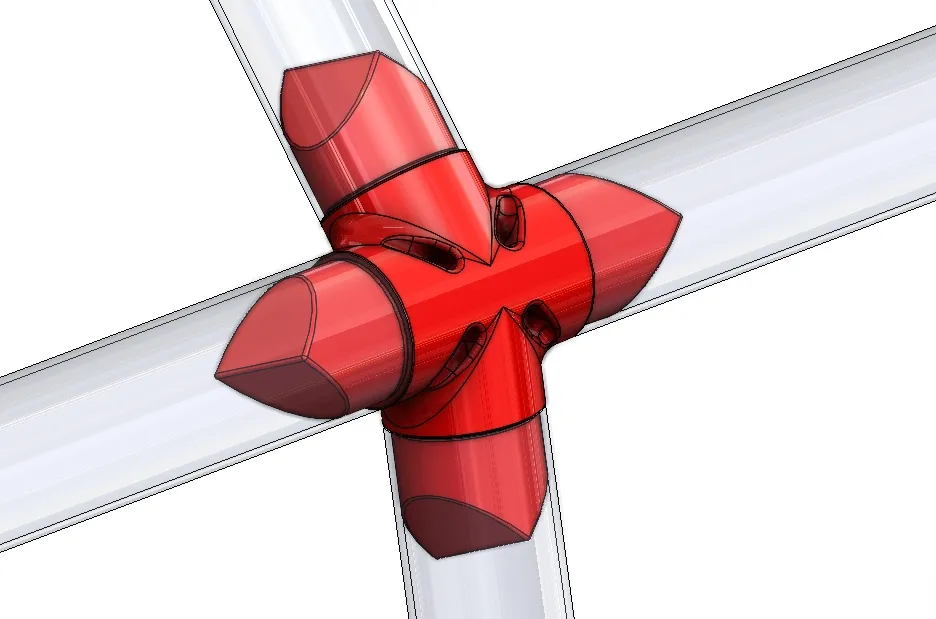

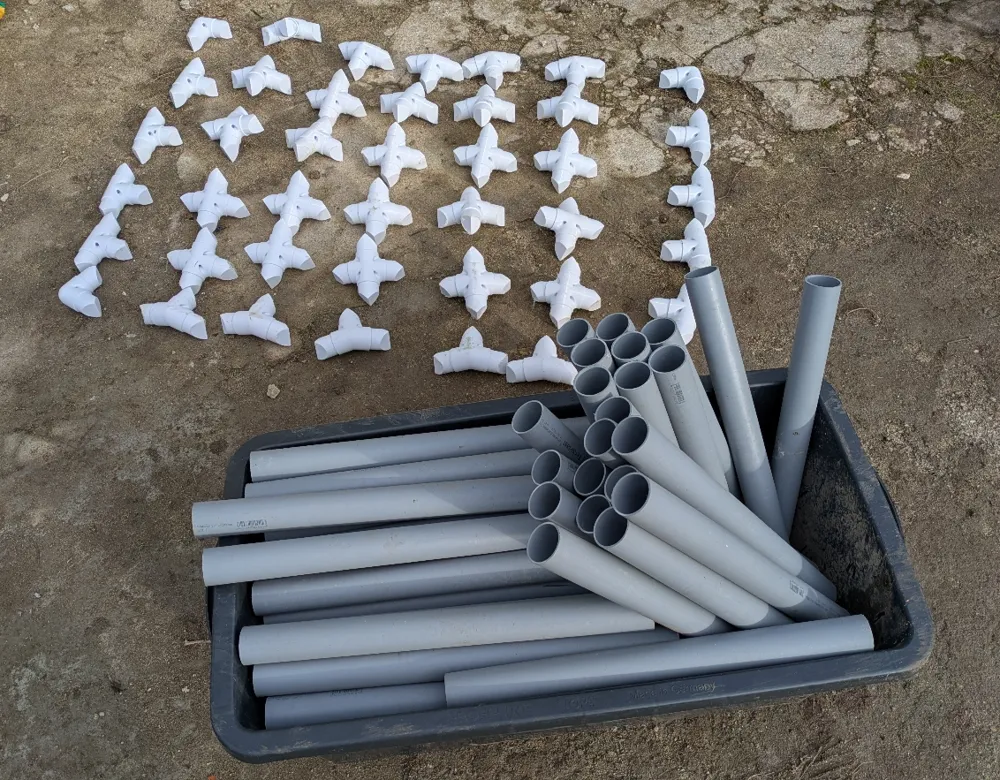

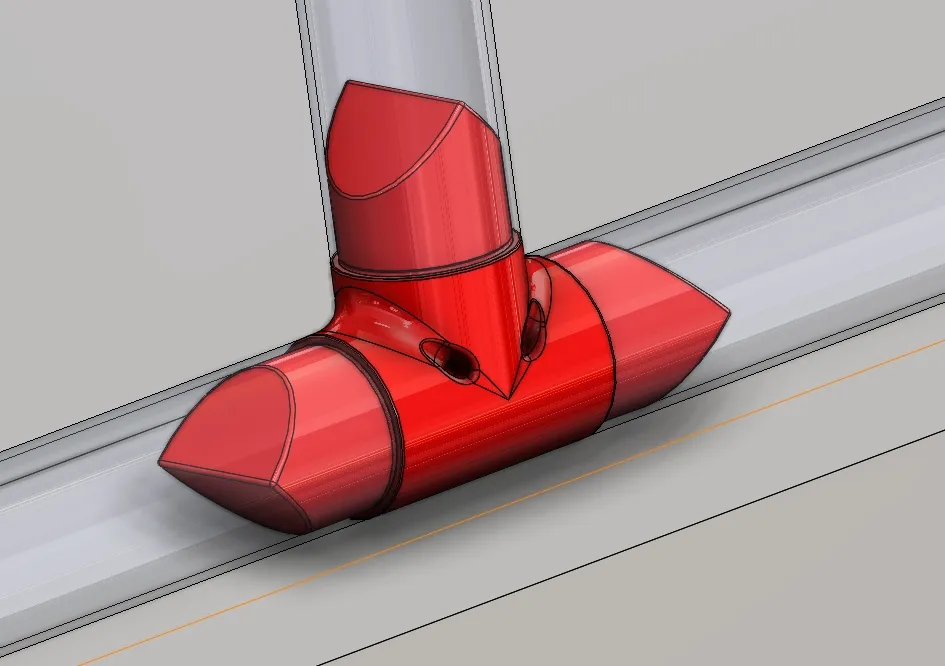

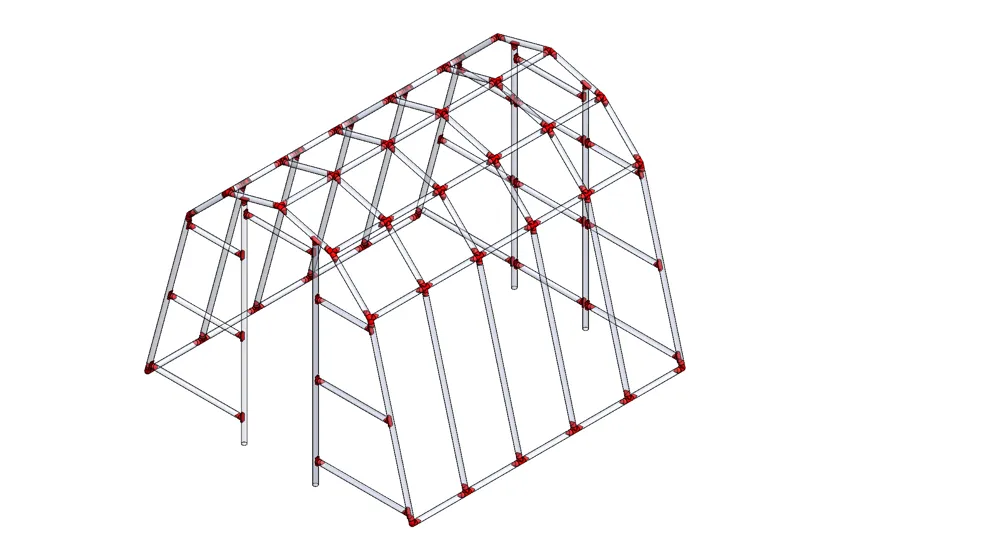

Greenhouse made from HT pipe (40x1.8) and printed node elements

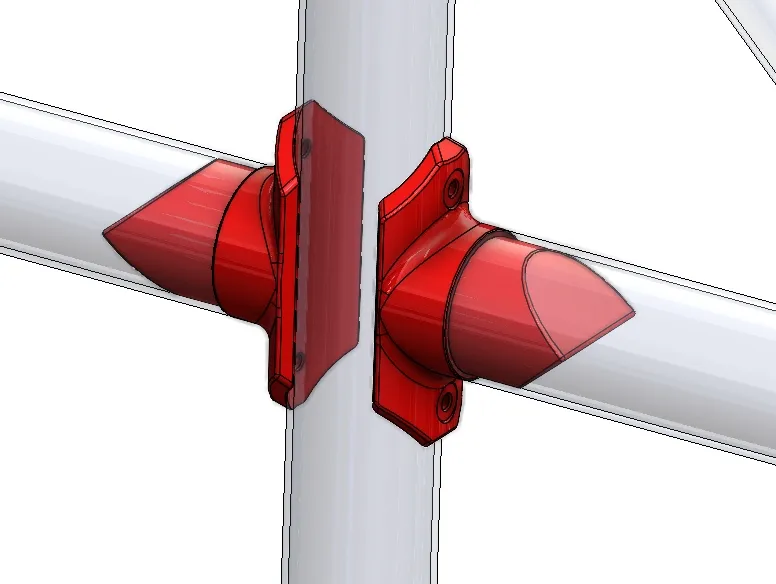

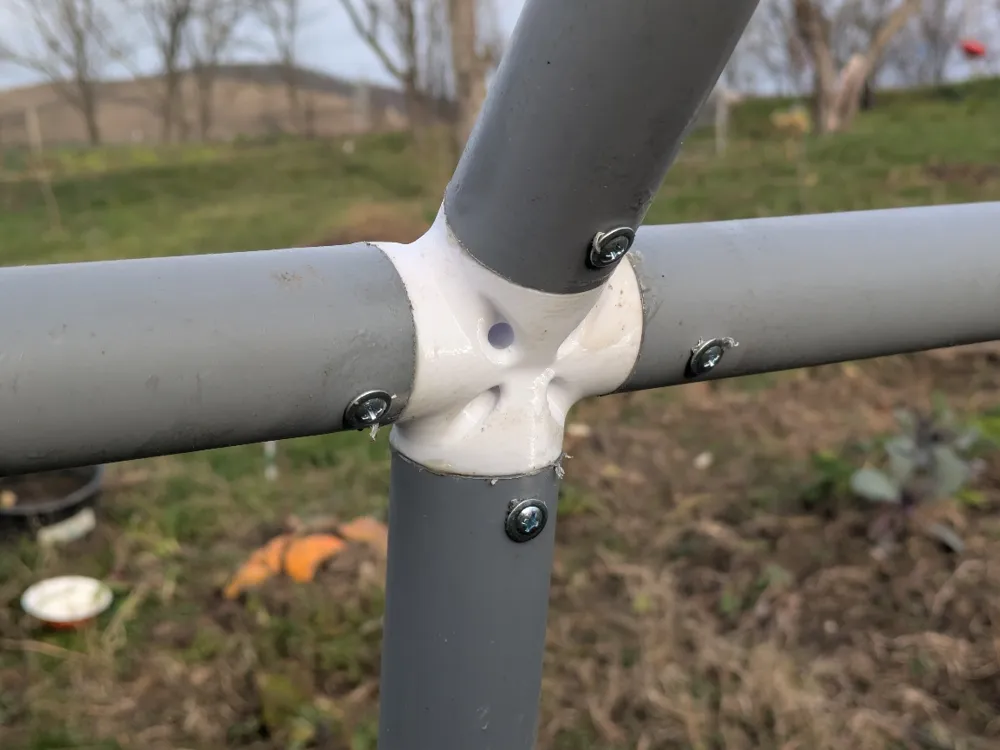

Pipes and node elements are glued. Use construction adhesive or special HT pipe adhesive for this. Additionally, all connections are secured with a screw

If anyone knows the ideal adhesive for connecting PETG with PP, please write it in the comments. I'm still looking :-)

I have found that HT pipes can vary in wall thickness (depending on the manufacturer). It's best to perform a test with an HT pipe and a sample part before printing all parts

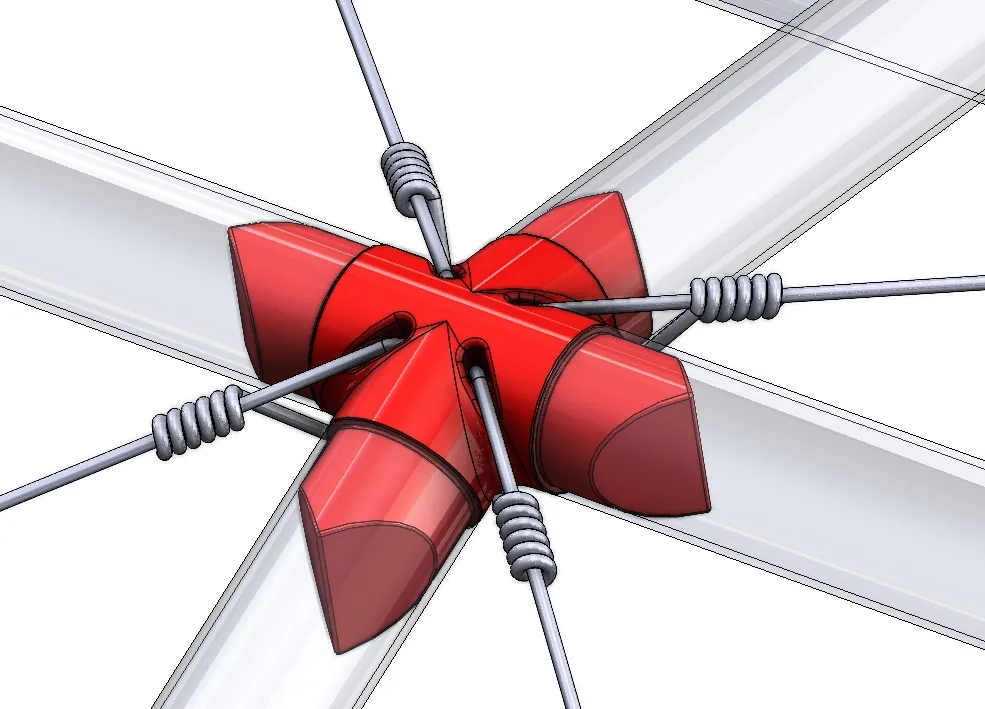

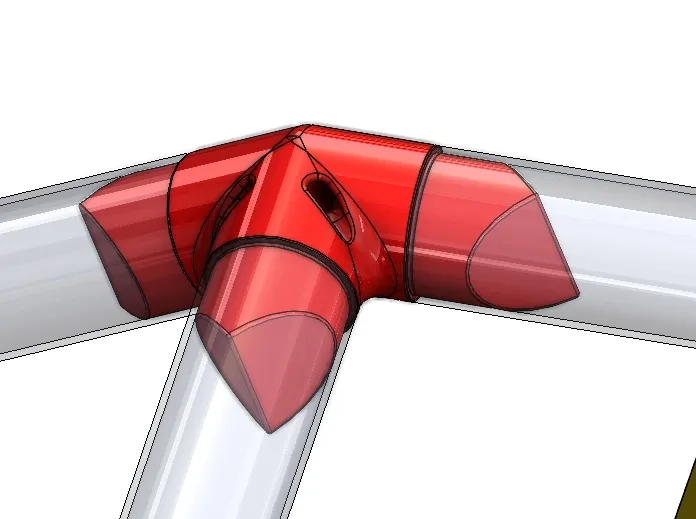

For stiffening the fields, a connection between the node elements can be made with wire or string. The node elements have a pass-through integrated for this purpose

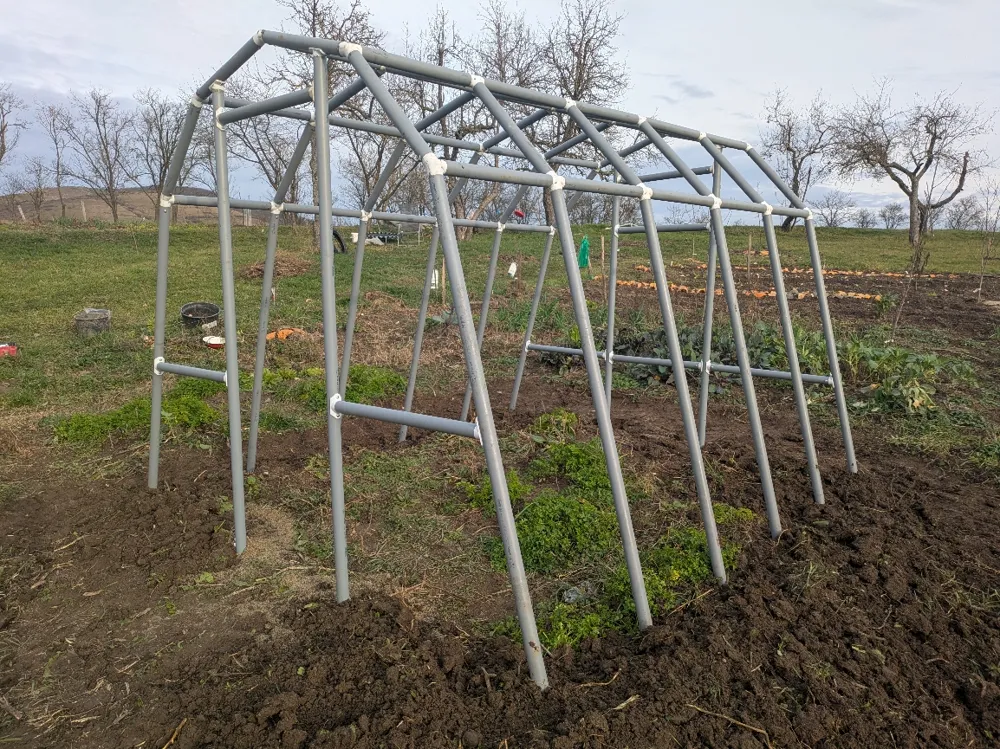

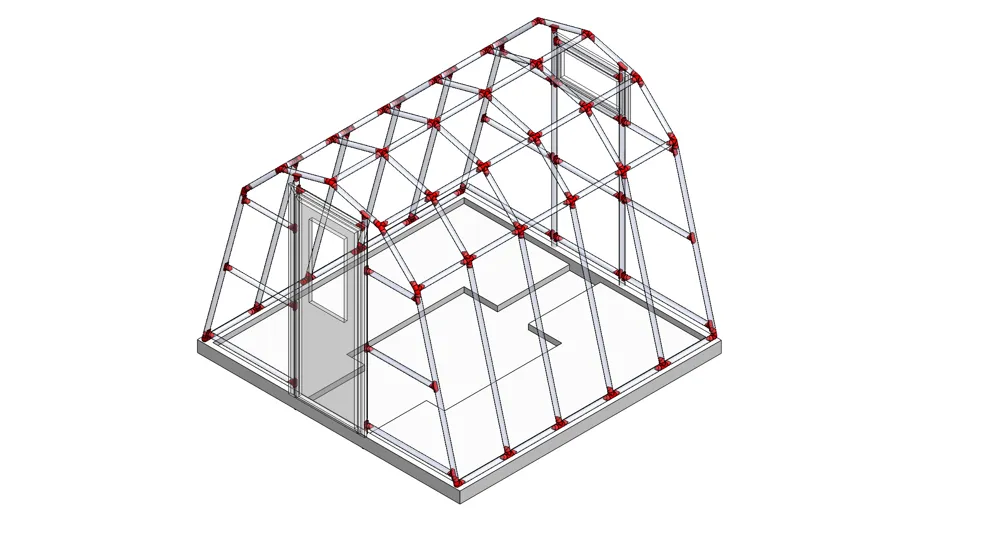

With the current size, this is not really necessary. The structure is sufficiently stable as is. The easiest way to secure it to the ground is by burying it. Windows and doors will be added later from wood

Note: The printed parts are very stable. Reducing wall thickness and infill would save some material. My goal was a smooth transition between the pipe and the node element. That's why the fit is based on the inner diameter

>>> Quantities and required raw lengths see PDF (Documentation) <<<
