Description

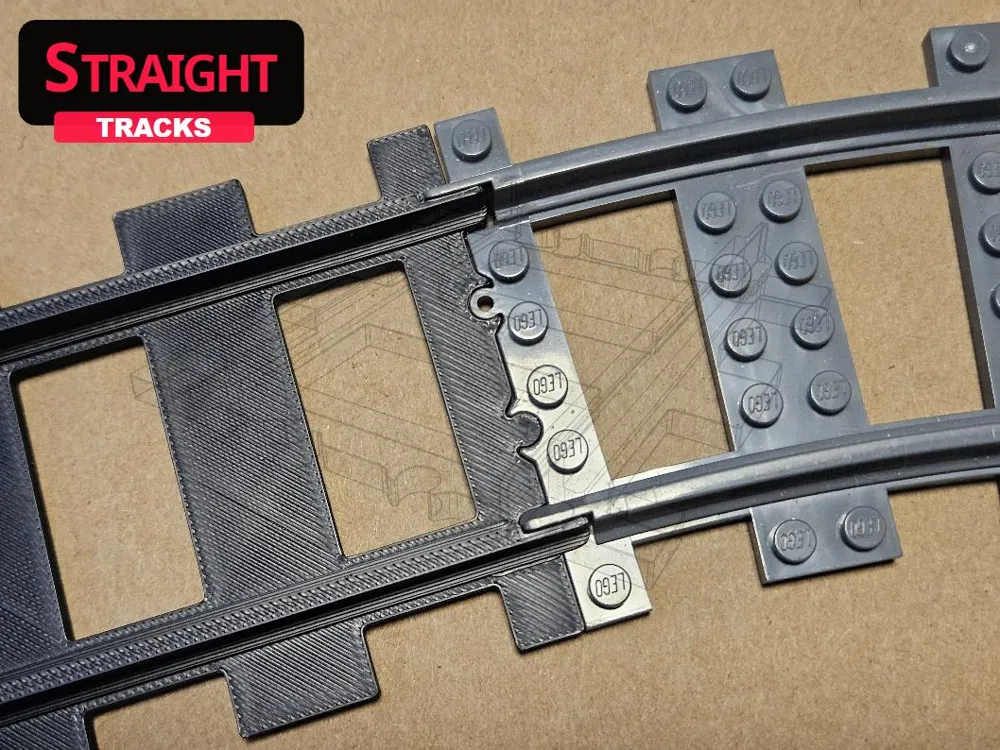

Straight railway tracks compatible with LE-GO or MOC city creative trains.

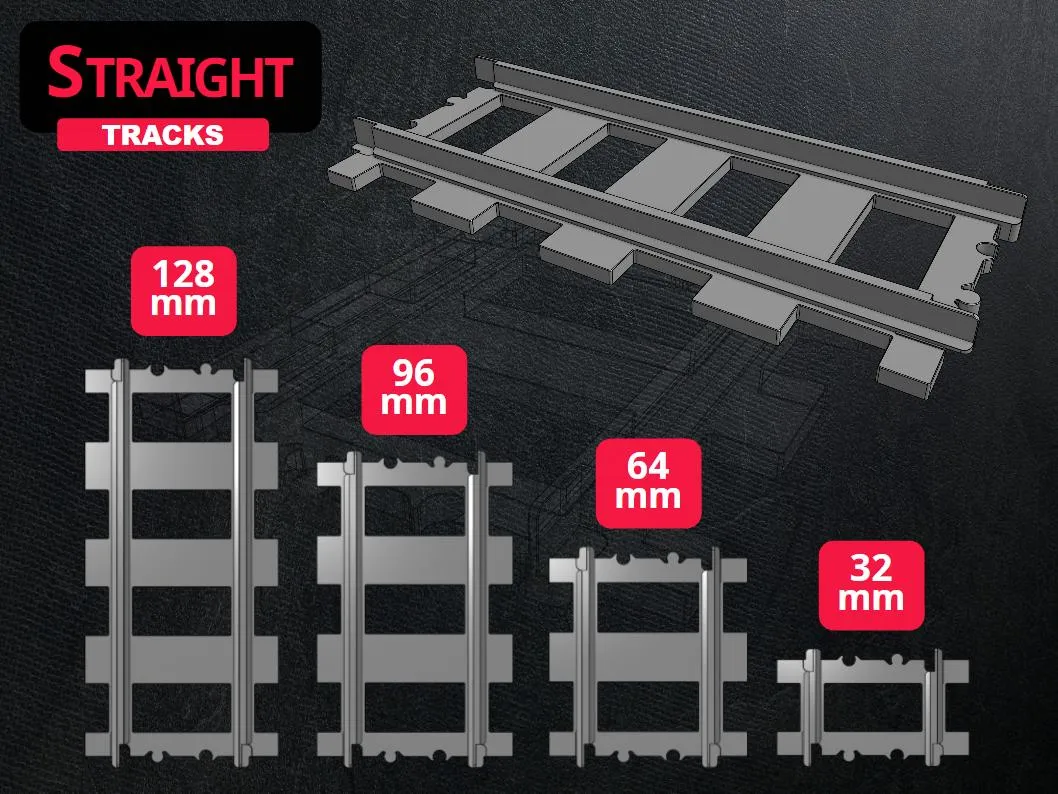

The set includes 4 track dimensions:
- length 32 mm
- length 64 mm
- length 96 mm
- length 128 mm

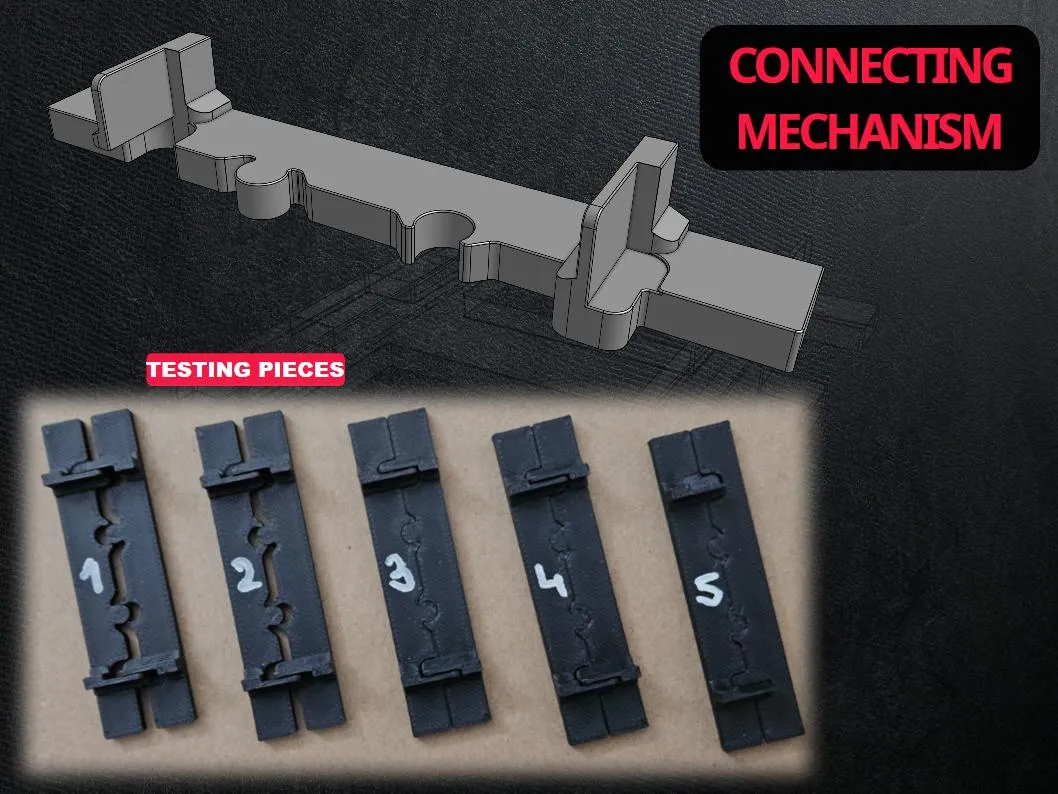

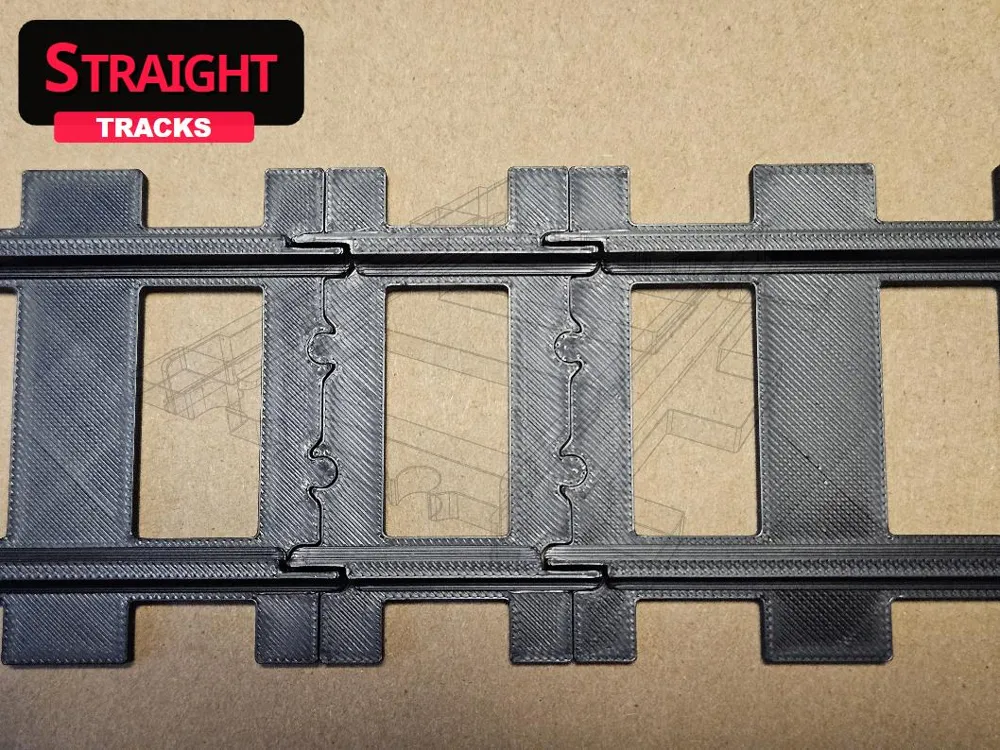

The connecting mechanism has been tested many times to ensure that it is not too tight, but still holds the tracks together firmly. Nevertheless, I recommend printing test pieces before printing full tracks – see more in the chapter on printing.
Printing

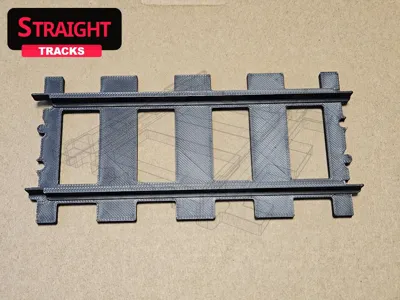

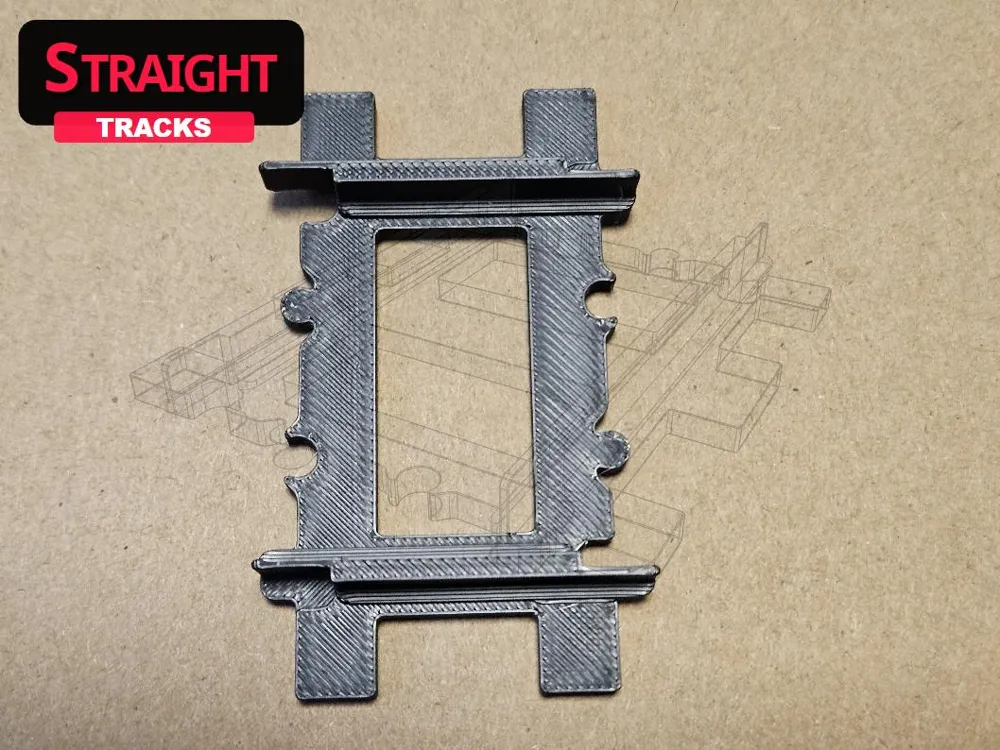

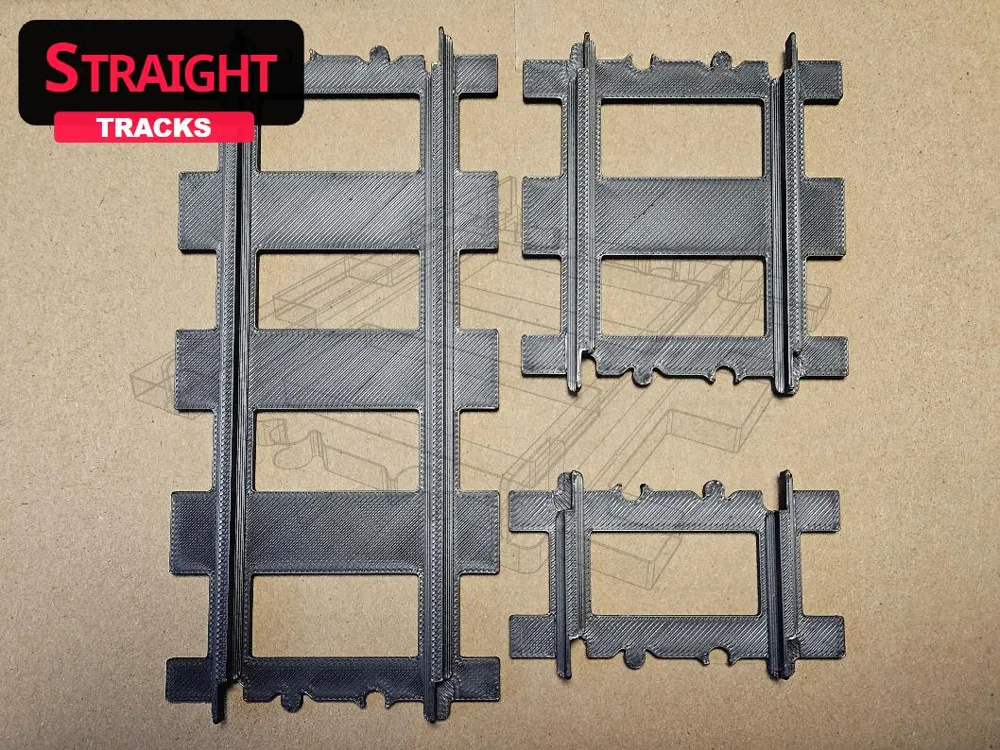

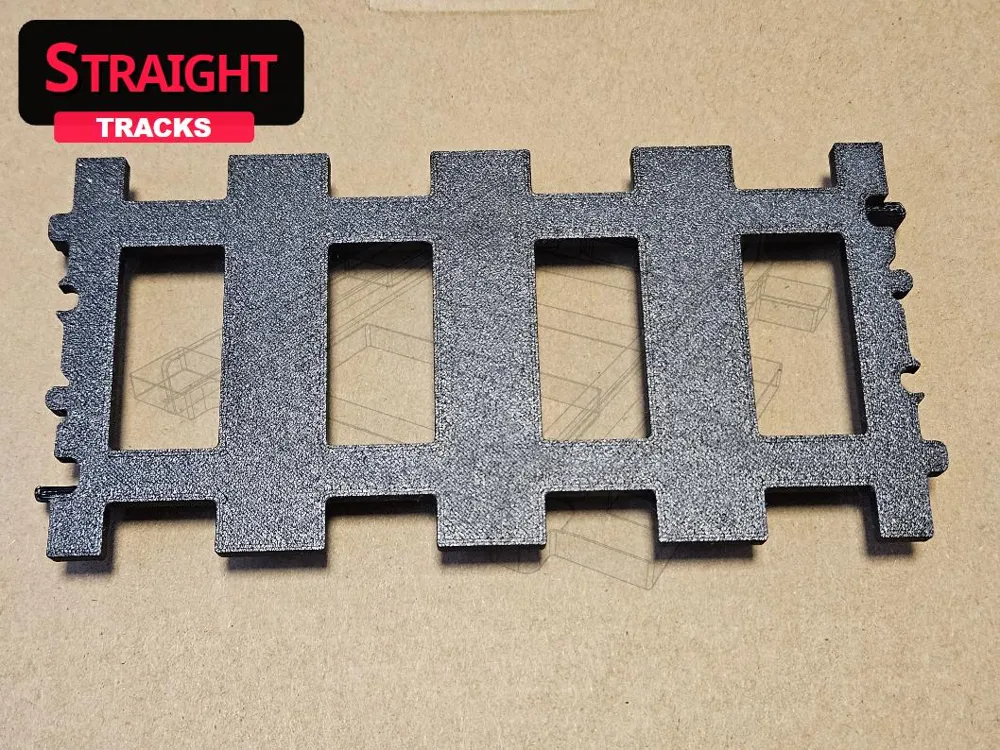

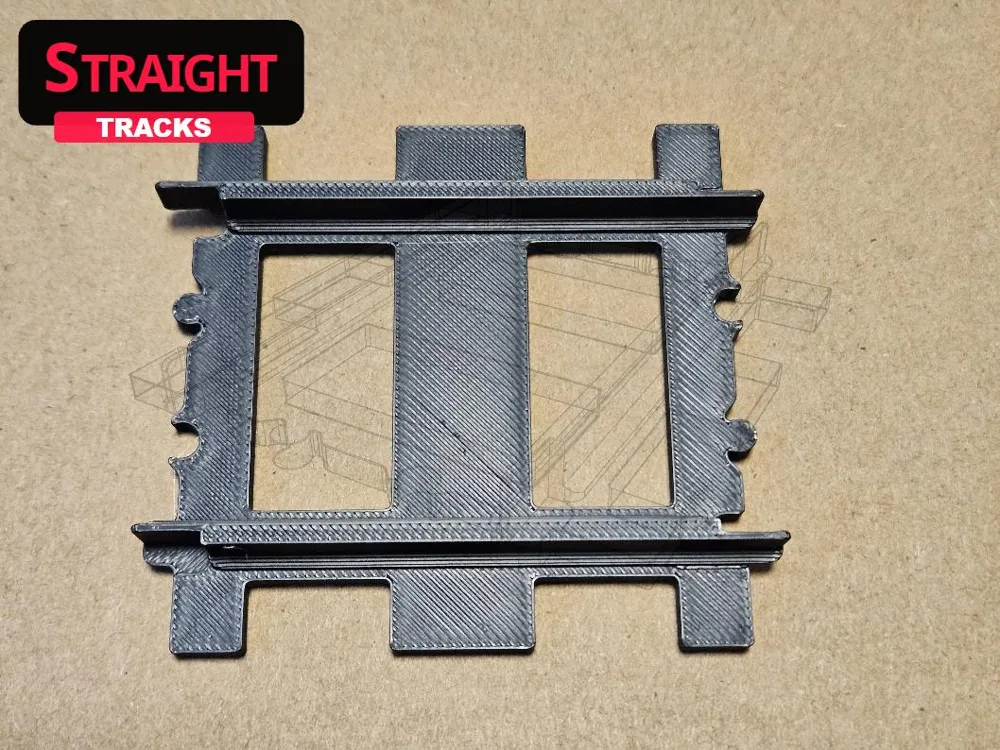

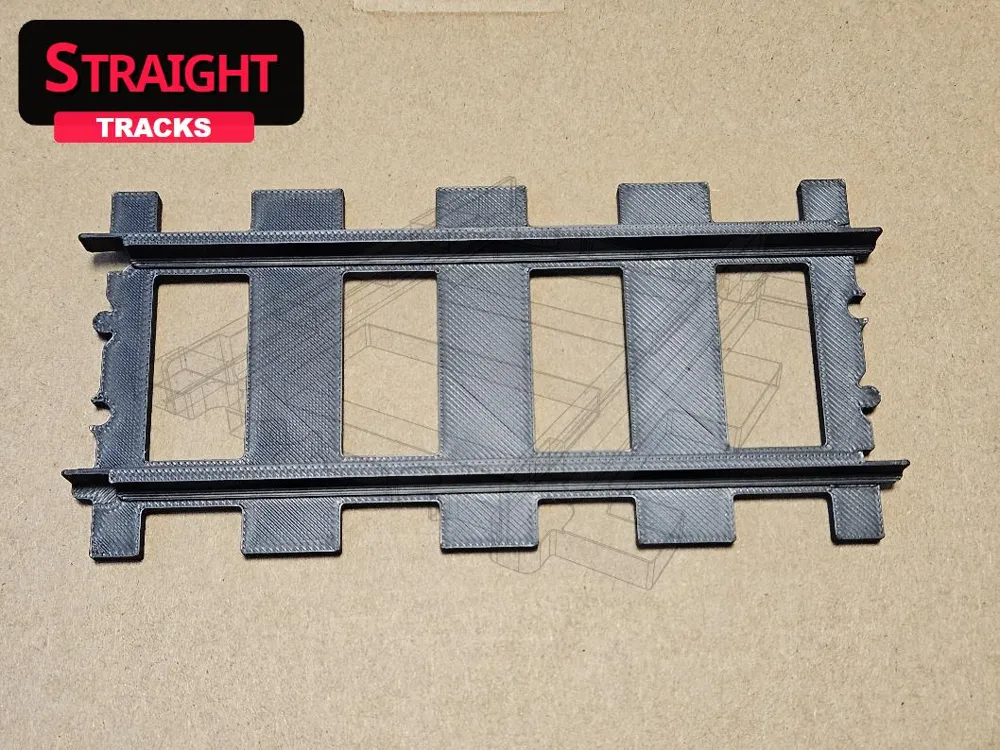

The tracks on photos are printed from PLA Eryone - bright black.
Each track length is placed on a separate plate.
There are not many special settings here - objects have 2 perimeters and 15% infill. Layer height is 0.2 mm. There are a few modifiers to improve bridging. Overhanging parts of the rails have supports.
I always prioritize quality over speed, so you can "play around" with the speeds if you want.
There is a separate print profile for the test of connection mechanism. You can use it to test whether the mechanism will work properly with your printer settings. Alternatively, you can slightly modify the flow - for Eryone PLA I use 0.97 (setting of Bambulab profiles for Bambulab PLA is 0.98).
Tolerances are set according to my P1S.
Other railway shapes
Use additional tracks to create the track layout:
Railcar model suitable for these tracks
Happy printing and playing with trains 🙂
