Print Profile(1)
0.18mm layer, 2 walls, 12% infill
Designer
15.6 h
4 plates
Open in Bambu Studio
Boost
4
11
2
0
3
0
Released
Description

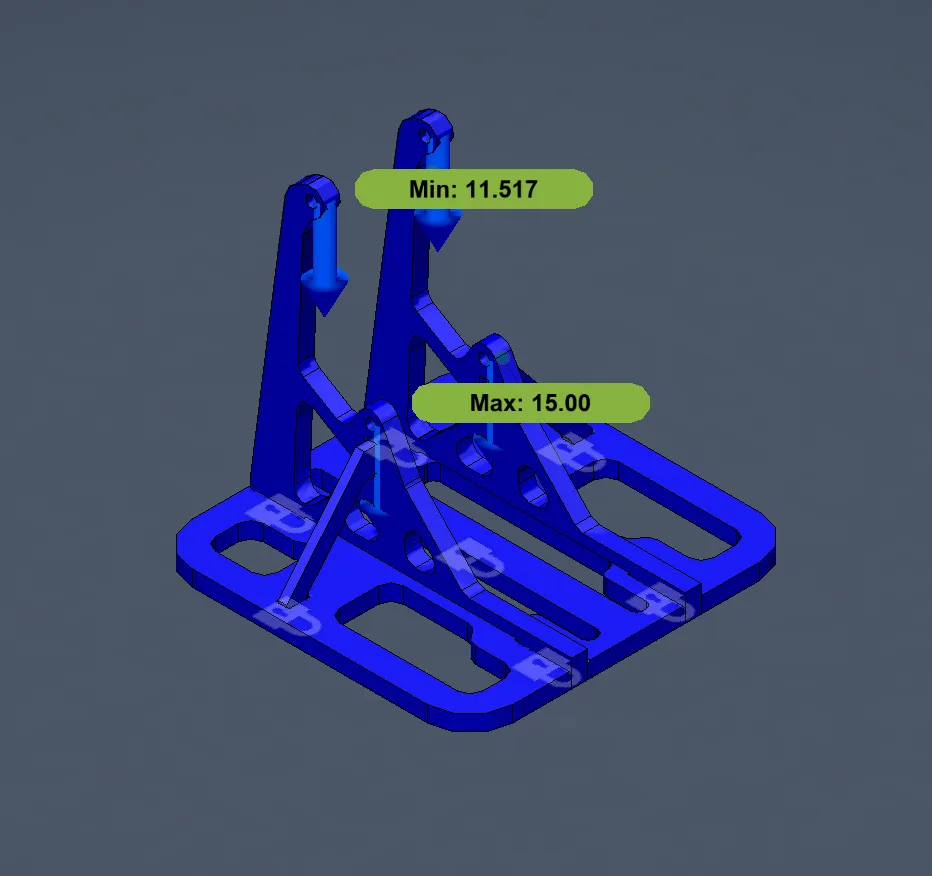

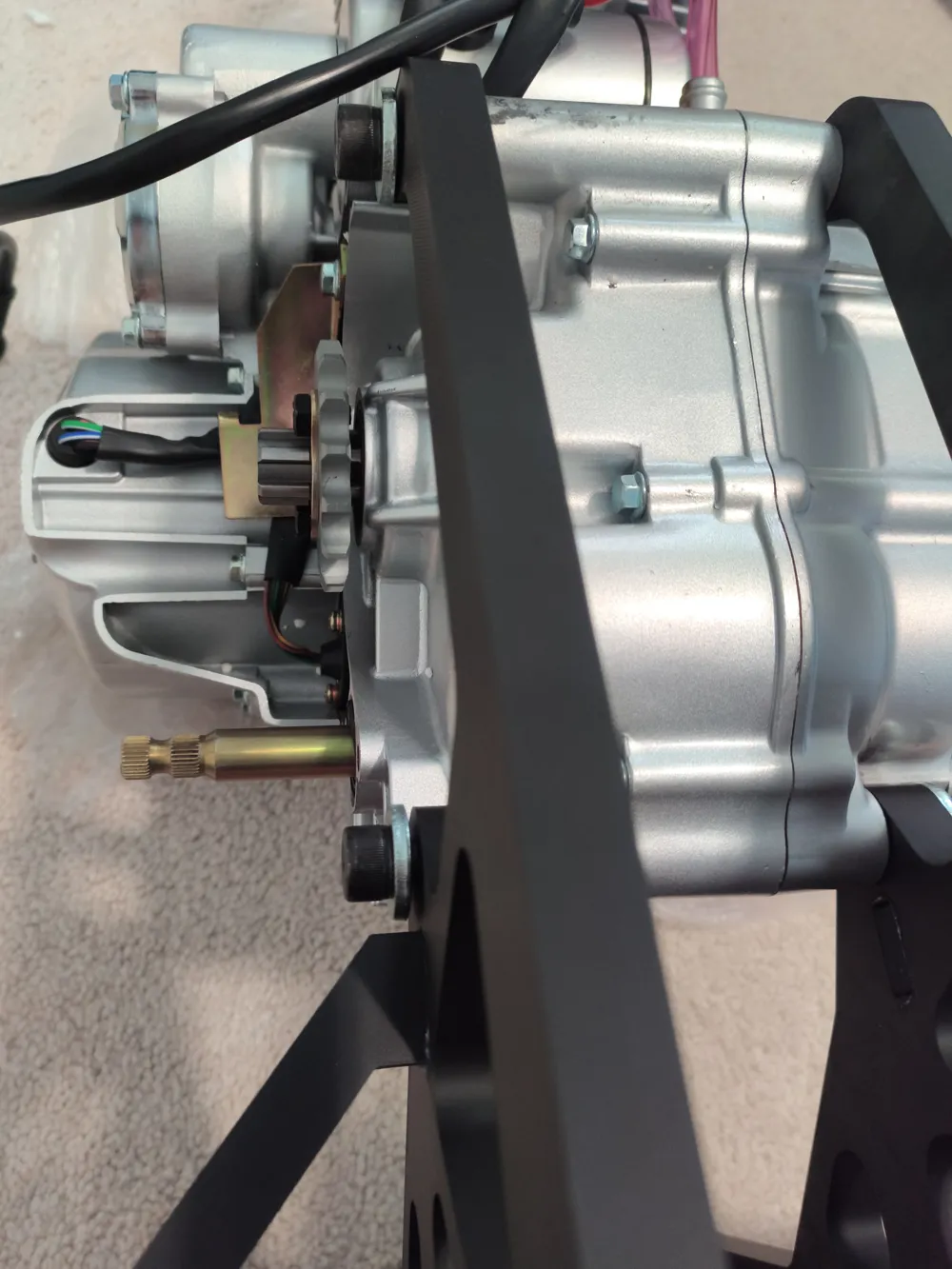

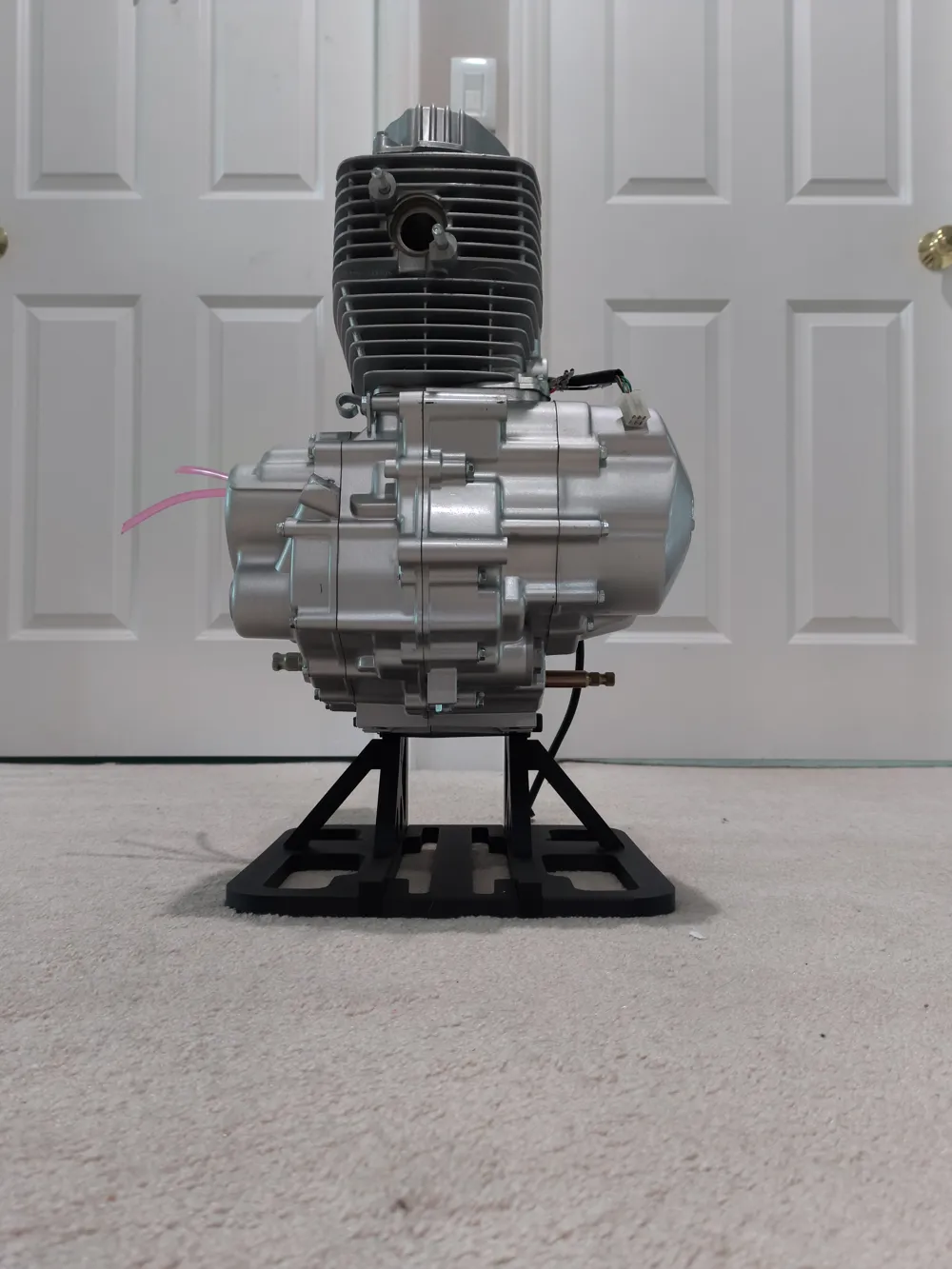

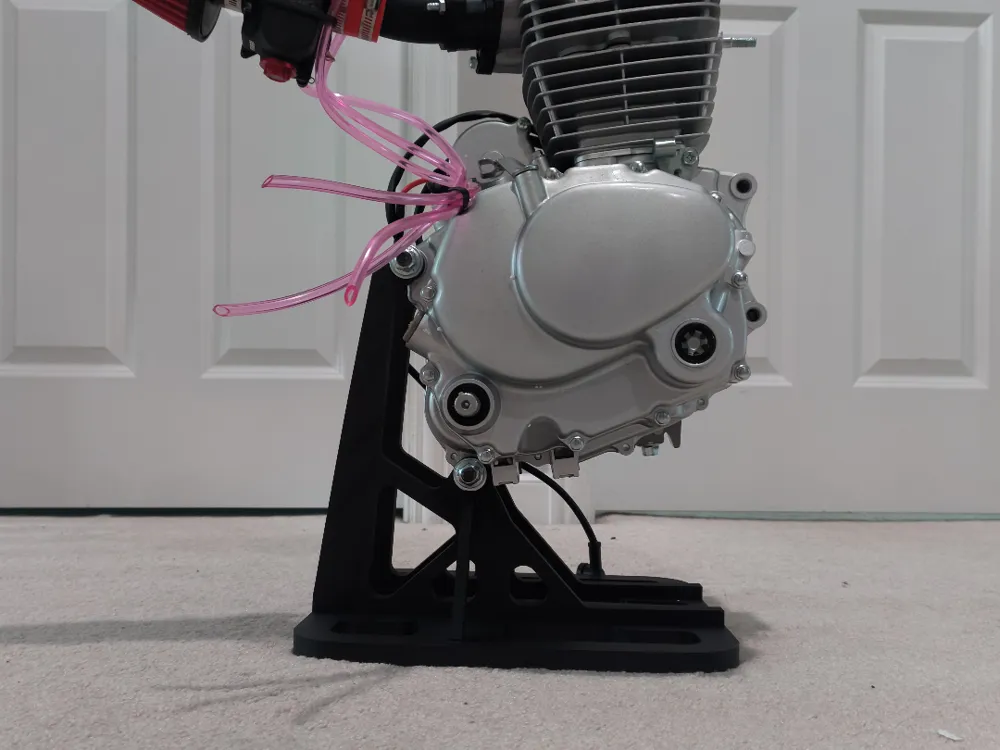

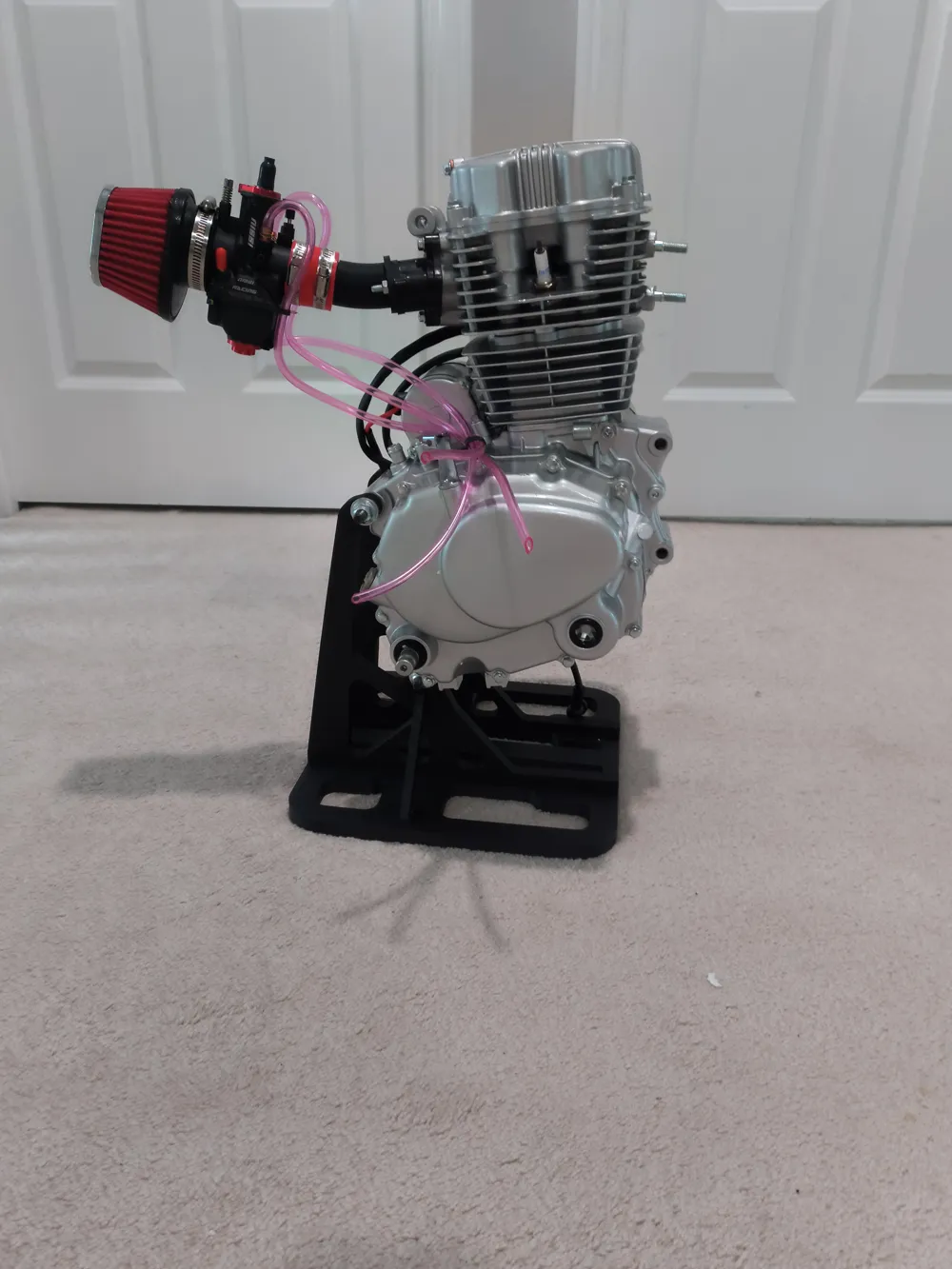

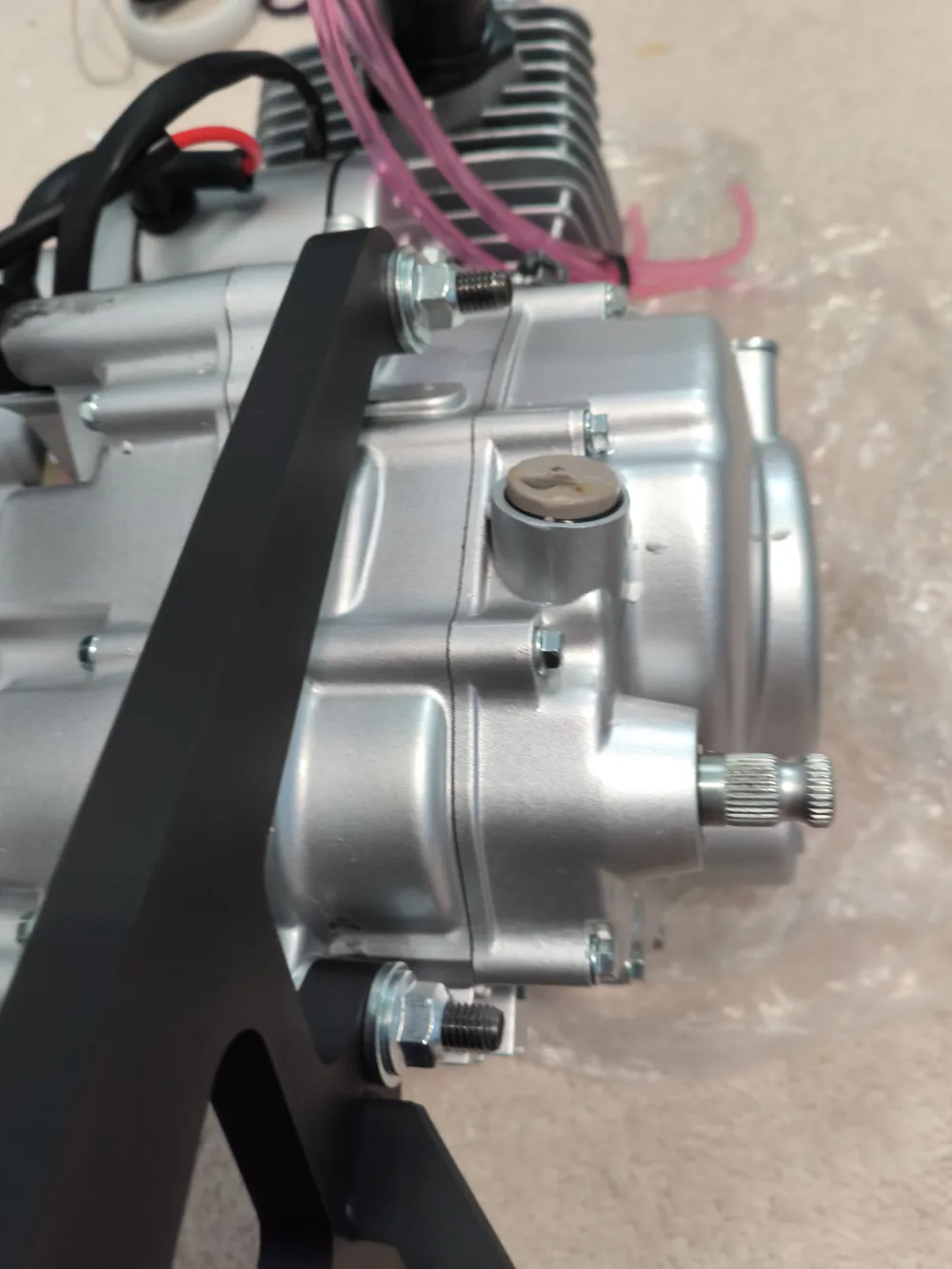

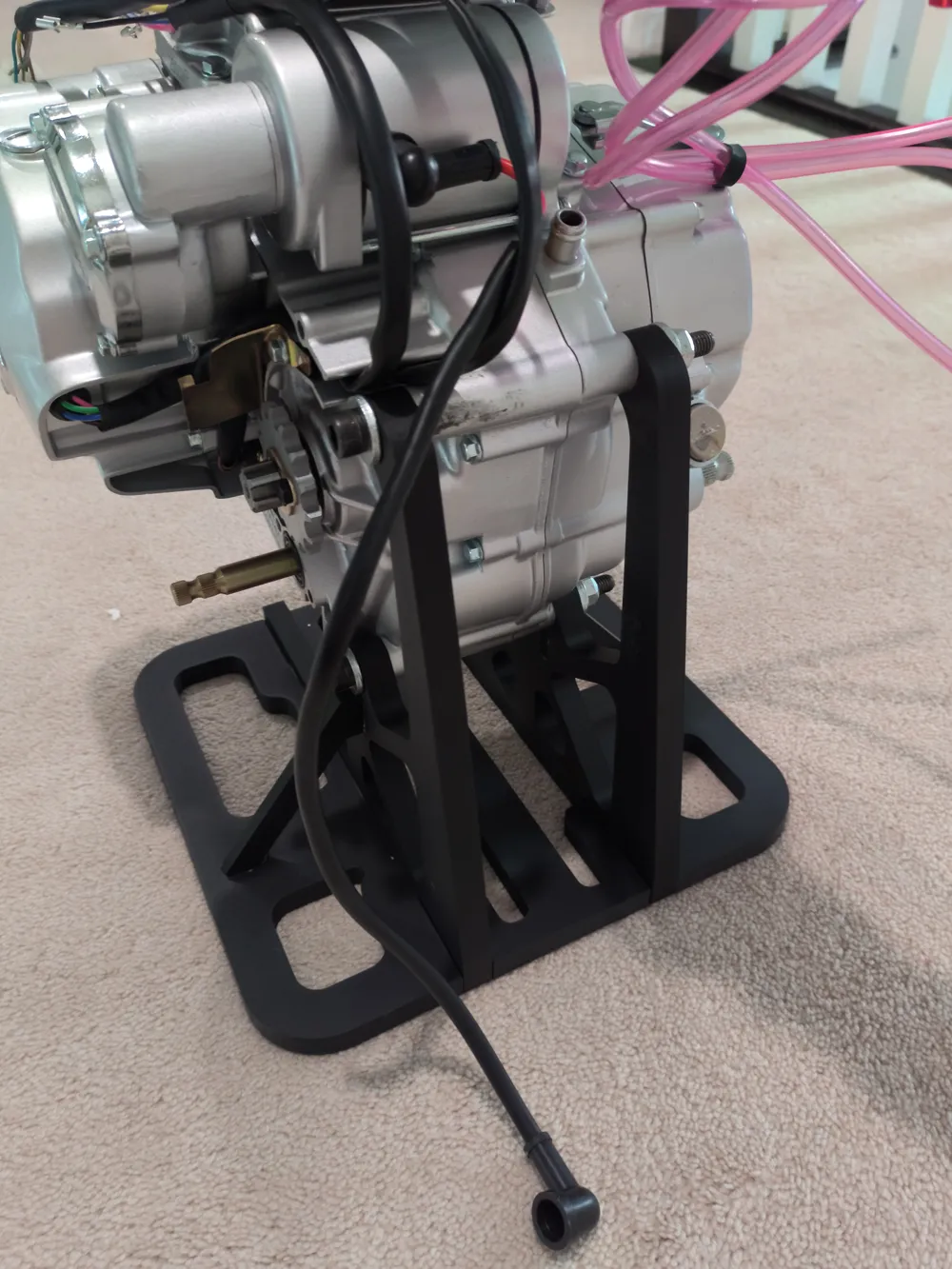

This Engine stand can support up to 28kg. The mounting points are 163mm apart and meant for M10 Bolts. Make sure to use washers to avoid damaging the stand.
Fasteners needed:
M10x150 Socket Head Bolt (2)
M10 Lock Nuts (2)
M10 Thick Flat Washer (4)
Note:
Be careful using this, and don't start the engine on the stand. Also make sure to use good and dry filament.
