Bacterial Cell Microscope Slide

The Vision

Microscopic bacteria are among the hardest subjects for students to visualize. While eukaryotic cells are large enough to see on many school-grade microscopes, bacterial morphology often requires oil-immersion lenses that are impractical for a standard class period.

This Prokaryotic Specimen Slide makes the invisible visible. Modeled from scratch in TinkerCAD, it features a macroscopic Bacillus (rod-shaped) bacterium with its internal structures suspended in a translucent prism. It is a durable, shatterproof manipulative designed for KS3/GCSE Biology.

Detailed Specimen Anatomy

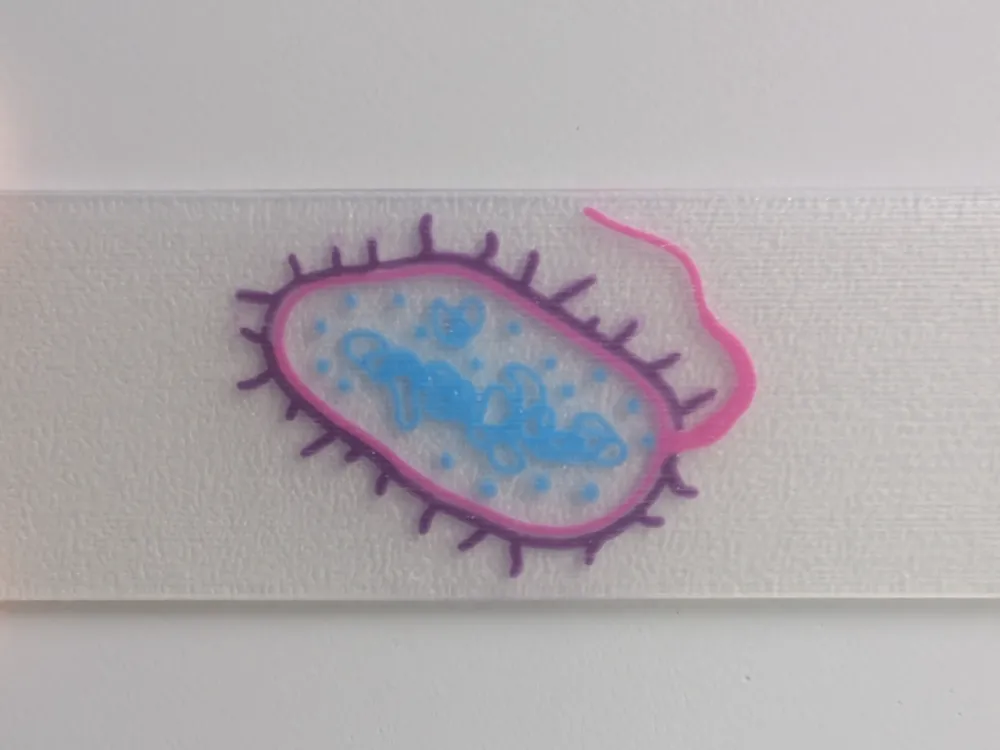

This model is color-coded to aid in the teaching of bacterial structure and the Gram-stain concept:

• Purple (Cell Capsule): The outermost protective layer.
• Pink (Cell Wall & Membrane): Representing the structural boundaries of the cell.
• Blue (Internal Structures): High-contrast representations of the DNA/Plasmids and Ribosomes.

The 6/4/2 Optical Stack

This model utilizes the updated v2 stacking logic for maximum transparency on FDM printers:

• Base (6 layers / 0.6mm): A solid foundation of translucent filament.
• Specimen (4 layers / 0.4mm): The multi-color bacterial structures.
• Cover (2 layers / 0.2mm): An ultra-thin "cover slip" layer for protection and clarity.

Technical Print Instructions (Optimized for Bambu P1S/AMS)

• Slicer Engine: Arachne (Required to ensure the 0.4mm nozzle captures the fine Blue ribosomes and plasmids).
• Filaments: Elegoo PLA Transparent (Slide), Bambu PLA Basic Purple/Pink/Blue (Specimen).
• Infill: 100% Aligned Rectilinear.
• Infill Direction: 0 degrees (Do not rotate; keep consistent for ALL layers).
• Speed: 15–20 mm/s (Slow and steady for glass-like results).
• Cooling: Part & Aux fans OFF after layer 3.
• Z-Hop: 0.4mm to prevent nozzle interference during color swaps.

Educational Applications

• Prokaryotic vs. Eukaryotic: Use this alongside the Plant/Animal slides to show the lack of a nucleus and the presence of a capsule.
• Morphology Study: A perfect 3D representation of the Bacillus form.
• Inclusive Learning: Shatterproof and high-contrast for students with visual or motor-skill challenges.

Credits & Licensing

Inspiration: While this is an original model in my Amber-Drop series, the concept of 3D-printed slides was inspired by the work of Val.

License: CC BY-NC-SA (Attribution-NonCommercial-ShareAlike) This model is for educational, non-commercial use. If you remix it, please credit The Projected Classroom and share your results with the community!
