Sump media reactor (activated carbon and resins)

🔹 Commercial licenses · Patreon

If you are interested in commercial licenses to legally print and sell this design, I invite you to join my Patreon.

On Patreon you will find different membership tiers, designed for makers, shops, or professionals who want to use my models for commercial purposes, always under clear and transparent conditions.

👉 Patreon – Duritos Reef 3D Models
https://www.patreon.com/cw/DuritosReef3DModels

Your support allows me to continue developing safe and optimized technical solutions for marine and reef aquariums.

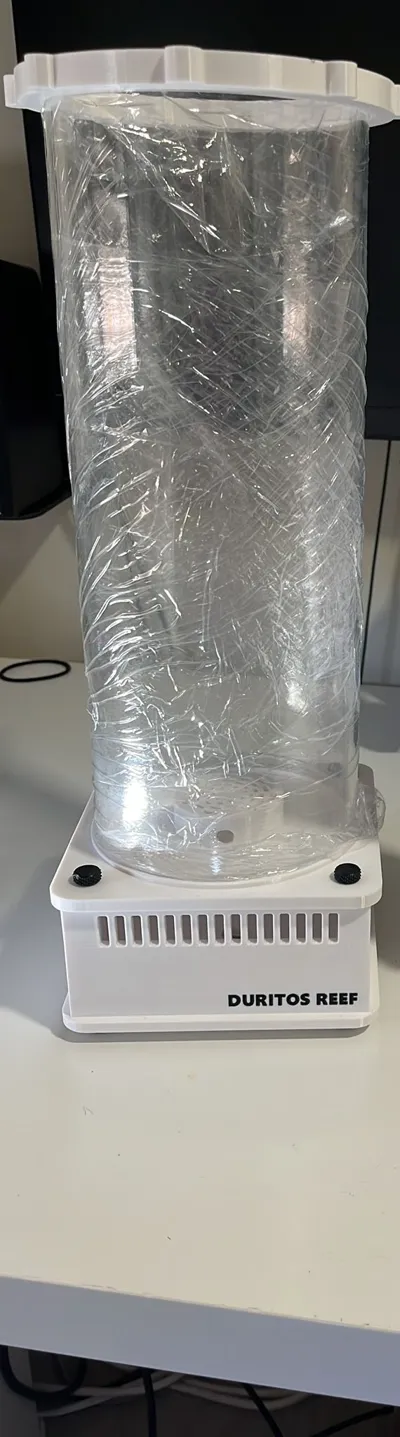

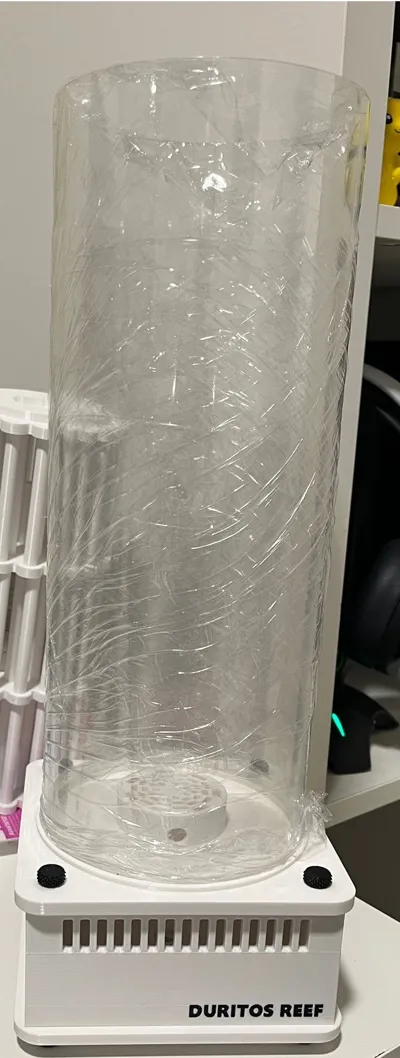

Media Reactor for Sump – Ideal for Activated Carbon and Resins (3D Printed)

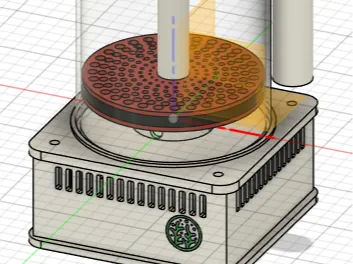

Media reactor designed for installation in the aquarium sump, ideal for holding activated carbon, phosphate-removing resins, or other chemical media used in marine and reef systems.

The design is optimized to work with a Sicce Micra 300, providing a constant and adequate flow for this type of chemical filtration without generating excessive turbulence that degrades the filter material.

It allows for uniform water flow through the media, improving efficiency and helping maintain stable water quality.

🔧 Required components (not included)

For the correct assembly and operation of the reactor, the following elements are needed:

• Sicce Micra 300
• Black filter sponges (to prevent carbon or resin particles from passing through the internal discs)
• Aquarium-safe silicone
• Acrylic cylinder of 120 mm diameter and 30 cm height
• O-ring of 125 mm x 1.9 mm (to ensure proper sealing)
• M6 screws from this creator https://makerworld.com/es/models/398421-fully-printable-knurled-screws-m6

⚠️ It is essential to install the sponges between the discs to prevent fine carbon or resin particles from circulating freely through the system.

The O-ring ensures an adequate hermetic seal, preventing leaks in the sump.

Main Features

• Designed for use in aquarium sump.
• Flow optimized for 300 l/h.
• Compatible with activated carbon, resins, and chemical media.
• Disassemblable system for easy maintenance.
• Ideal for marine and reef aquariums.
• Design intended for 3D printing.

It is recommended to print in PETG, a material resistant to humidity and suitable for marine environments.

📌 Location: aquarium sump
📌 Application: marine and reef aquariums
📌 Recommended flow: 300 l/h
📌 Recommended material: PETG (aquarium-safe)

⭐ Support and rate this model

If this model has been useful to you, I would greatly appreciate it if you could rate it and leave a comment. Your opinion helps improve future designs and guides other users.

Design created by Duritos Reef.

You can also support me with a boost via the button available on this page.
Thank you very much for your support!

Usage and license

This model is for personal use only.
The sale, redistribution, or sharing of the file, as well as the sale or resale of printed parts from this design, is prohibited without express authorization from the creator.

Design created by Duritos Reef.
