Connectors for wooden block book stand

📚 Bookstand Connectors – Wood & 3D Print Combination

These 3D printed connectors are specially designed for a minimalist book stand that combines wooden blocks (standard size 160mmx22mmx8mm) with printed components. The design combines natural materials with modern manufacturing technology – stable, functional, and decorative at the same time.

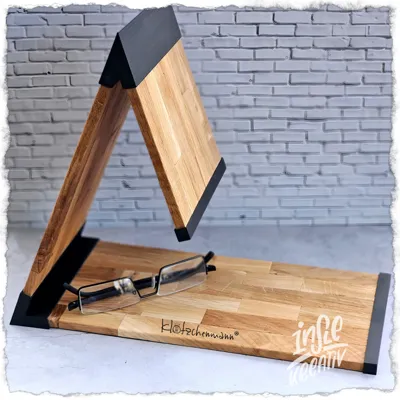

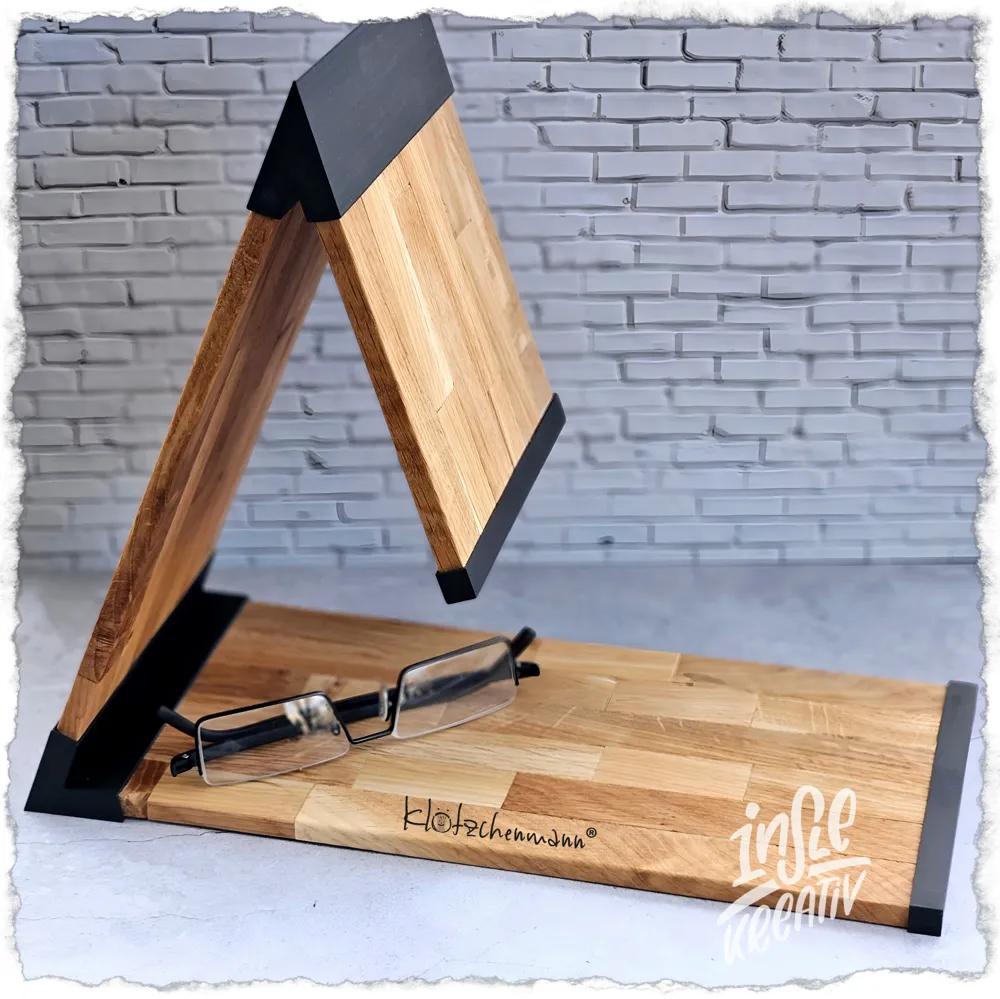

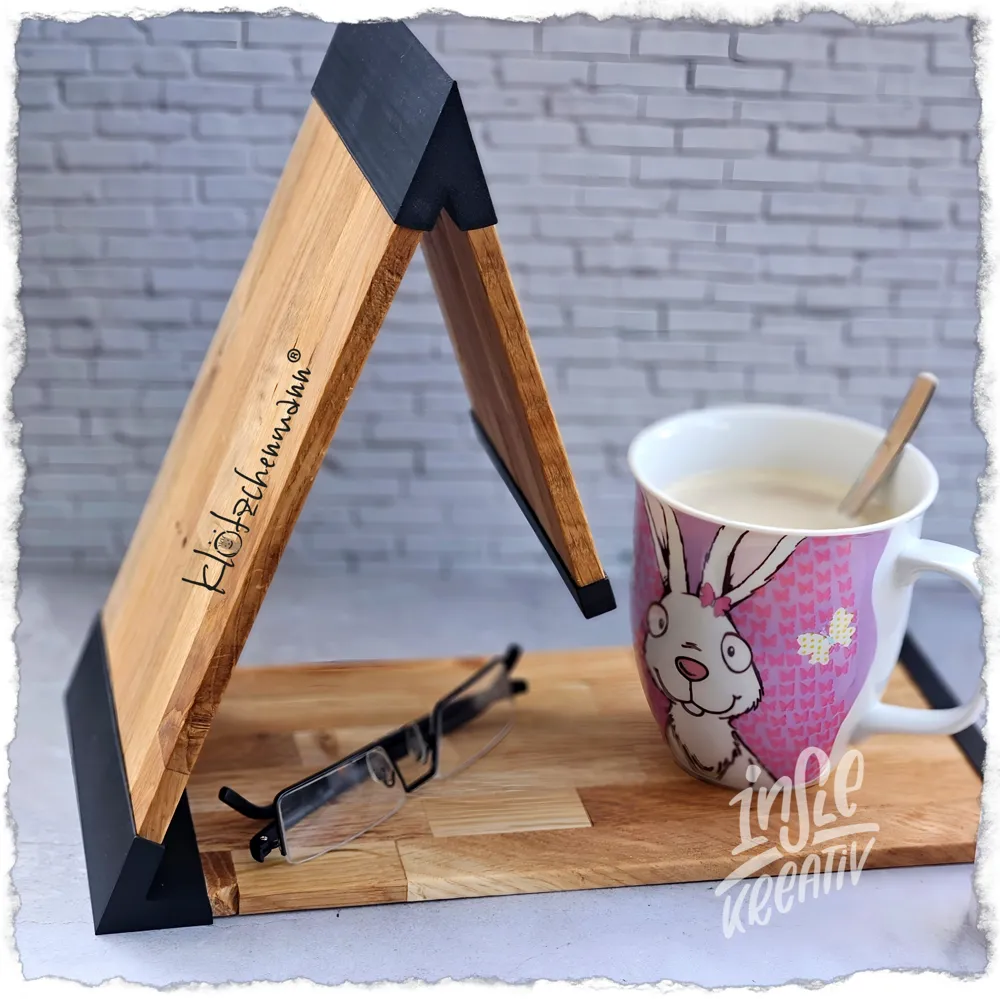

The connectors hold the wooden slats at a stable A-frame angle, ensuring a secure stand while the book is displayed open.

🪵 Required Materials

Wooden blocks of standard size 160mmx22mmx8mm → 6 side by side - length as desired

3D printed connectors (files included)

Wood glue for bonding the blocks - super glue (Kraftplotz for bonding the blocks to the connectors)

https://amzn.to/4cw9Zcf (Affiliate Link)

Note: The wood dimensions can be slightly adjusted. For changes, please consider the tolerances of the plug connections.

🖨️ Print Settings (Recommendation)

Material: PLA or PETG

Layer height: 0.2 mm

Infill: 20–30%

Wall lines: at least 2-3

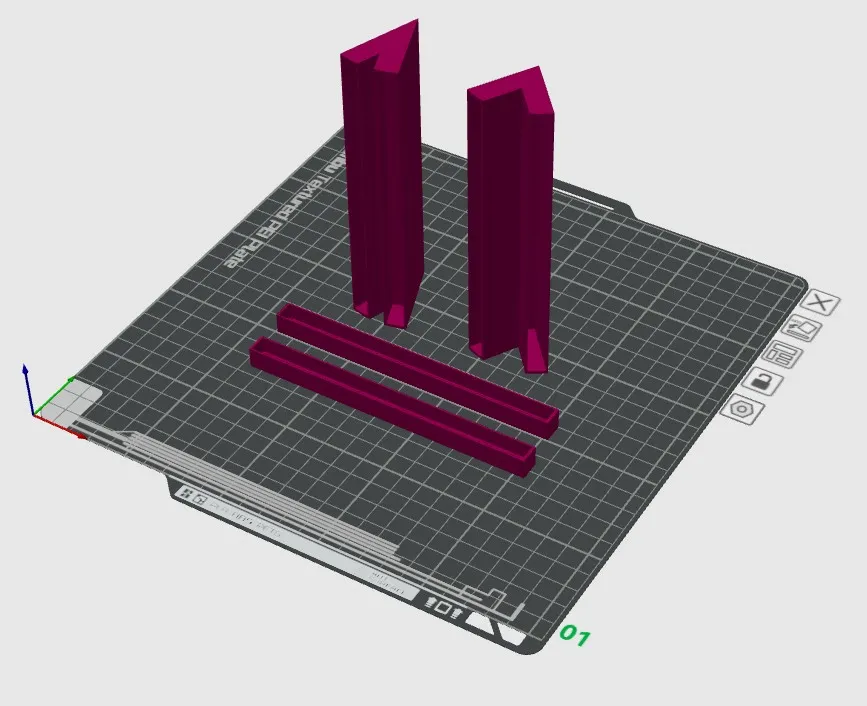

Print orientation: end connectors lying flat, corner connectors standing upright

No support required (check depending on version)

For higher load capacity, I recommend increased infill.

🔧 Assembly

Cut blocks to desired length, 6 pieces side by side - length adjustable but should be flush.

Base plate longest, side plates in 2 lengths.

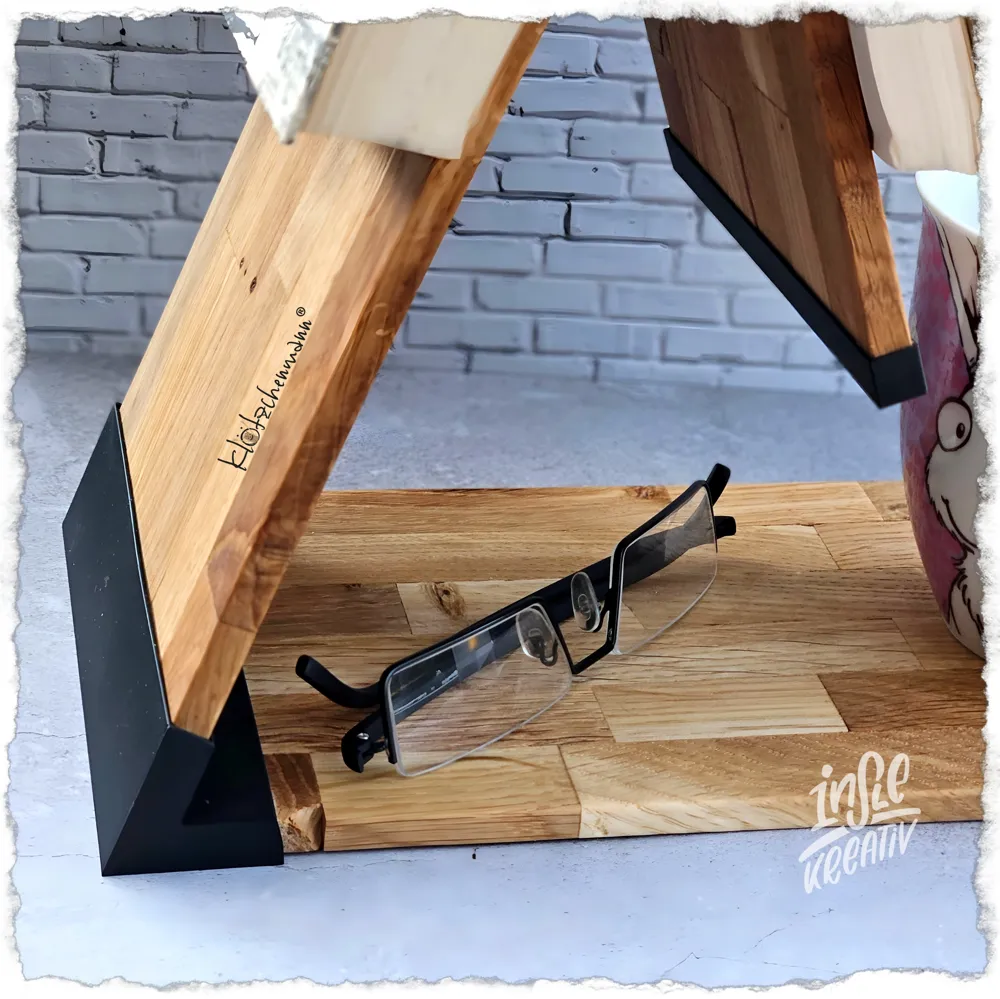

Attach printed connectors to the ends and glue with super glue (see photos).

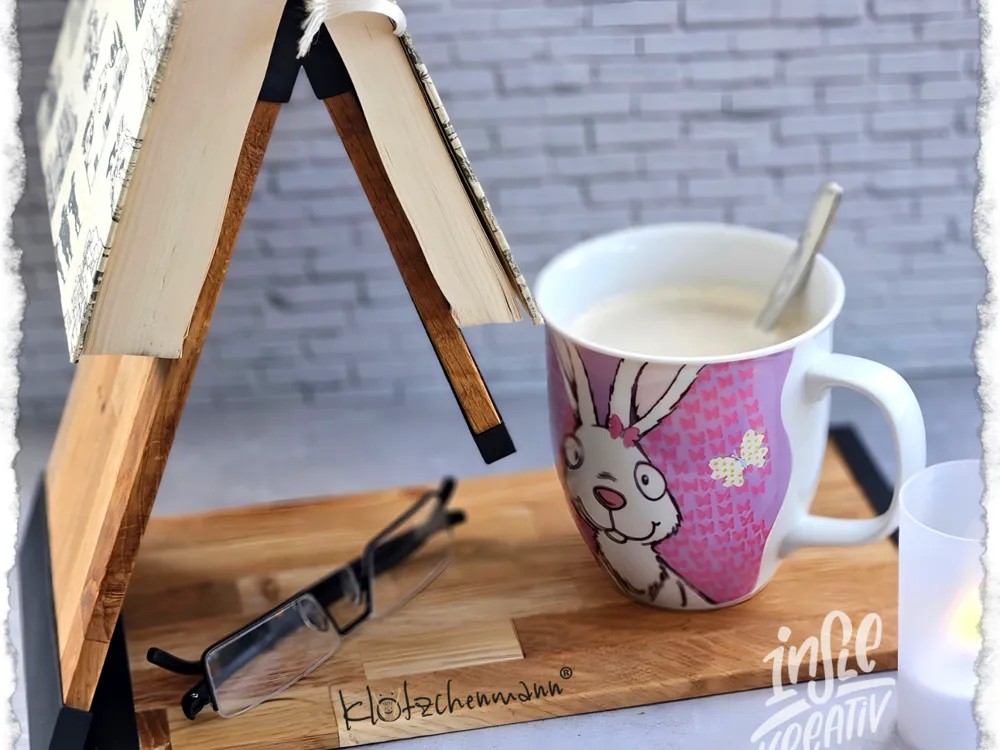

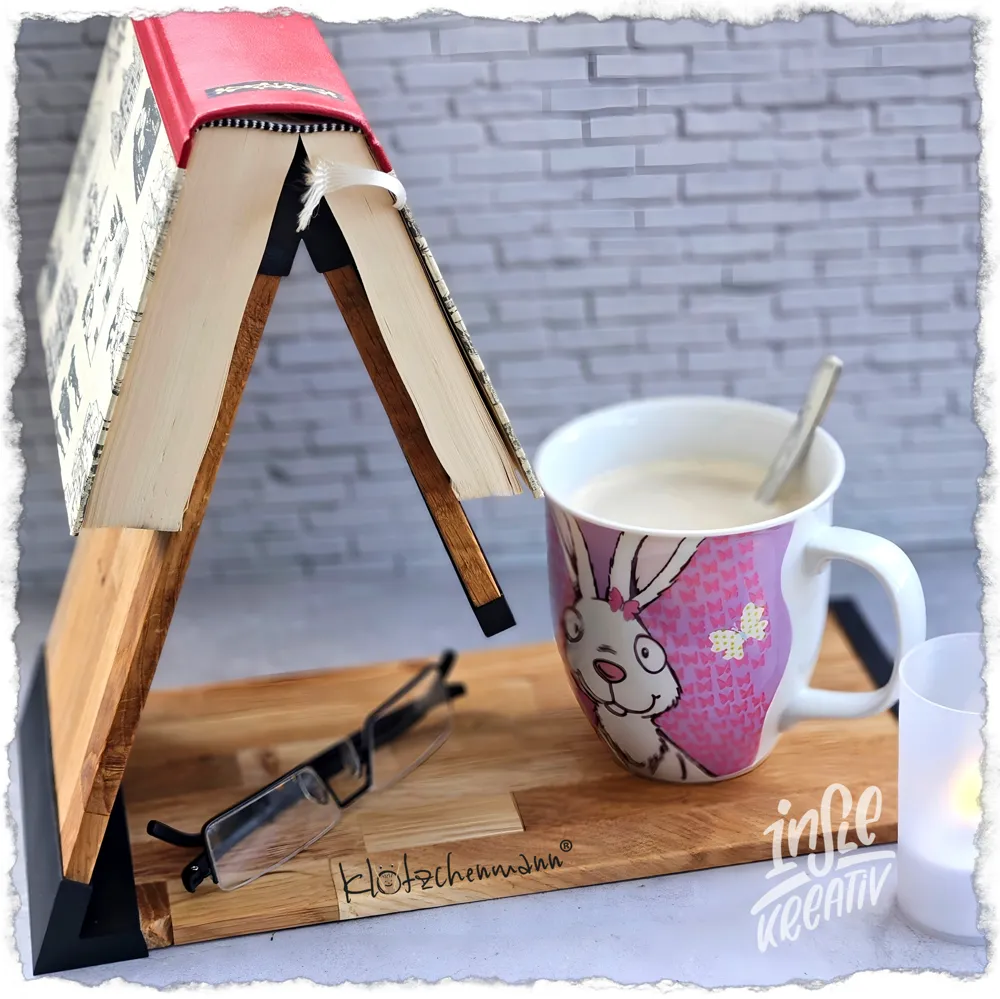

A sturdy and stylish book stand is ready – perfect for the kitchen, desk, or reading nook.

✨ Features

Modern, minimalist design

Combines wood look with technical aesthetic

Easily scalable

Ideal as a DIY project or gift

Quick to print

📌 Notes

Fit may vary slightly depending on printer, material, and calibration. If necessary, scale slightly or rework the plug surfaces.
