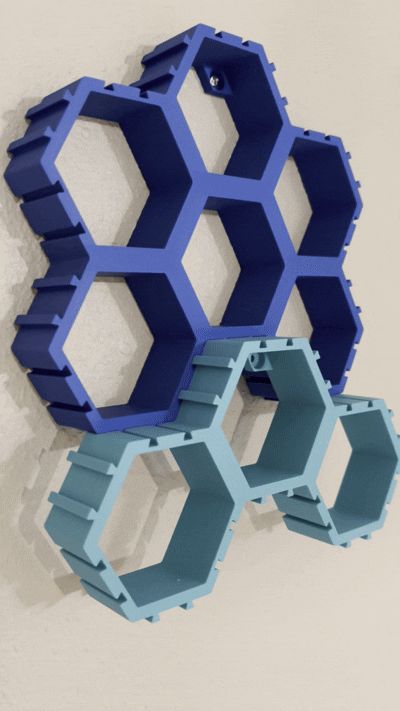

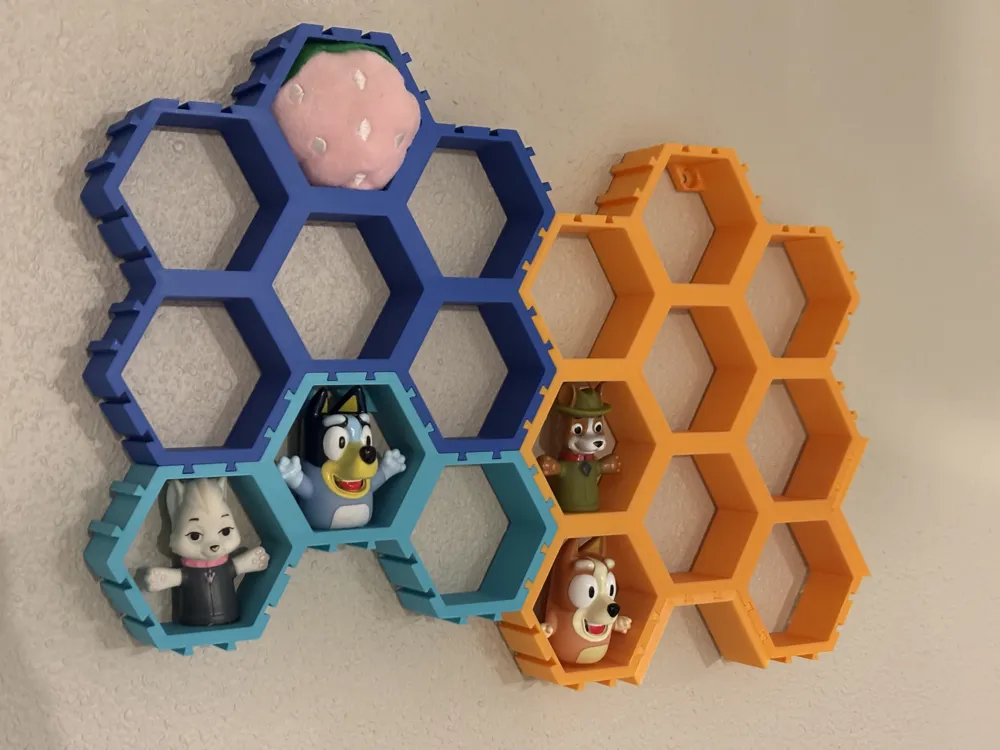

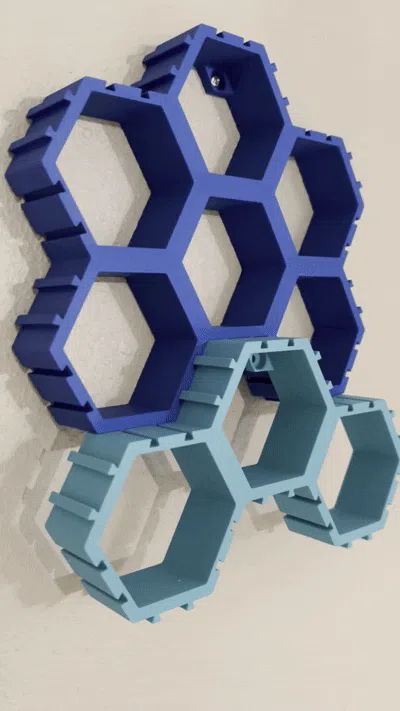

Elevate your collection with this modular, honeycomb-inspired shelving system. Designed for versatility, these interlocking hexagons allow you to grow your display in any direction—perfect for figurines, small plants, or desk accessories. Tolerances are pretty tight – so do some test prints prior to going crazy.
Key Features

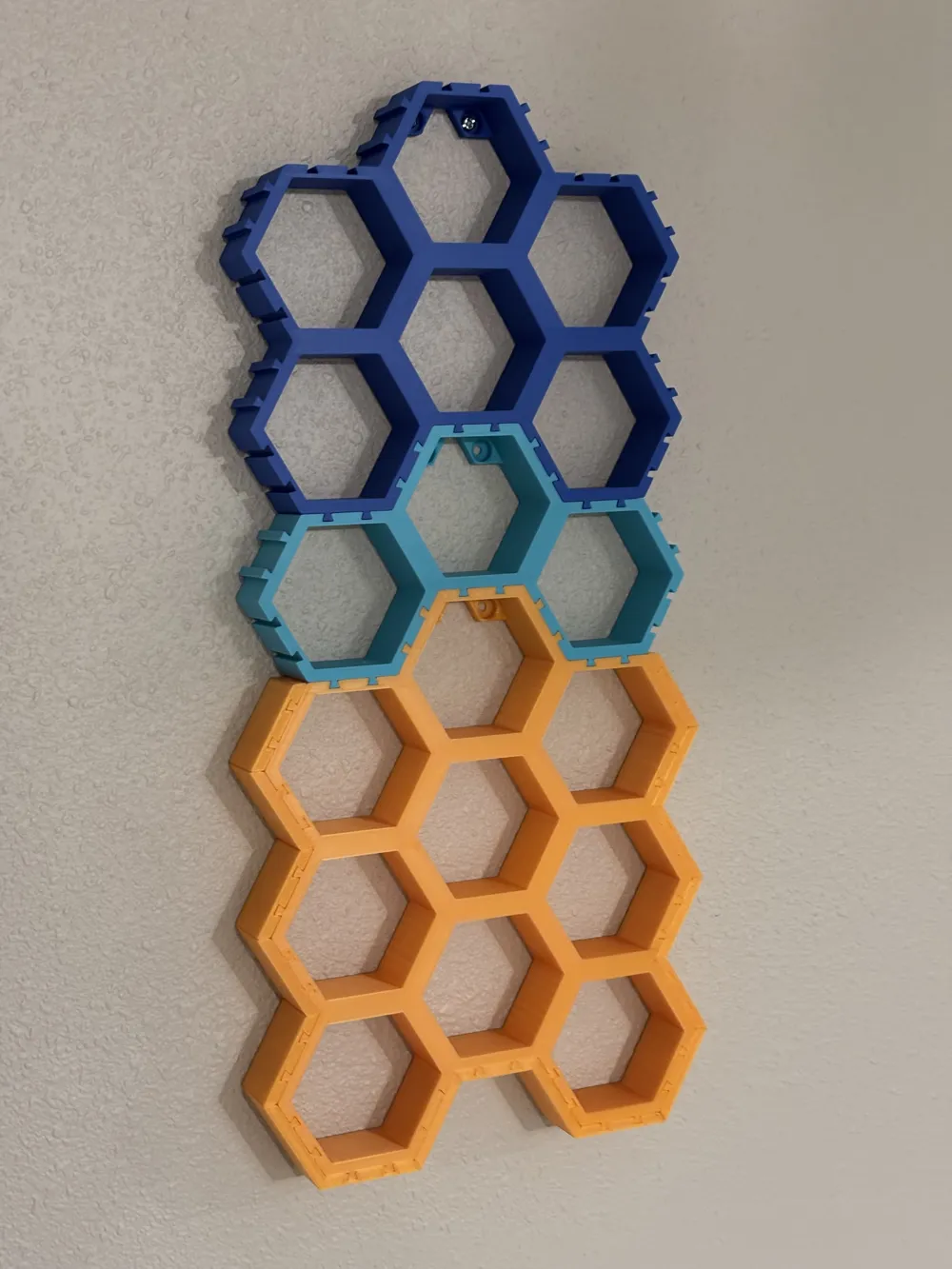

- Modular Design: Create unique patterns and layouts by sliding the pieces together.

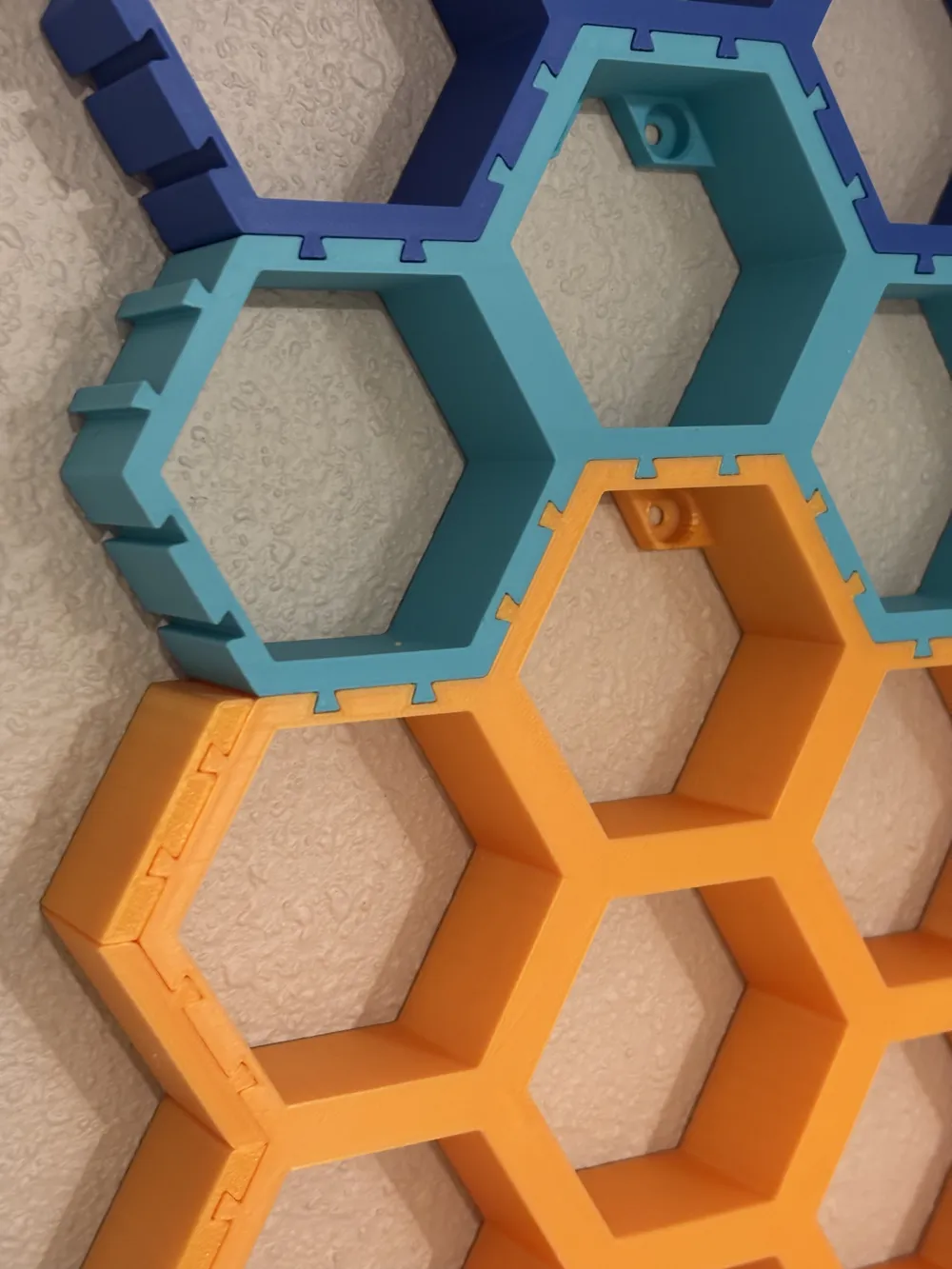

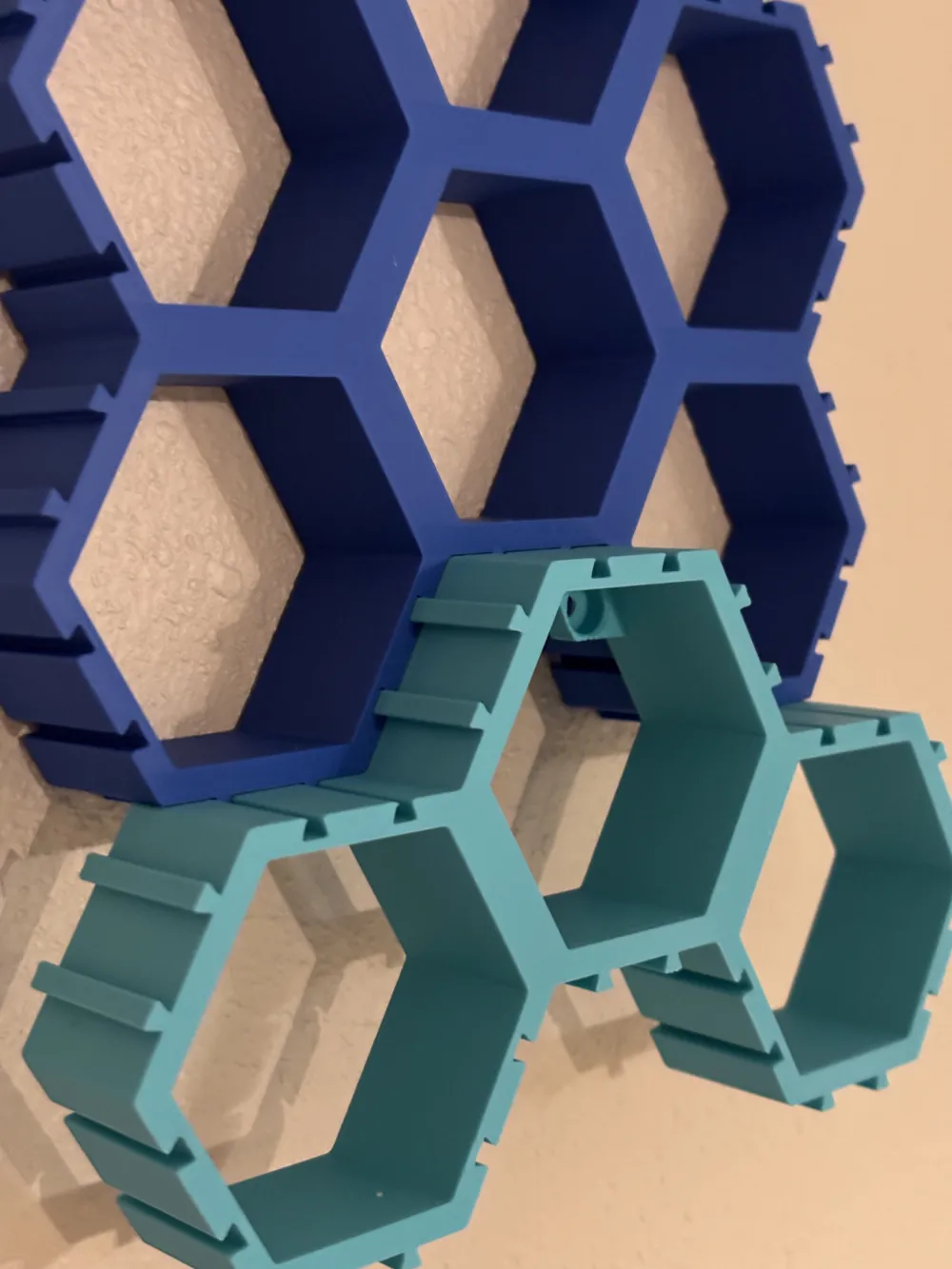

- Secure Interlocking: Dovetail-style connection for stability.

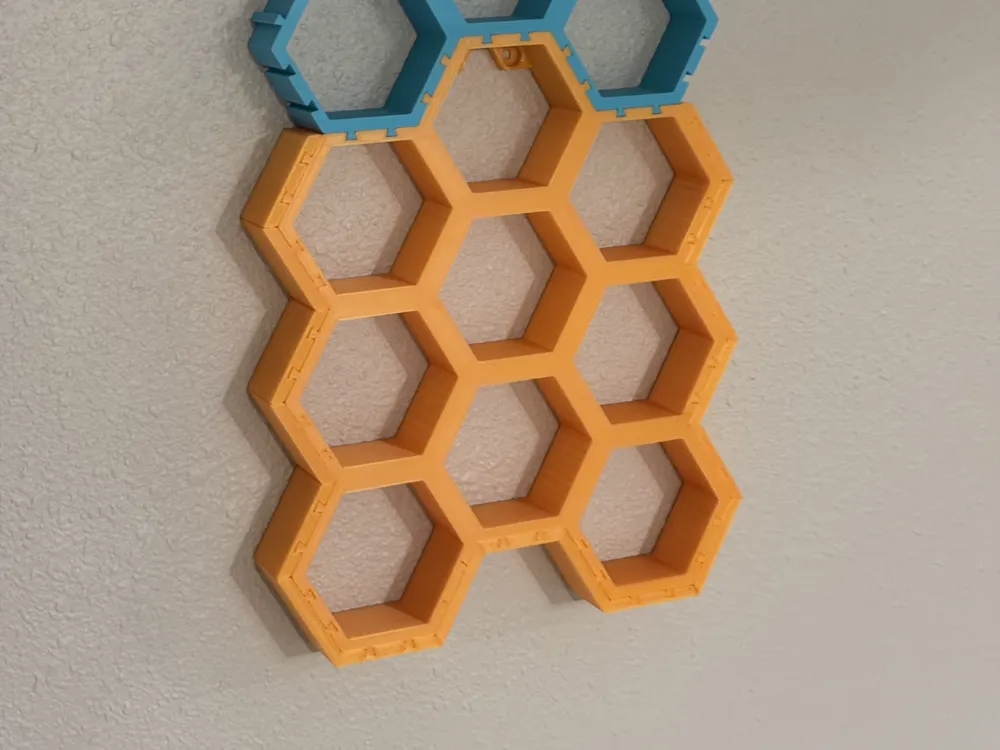

- Clean Finish: Includes a set of exterior edge caps to cover the connectors on the outside of your shelf for a sleek, finished look.

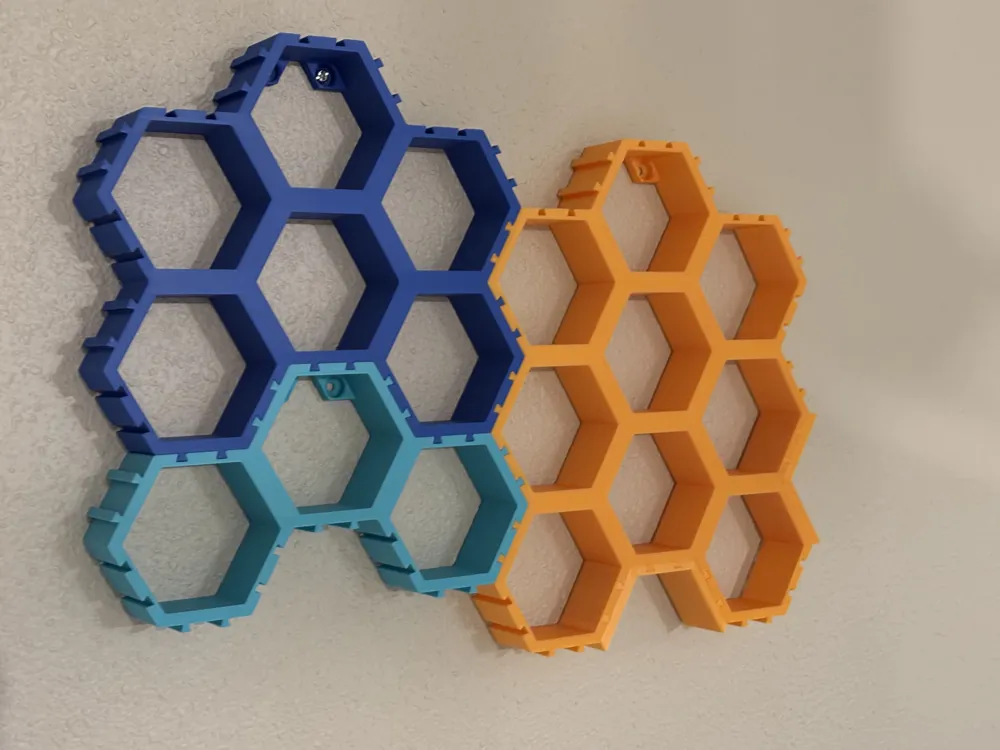

- Shown on the orange section

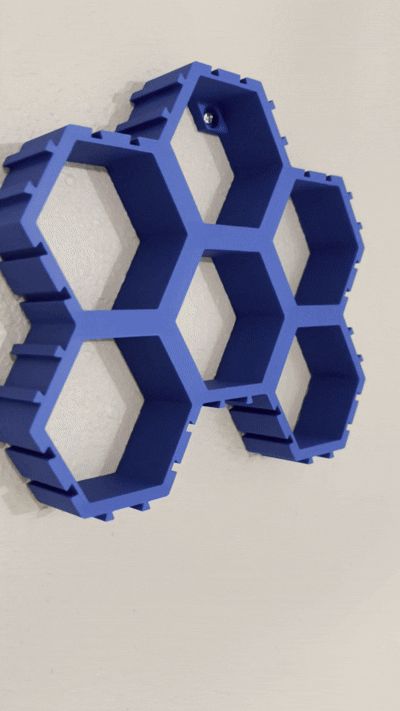

- Wall Mountable: Integrated screw holes in the top cells make mounting simple and secure.

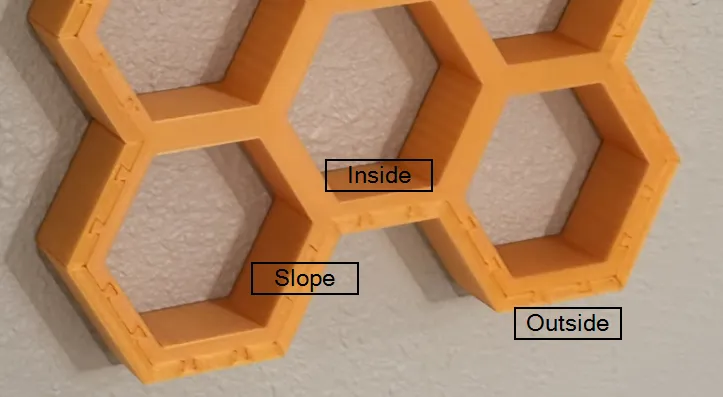

Note On Edge Caps:
- There are 6 variations, each is designated for a specific spot of the hex display, depending on your configuration.
- Types:
- Inside: If you have two edges sloping inward (bottom center of orange Hex display in photos)
- Slope: Most common - Anytime a edge connects to an outside and inside (like all vertical pieces)
- Outside: If you have no inside connectors (bottom left / right of the orange display)
- Each of the above can have Male or Female connections
Sizes:
- Small – Hex sides: 33mm, walls: 5 mm each, depth 30mm
- Comes in 1, 3, 6, 9 Hex configurations
- Medium - Hex sides: 43mm, walls: 5 mm each, depth 30mm
- Comes in 1, 3, 6 Hex configurations
- Large - Hex sides: 55mm, walls: 5 mm each, depth 30m
- Comes in 1, 3 Hex configurations
- Extra - Hex sides: 100mm, walls: 10 mm each, depth 30mm
- Single Hex Only
- You can scale the depth (Z) without much issue (screw holes might be affected) – X/Y adjustments you’re on your own
Print Settings
- Supports: None required
- Infill: 10-15% (Gyroid recommended)
- Walls: 2–3 for strength
- Ironing: Top Level Ironing so top finish is smooth
