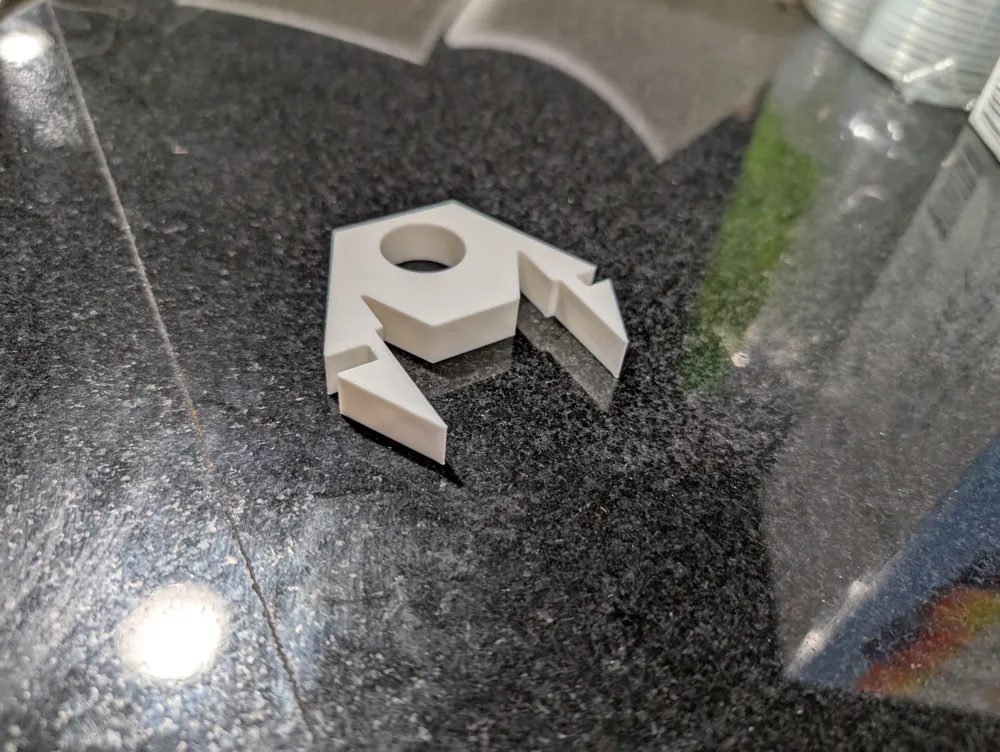

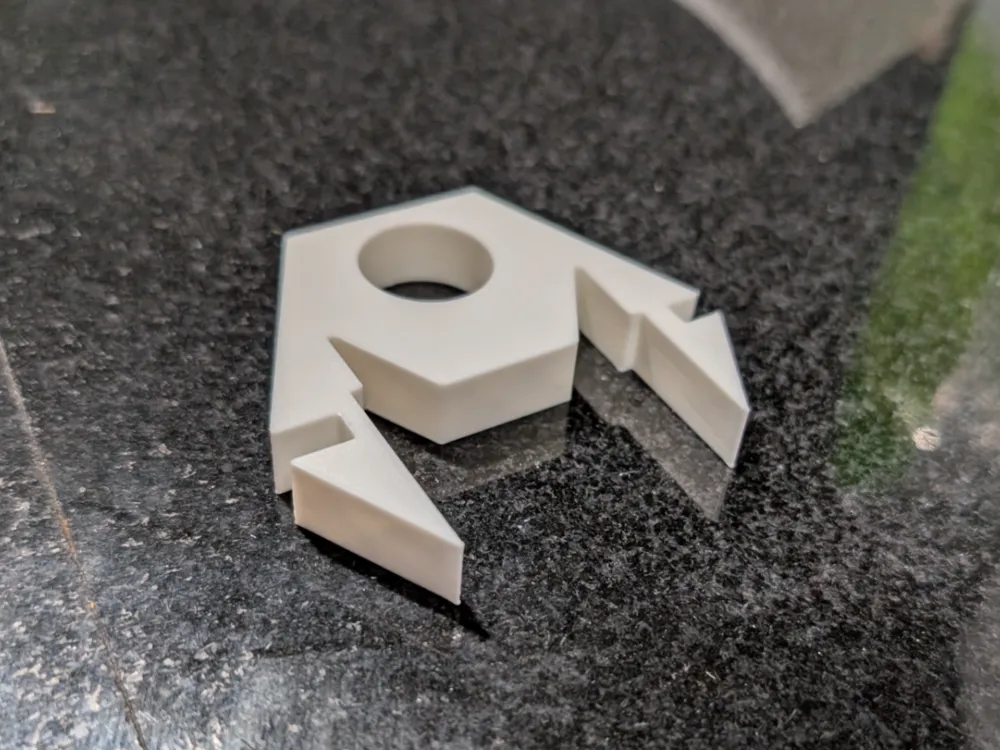

Frigidaire f44c18sh Shelf Repair bracket

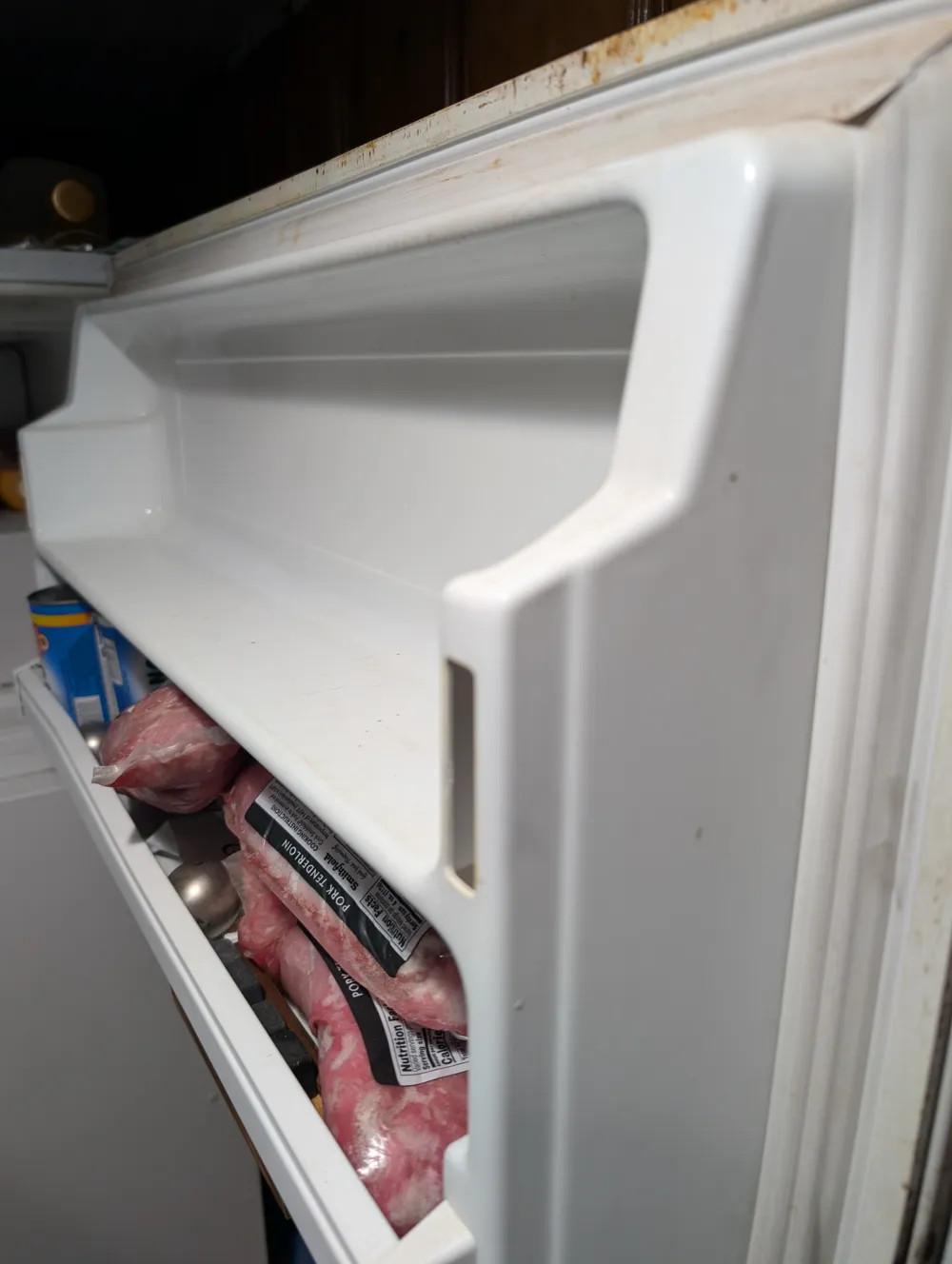

Stop hunting for discontinued OEM parts! If your refrigerator shelf has failed because of snapped plastic supports, this 3D-printable bracket is a rugged, functional fix. This design replaces the original bracket bar assembly with a heavy-duty solution designed for maximum durability.

The "Hybrid" Design Advantage

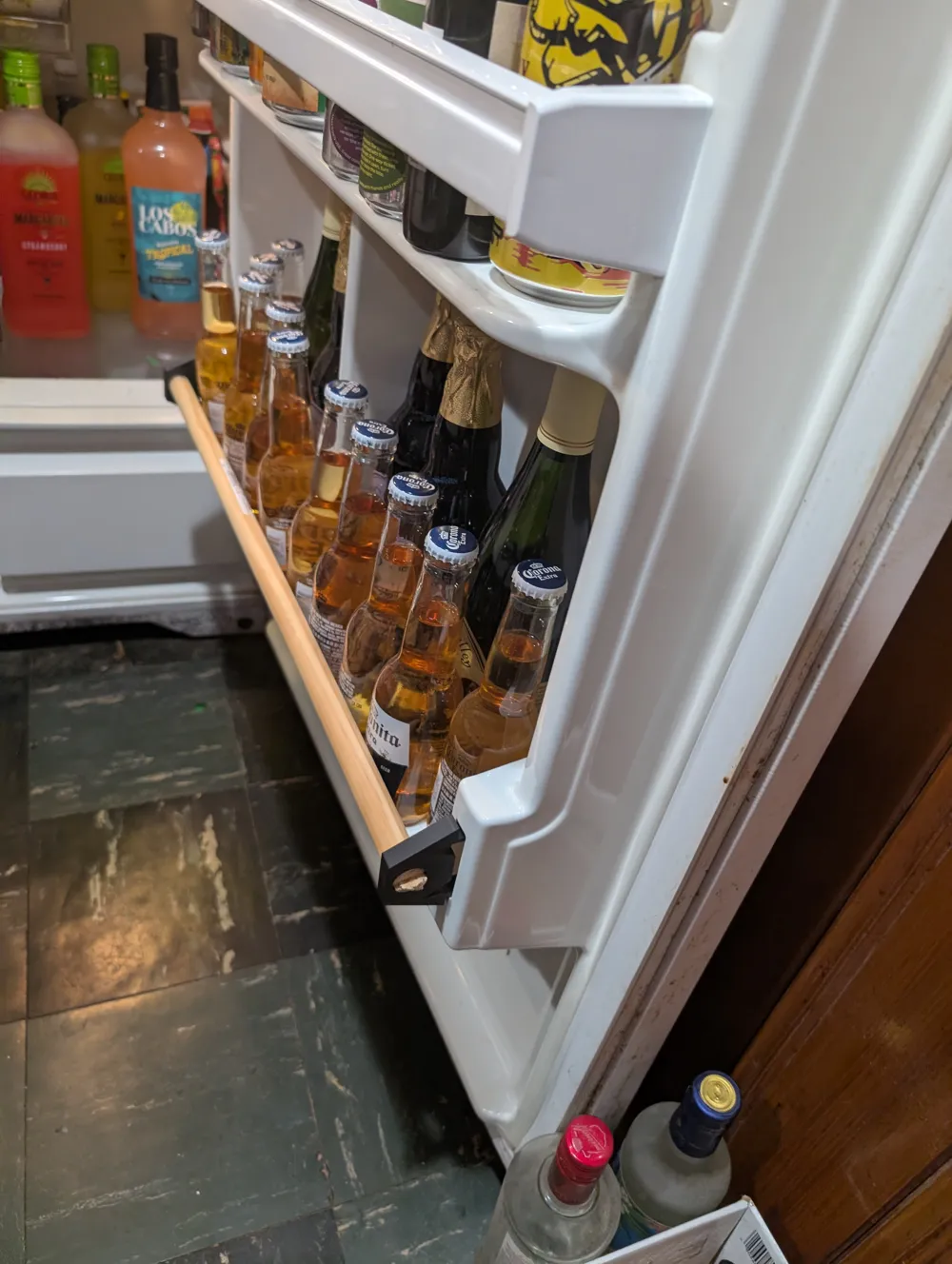

Unlike stock all-plastic parts that are prone to snapping under weight, this bracket is engineered to work with a 3/4-inch wooden dowel (available at Home Depot or any hardware store). This hybrid approach provides significantly more structural rigidity than a fully 3D-printed bar.

• Dowel Length: Cut your 3/4" dowel to 24 inches (Pro tip: Aim for 23.75 inches for a perfect, snug fit depending on your specific fridge tolerances).

Expanded Compatibility & Fitment

This part was designed specifically for the Frigidaire f44c18sh, but it is likely compatible with a wide range of models that use the same "snap-in" style bar supports.

• Potential OEM Part Match: Replaces or functions similarly to Part #215267701 or #215473602.
• Likely Brand Compatibility: May fit models from Kenmore (253. prefix), White-Westinghouse, Gibson, Kelvinator, Tappan, and Crosley.
• Disclaimer: While this is a universal-style design for many top-mount and side-by-side units, fit is not guaranteed for all models. Please check your mounting points against the images before printing. - I've only tested this on the Frigidaire f44c18sh

Print & Installation Notes

• Material: Successful tests were performed in PLA. For long-term use in high-moisture environments, PETG or ASA is recommended for better creep resistance.

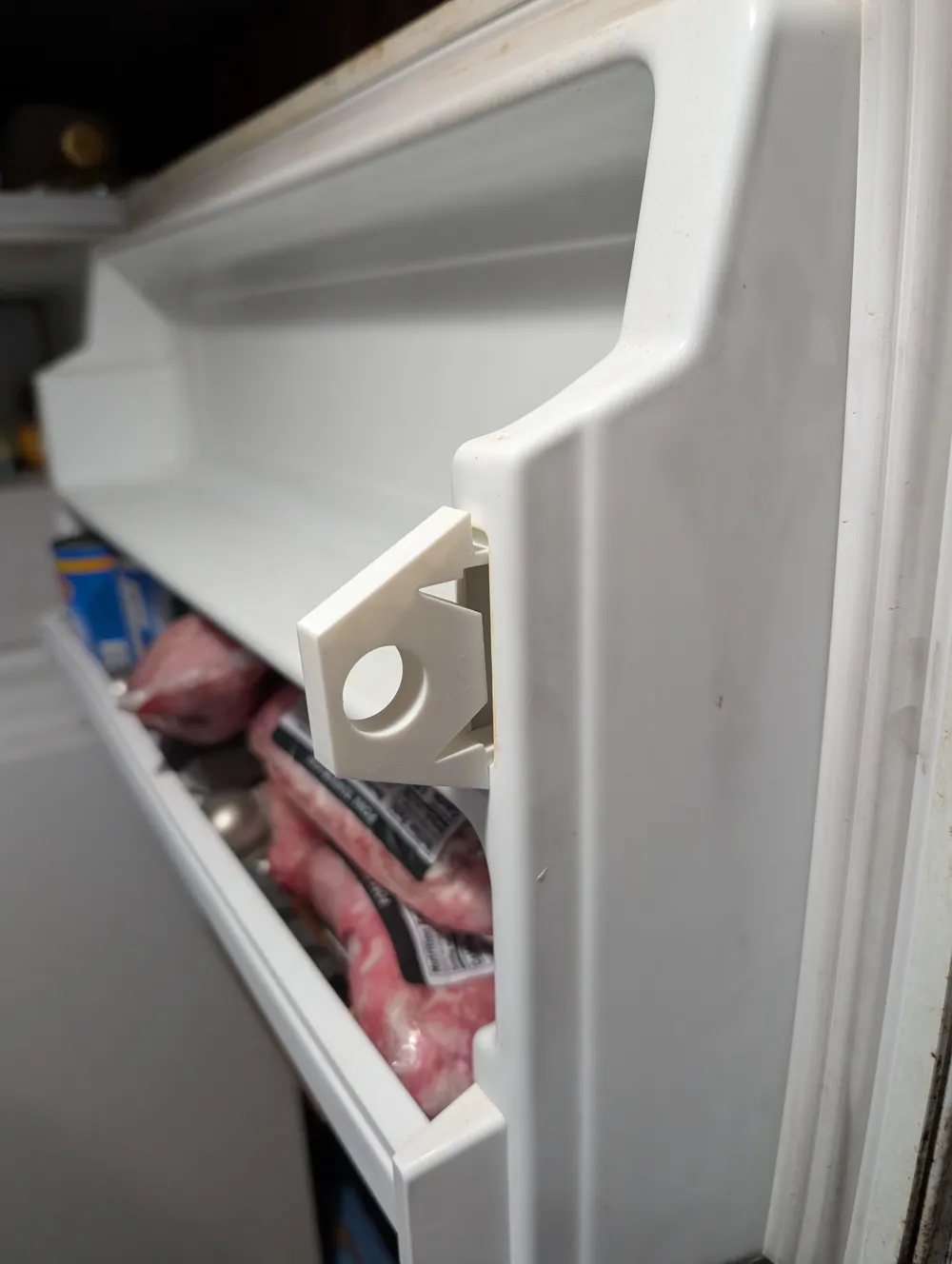

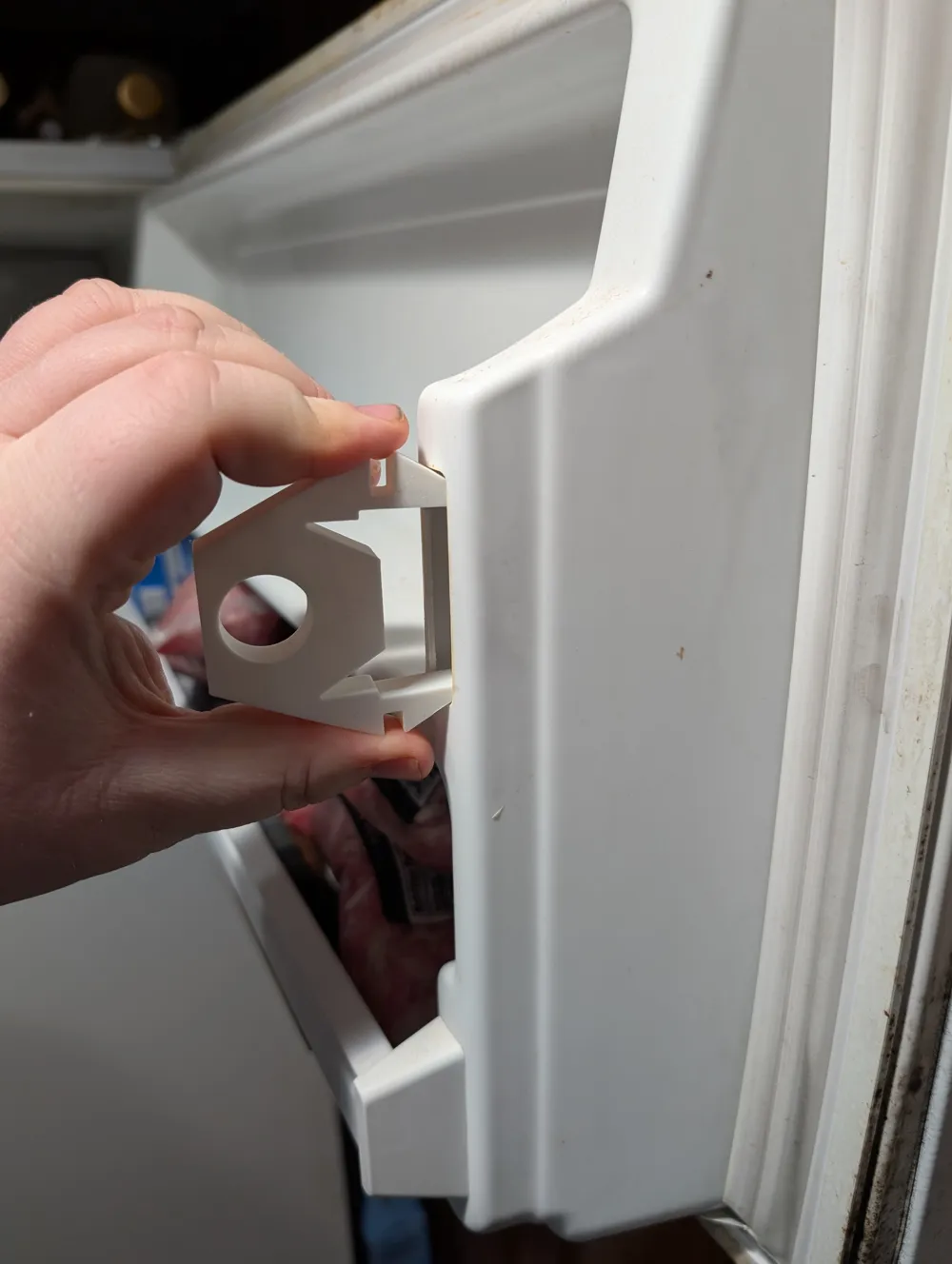

• The Fit: This is a high-tolerance functional part. The mounting teeth are designed to hook securely into the fridge liner. You may need to apply firm pressure to "click" the bracket into the mounting point.
• Orientation: Print with the "teeth" oriented for maximum shear strength.

Technical Specifications

• Primary Model: Frigidaire f44c18sh
• Hardware Required: 3/4" Wood or Aluminum Dowel
• Files Included: Left and Right Mounting Brackets
• Category: Functional Prints / Home Repair / Appliances
