Cheap Yellow Display (CYD) Stand (ESP32-2432S028)
Print Profile(1)
Bill of Materials
Description

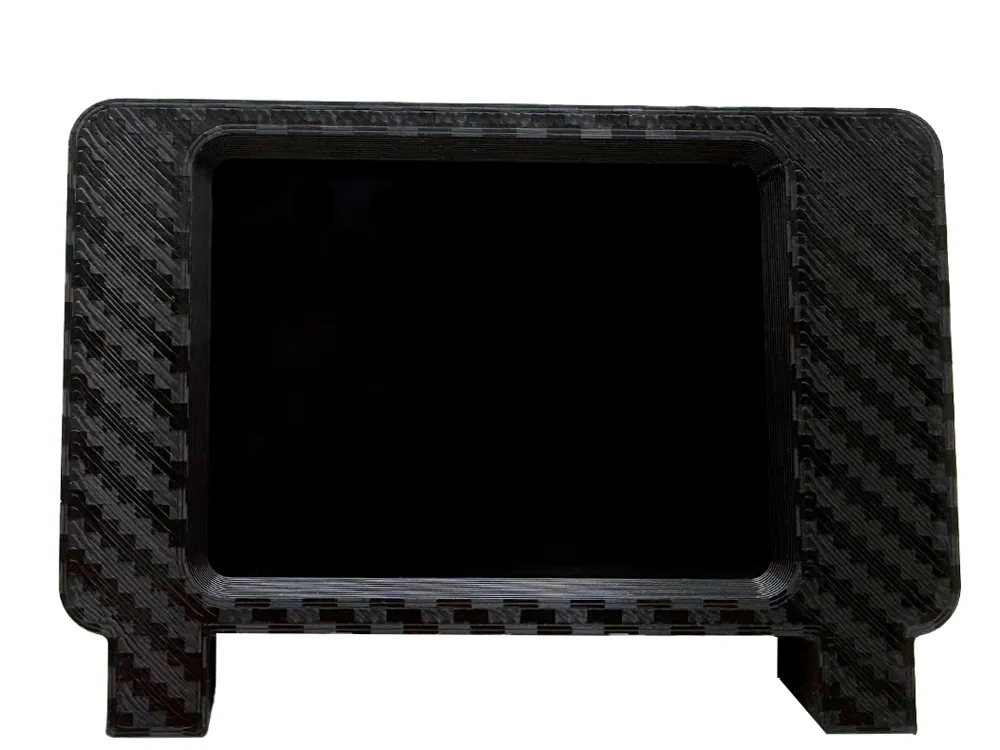

This stand is designed specifically for the ESP32 Cheap Yellow Display (CYD / ESP32-2432S028), providing a clean, sturdy enclosure with an easy, no-nonsense assembly.

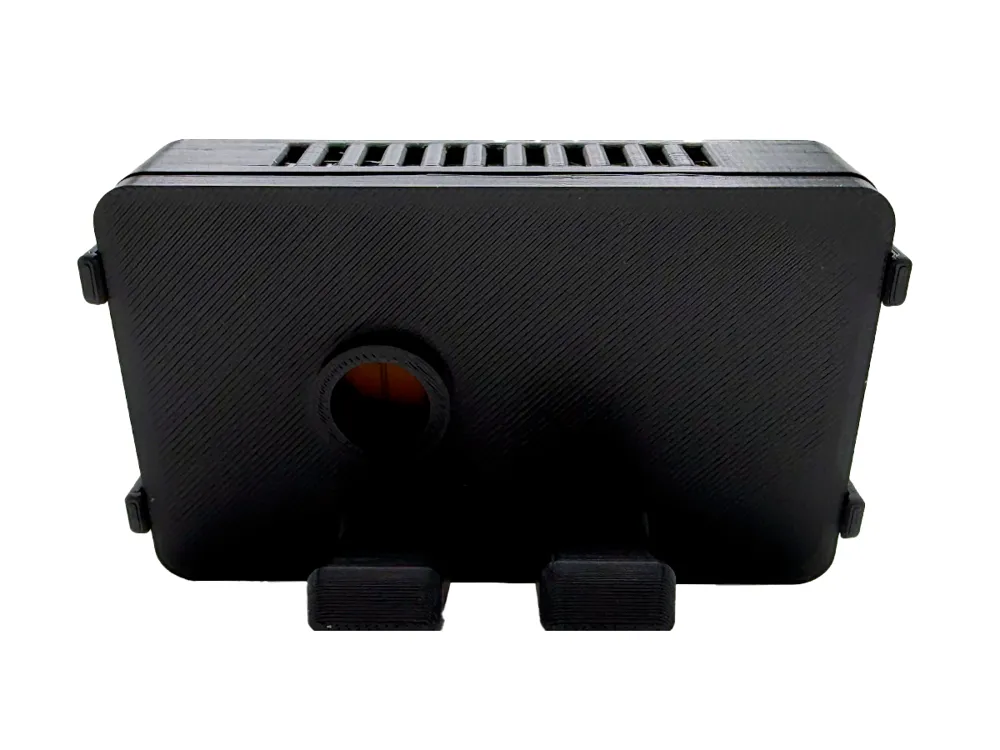

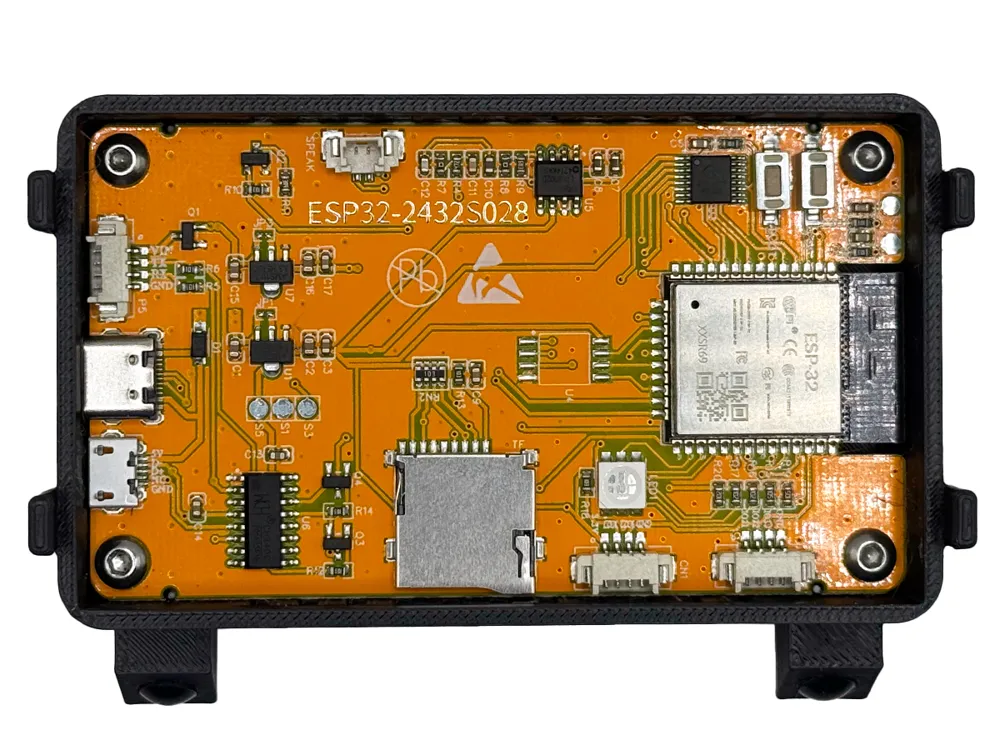

The CYD mounts securely using 4 M3 × 5 mm screws, holding the display firmly in place. The rear cover installs without screws, snapping in using integrated tabs for a fast, tool-free fit. This keeps the design simple while still allowing easy access if you need to open it back up.
A dedicated 12 mm × 8.5 mm cutout is built into the case for a passive buzzer, making it ideal for alerts, tones, or UI feedback. The base includes recessed pockets for 3 mm rubber feet, helping prevent slipping and protecting your desk or work surface.

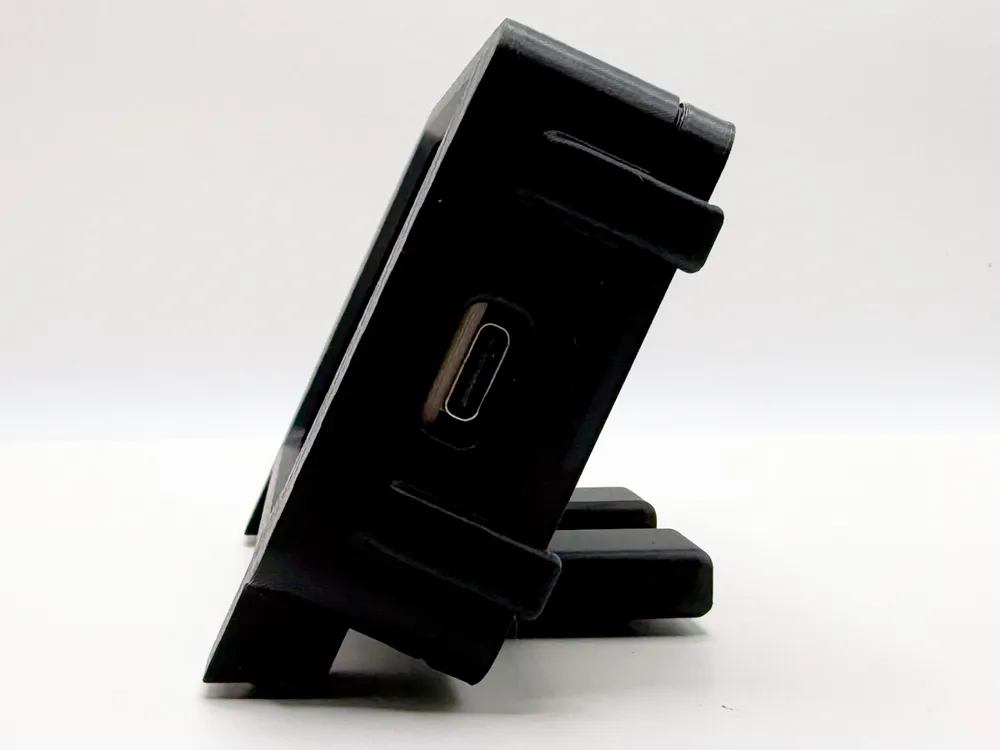

The stand angles the display for comfortable viewing and leaves all ports accessible, making it perfect for desk projects, dashboards, clocks, or development setups.
If you are looking for a model with adjustable legs. Check out my other design here.
Features:
- Fits ESP32 Cheap Yellow Display (ESP32-2432S028)
- 4 × M3 × 6 mm screws for screen mounting
- Snap-in rear panel (no screws required)
- Built-in passive buzzer cutout (12 mm × 8.5 mm)
- Recesses for 3 mm rubber feet
- Clean, compact, desk-friendly design
Boost Me (for free)
A boost always helps me to keep designing these stands for other devices! Feel free to comment if you need one for a particular device
