MountOne | Sky-Watcher SKYMAX 102 OTA Dew Shield
Print Profile(3)
Bill of Materials
Description
MountOne | Sky-Watcher SKYMAX 102 OTA Baffled Dew Shield.

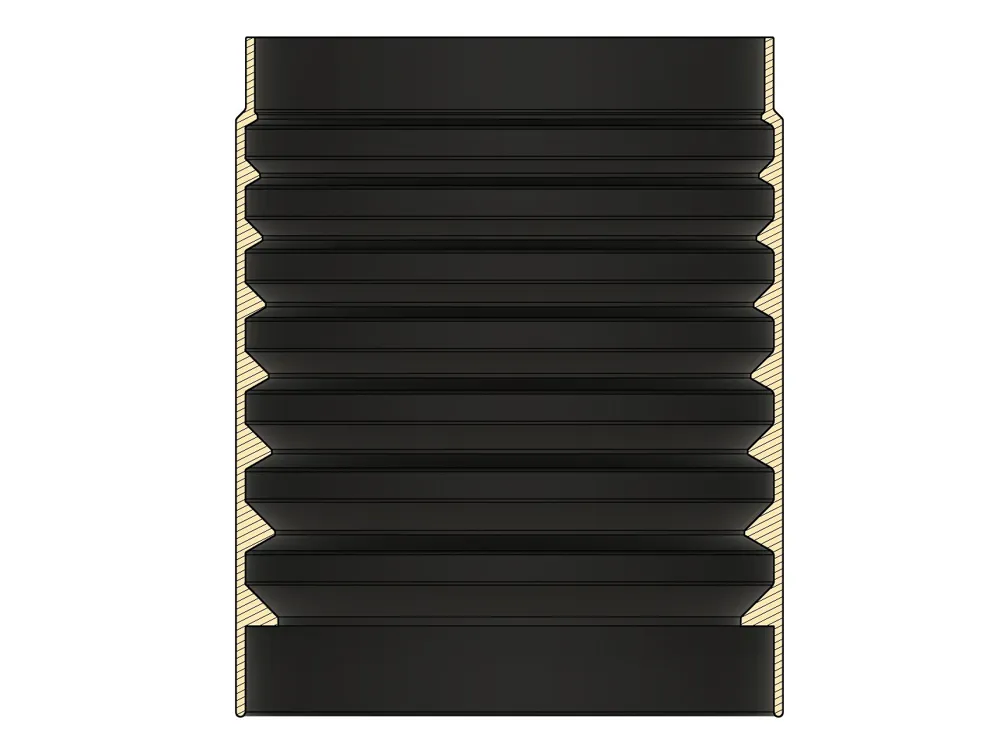

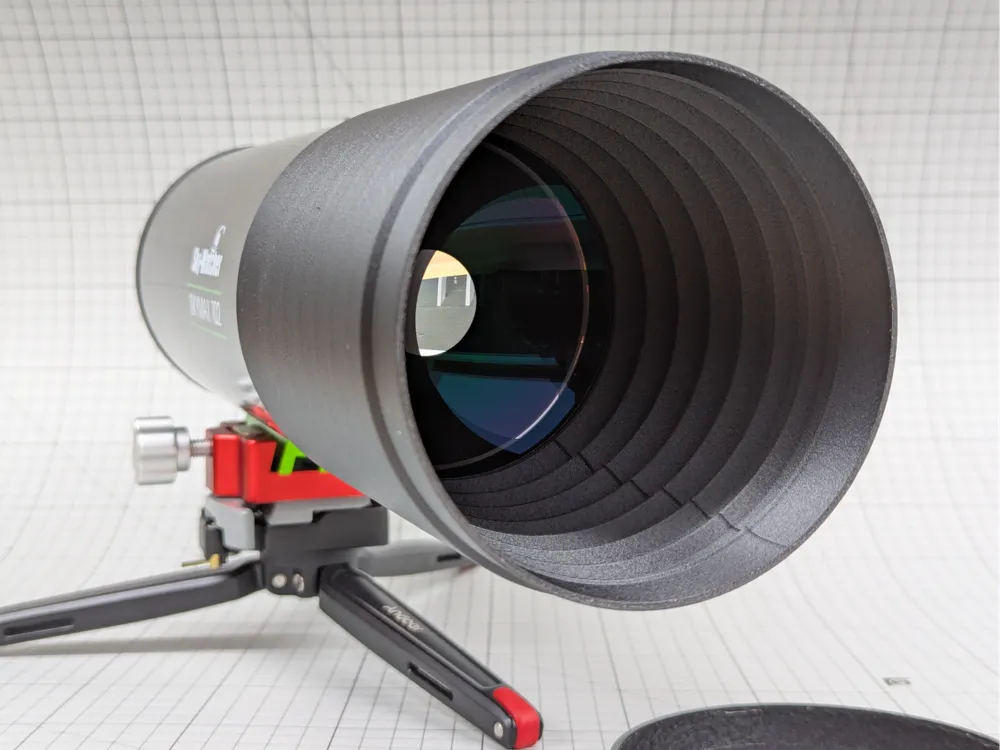

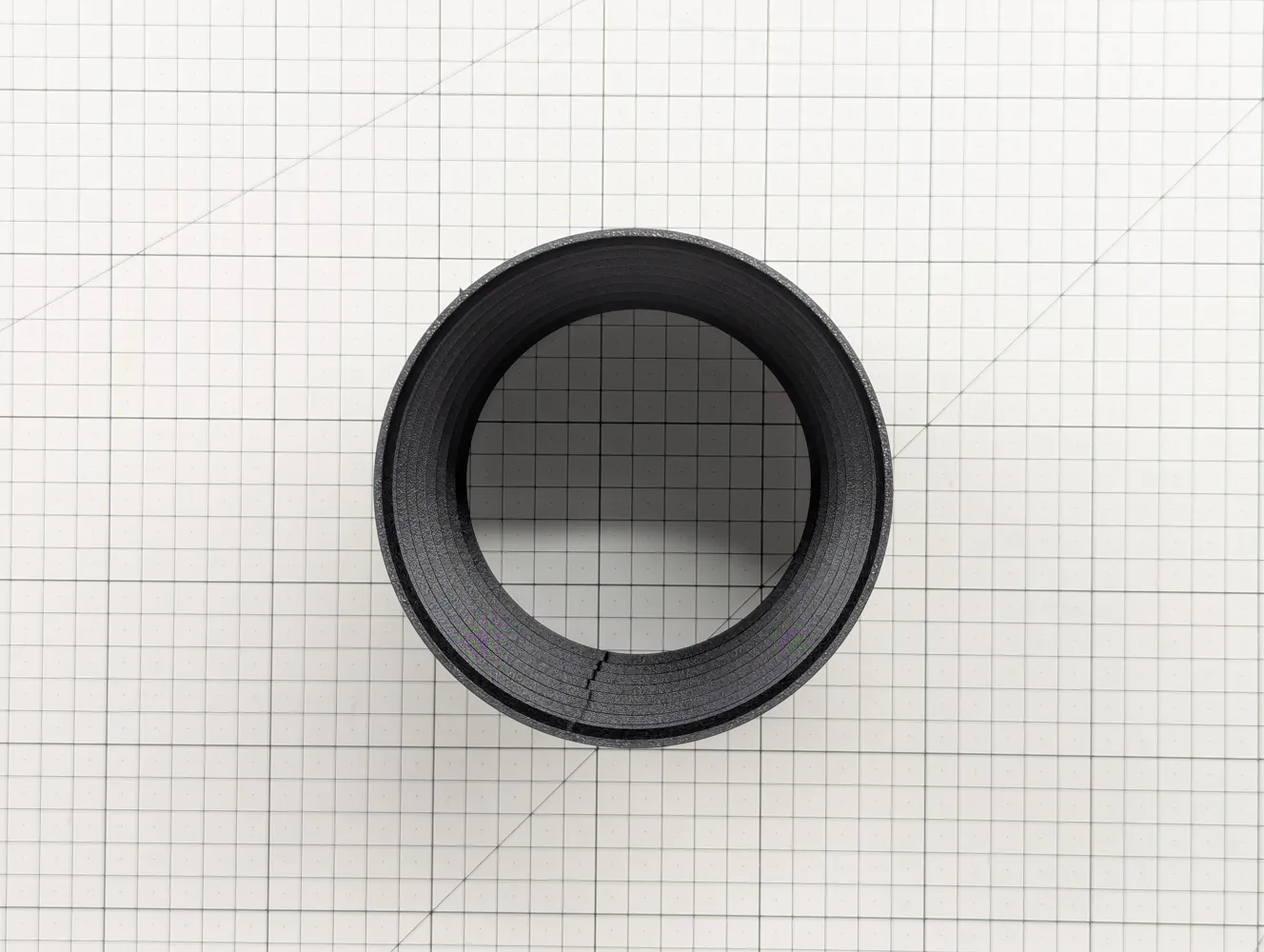

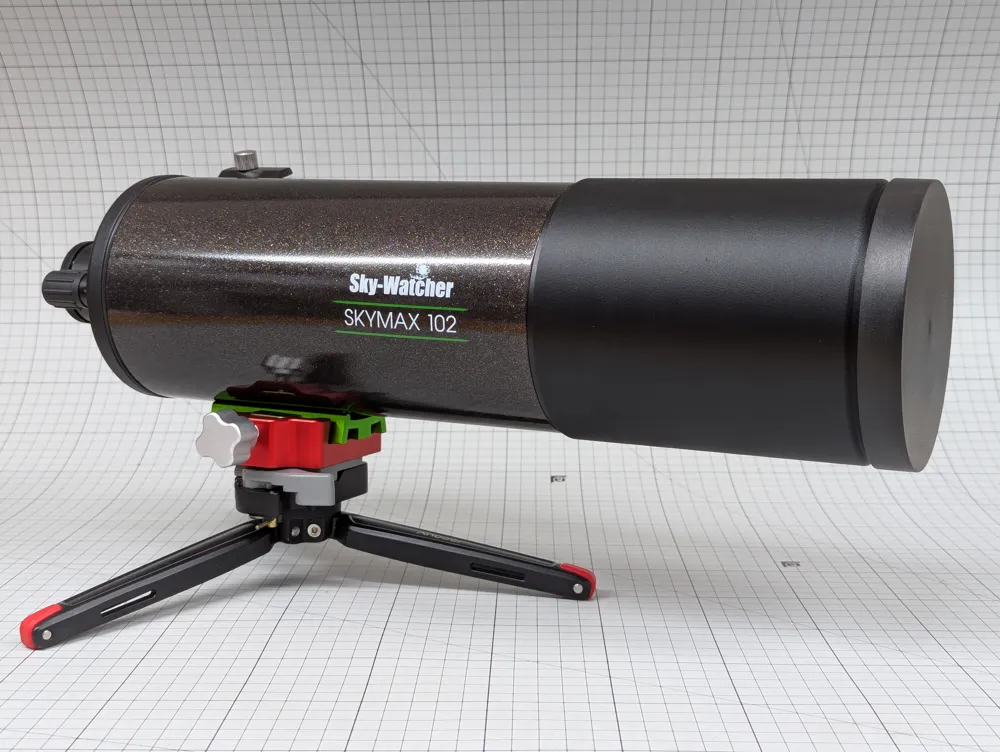

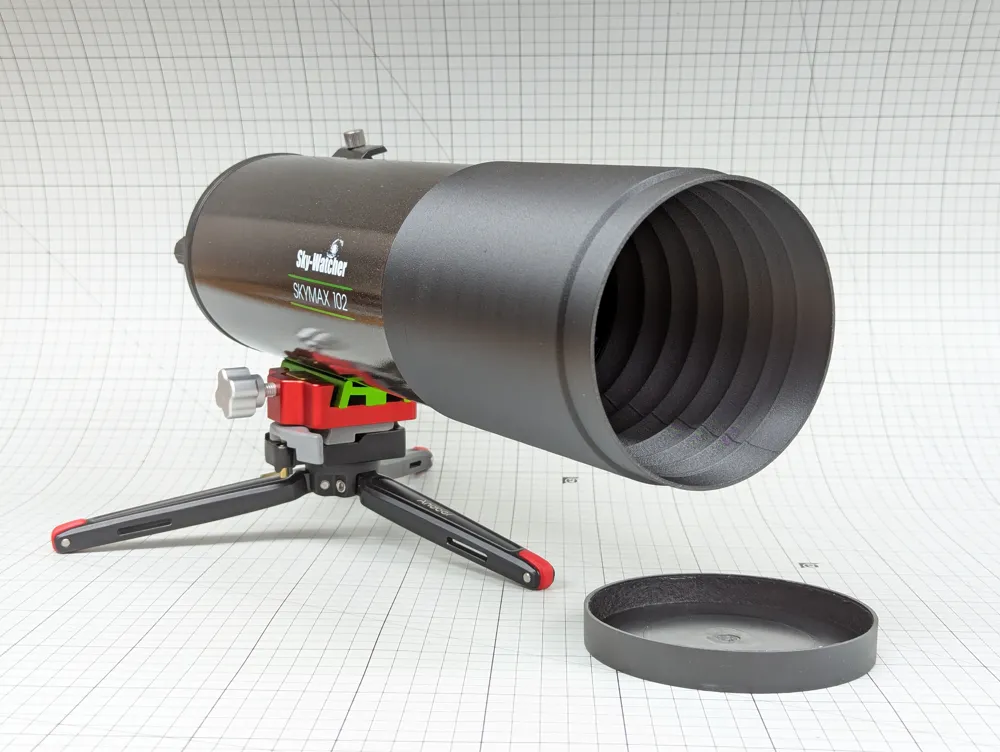

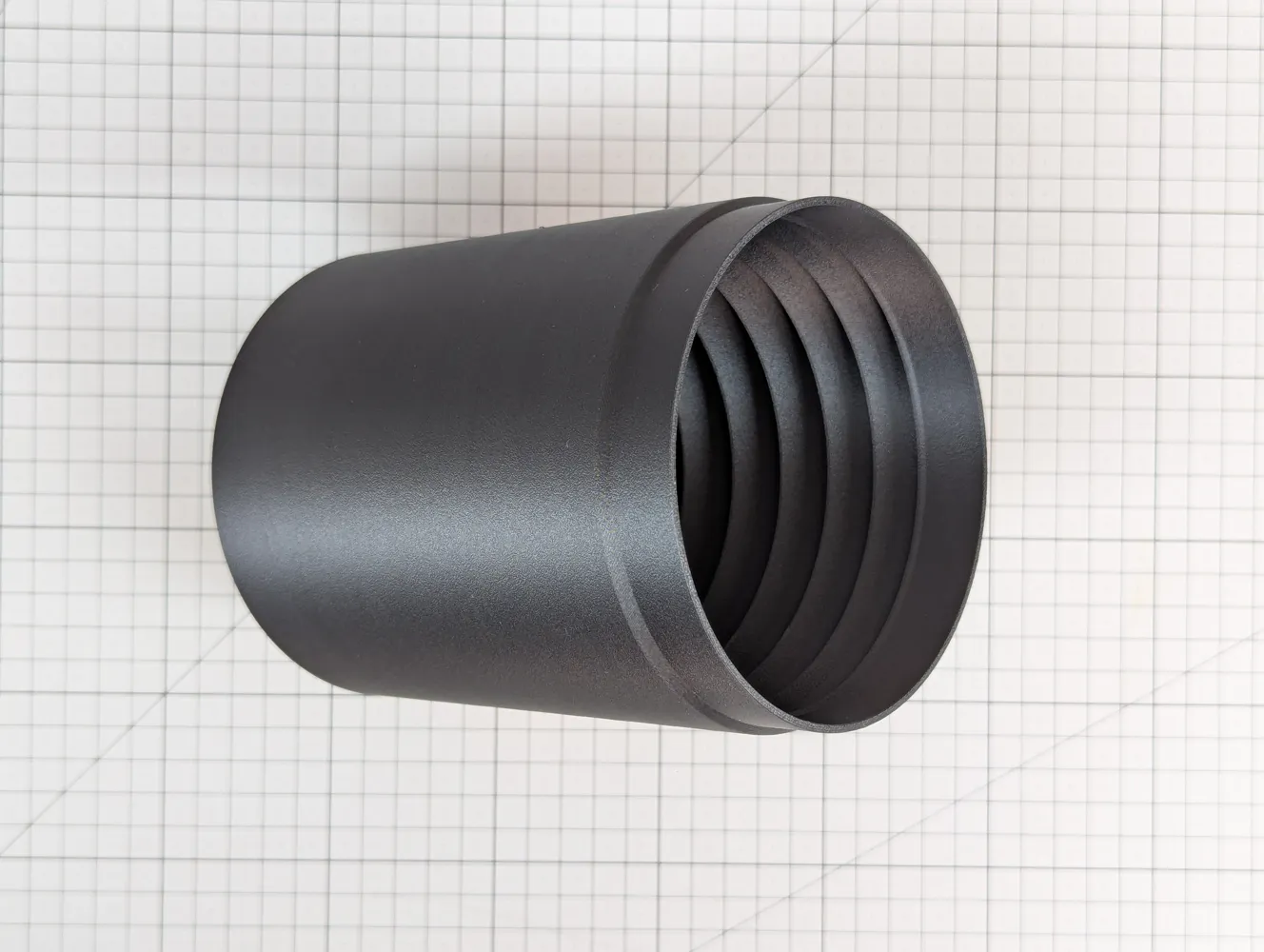

Design to fit over the front of the telescope and reduce dew on the front glass. The shield is 130mm long, measured from the front of the OTA. It has integrated baffles to help with stray light. The Telescope's dust cover fits over the end of the dew shield.

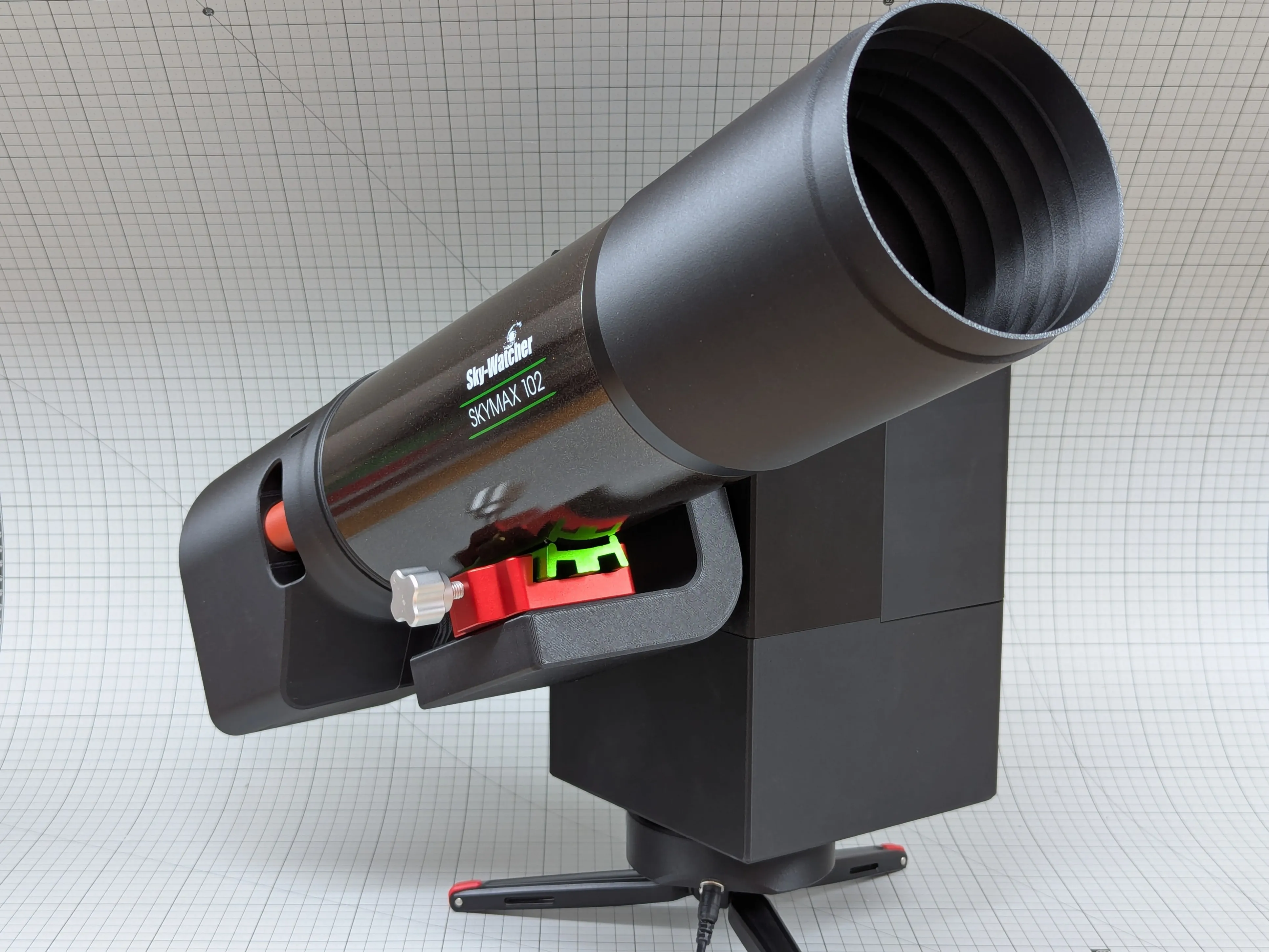

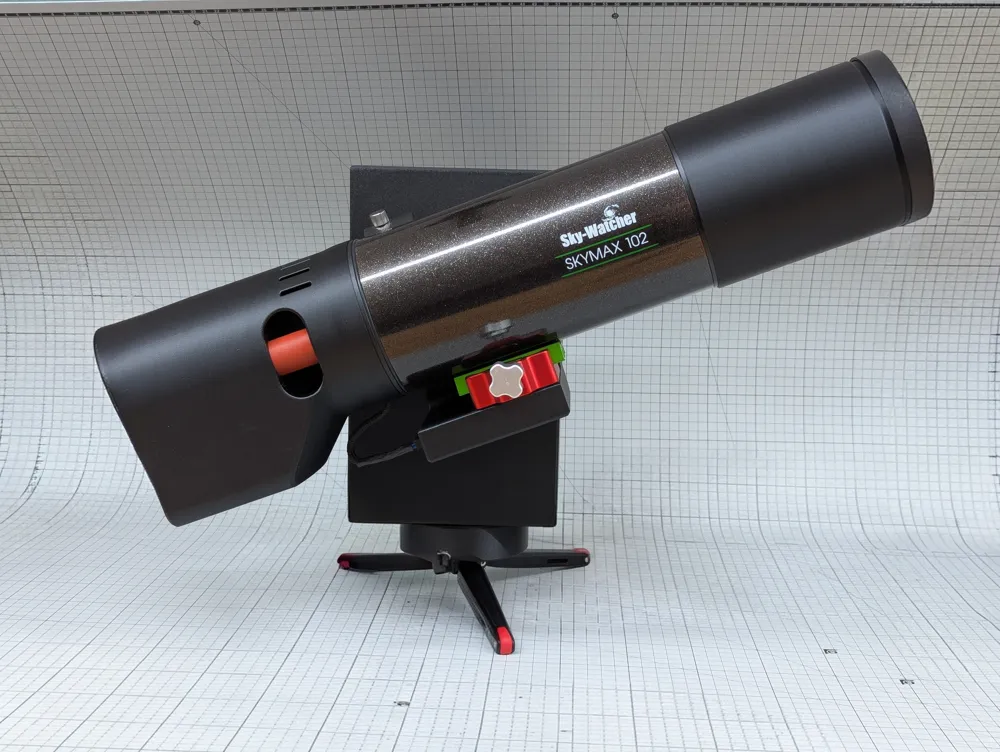

The Dew Shield is part of The MountOne Sky-Watcher SKYMAX 102 OTA Astrograph.
Read The MountOne GOTO System blog post for full details on the project | https://hexaxes.com/blogs/blog/the-mountone-goto-telescope-mount
Also, check our other MountOne downloads available on MakerWorld | https://makerworld.com/en/collections/19885376-the-mountone-goto-system
PETG-CF Profiles are provided for the A1 Mini, P2S, and H2S Printers.
Dry Your Filament.
