Door / Flap for Laundry Chute 25cm
Print Profile(1)
Description
I had been looking for a flap or door for my laundry chute for a long time.
The purchasable metal versions are very expensive, so I decided to design a model myself.

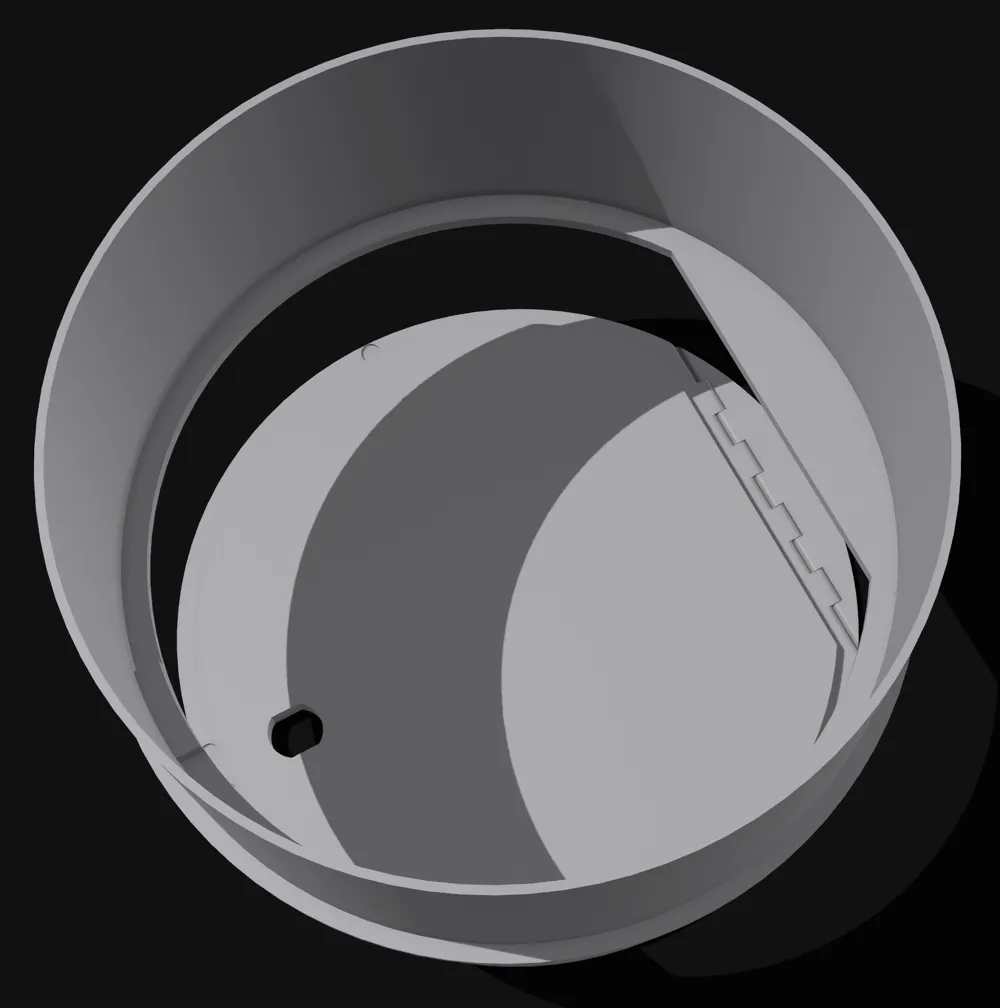

The model fits into a shaft with an inner diameter of 25cm and is printable from the A1 (outer bezel diameter 25.6cm).

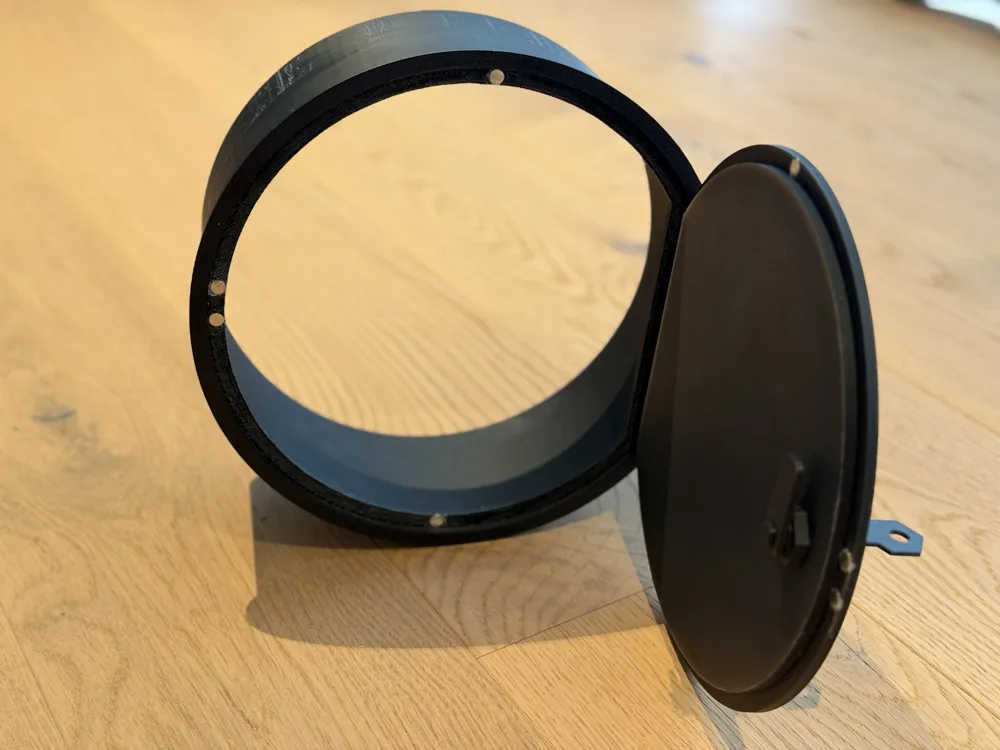

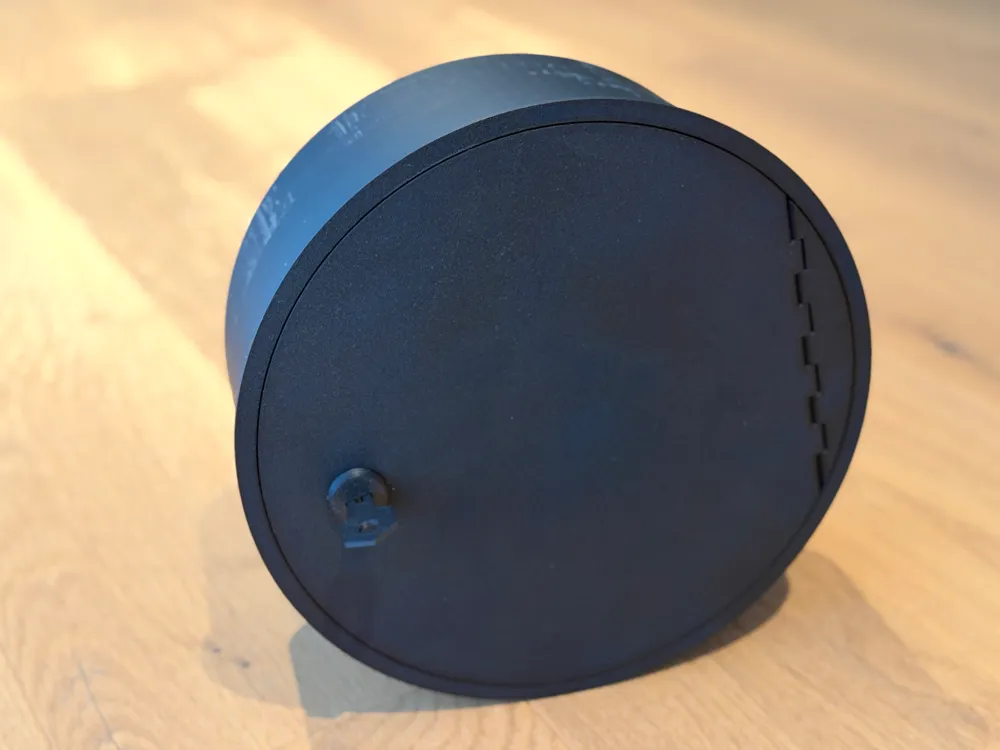

Door and frame are printed separately, the door is then glued onto the frame.
Glued-in magnets provide additional hold (standard 7x1mm magnets: https://www.amazon.de/dp/B0D5HDSWMS?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1) )

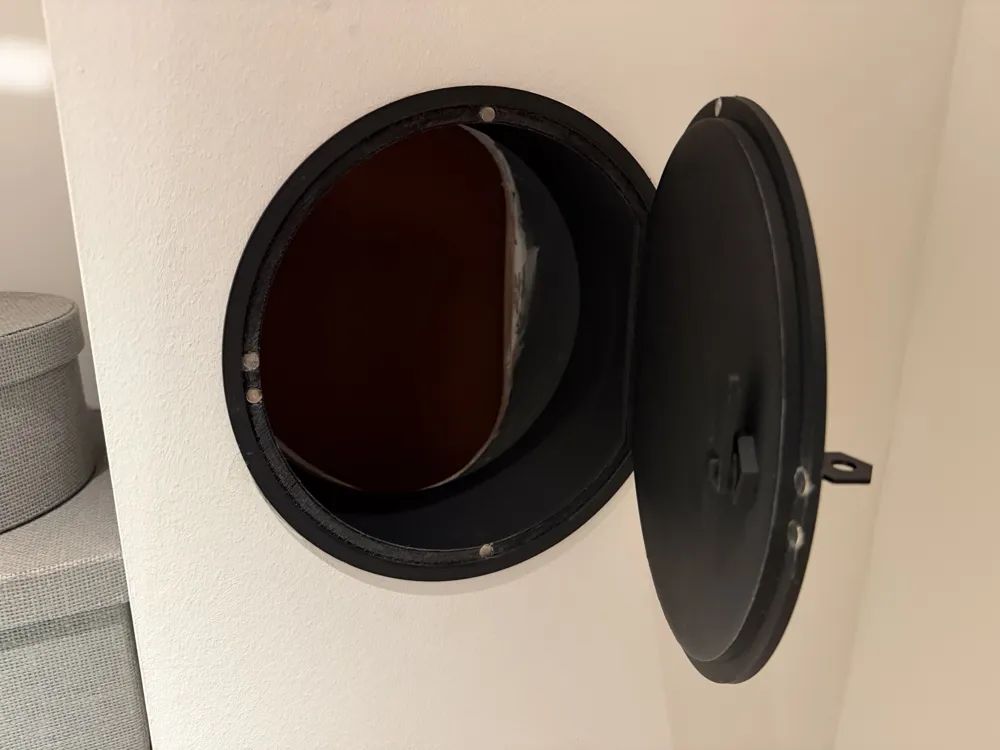

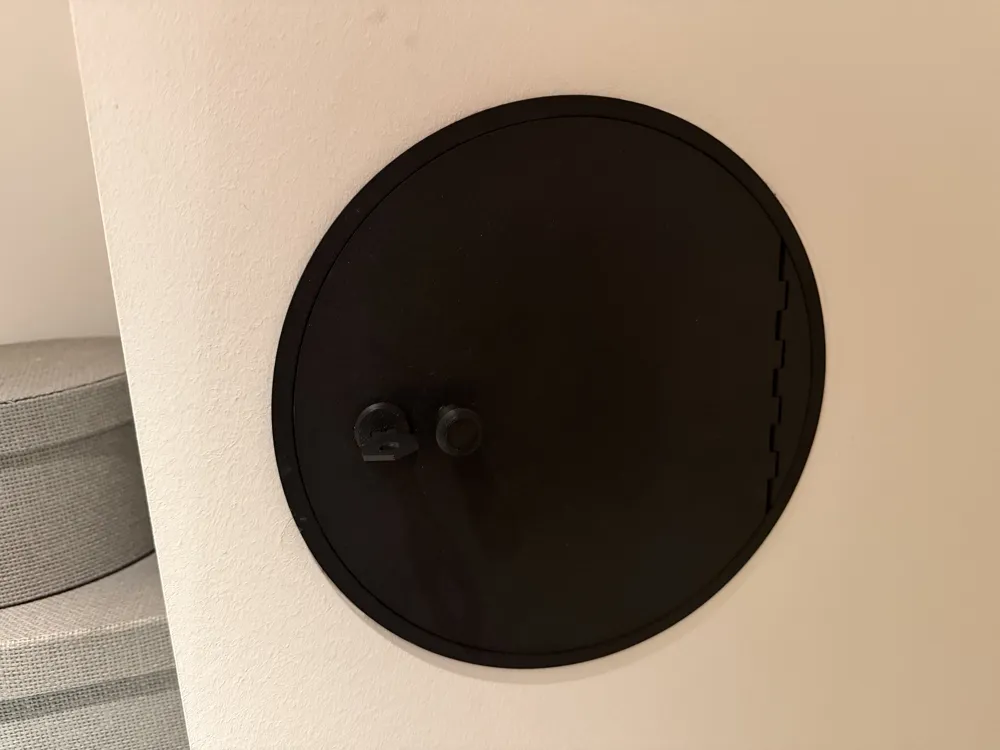

I glued the frame itself to the laundry chute so that it cannot be pulled out.
- Flat hinge modified from model: https://makerworld.com/en/models/2267668-flat-hinges-just-another-kind-print-in-place#profileId-2471598
- Used lock (fully printable): https://makerworld.com/en/models/2206608-cabinet-cam-lock-with-key#profileId-2398183
- Knob: https://makerworld.com/en/models/921547-round-grip-20mm-x-20mm#profileId-883723
This is my first model, I am available for questions and suggestions for improvement.
