Wall Mount & Dispenser for Jack Daniels 700ml
Print Profile(1)
Bill of Materials
Description

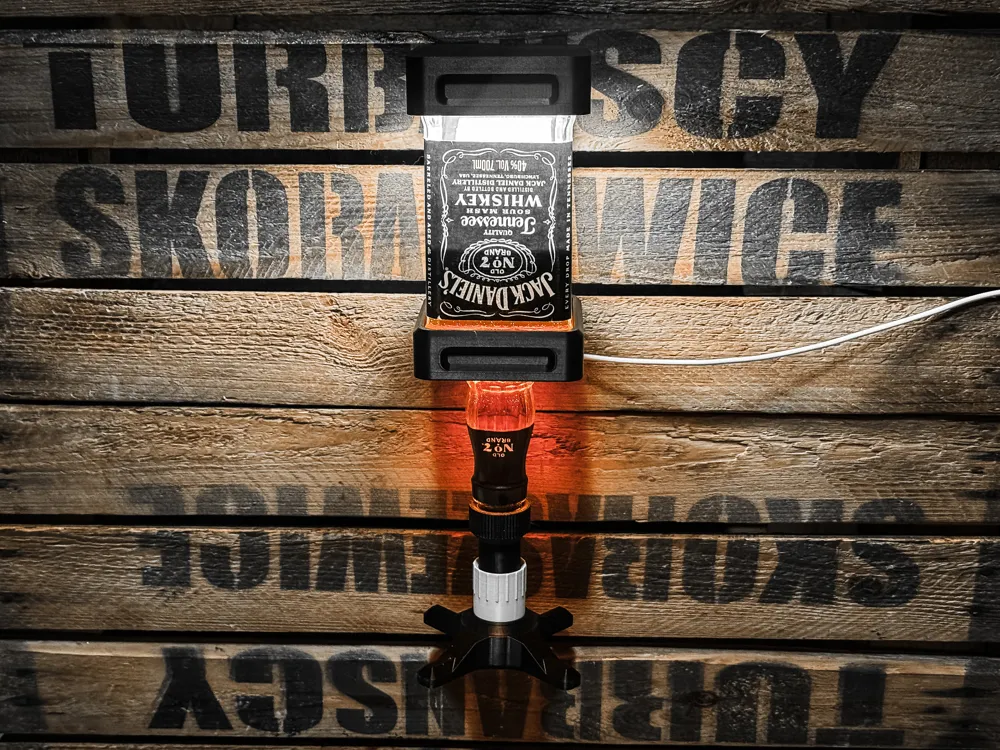

Jack Daniels 700ml Wall Mount & Dispenser
Optionally with LED lighting (MH001) or without.
(Simply select the appropriate print plate in Studio.)
Please ensure correct flow calibration and dry filament!
Assembly:

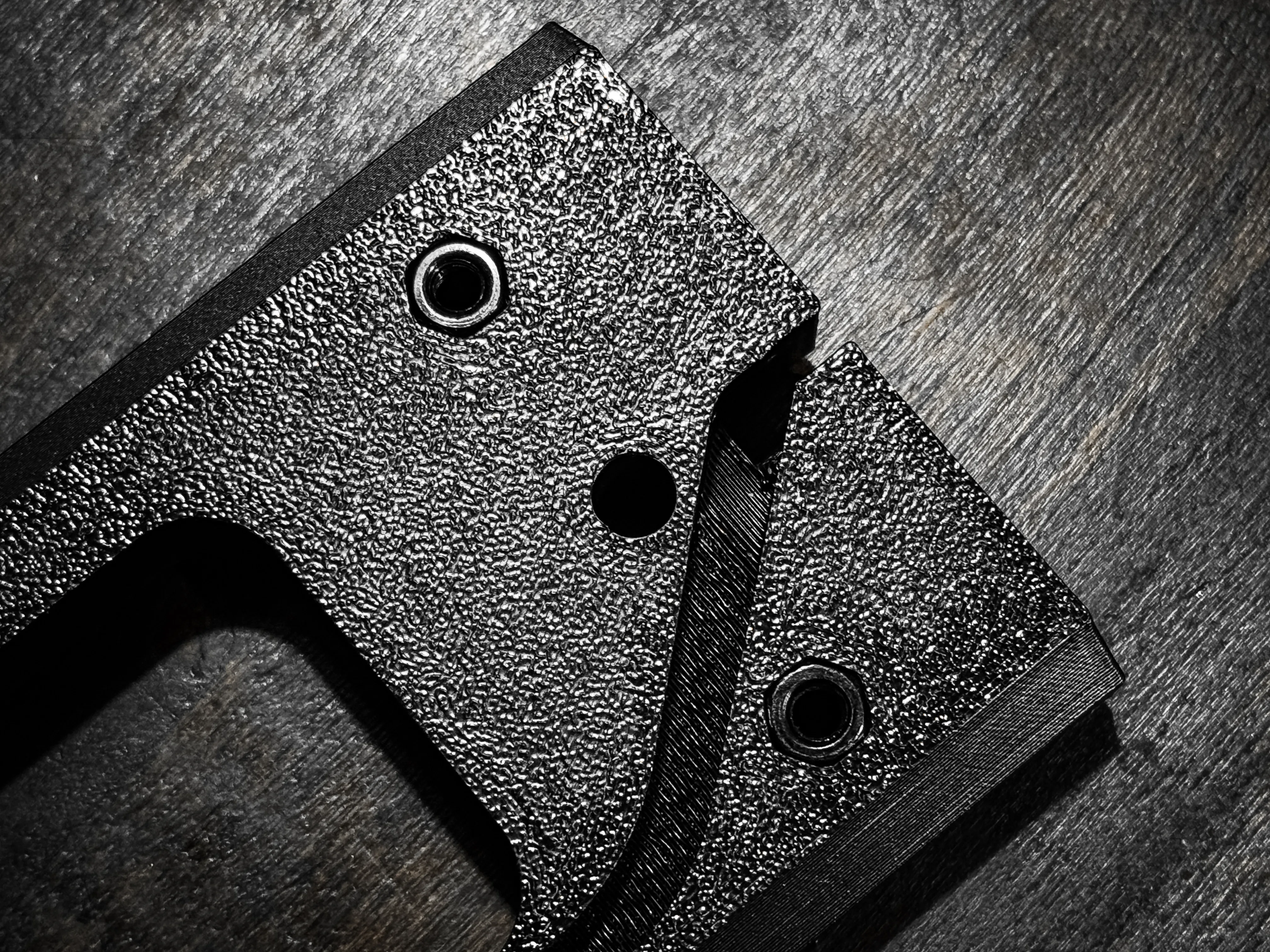

Prepare the mounting plate (first insert the 4 x M4 nuts)

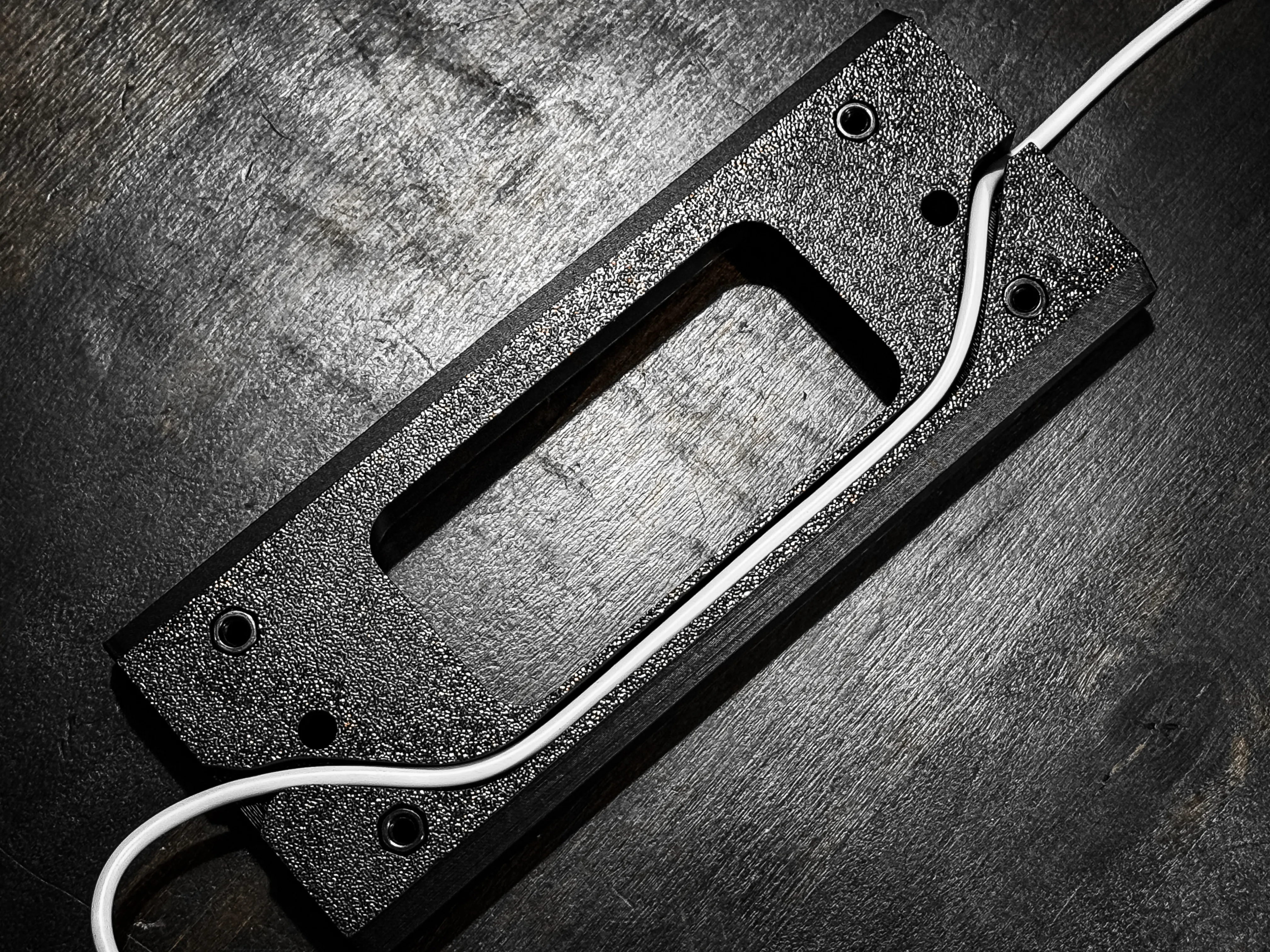

If used, lay the cable for the LED lamp (this is not necessary if using the mounting plate without LED)

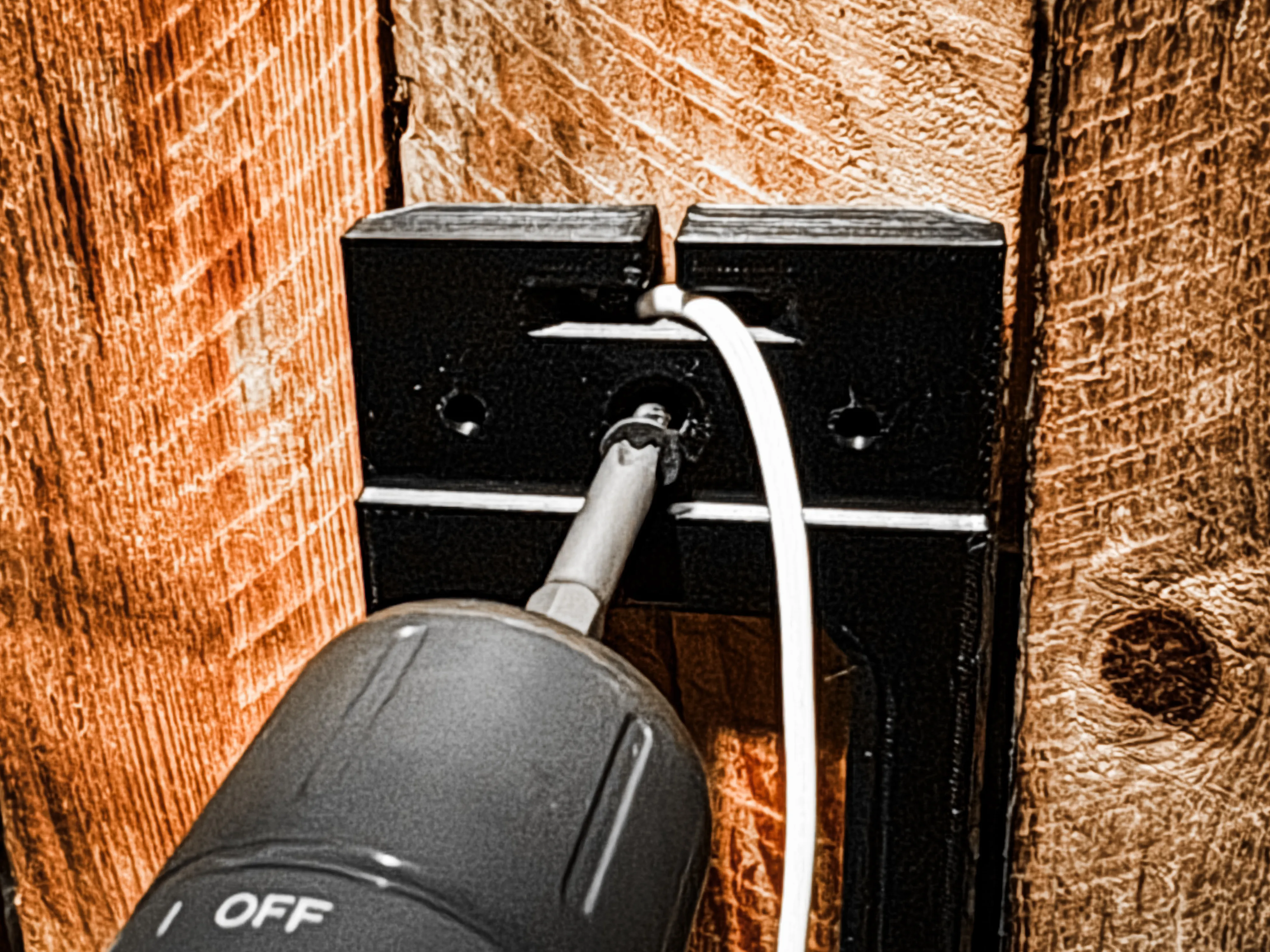

Now mount the mounting plate in the desired location (wall)

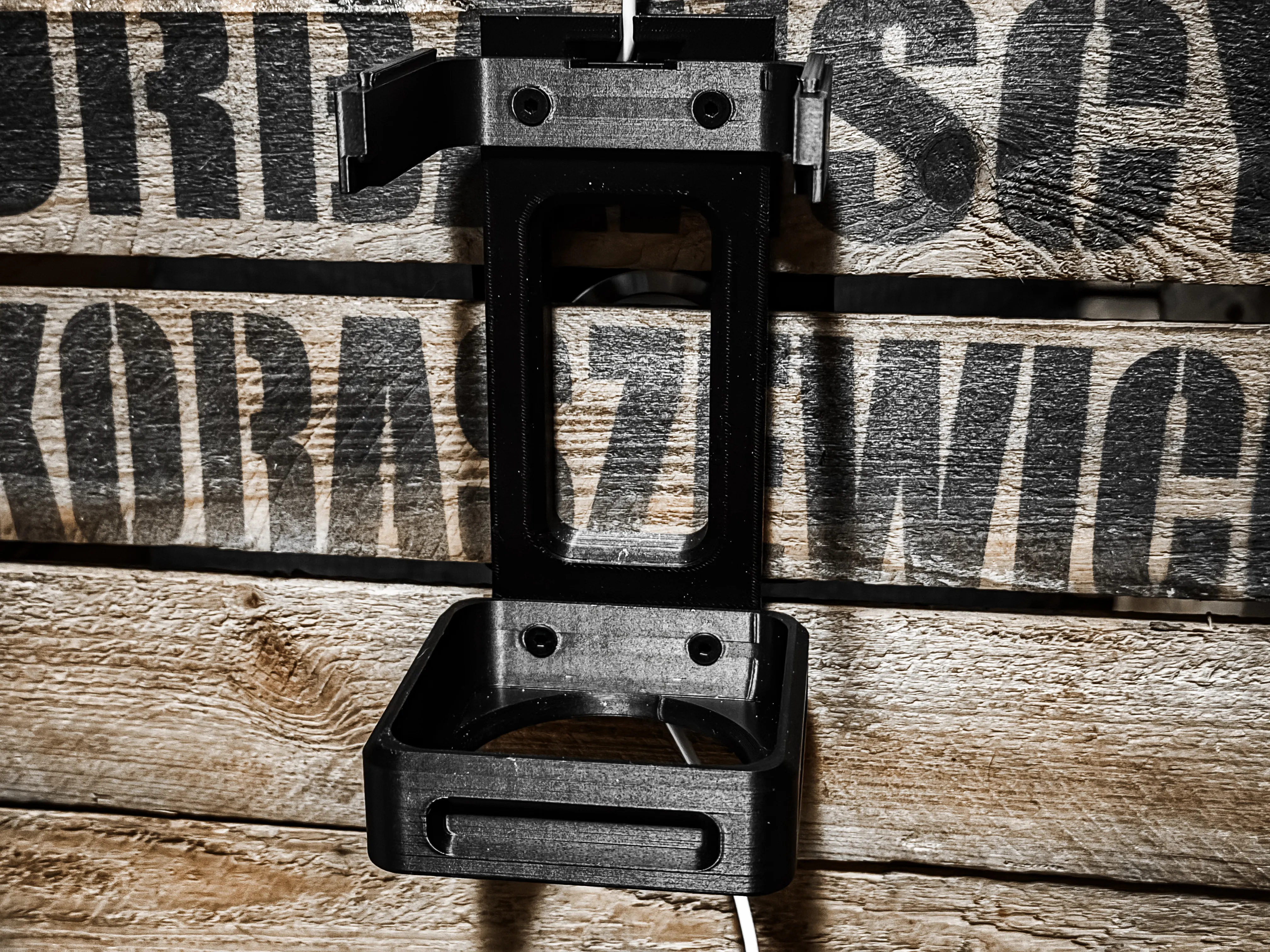

Assemble the bottom and top parts using M4 x 20mm countersunk screws

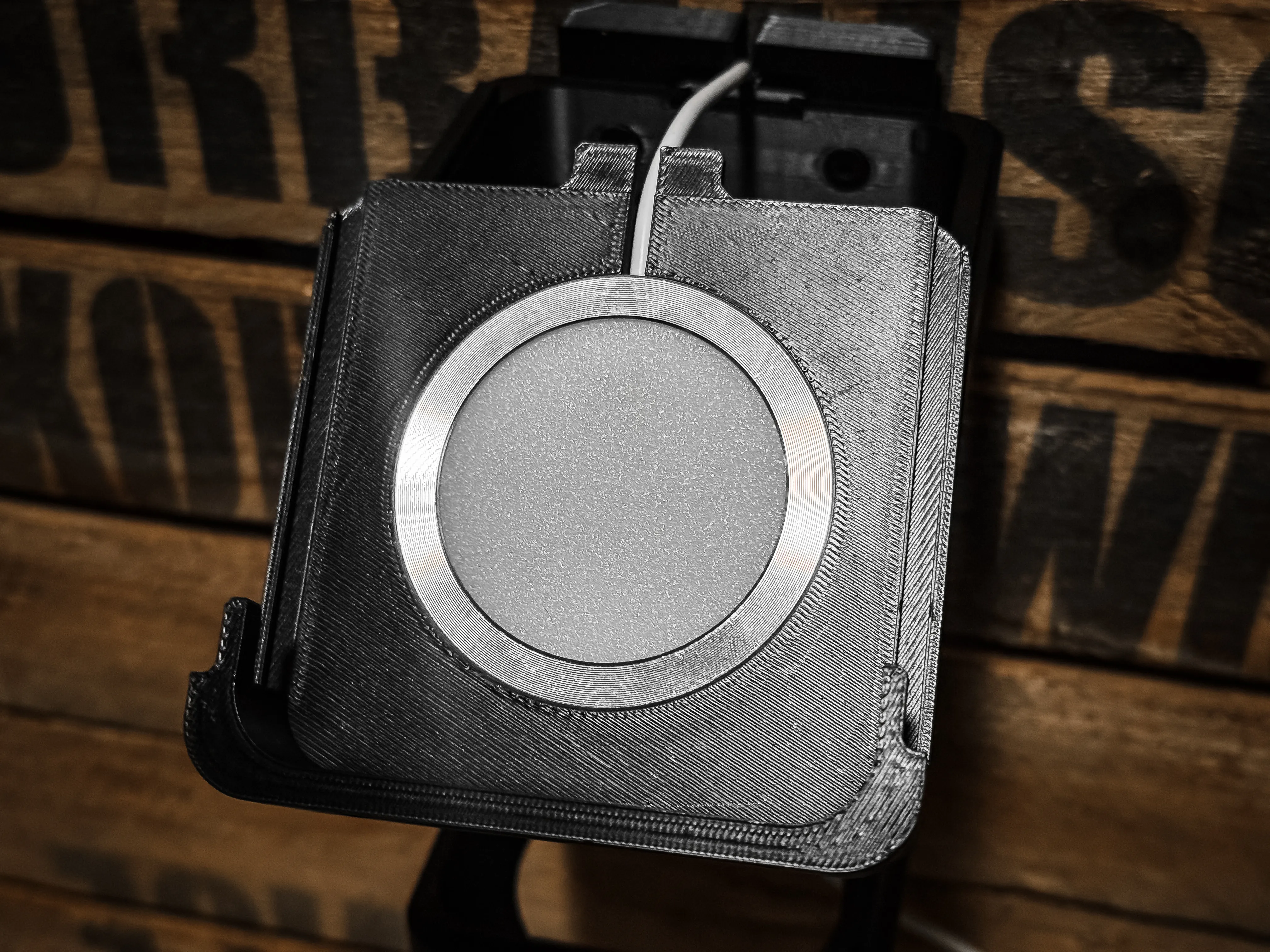

Press the LED lamp into the opening of the lid (this completes the assembly of the wall mount)
To lock the lid in place, pull the LED lamp cable taut.

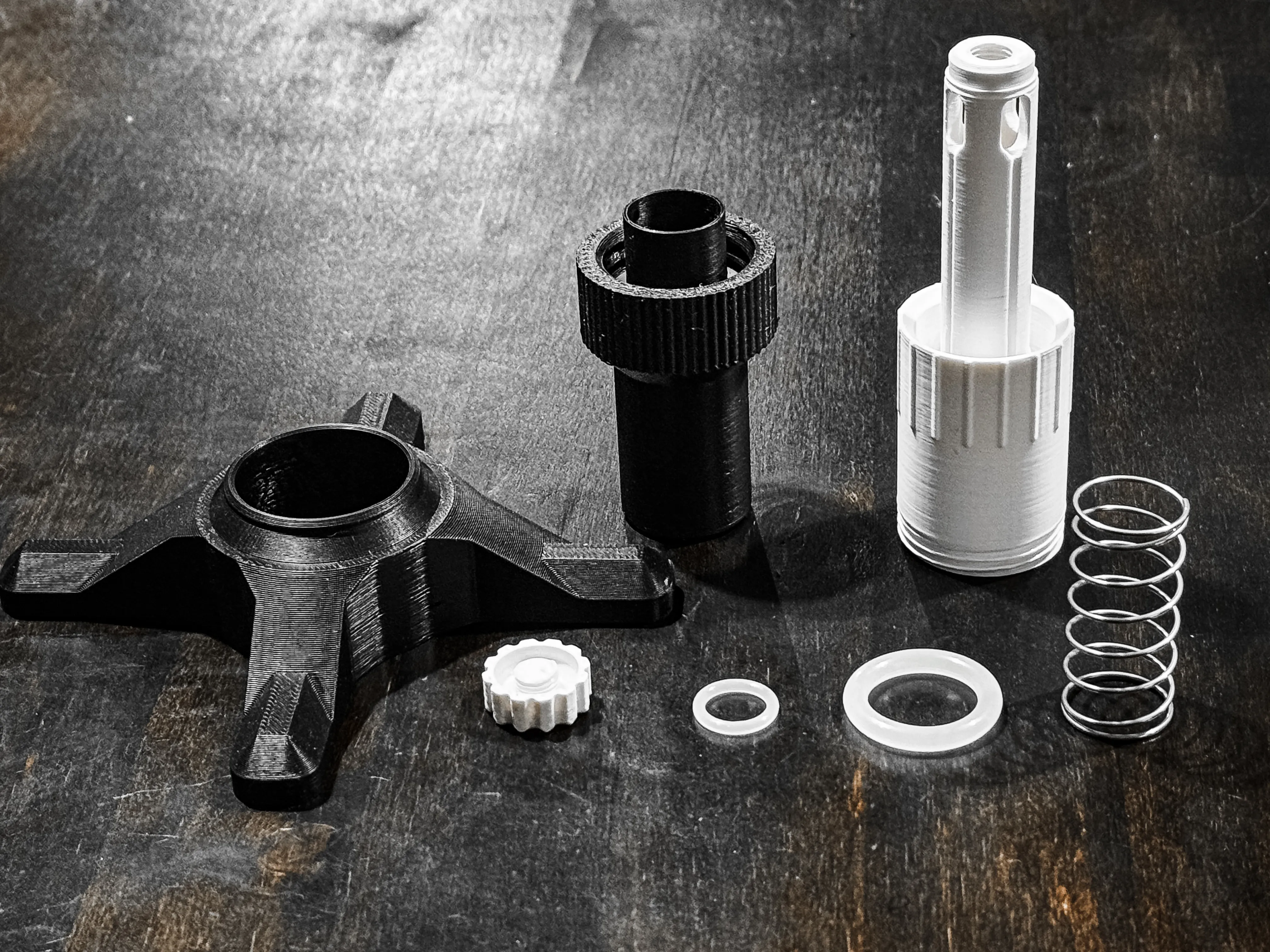

Dispenser Assembly
Spring: Stainless Steel 1x16x40 mm
O-ring: 14x10x2mm, 26x18x4mm (Set)

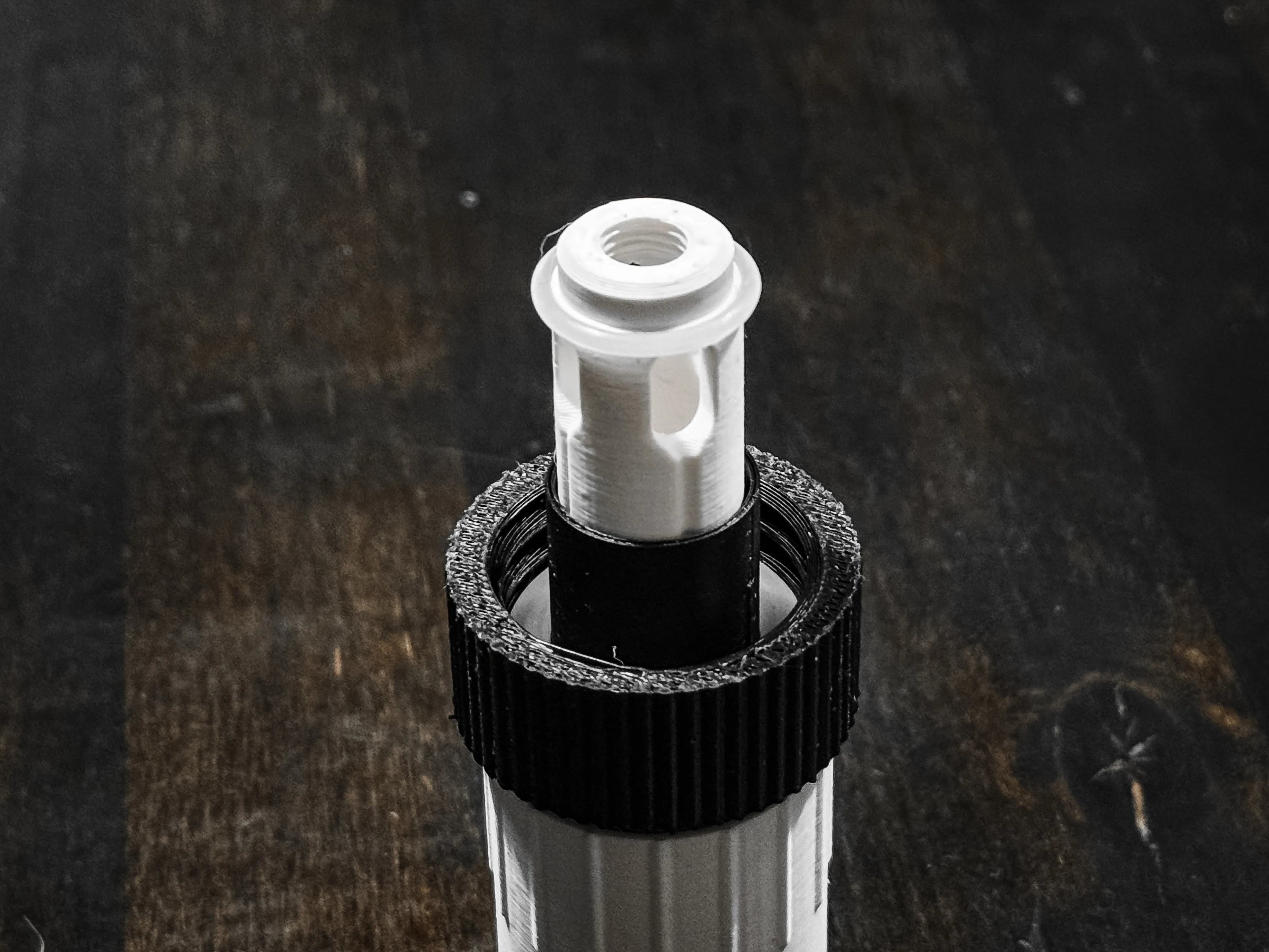

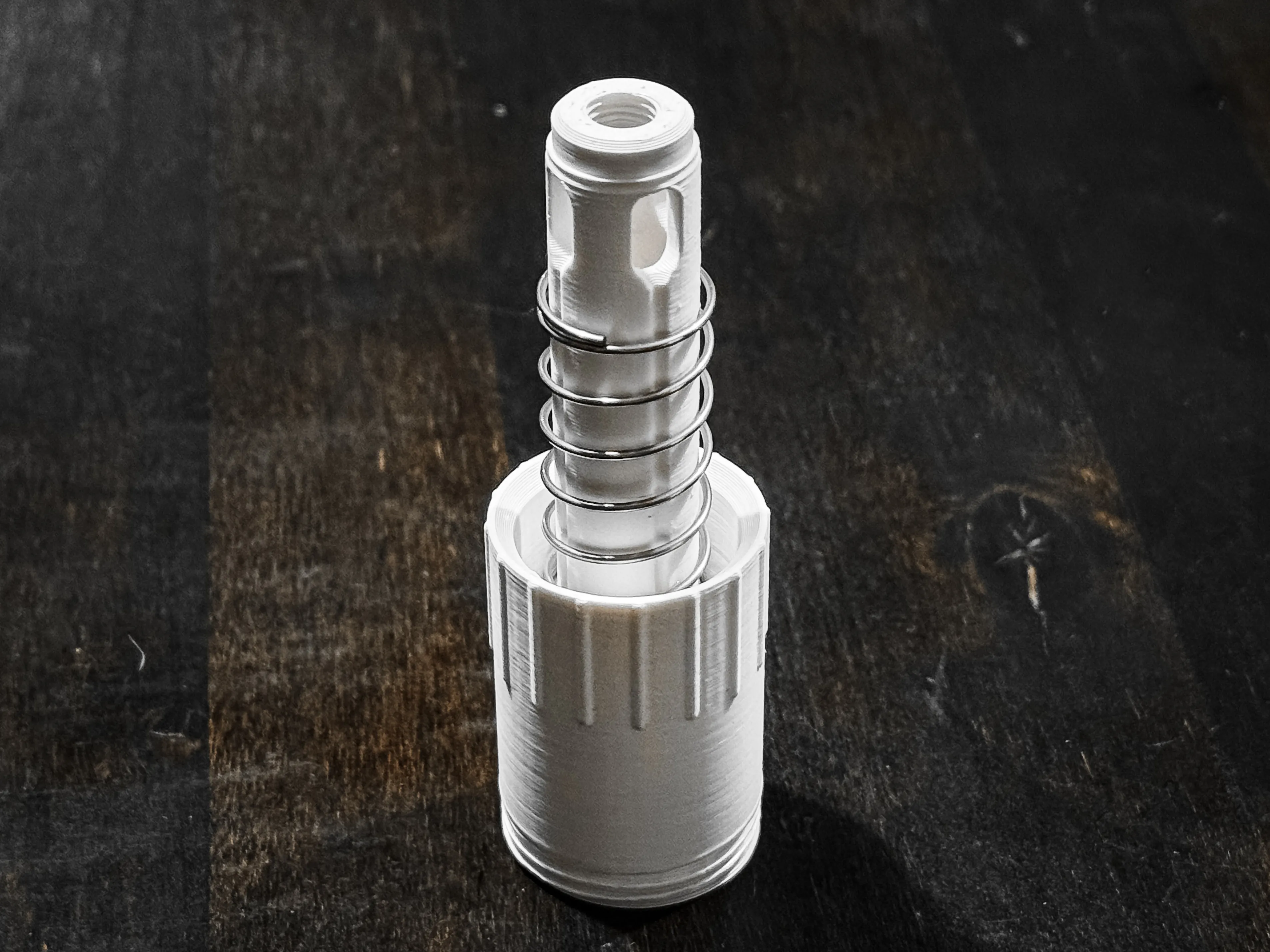

Insert spring into the spout

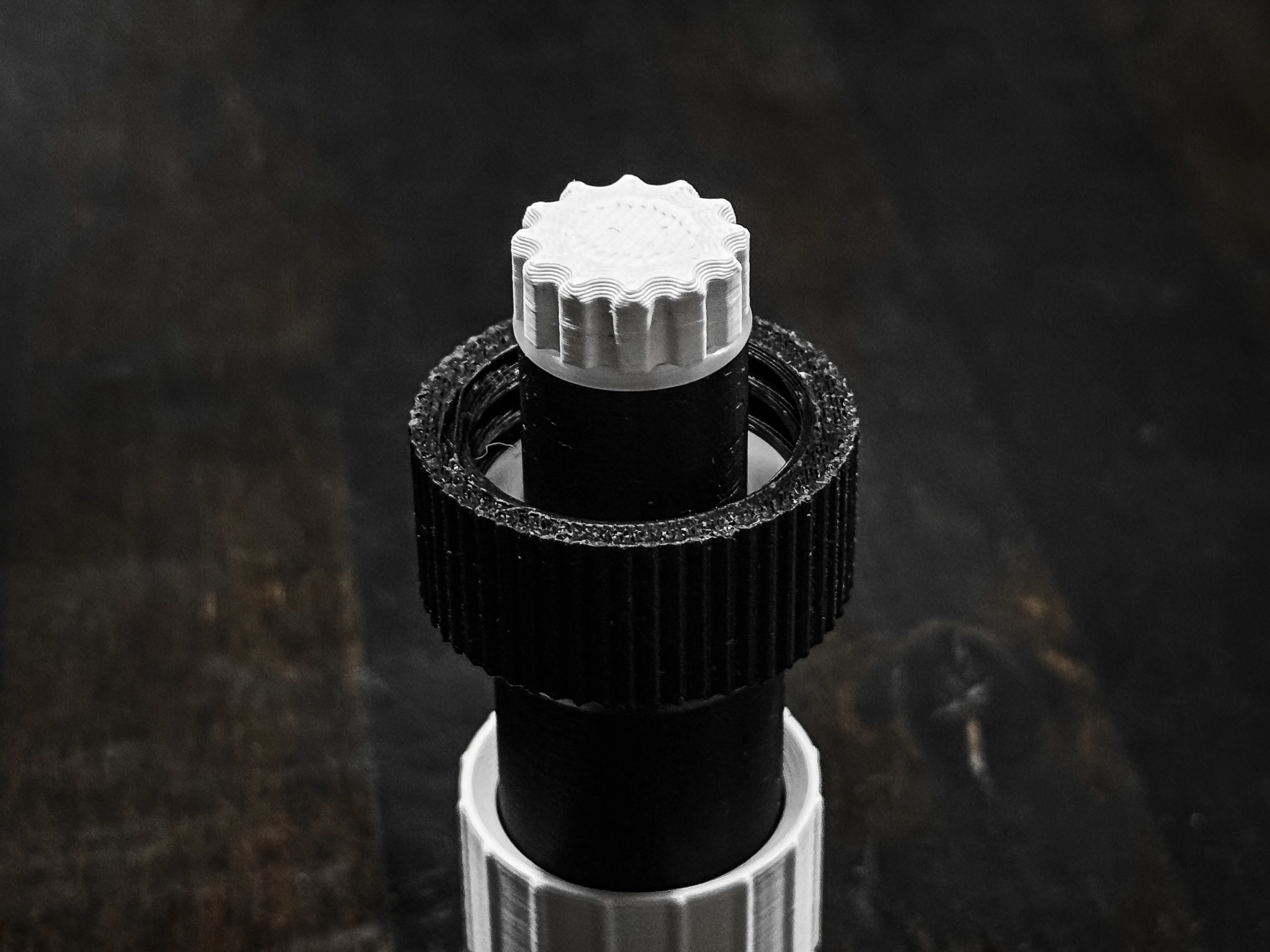

Place the bottle thread, push down, and secure the O-ring with the cap
Now insert the large O-ring into the bottle thread.

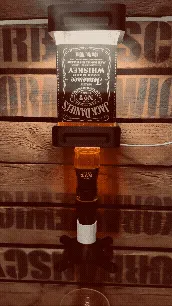

Finished!

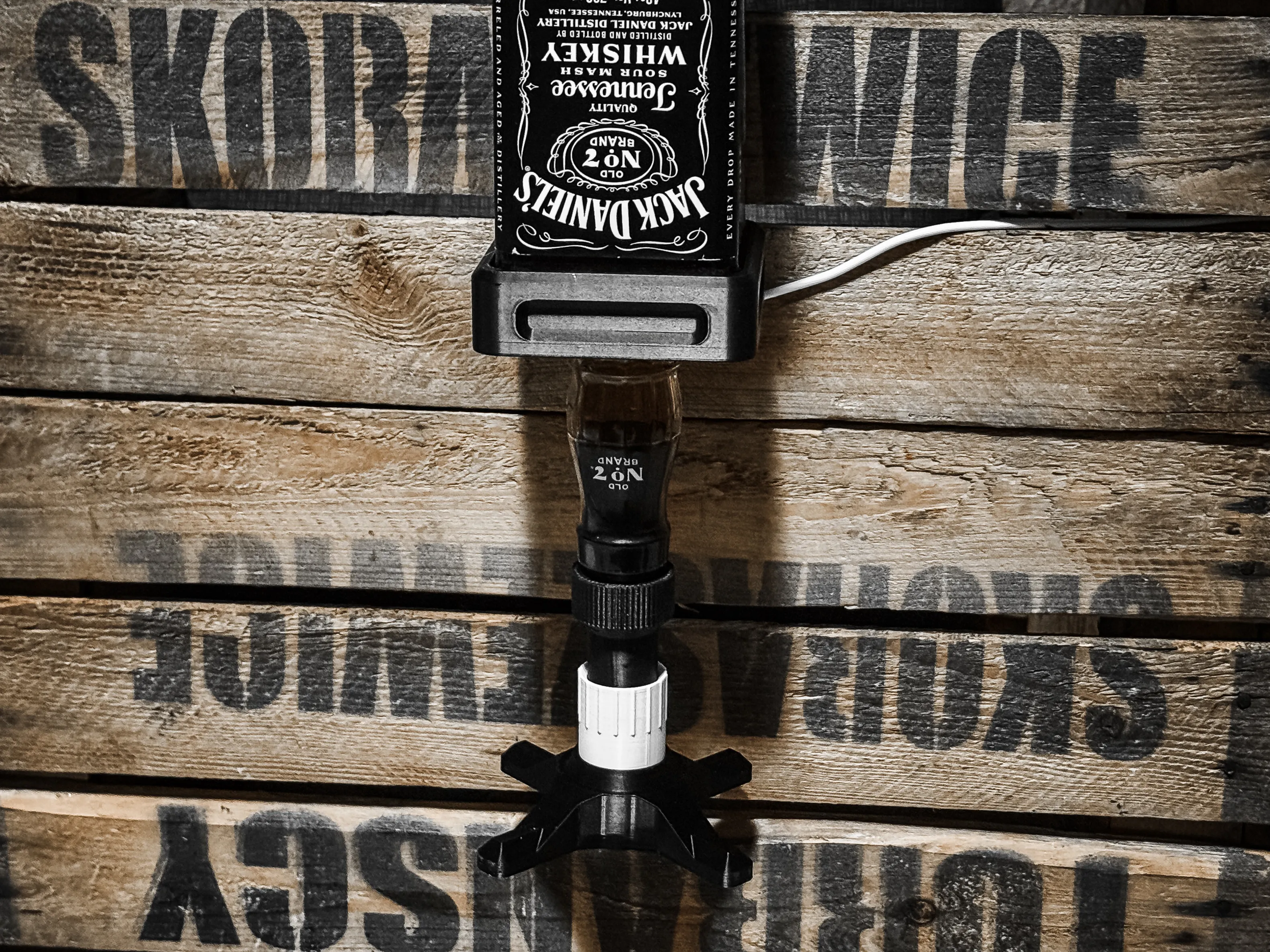

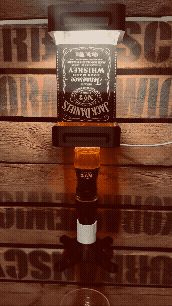

Now the bottle can be inserted into the holder.

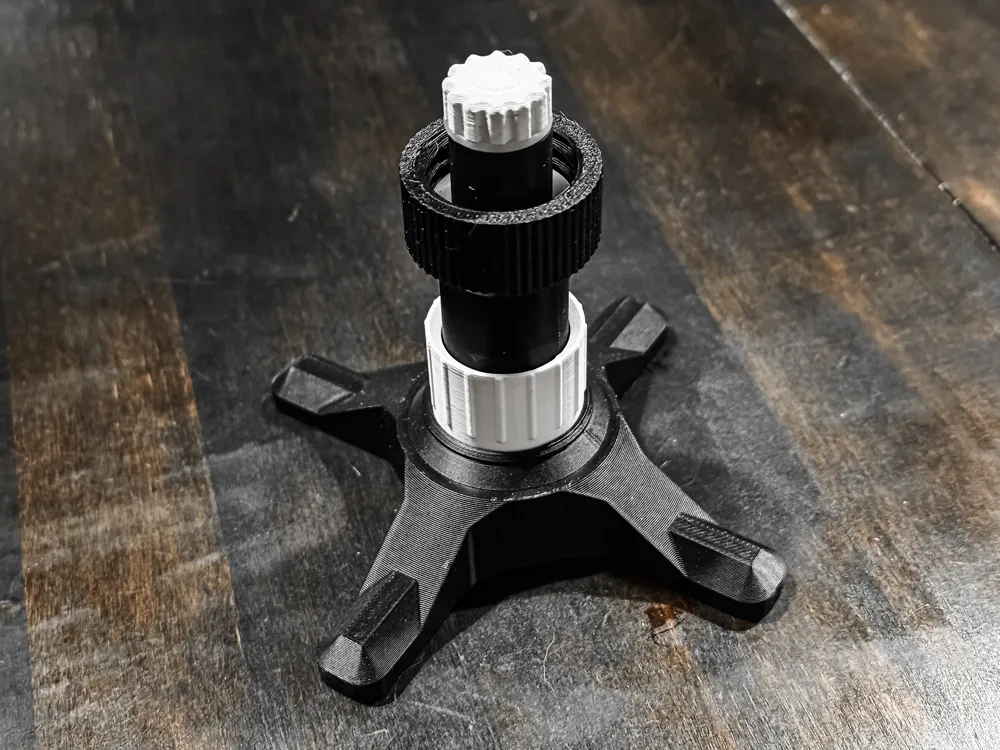

Due to the closed design, it is necessary to attach or screw on the “pusher” for the glasses afterwards.
Cheers!
