Dovetail Tool Wall – Screw-Mounted System
Print Profile(2)
Description
Modular Screw-Mount Pegboard System – The ultimate workshop organization
Bring order to your chaos! This modular organization system was developed to store tools securely, stably, and completely customized. Unlike loose plug-in systems, this design relies on firm screw connections, so that even heavy tools like ratchets or large wrenches remain securely in place.
🌟 System Highlights

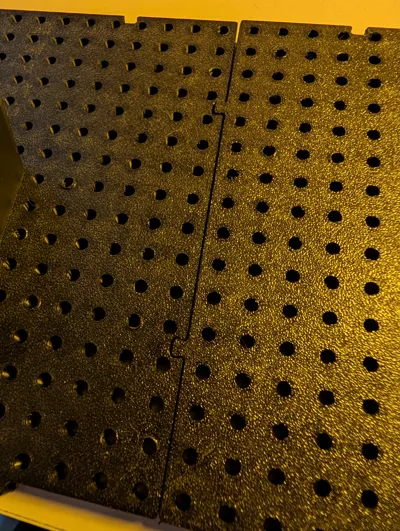

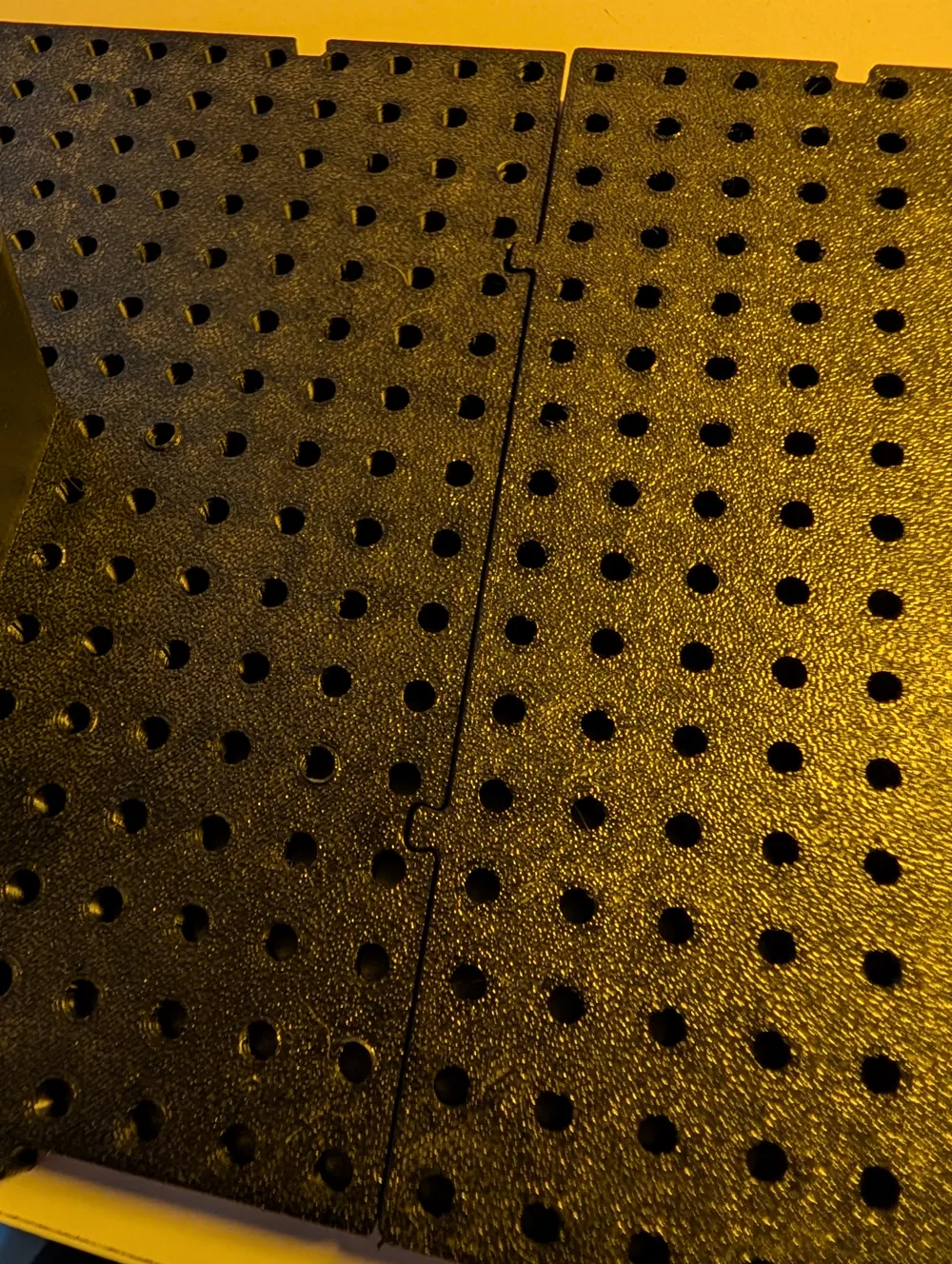

- Infinite Expandability: The base plates can be seamlessly connected using a precise dovetail system
- Maximum Stability: Each module is screwed directly to the base plate – no wobbling, no falling out when grabbing the tool
- Versatile Holders: The set already includes optimized holders for:

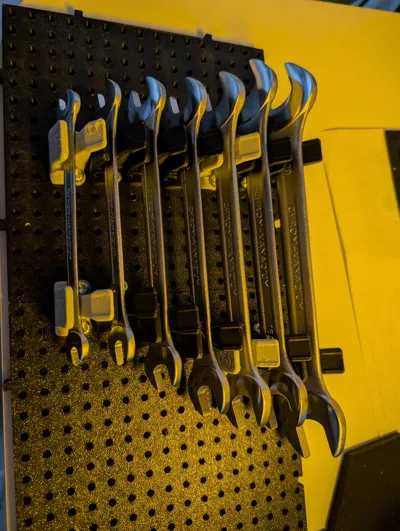

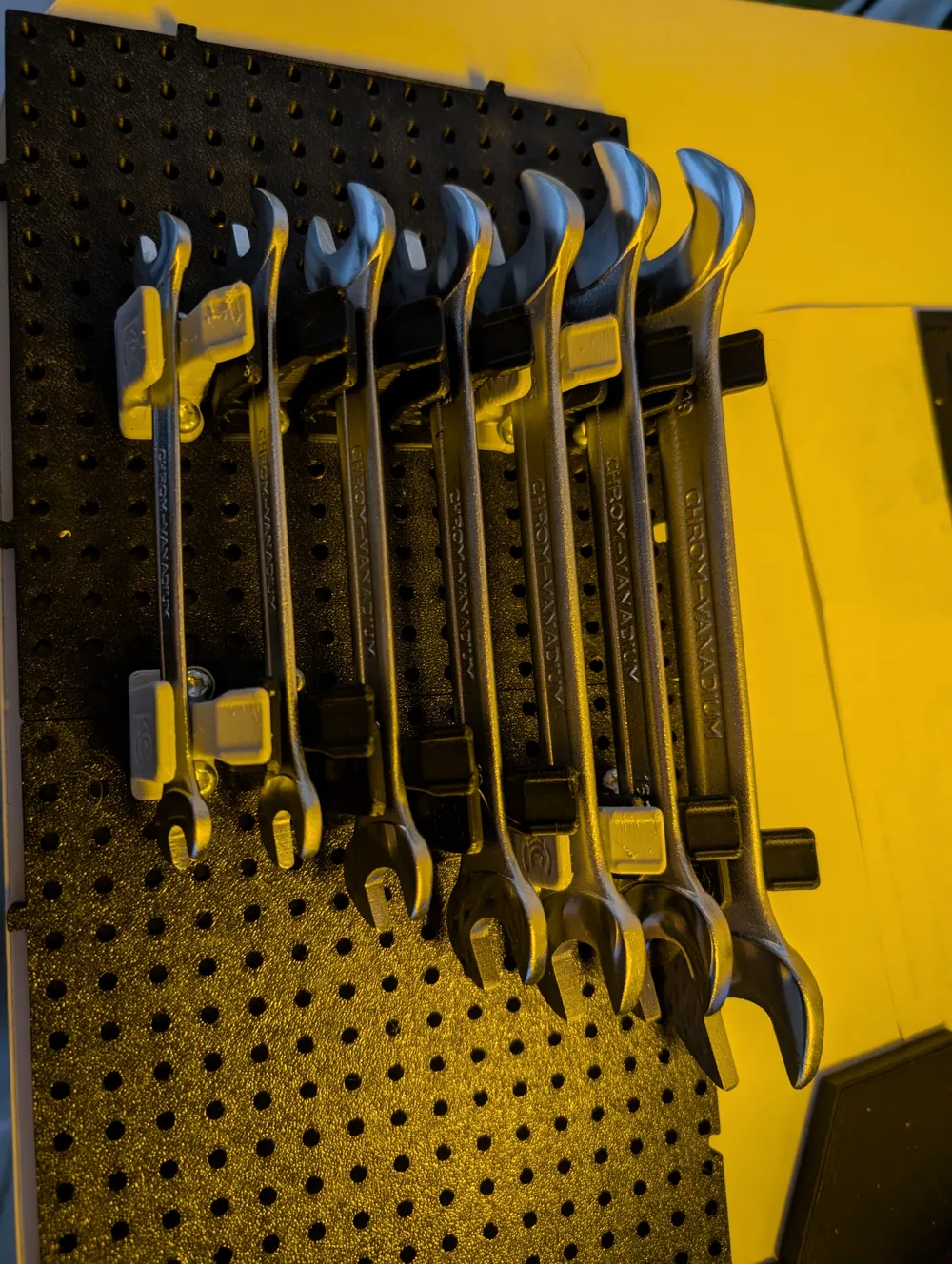

- Combination wrenches (vertical, space-saving arrangement)

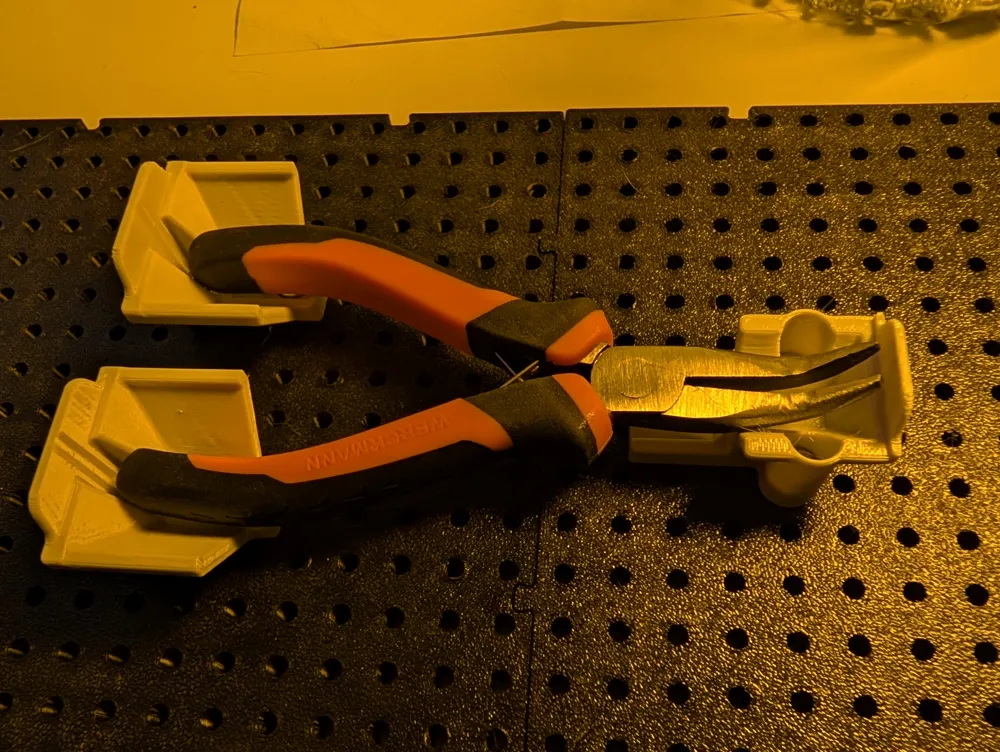

- Pliers & Side Cutters

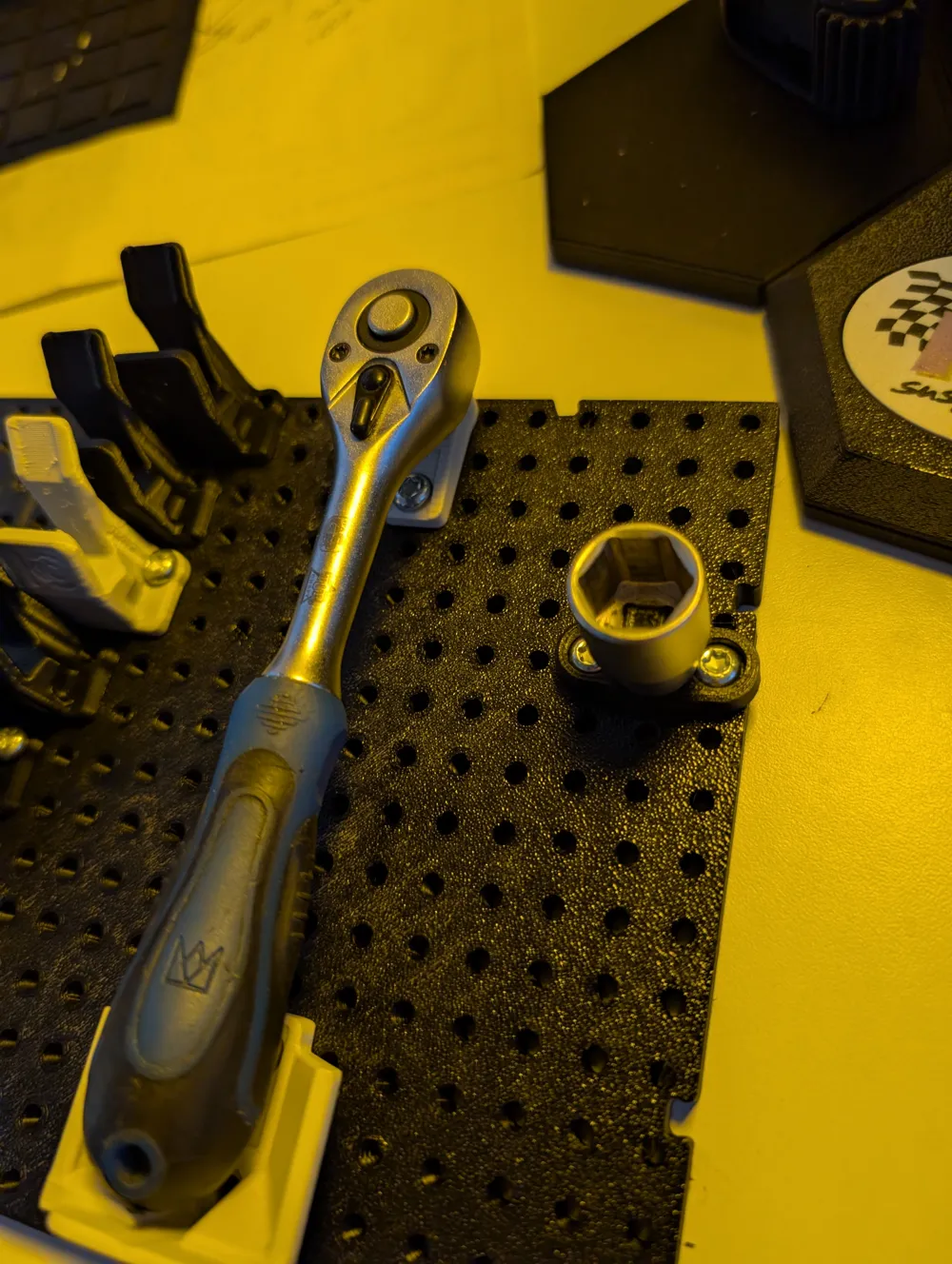

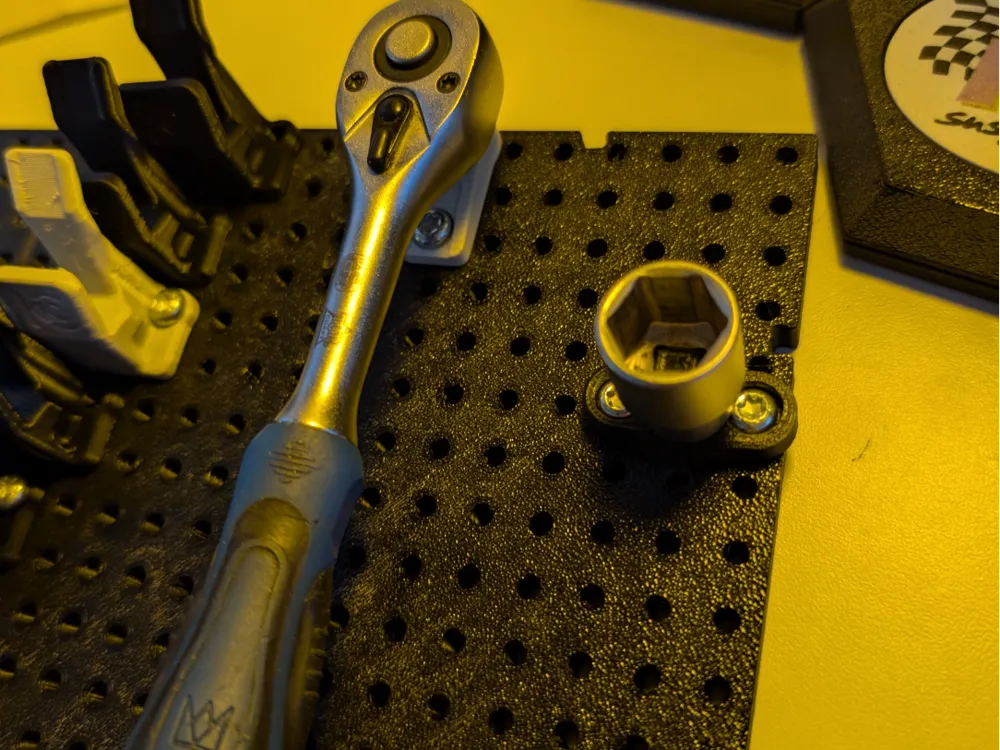

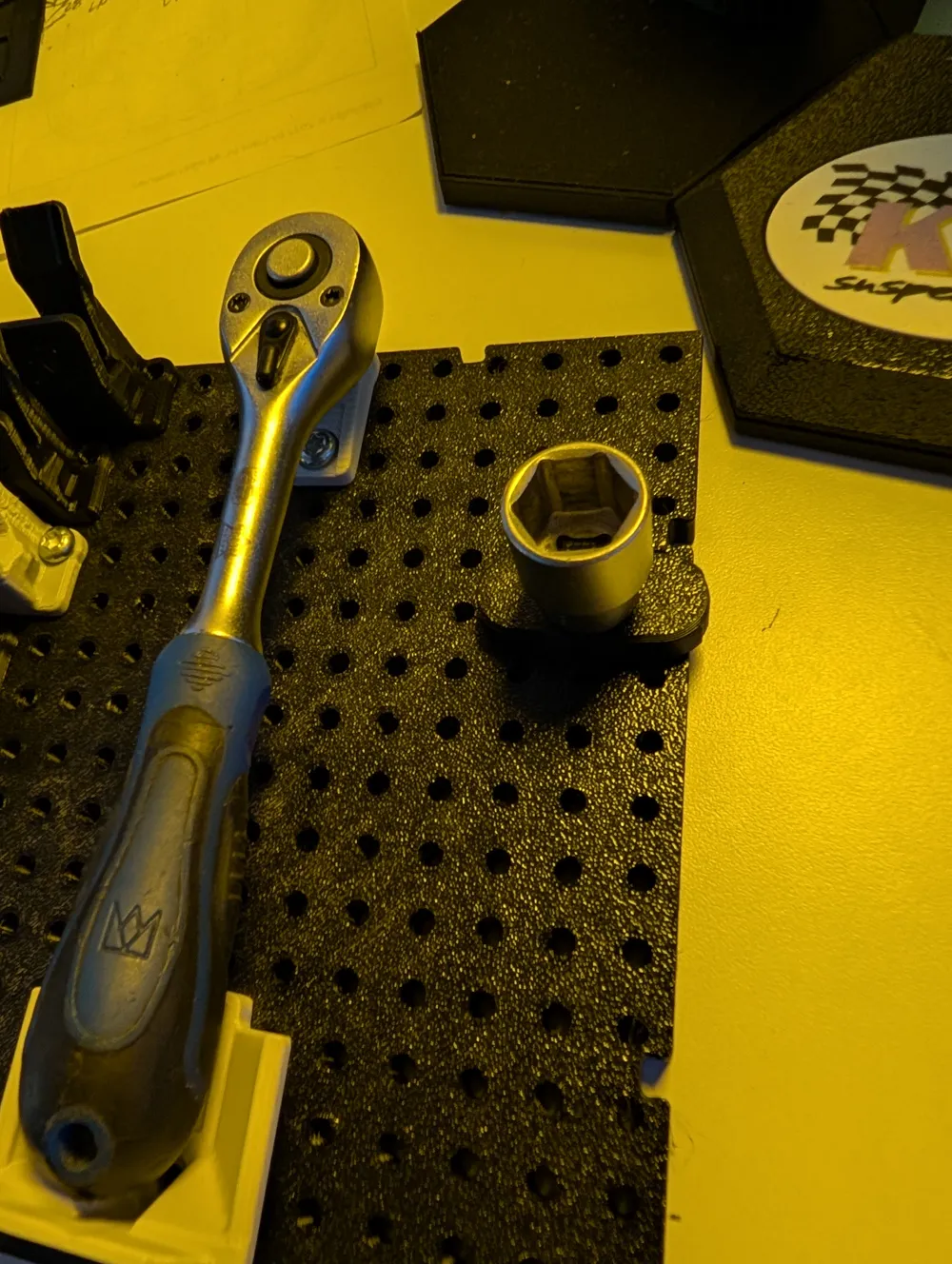

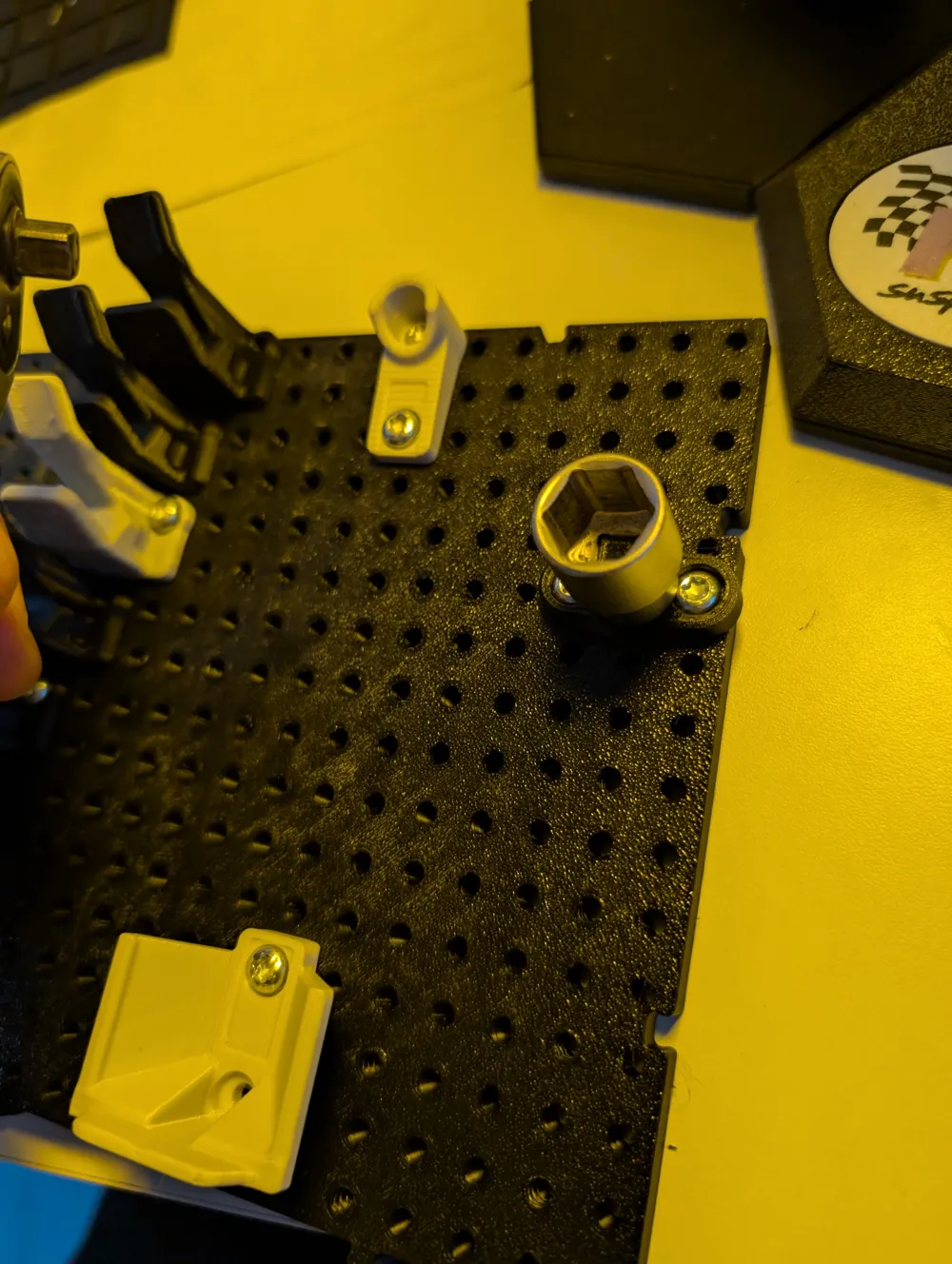

- Ratchets & Sockets

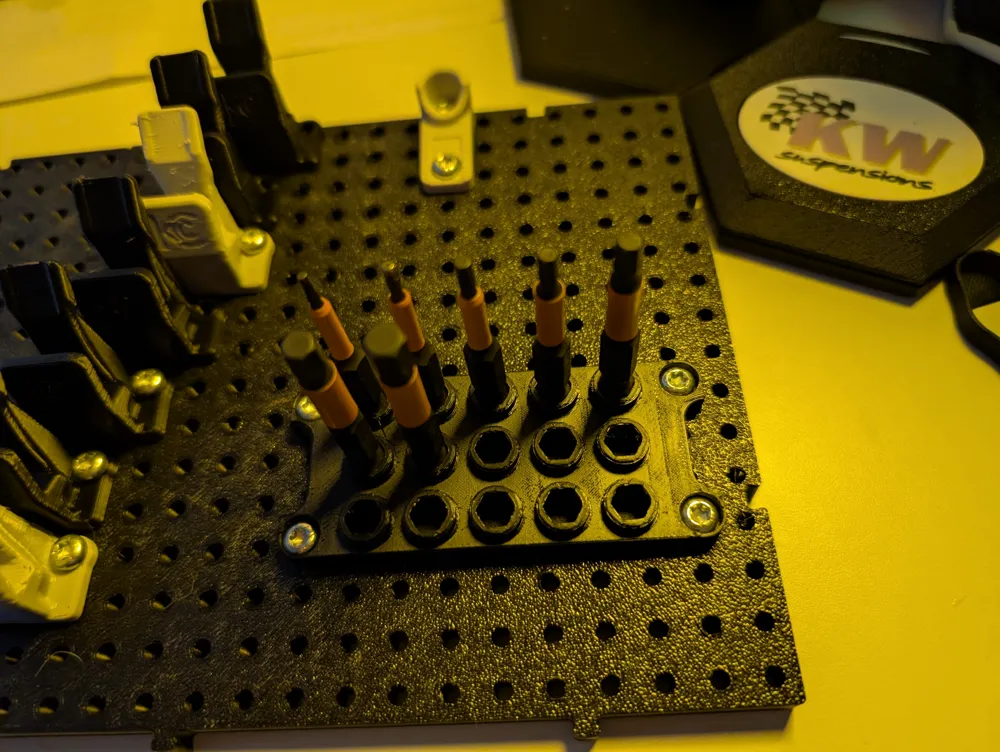

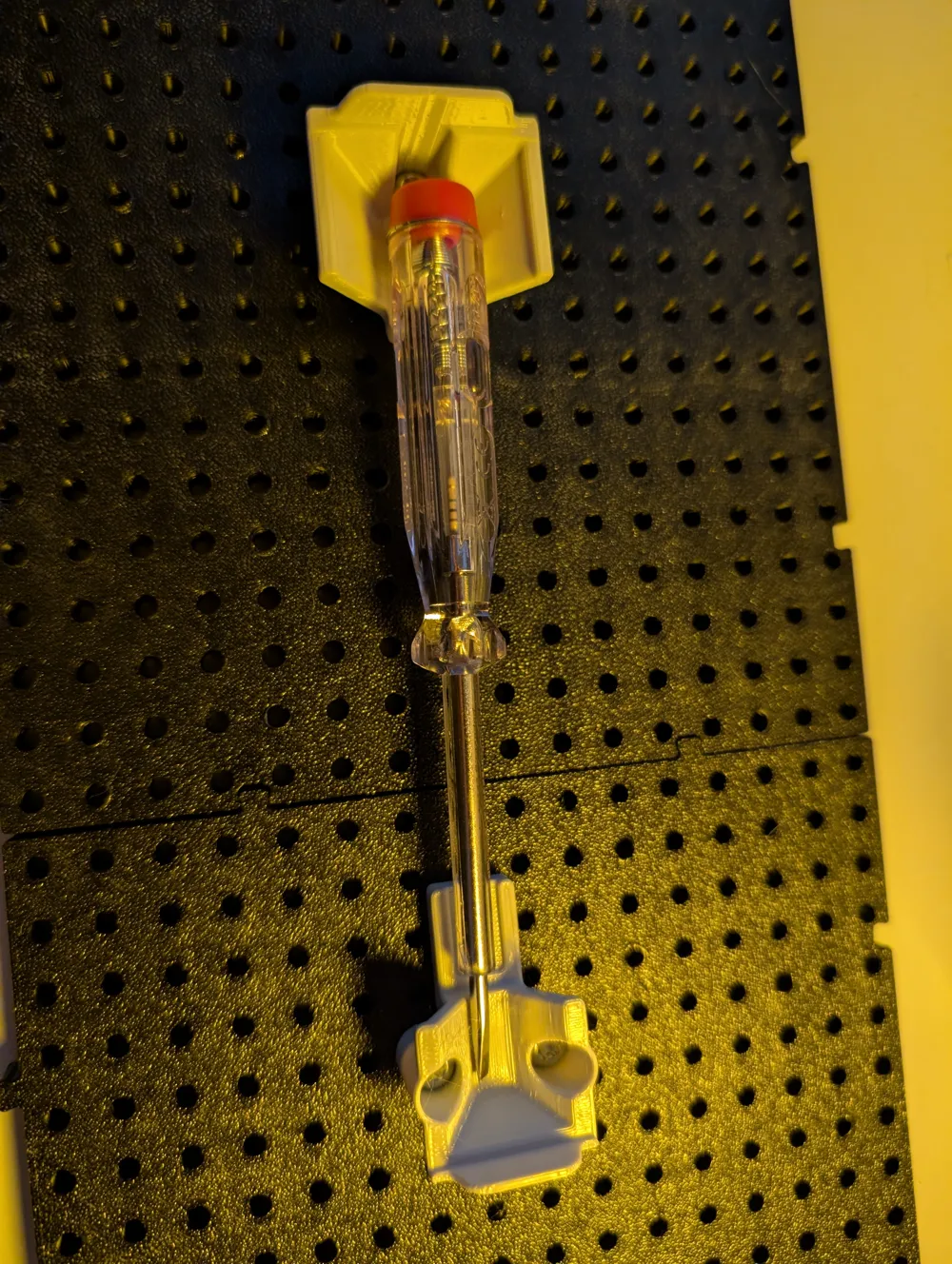

- Screwdrivers & Bits

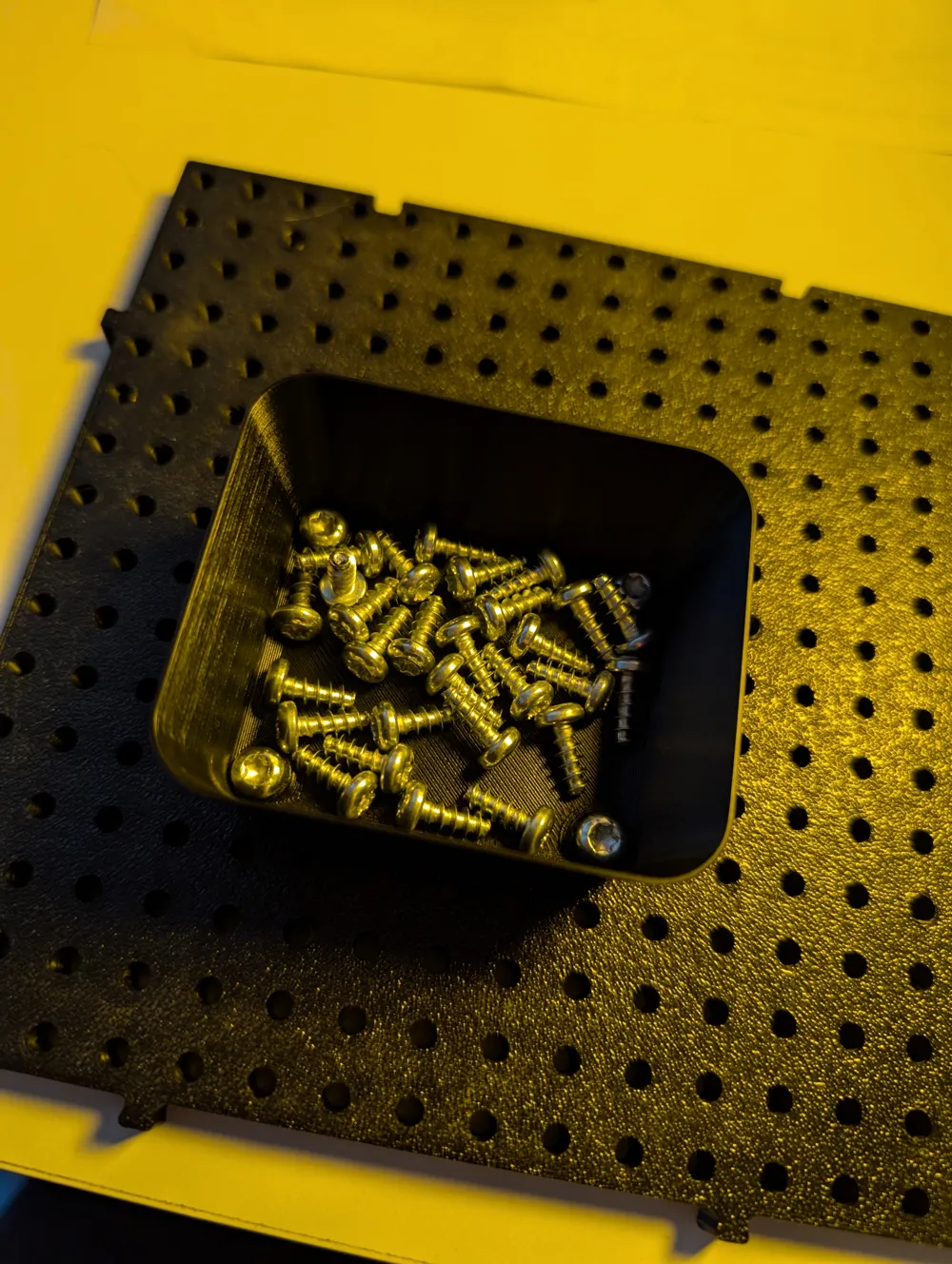

- Universal trays for small parts like screws

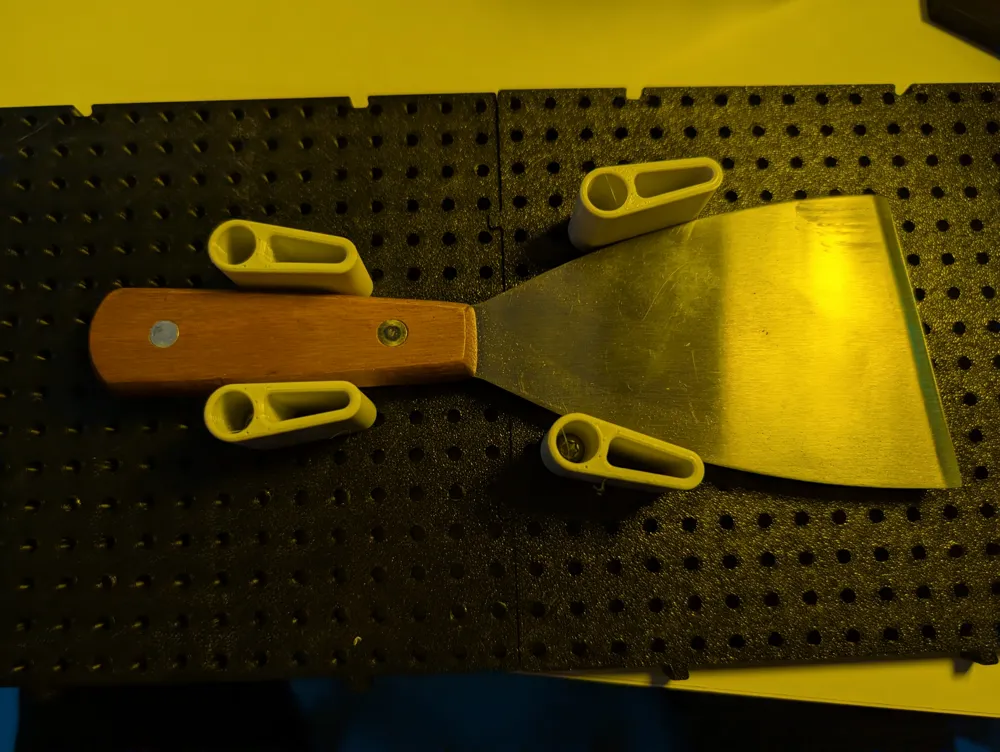

- Special holders for spatulas or larger flat tools
🛠️ Technical Details & Print Settings
The base plates feature a hole pattern that is perfectly matched to the included modules. Due to the surface texturing (as seen in the pictures), the system also looks very high-quality.
- Material: I recommend PLA for the plates (dimensional stability) and PETG for the holders (flexibility/toughness)
- Layer Height: 0.2 mm for a good balance between print time and precision
- Wall Lines: At least 3-4 walls for the holders, so that the screw holes are stable
- Infill: 20% (Gyroid recommended for uniform stability)
- Supports: Most parts are designed to be printed without supports
🔧 Assembly
- Print the desired number of base plates
- Slide them together using the dovetail connections
- Choose your module and attach it with standard screws (e.g., M4x8 TX8 or small wood screws, depending on hole size) at the desired position

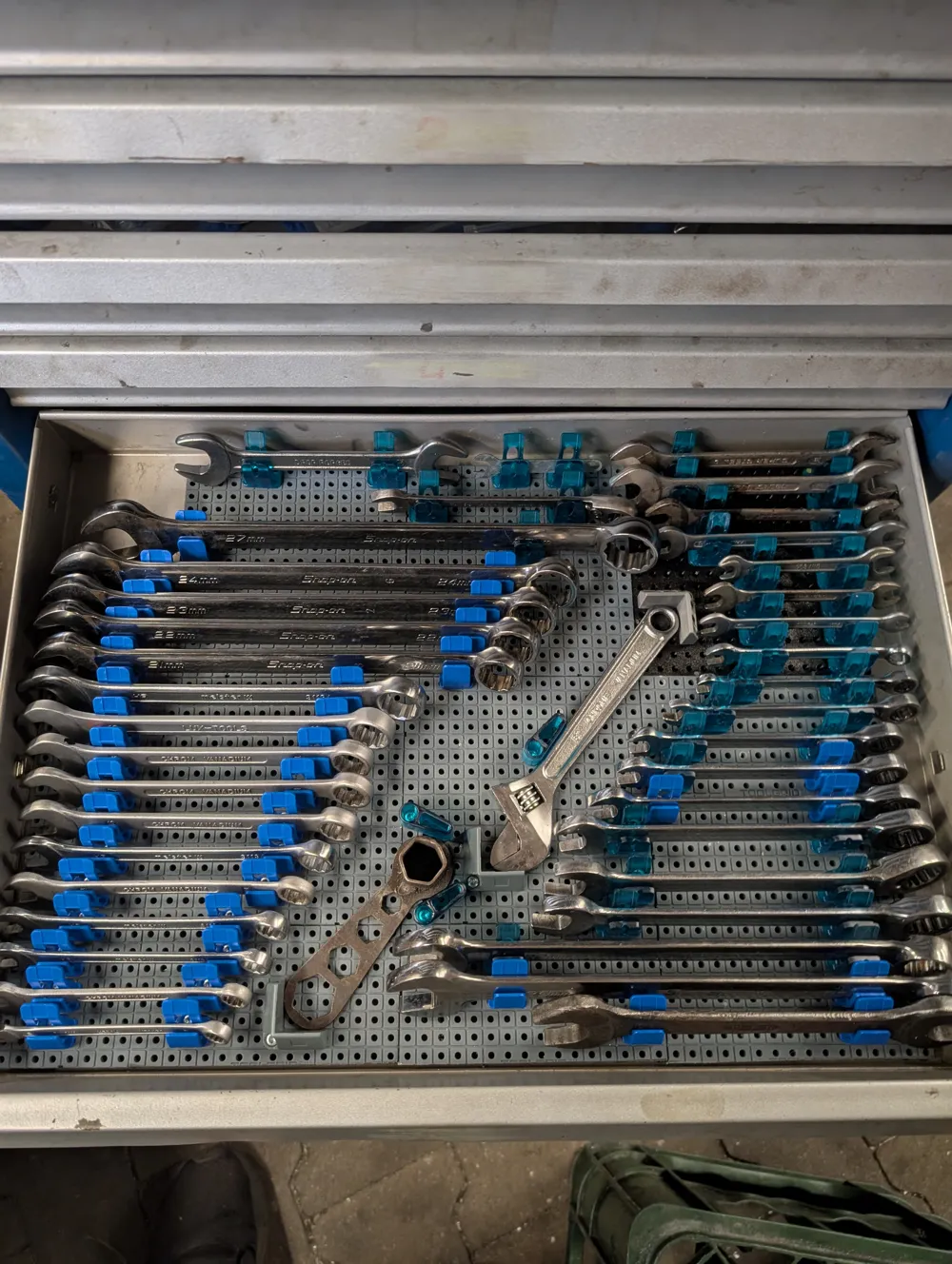

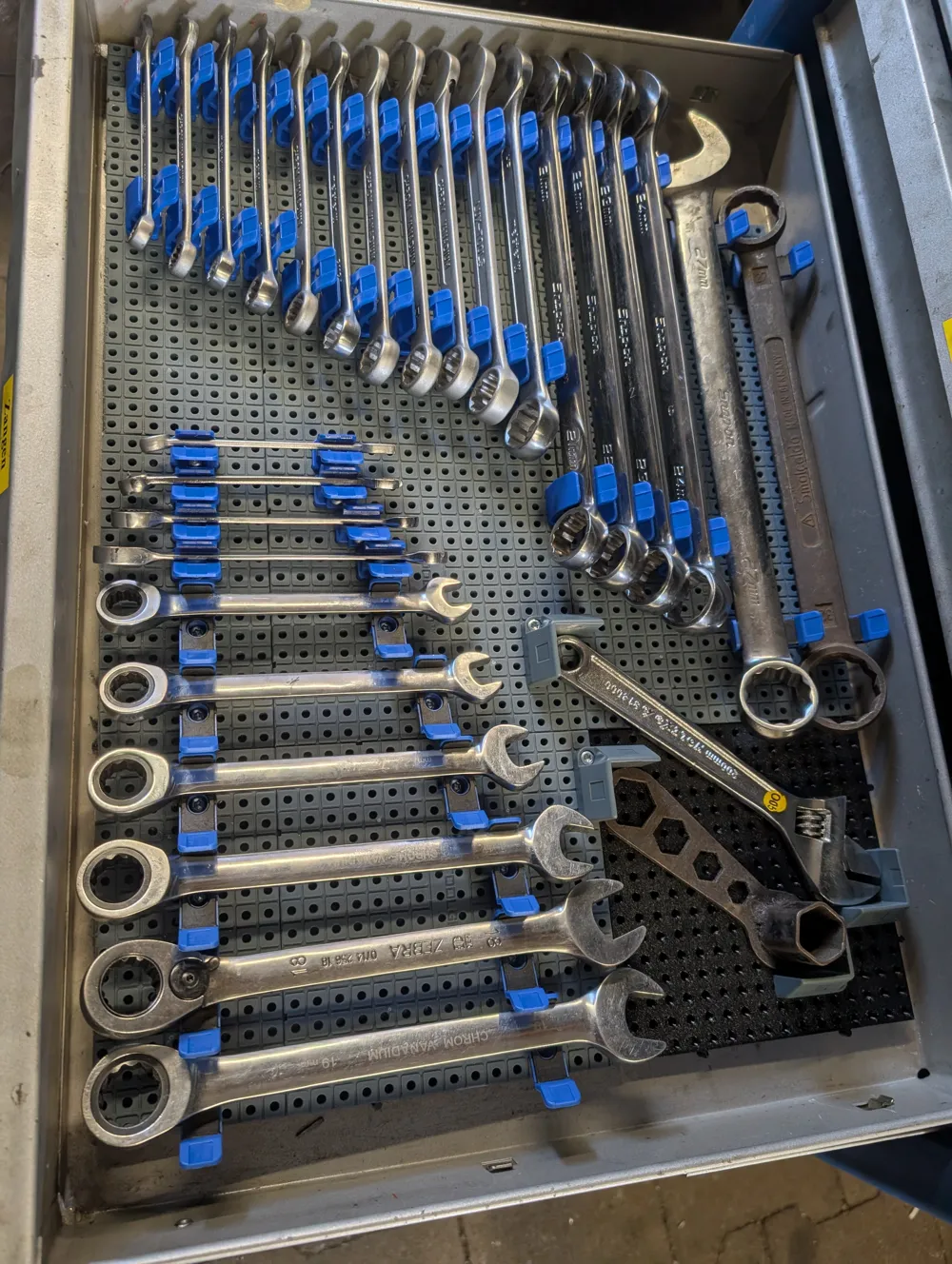

- Mount the entire board to the wall or in your drawer
