Rugged EDC Survival Container - Two Sizes

🛡️ Rugged EDC Survival Container – Dual Size Edition (Waterproof)

Protect your gear in any environment. Whether you are hiking, geocaching, or cycling, these heavy-duty containers are designed to keep your essentials bone-dry and safe. Featuring a screw-cap design and a custom-fit TPU seal.

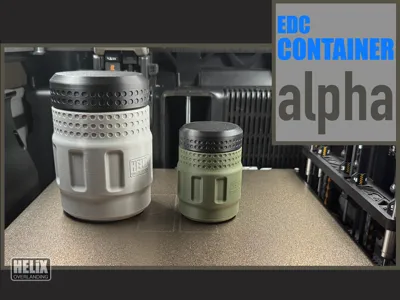

📏 Two Sizes for Every Mission / Zwei Größen für jeden Einsatz.

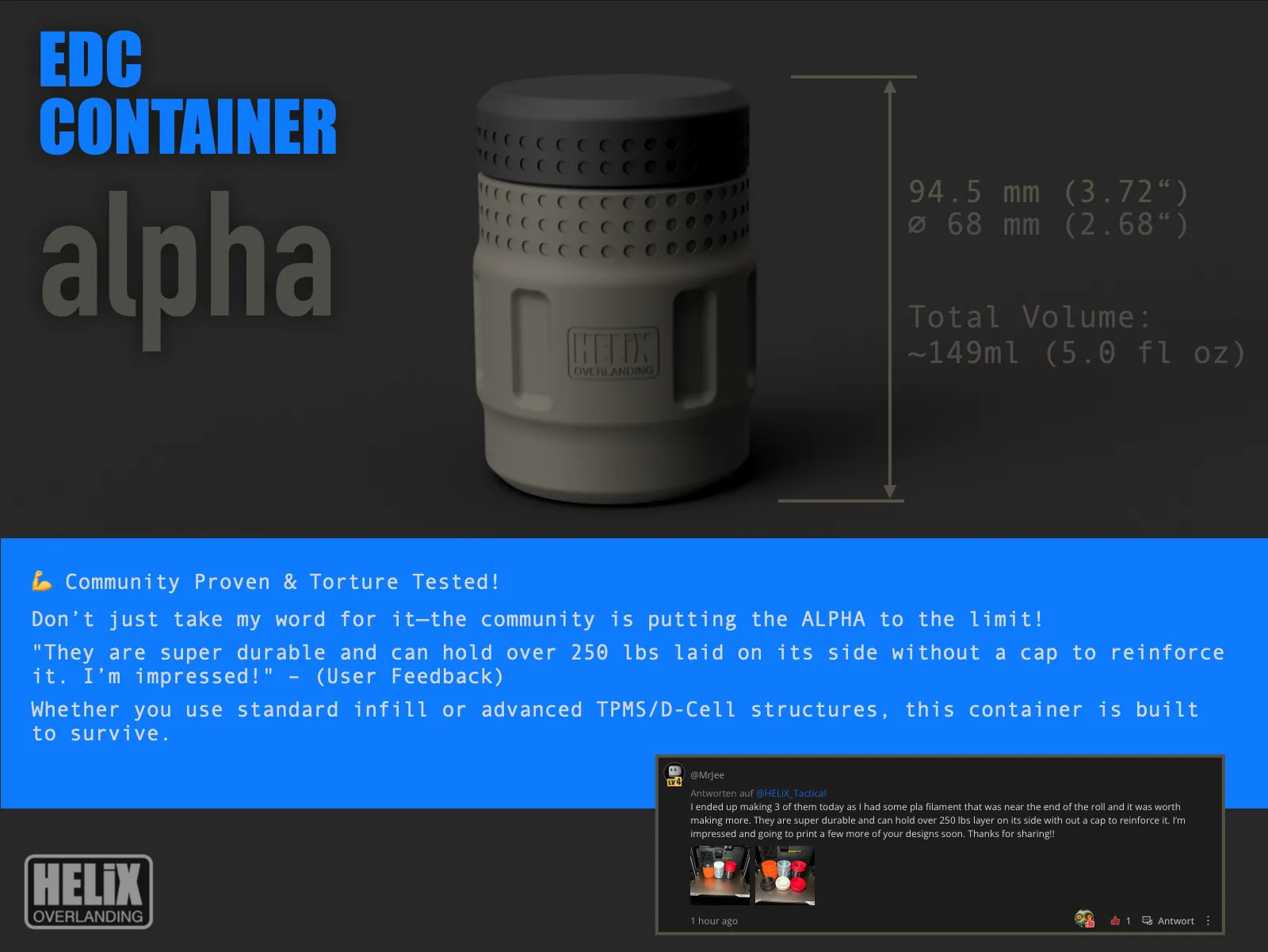

1.  Small (The Essentialist)

• Dimensions (Ext.): 94.5 mm Height × 68 mm Diameter (~3.72" x 2.68")
• Total Volume: ~149 ml (5.0 fl oz)
• Ideal for: Batteries (18650/AA), AirPods, first-aid basics, lighters, or geocaching kits.
• Deutsch: Perfekt für Akkus (18650/AA), AirPods, Erste-Hilfe-Basics, Feuerzeuge oder Geocaching-Ausrüstung.

2. Large (The Beast)

• Dimensions (Ext.): 142.5 mm Height × 103 mm Diameter (~5.61" x 4.06")
• Total Volume: ~502 ml (17.0 fl oz)
• Ideal for: Large powerbanks, emergency ponchos, snacks, repair kits, or bike tubes.
• Deutsch: Ideal für große Powerbanks, Notfall-Ponchos, Verpflegung, Werkzeug oder Fahrradschläuche.

✨ Key Features

• 💧 Waterproof & Dustproof: The print profile includes a custom TPU gasket for the lid to ensure a tight seal.
• 🧤 High-Grip Design: The textured surface allows for easy operation even with wet hands or heavy gloves.
• 🛠️ Print-Optimized: Designed for "No-Support" printing.

⚙️ Print Settings / Druck-Empfehlungen

• Material: PETG, ASA, or ABS (recommended for heat and UV resistance).
• Gasket: Use the provided TPU profile for the seal.
• Walls: 3–4 Wall Loops for maximum impact resistance.
• Layer Height: 0.2 mm (Optimized for thread precision).
• Infill: 15–25% (Gyroid recommended).

💡 Assembly Tip

For 100% water tightness, ensure the TPU seal is seated flat in the lid groove. A tiny drop of silicone grease on the thread can make the opening/closing experience even smoother!

****************** NEW NEW NEW NEW NEW **************************

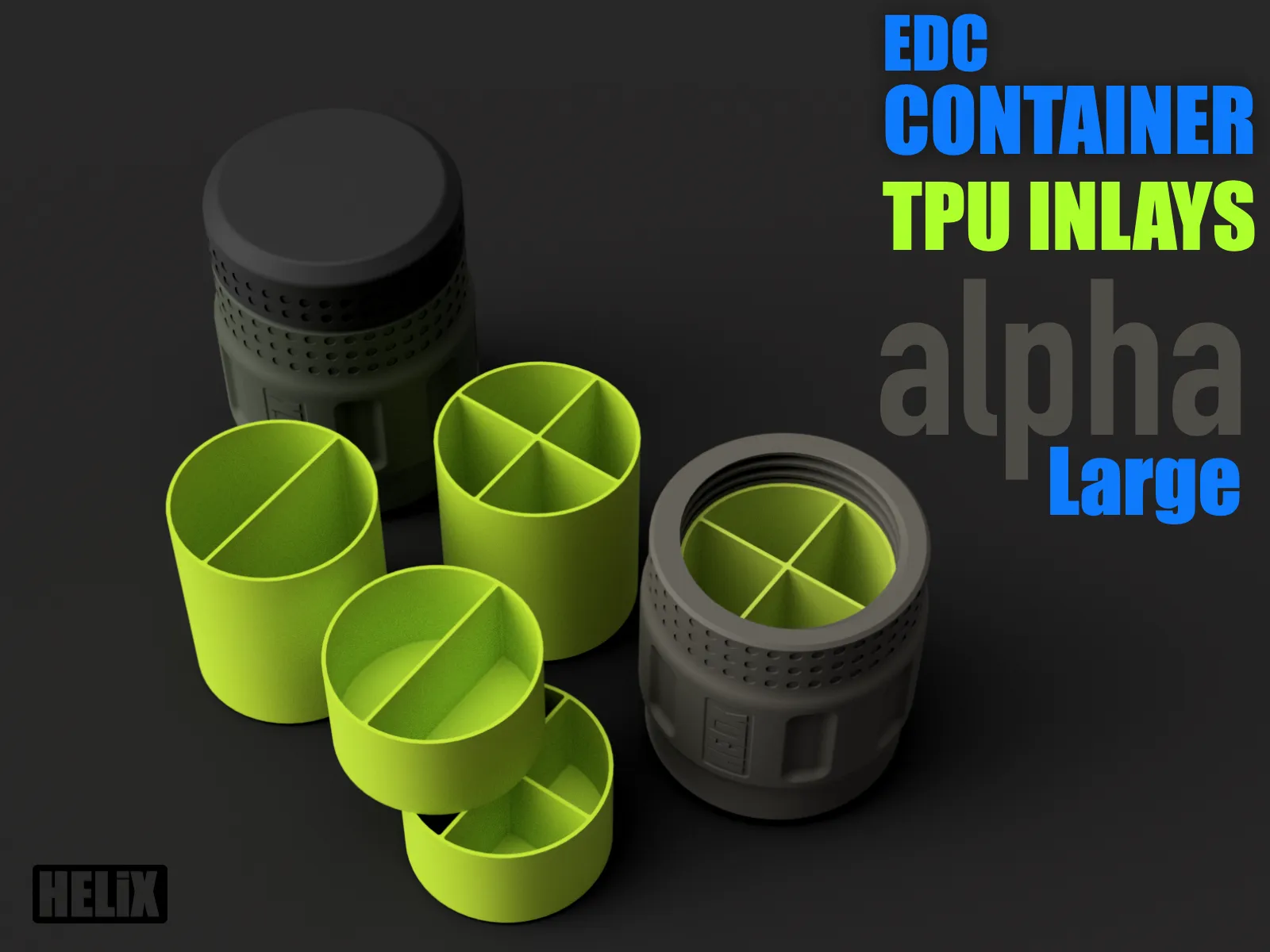

🚀 New: Modular TPU Inlays (Large Version only)

Maximize your organization with the brand-new ALPHA TPU Inlay System. These inserts are specifically designed for the Large "Beast" container to keep your gear silent, safe, and perfectly sorted.

• For Large Container: Available in 4 versions (Full-height or stackable Half-height).
• Shock Protection: Soft TPU 90/95A eliminates rattling and cushions your essentials.
• Modular: Mix and match 2- or 4-compartment layouts to build your perfect setup.
• Small Version: Coming soon! Stay tuned for the "Essentialist" update.

👉 [Get the ALPHA Large Inlays here]

Support my work:
If you enjoy my designs, a Boost 🚀 or a high-quality photo/review of your print means the world to me.

It helps me keep the filament flowing and continue developing these designs!

Fuel the creative process:
Want to buy me a coffee while I work on the next "Alpha" update?
☕ buymeacoffee.com

Happy printing! 👊

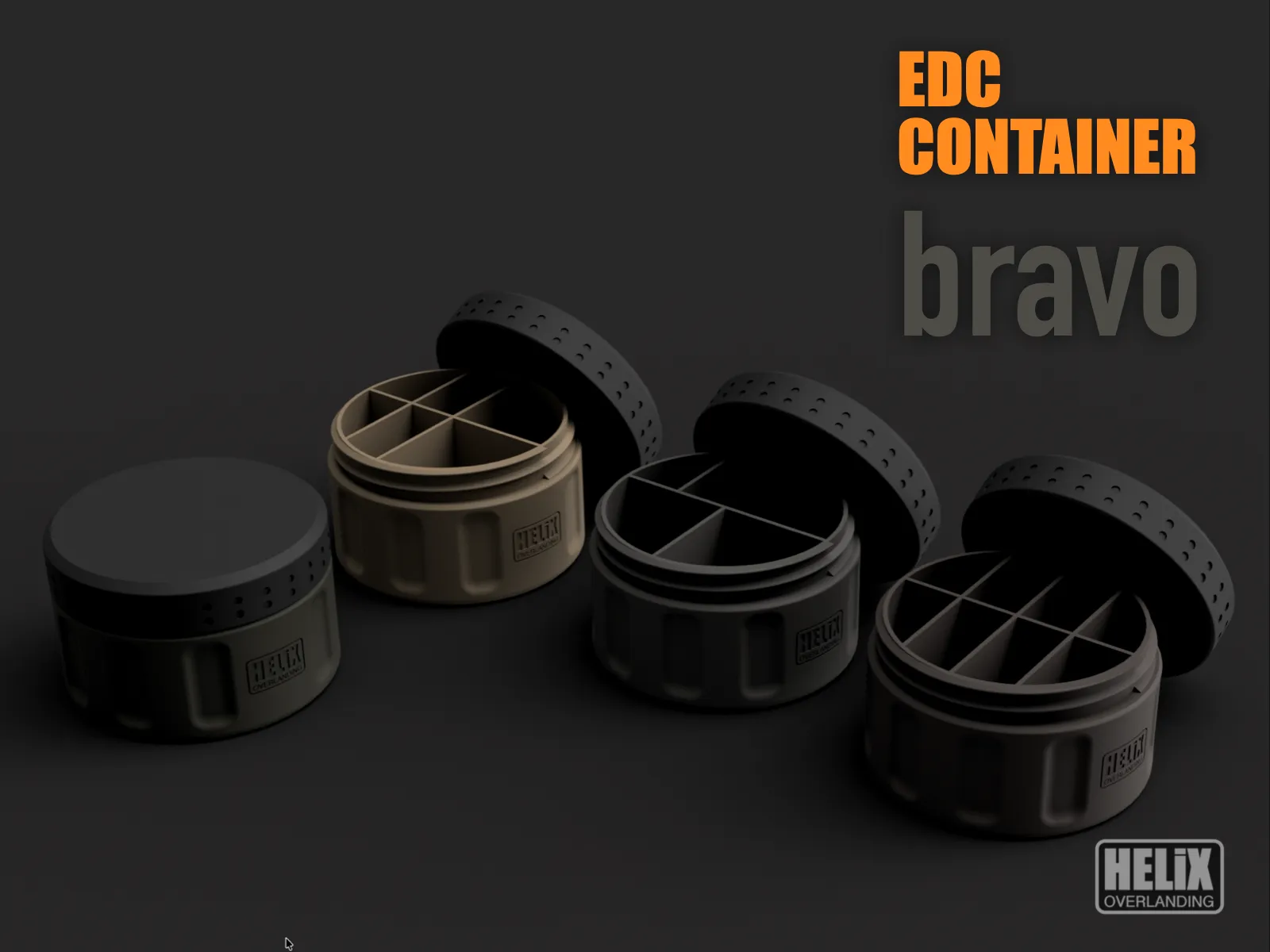

The Compartment EDC CONTAINER bravo is a perfect match:

https://makerworld.com/de/models/2420197-edc-compartment-container-multi-slot-edition
