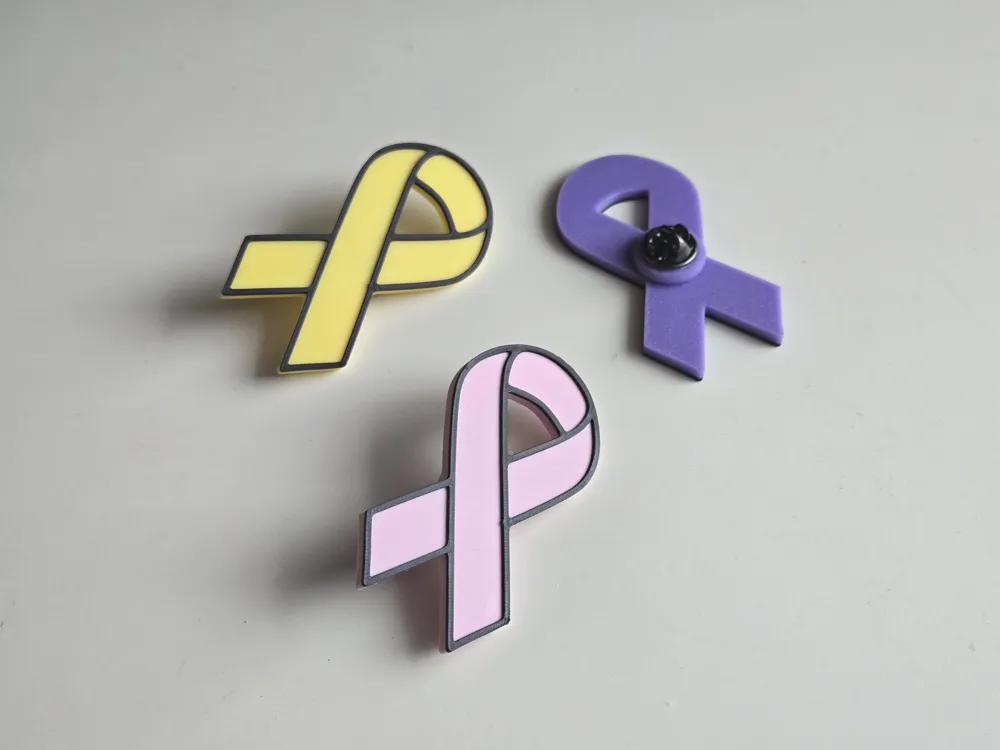

Awareness Ribbon Pin - Simple Lapel Pin

An awareness ribbon that can be worn as a lapel pin to show your support for any cause.

Print in whatever color matches your cause.

To print 2 color without an AMS simply add a pause at layer 14 and switch your filament to black for the outline.

Remix Changes:

• removed keychain hole
• added mounting holes for SimplePin backplate to be used as a lapel pin

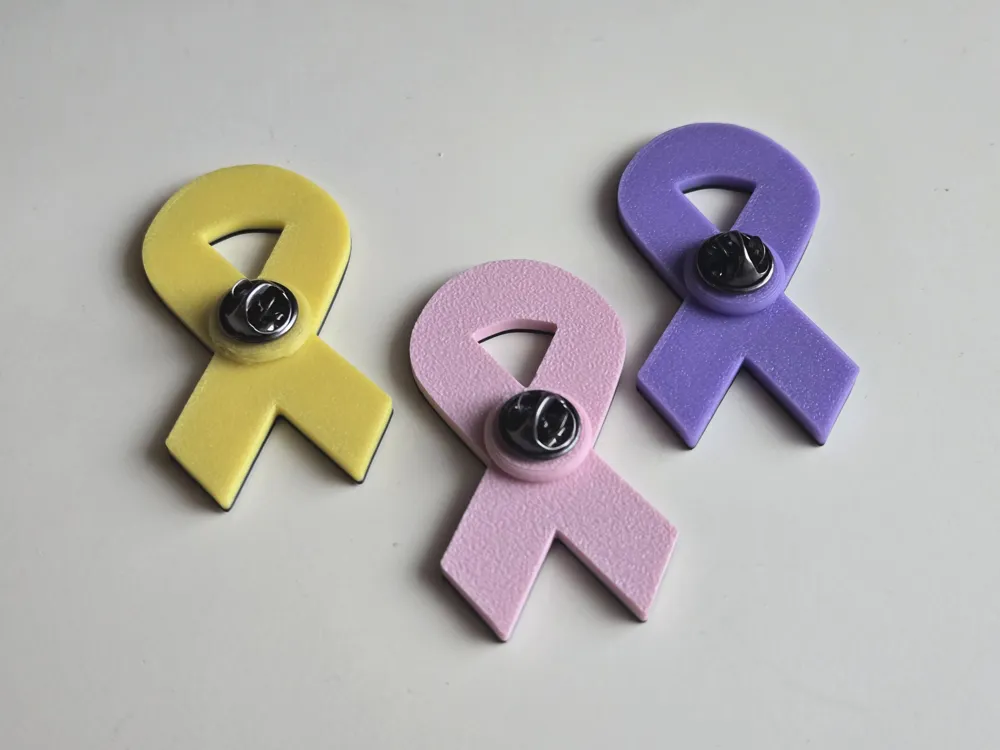

Perfect as a badge, shirt pin, backpack pin, or really pin them to anything you feel like.

1. Print Pin and Pin Backplate
2. Add hardware pin to Backplate
3. Clip Pin to Backplate.
4. Done.

*There is a notch in the backing so you can change them by popping the pieces back apart.

Part of the SimplePin Collection - https://makerworld.com/en/collections/4330701

Simple Pin Details and Information

SimplePin is a 2 piece system for making lapel pins.

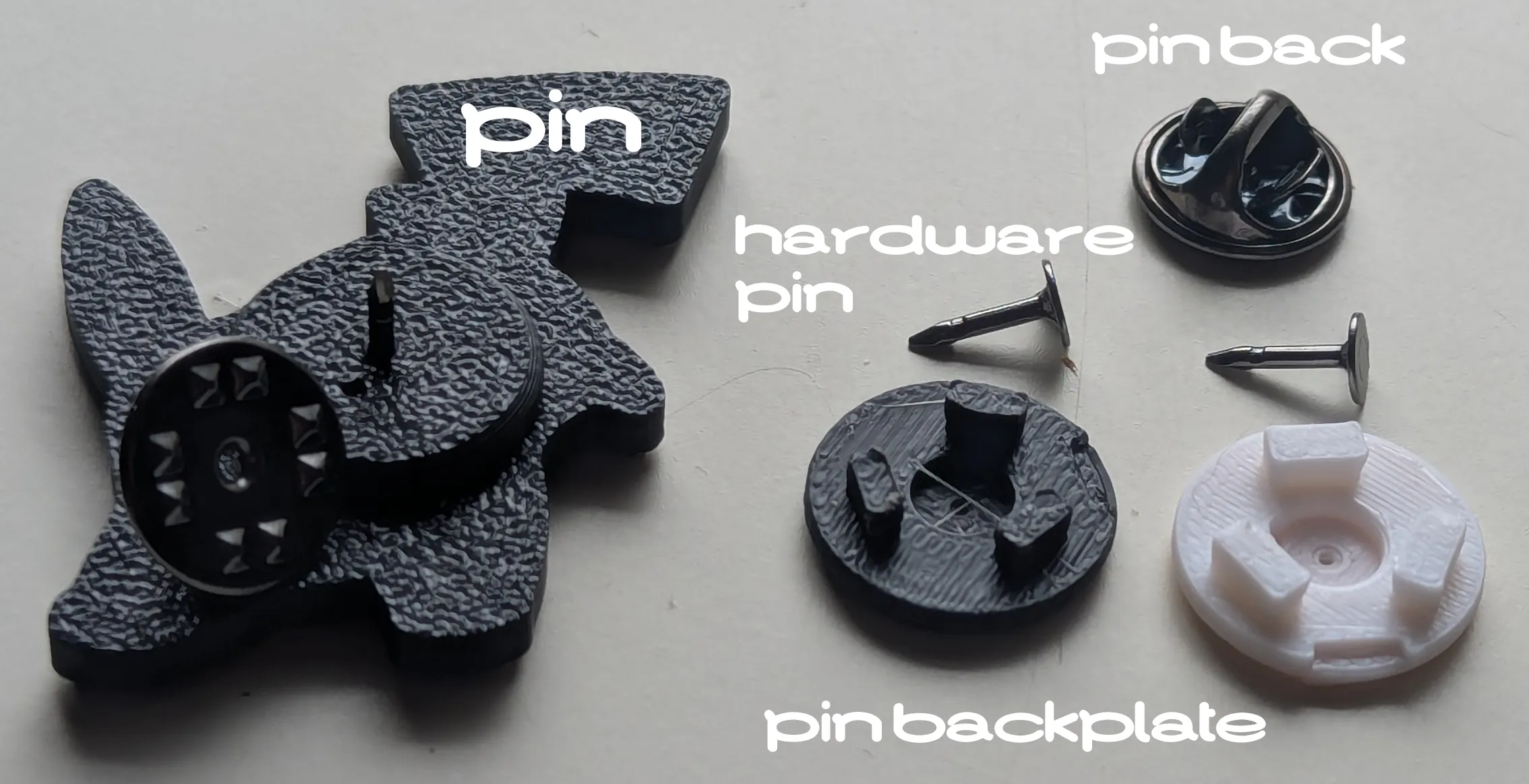

SimplePins consist of a few parts:

1. Pin
2. Pin Backplate
3. Hardware Pin (non 3d)
4. Hardware Pin Back (non 3d)

Pin

• the part with the logo, image, text, etc
• 3 clip insets for attaching to Backplate securely
• removable from backplate with notch and a bit of force
  • may need a small flathead screwdriver

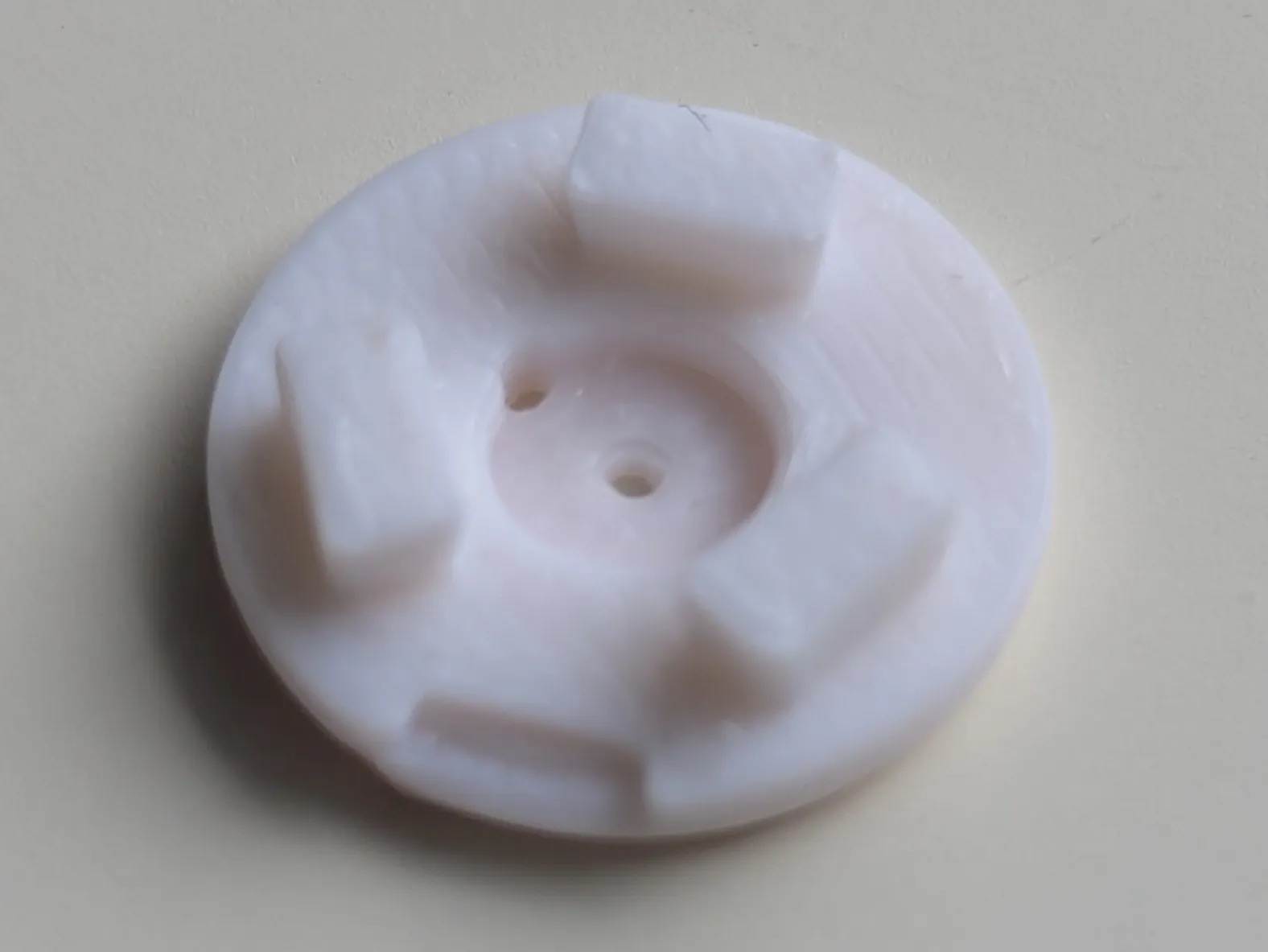

Pin Backplate

• notch and hole for butterfly pin and nub that most butterfly pins have
  • the pin hole and nub hole are made very small to help hold in place without glue

Hardware Parts

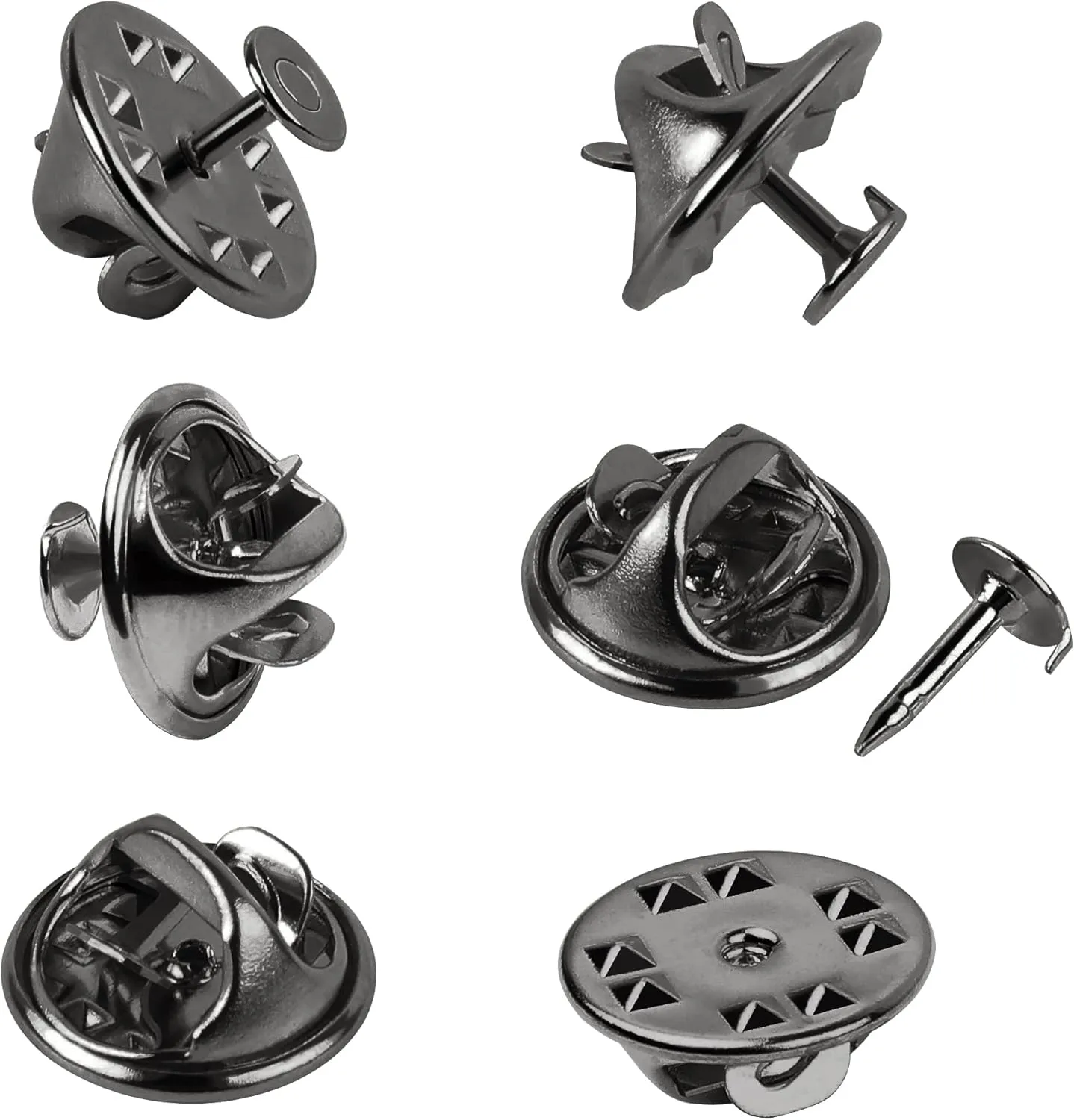

1. Butterfly Cluth Pins with Pin Back
   1. The cutout fits 4.5mm diameter pinheads. I have purchased those labelled as 4mm but even they were 4.4mm diameter.
   2. If you get pinheads that are smaller the friction of the pin should keep in place but a touch of glue will do the trick if not.
   3. If you have pinheads larger than 4.5mm they will still work just wont fit in the inset fully.

You can buy them on Amazon for around 10 cents each and even cheaper on Aliexpress

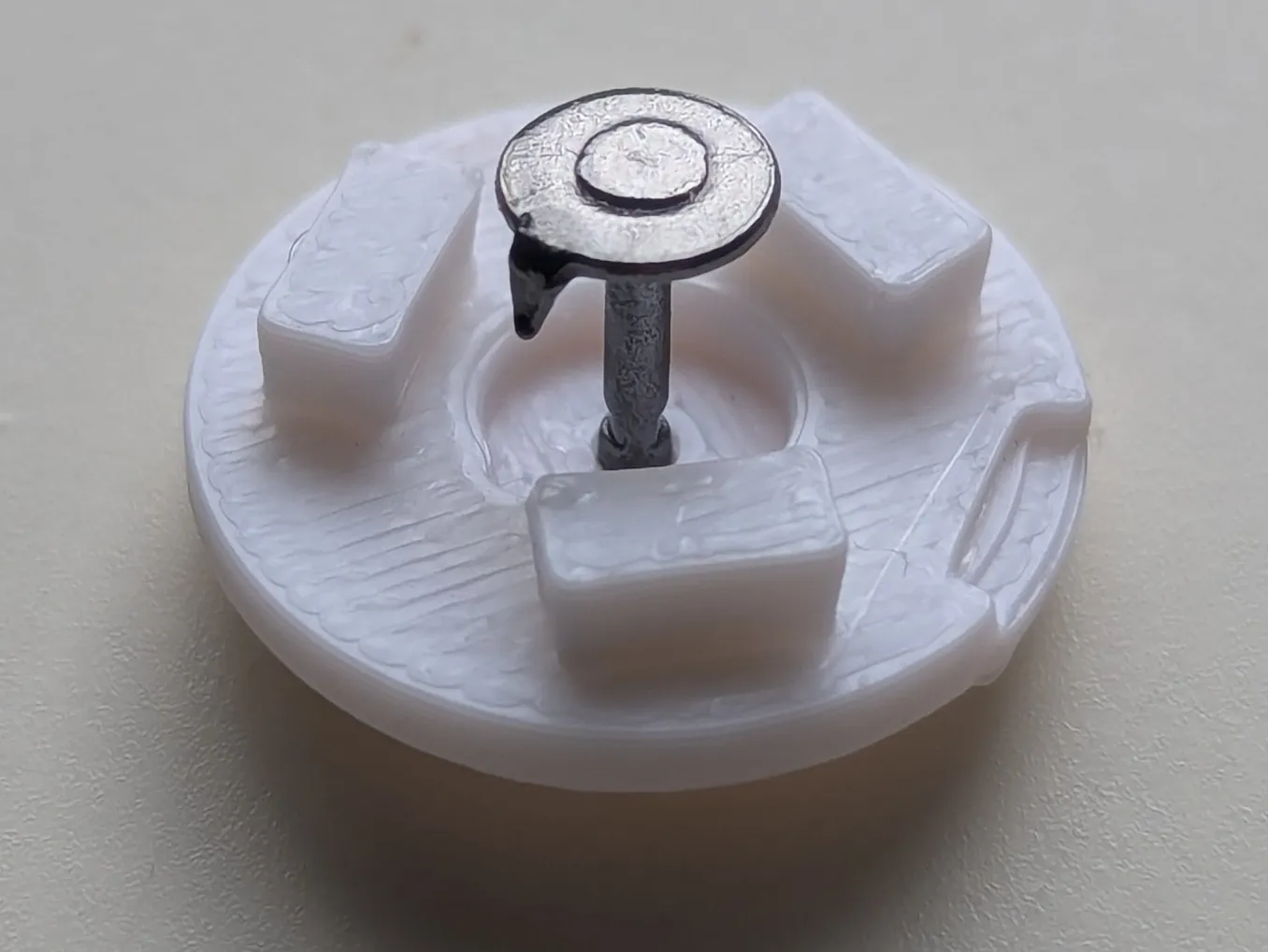

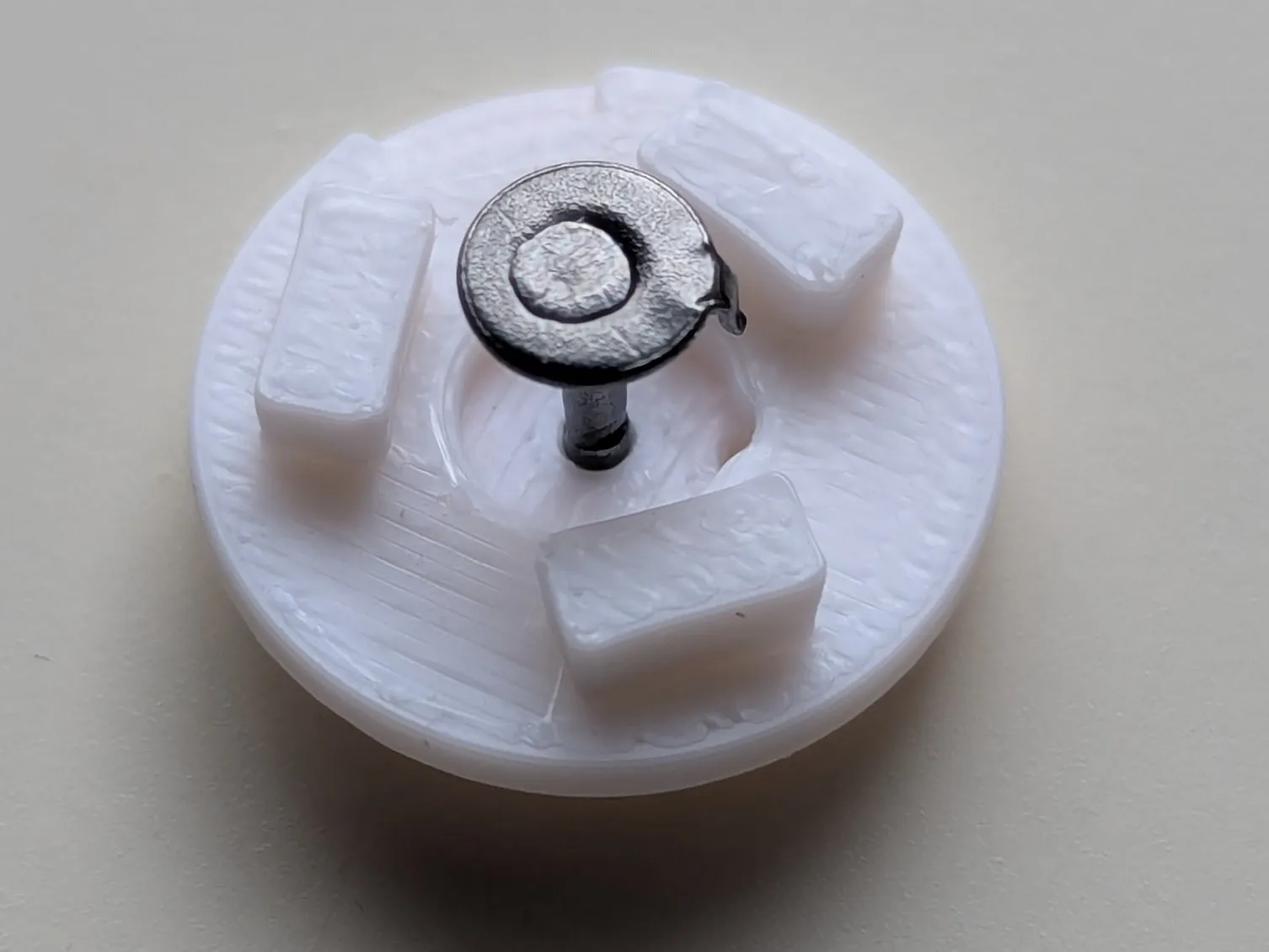

Adding pin to Backplate
