Description

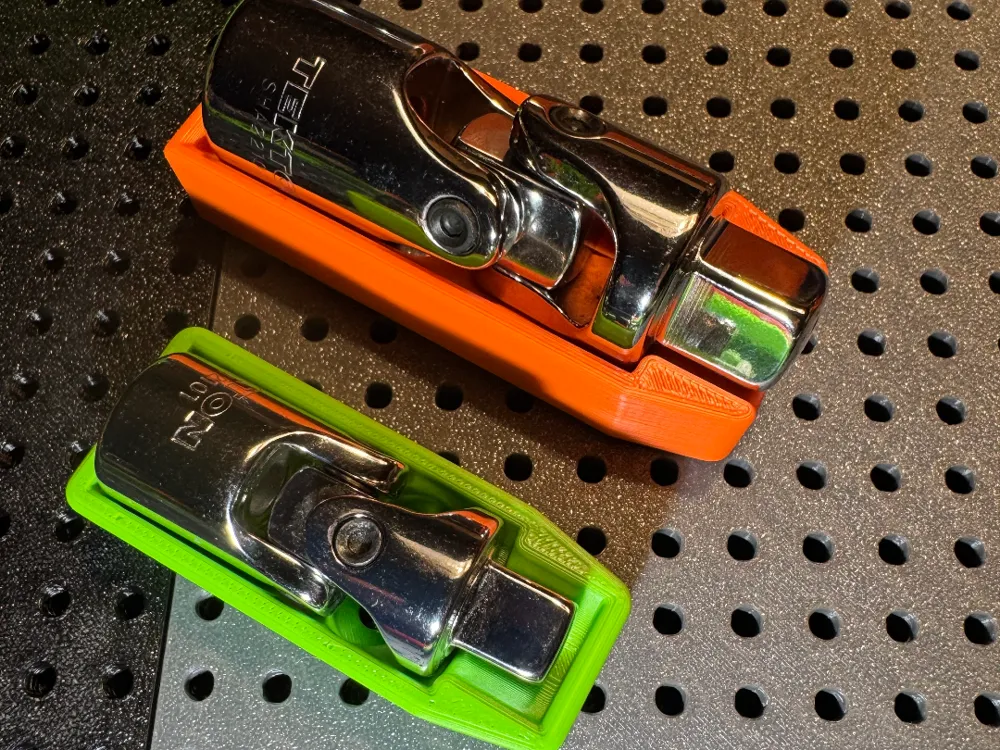

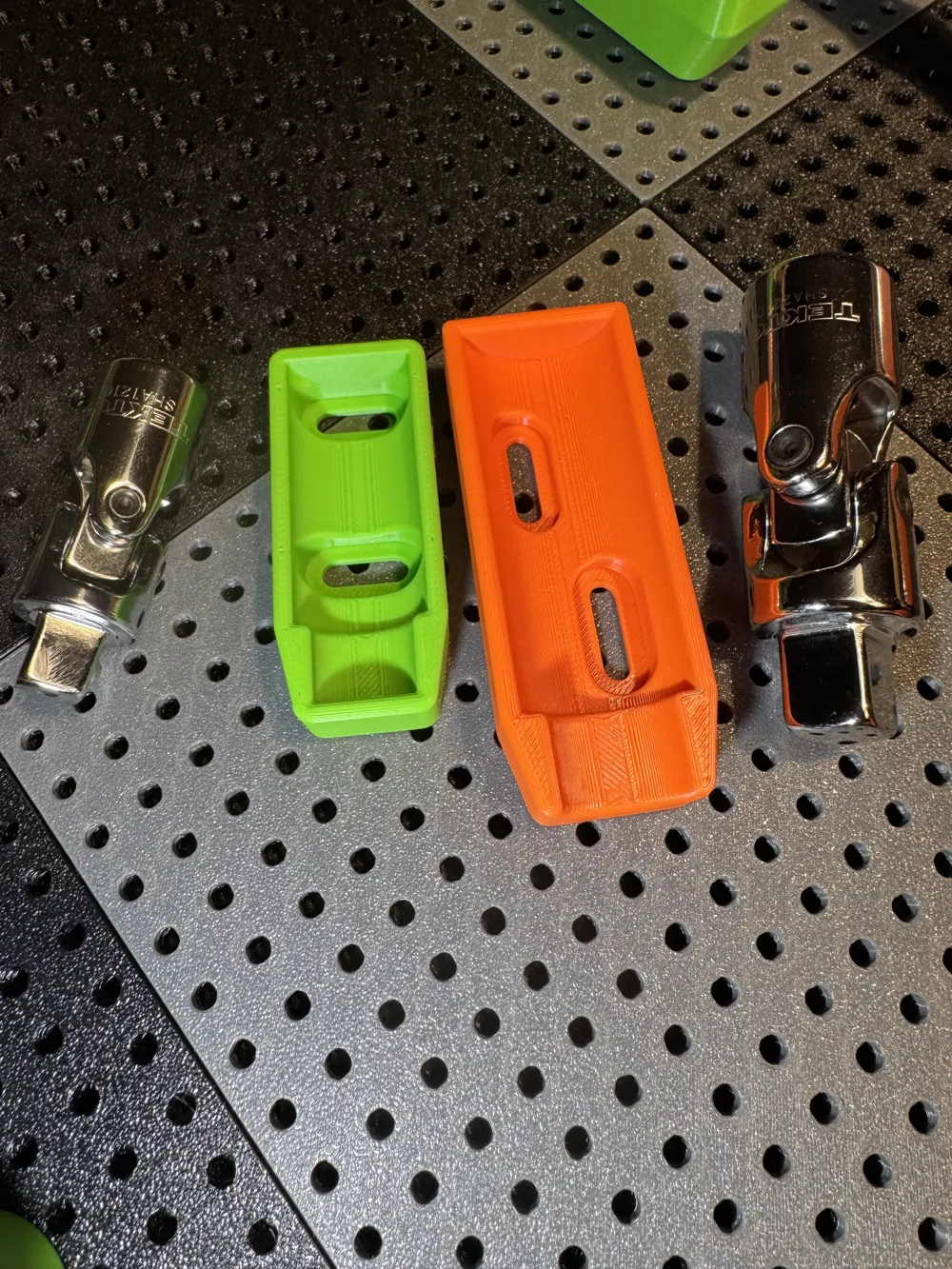

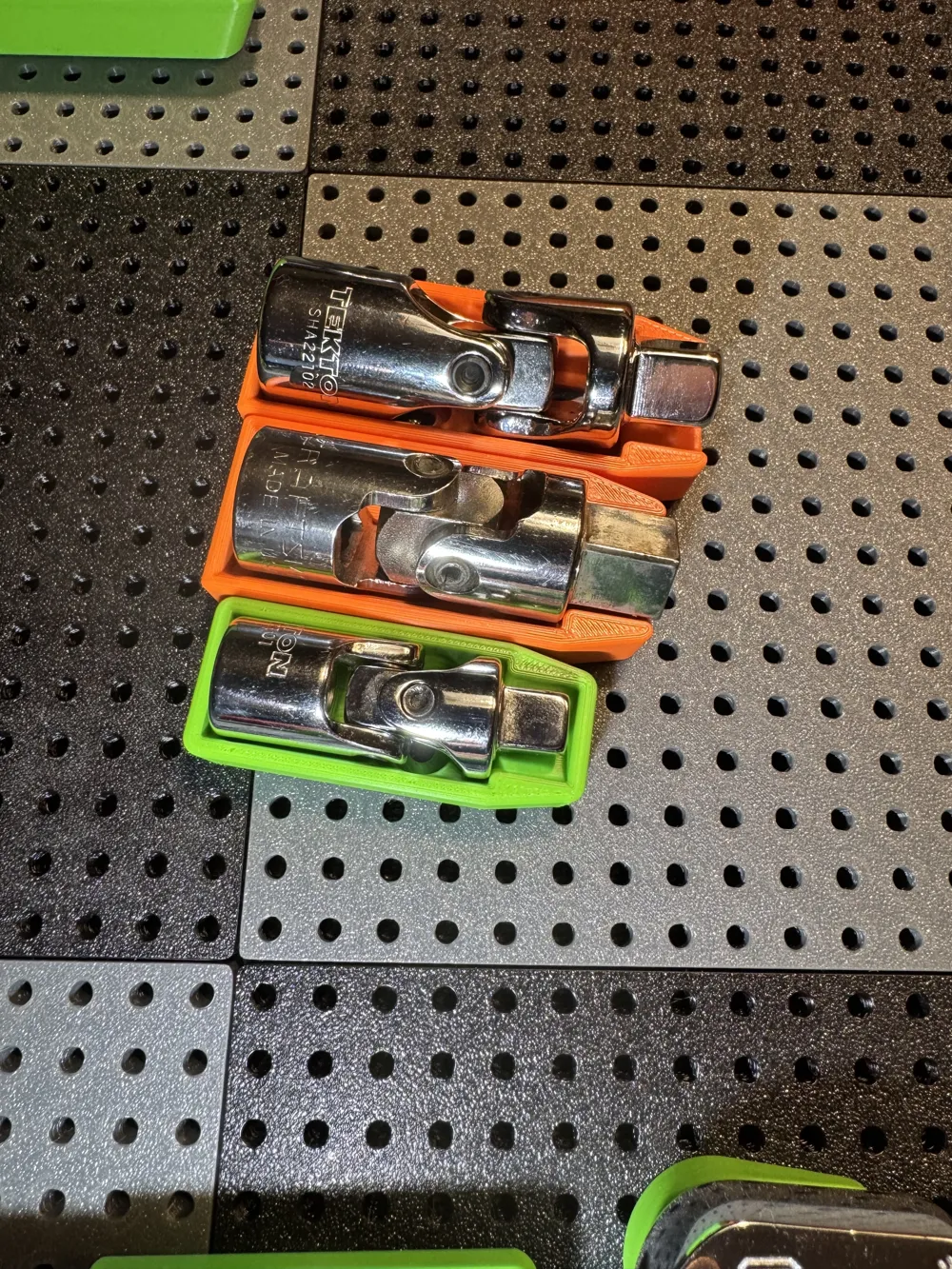

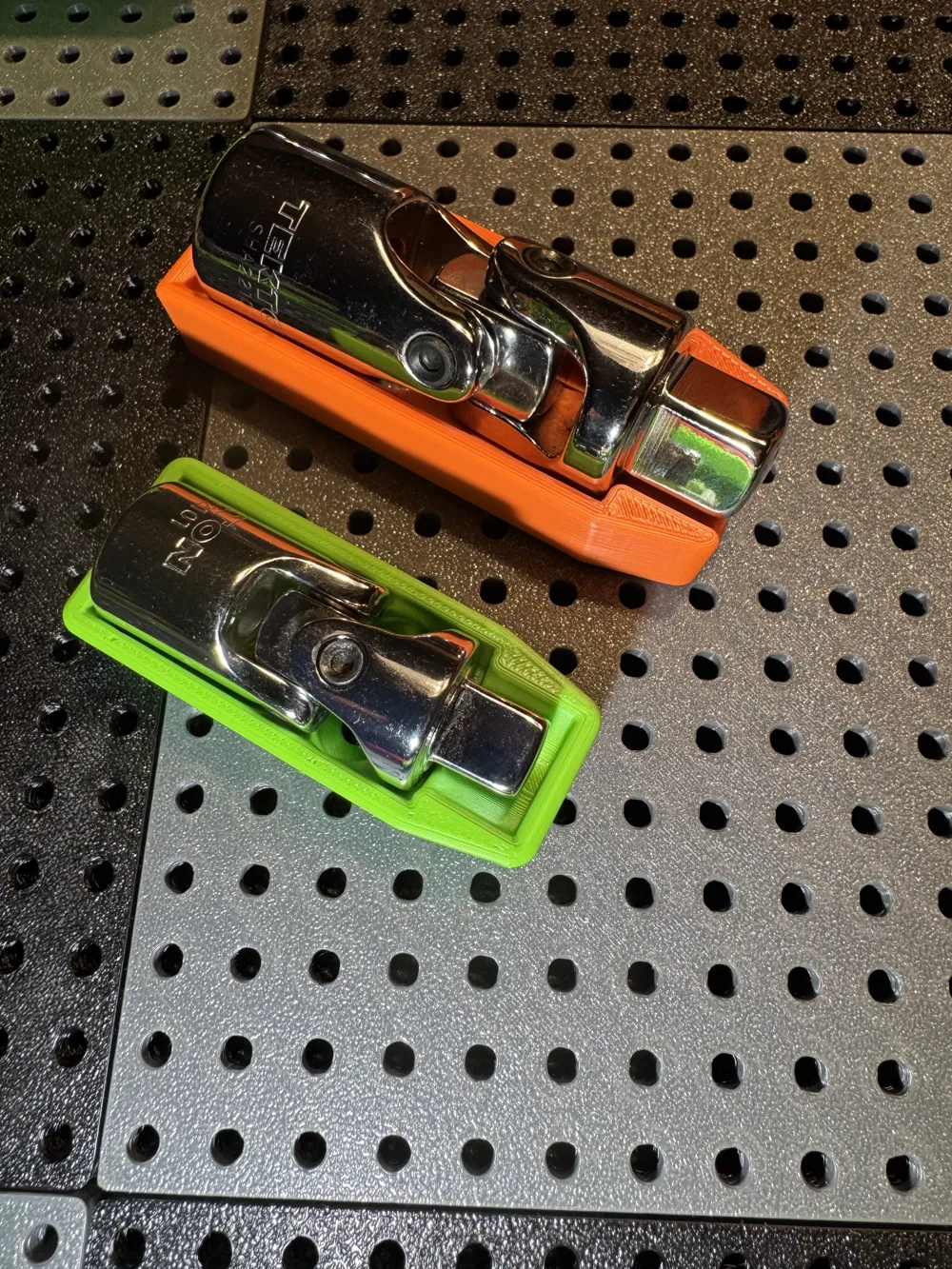

These are cradles for the Tekton u-joint adapters for the ToolGrid system. I also made one for an old Craftsman ½ drive ujoint I have. I will list the pocket dimensions in case they may fit other brands. All of the screw holes are elongated slots to allow for fitment adjustments and to grab more than one screw hole if desired.

3/8 drive - This is for my Tekton SHA12101. The pocket dimensions are for a 20mm diameter, 45mm body length, and a 12mm anvil length.

½ drive - This is for my Tekton SHA22102. The pocket dimensions are for a 26mm diameter and a 64mm body length.

½ drive - This is for my old Craftsman 4425. The pocket dimensions are for a 26mm diameter and a 56mm body length.

I am using factory ToolGrid screws and the ToolGrid plates designed by Seraph (https://makerworld.com/en/models/1179101-tool-grid-base-plate?from=search#profileId-1293395)

I have a mount for the ¾" drive Tekton u-joint in a different model (https://makerworld.com/en/models/2366134-tekton-3-4-drive-tool-grid-accessories#profileId-2589334)

I printed on a P1S with Bambu PETG HF without issues.
