Tiny Snap-Fit Arduino Micro Pro Case Compact
Print Profile(1)
Bill of Materials
- Keyboard Switch x 1:
- Arduino Micro Pro x 1:
Description
I needed a super small enclosure for a simple Arduino Micro Pro project that only needed a single switch. This is what I came up with!
This tiny case is designed specifically around the Arduino Micro Pro, a single mechanical keyboard switch, and a 3mm LED (or small NeoPixel). Everything fits snug with tight tolerances and no hardware required.
- Ultra-compact footprint
- Fully snap-fit design (no screws)
- Easy to Super Glue for a permanent solution
- Designed for 1x mechanical keyboard switch
- Fits 3mm LED perfectly (recommended for easiest install)
- Can also fit a small NeoPixel and 5 mm LEDs (but it's tight!

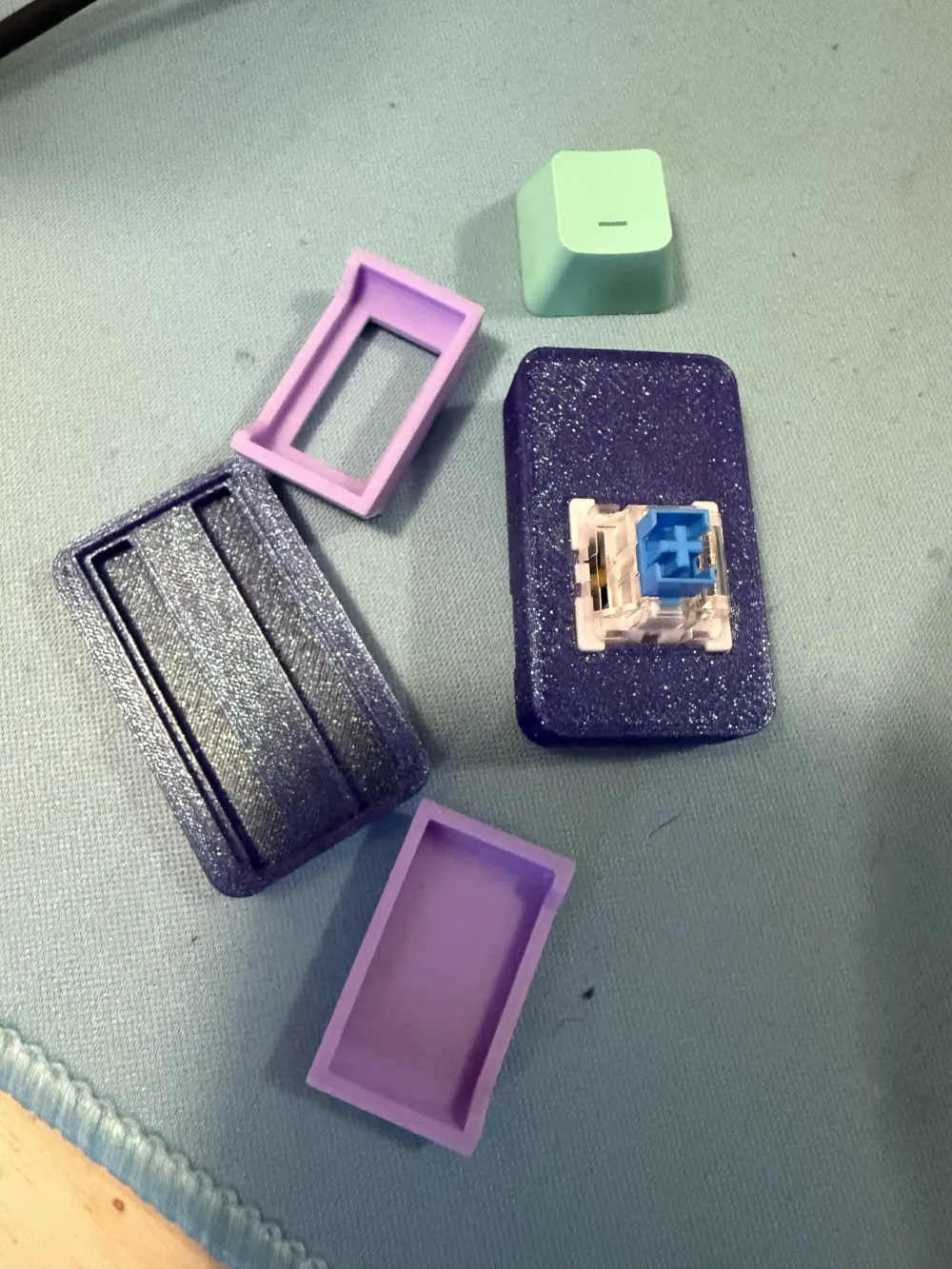

- Rotatable end caps:
- One orientation = wire cutout
- Flip it = solid face for logo/label
The enclosure is ideal for:
- Macro pads
- Custom hotkeys
- Tiny HID devices
- Desk gadgets
- Arduino-based micro projects
The snap-fit tolerances are tight for a clean finish, so print accuracy matters. A well-tuned printer is recommended.
If you need a small, clean, modular enclosure for your next Micro Pro project, this works great!
