CNC 3018pro _70mm
Print Profile(1)
Description

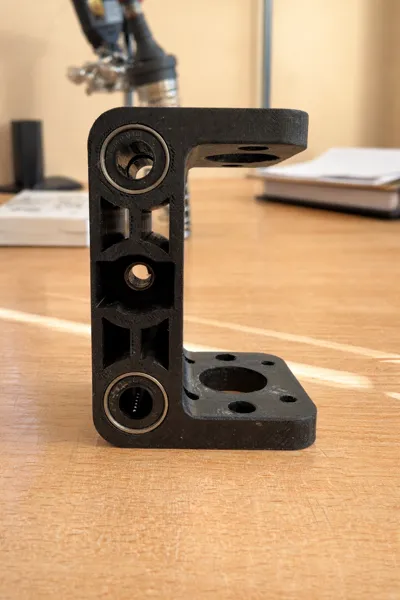

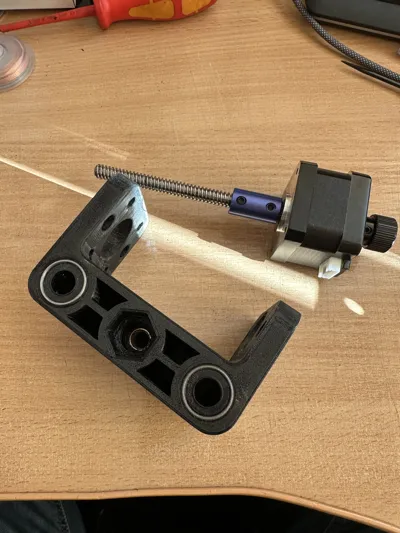

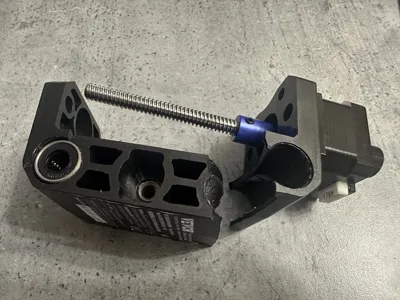

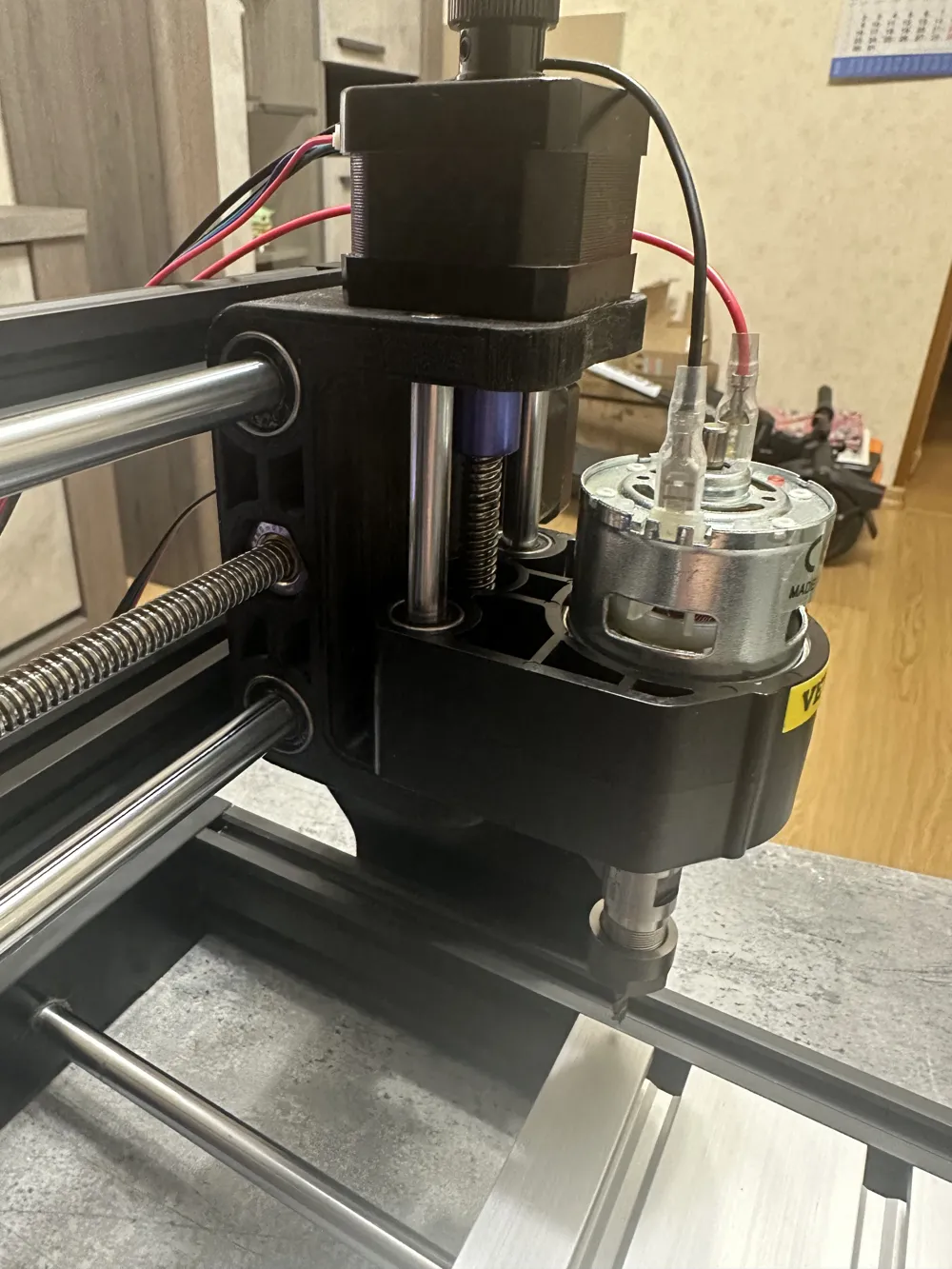

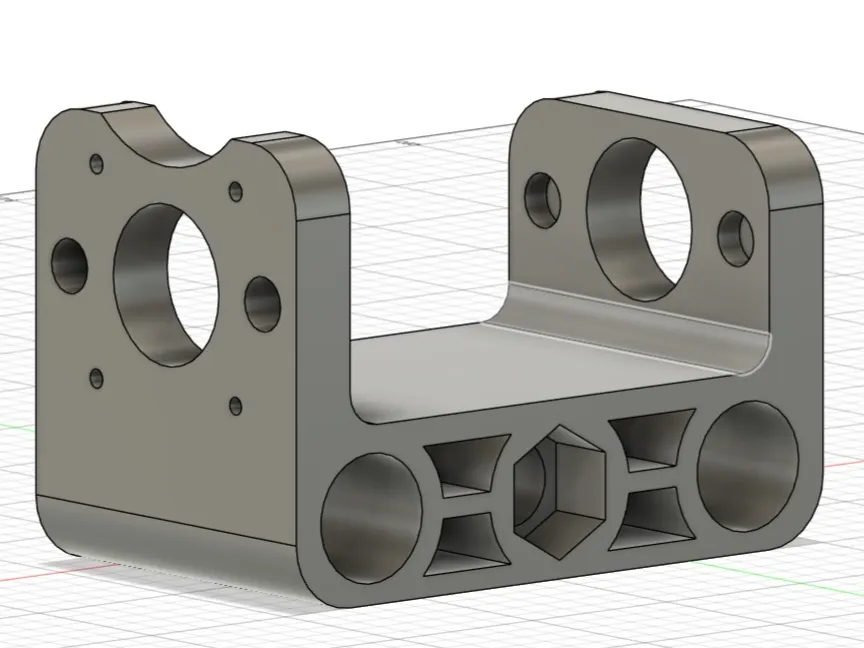

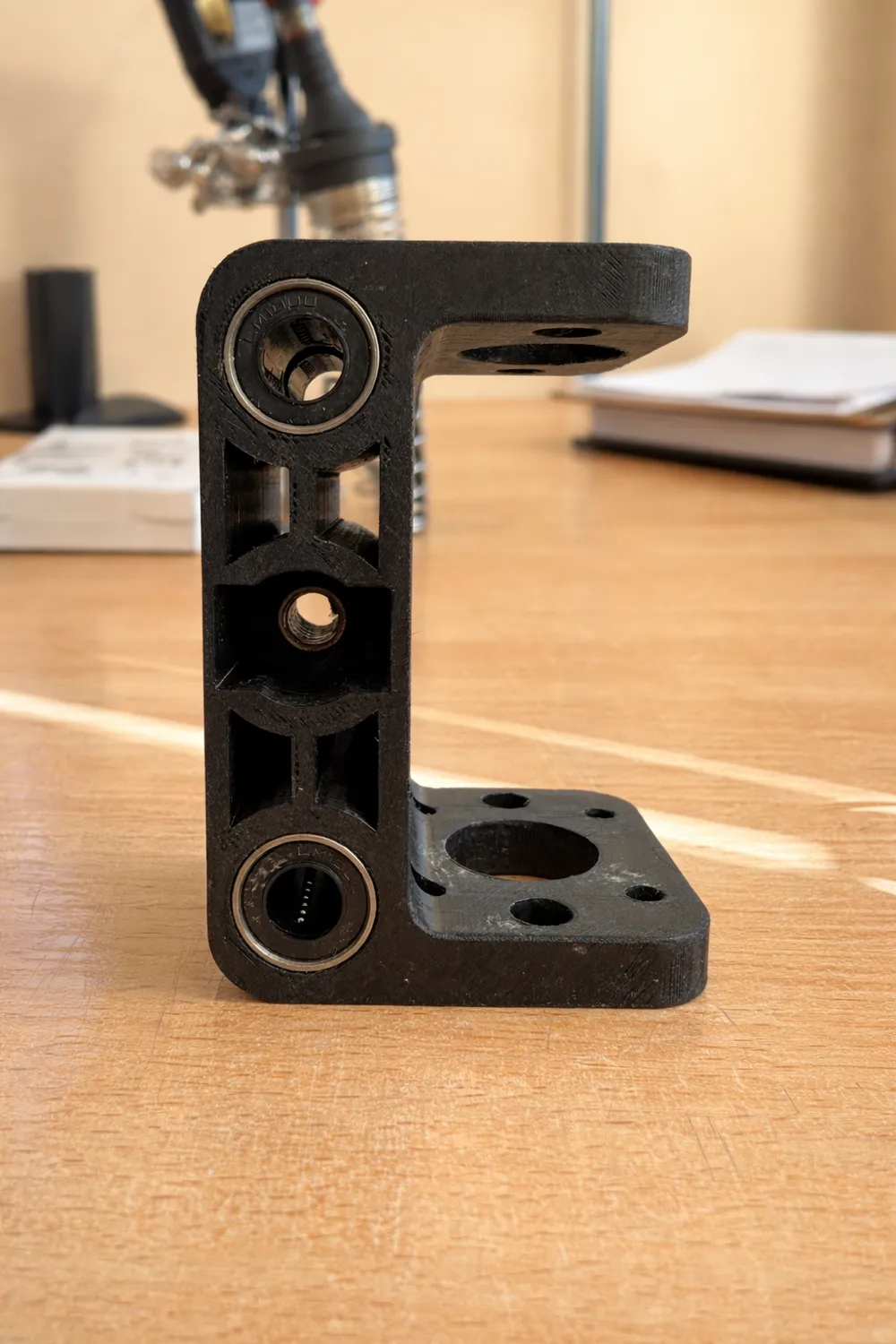

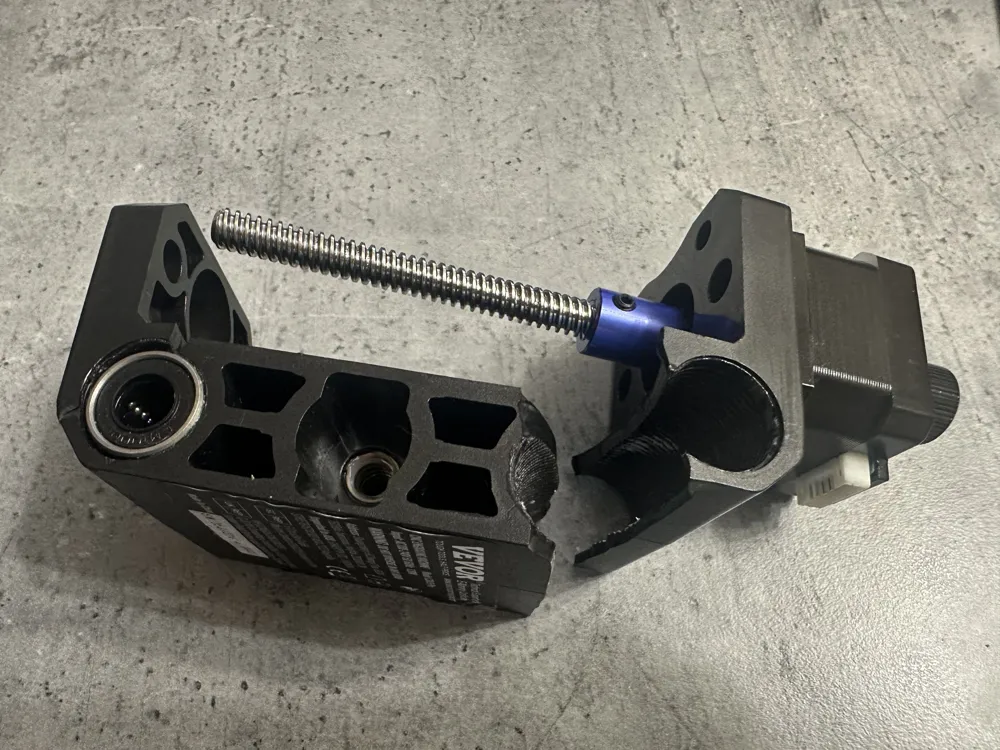

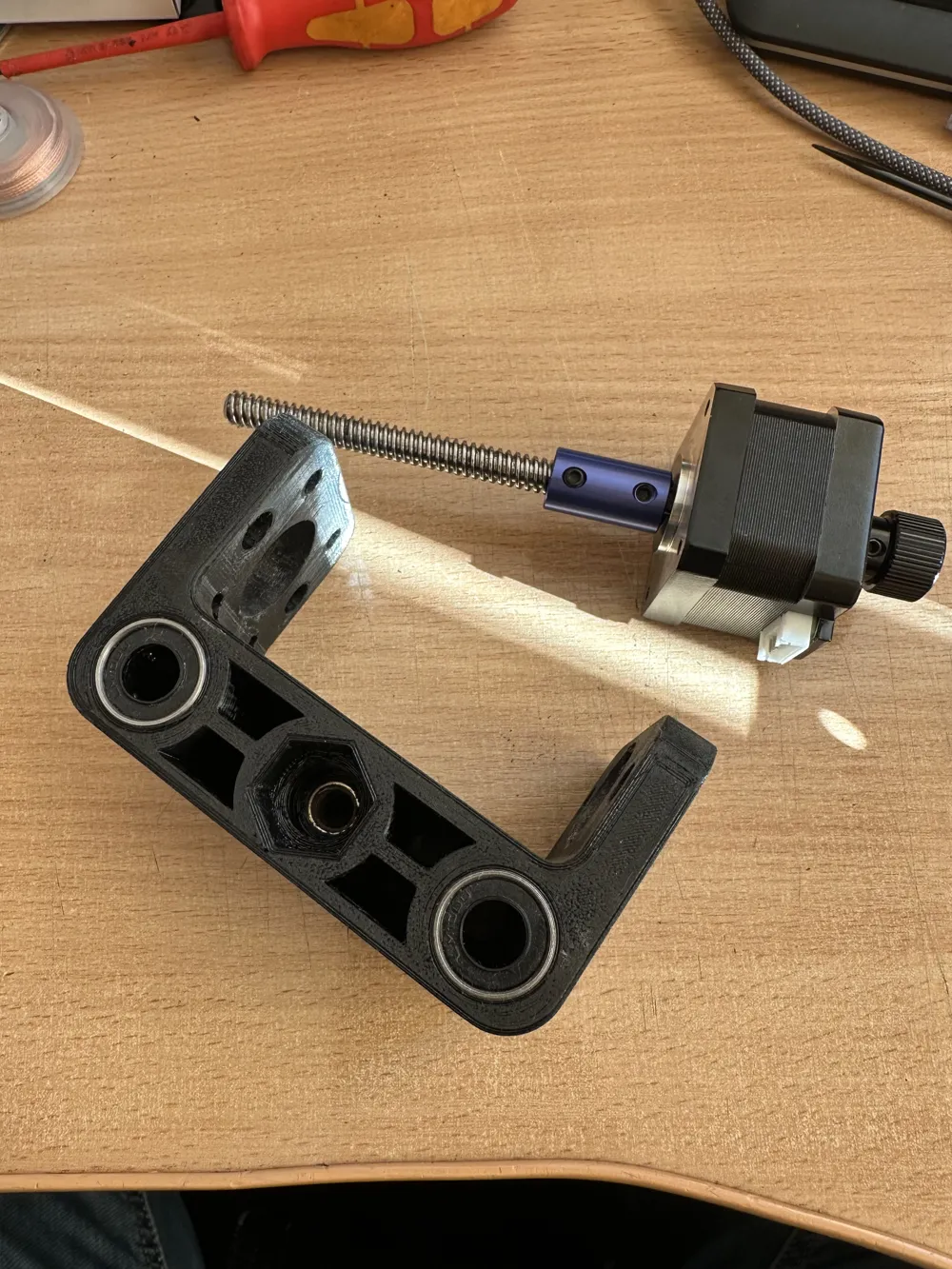

On the very first day, I carelessly lowered the shaft and broke it. I had to design a new one.
The holes for the bearings and the bushing were made with a 0.1 mm tolerance. For the Z-axis rods (8 mm), I had to do a bit of additional machining so that the rods would fit in smoothly.
The model was printed with 65% infill using PETG filament. Everything fit my machine perfectly.
