32x8 LED Matrix 10 inch 1U Panel + Arduino Sketch
Print Profile(1)
Bill of Materials
- NodeMCU Lolin V3 Module ESP8266 x 1:
- 32x8 LED Matrix x 1:
Description
32x8 LED Matrix 10 inch 1U Panel - with random pattern Pacman Sketch

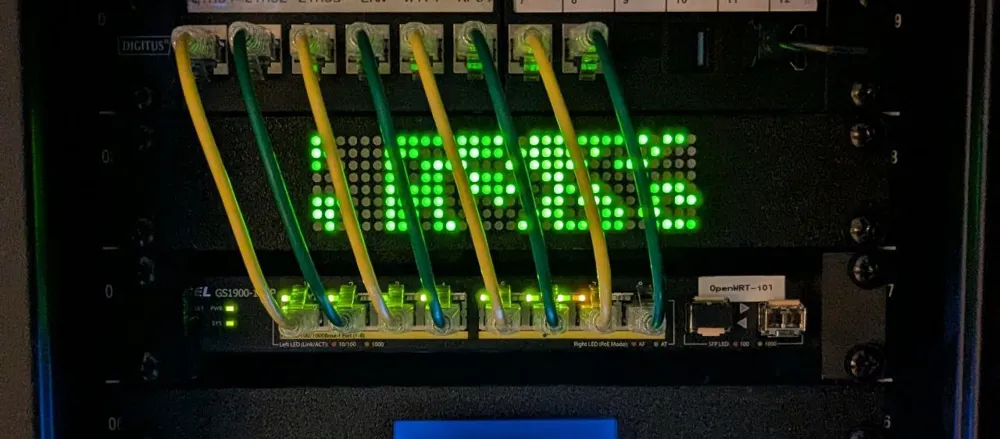

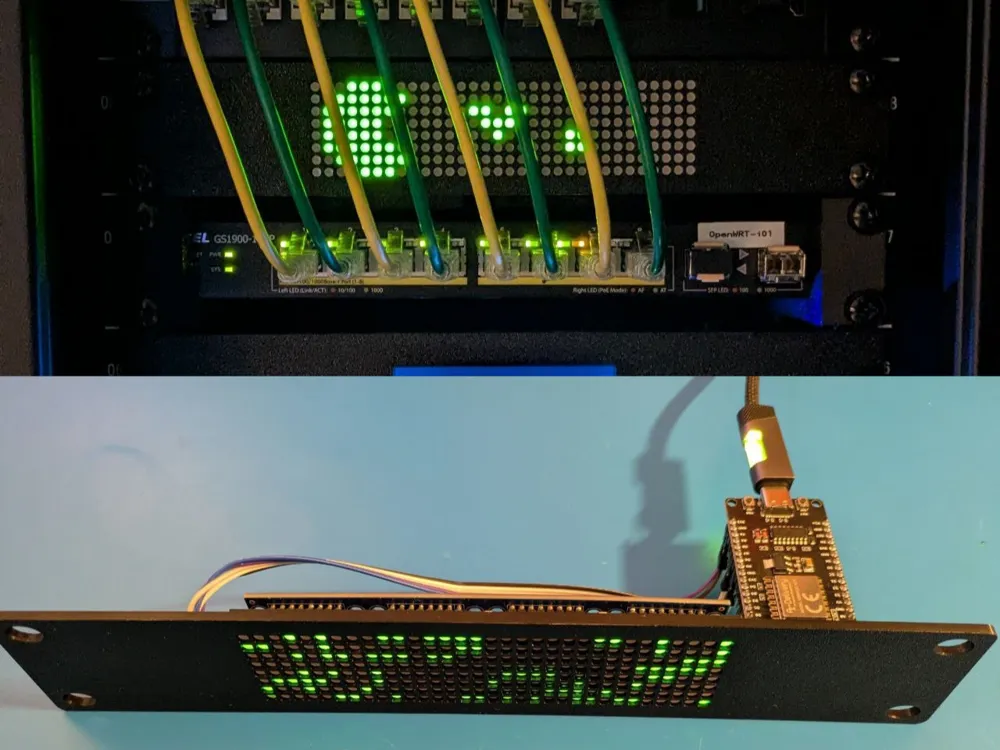

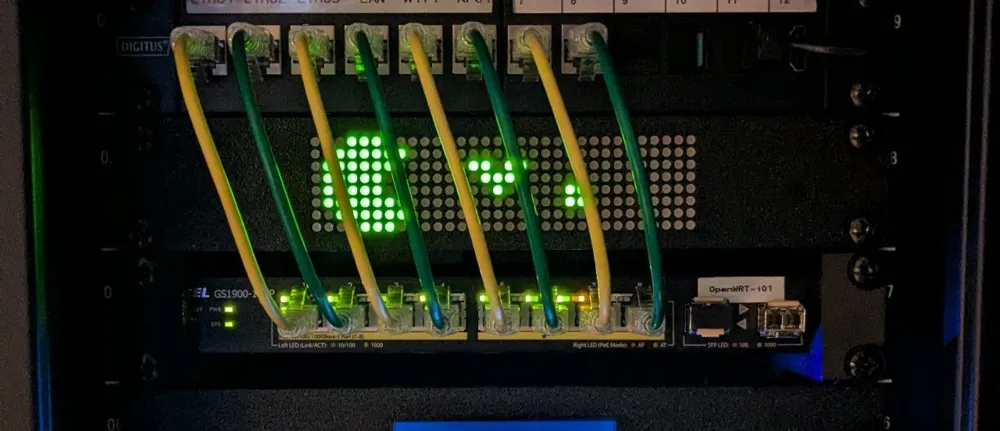

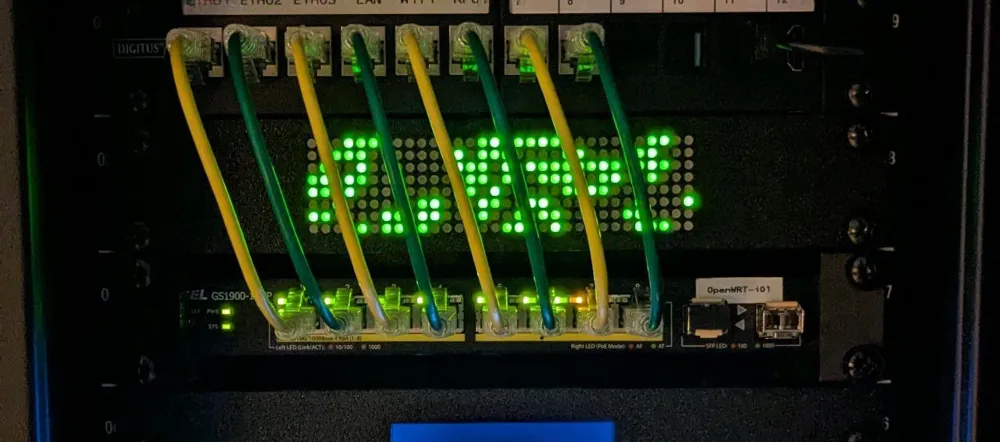

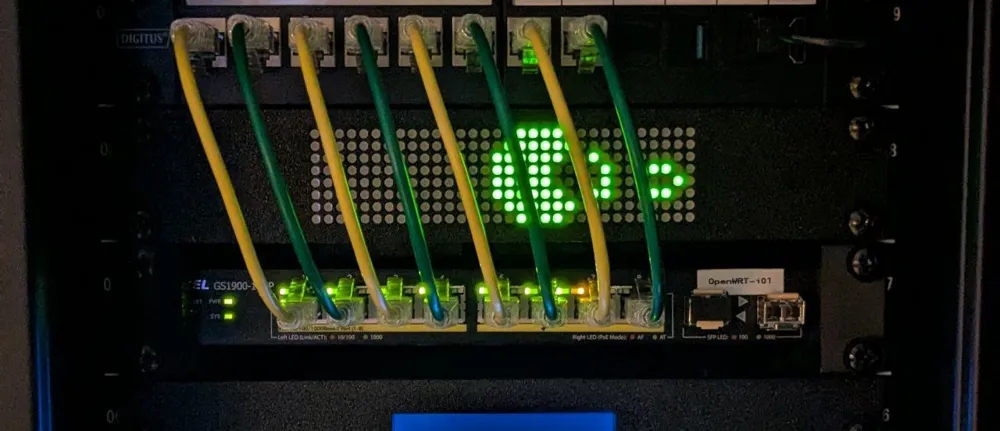

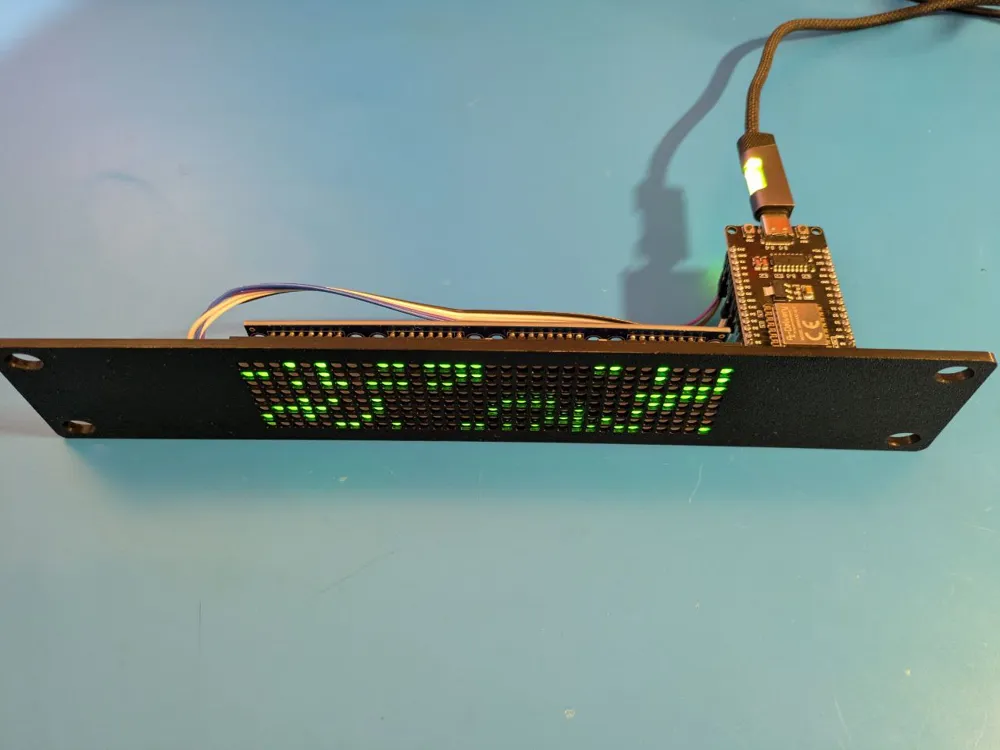

A 1U front panel for a 10-inch rack, designed to hold a 32x8 LED Matrix and a NodeMCU Lolin V3 Module (ESP8266)

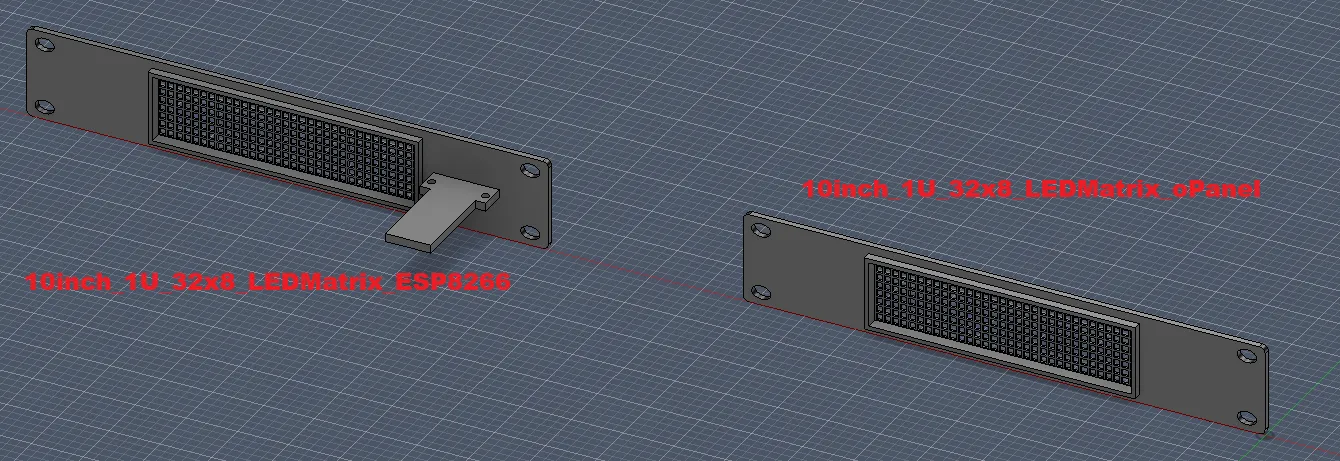

Versions:
- 10inch_1U_32x8_LEDMatrix_ESP8266 - Panel with NodeMCU Lolin V3 Modul ESP8266 holder
- 10inch_1U_32x8_LEDMatrix_oPanel - only Panel for 32x8 LEDMatrix

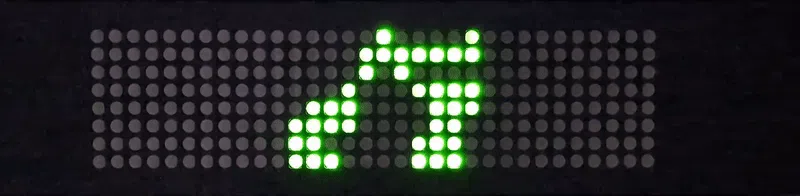

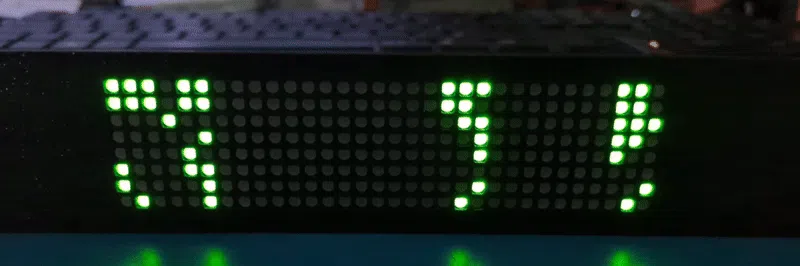

Random pattern Pac-Man Sketch:
The file is attached
Use Arduino IDE
Requires:
2x M3x10 socket head cap screw
2x M3 hex nut
1x NodeMCU Lolin V3 Module ESP8266
1x 32x8 LED Matrix

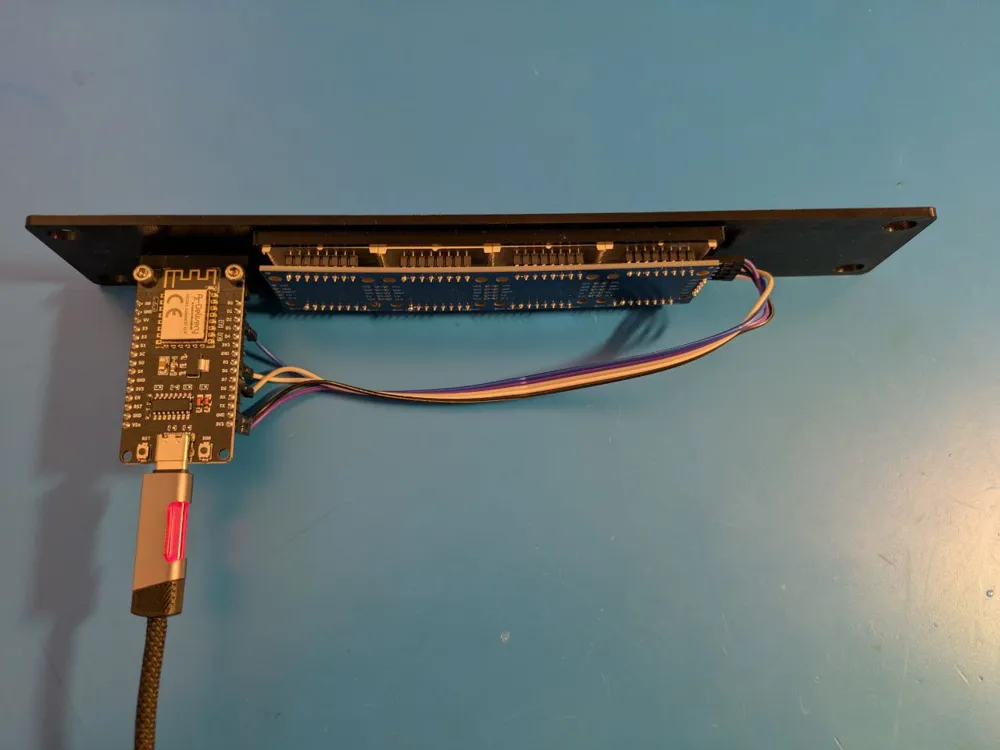

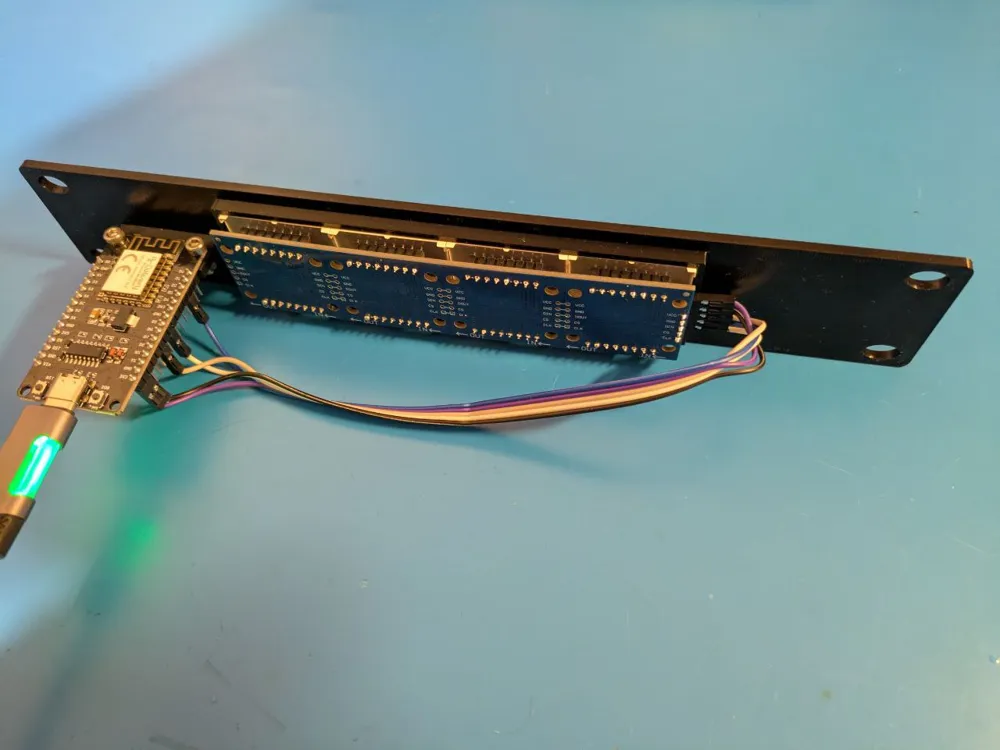

Wiring:
| MAX7219 32x8 | NodeMCU (ESP8266) | |
|---|---|---|
| VCC | → | 3V3 |
| GND | → | GND |
| DIN | → | D7 (GPIO13) |
| CLK | → | D5 (GPIO14) |
| CS | → | D2 (GPIO4) |
Print Settings:
Resolution: 0,2
Infill: 15%
Supports: No
Brim: recommended for ABS
