DJI Avata 2 Light Mount for Aurora A3 Lights
Print Profile(2)
Bill of Materials
Description
Boost Me (for free)
If you like the design and it works well for you, consider giving it a boost. Your support helps me keep developing and refining practical, field ready designs like this one.
Avata 2 Dual Aurora A3 Tactical Light Mount
Rugged. Purpose-Driven. Built for Real Work.

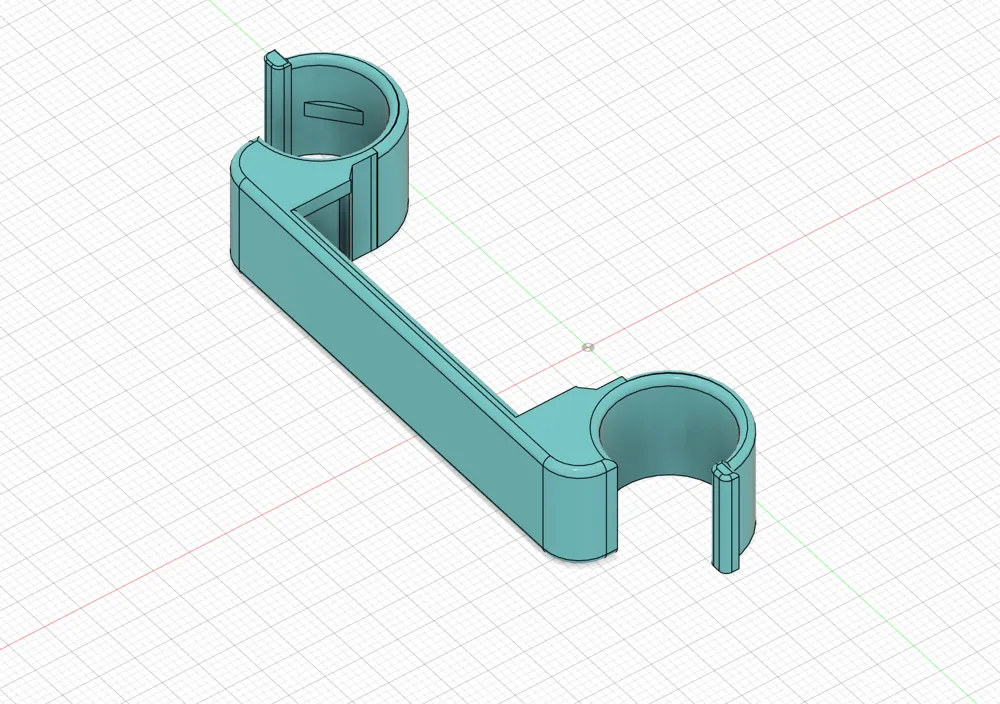

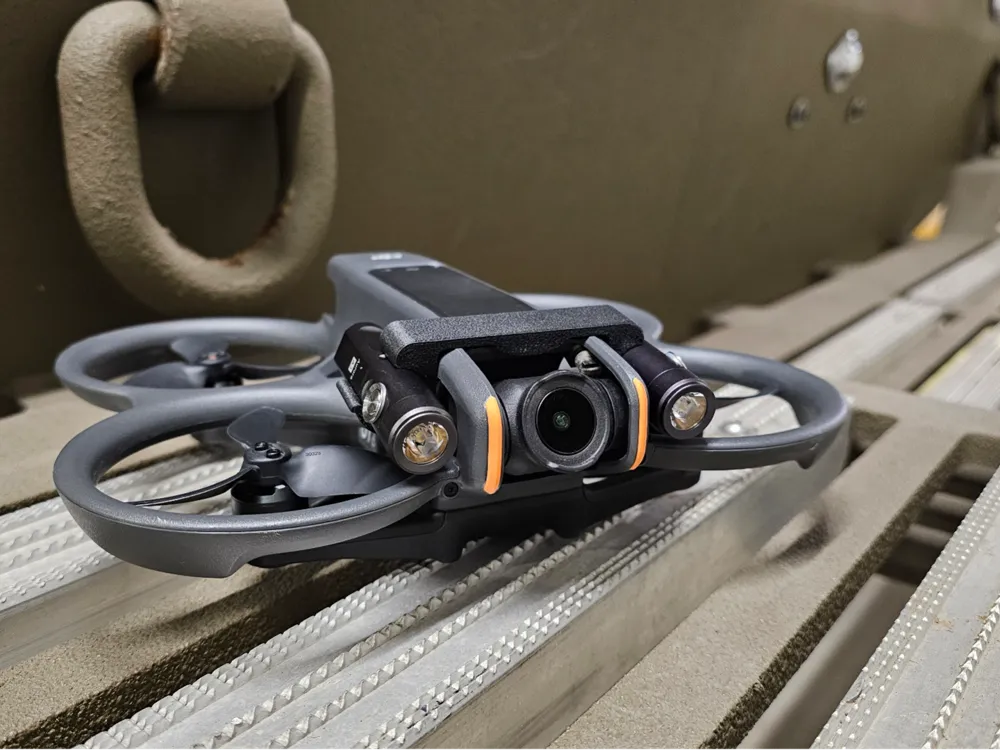

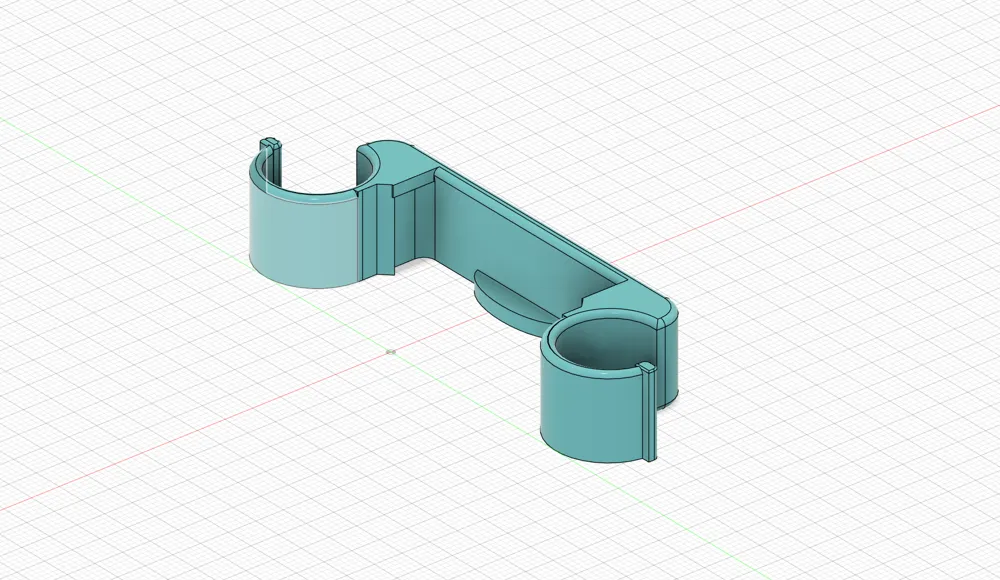

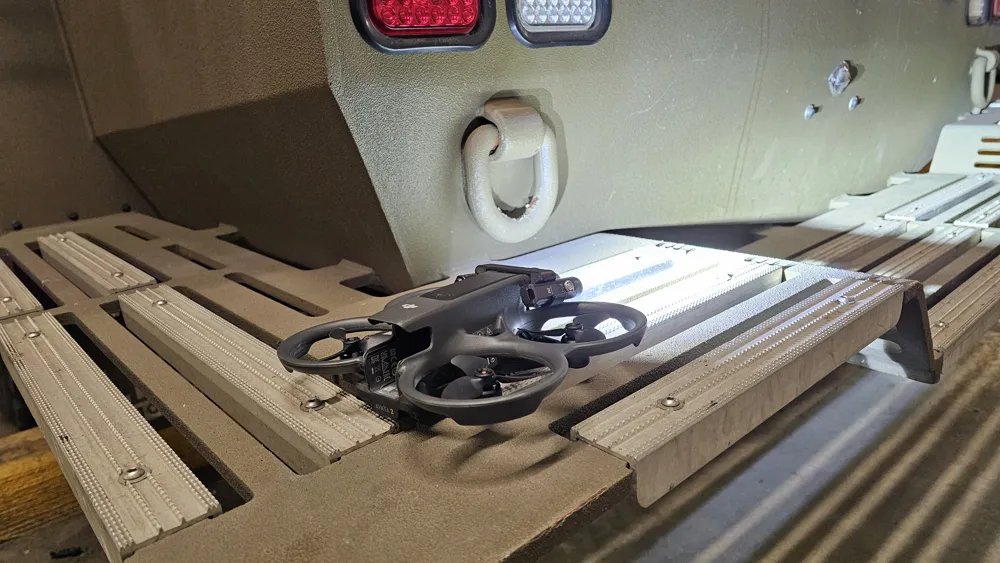

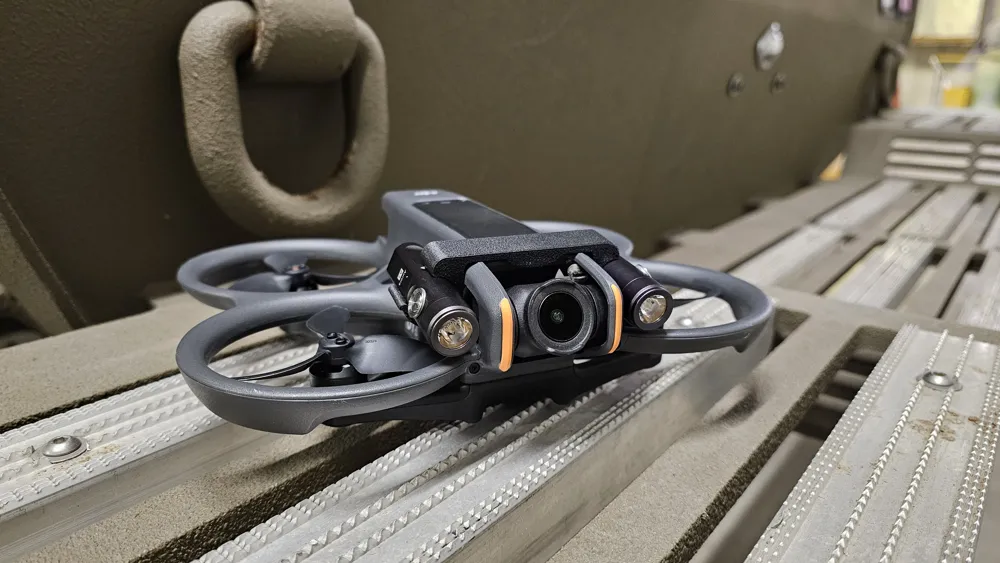

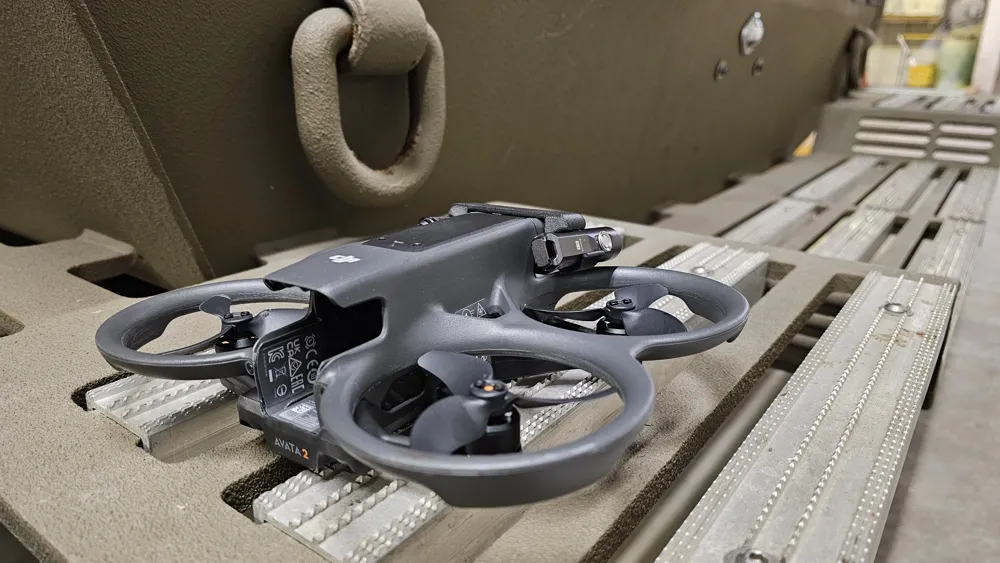

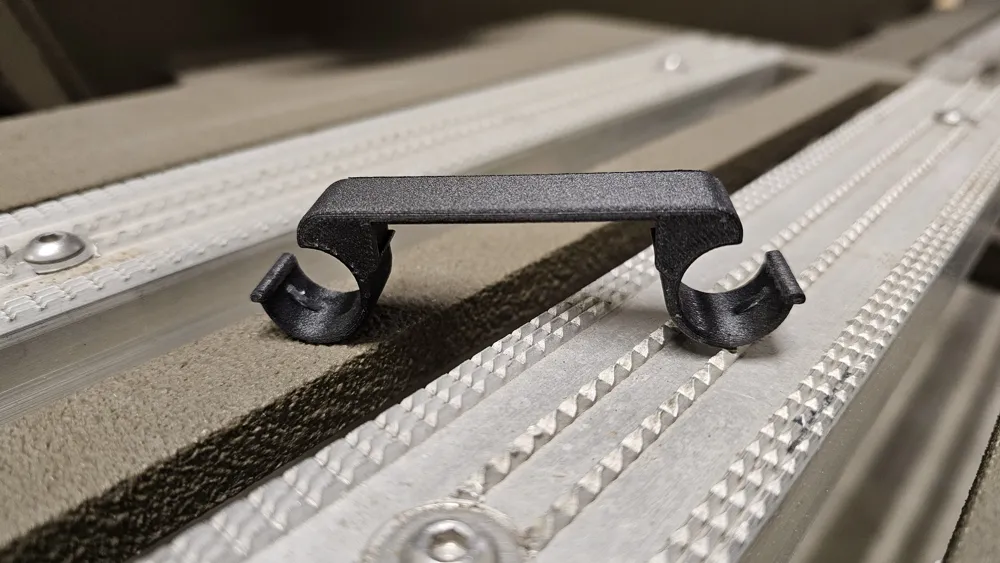

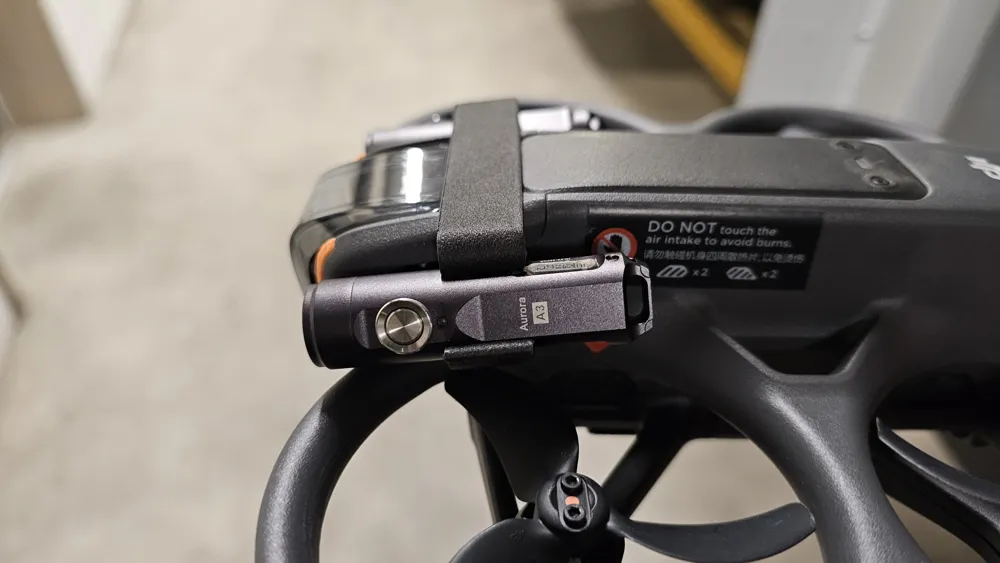

This custom-designed front clip light mount allows you to securely attach two USB-C rechargeable RovyVon Aurora A3 Keychain lights to your Avata 2, one on each side of the camera, delivering balanced forward illumination without obstructing the lens or flight sensors.
Originally engineered from scratch for professional tactical applications, this mount is optimized for durability, stability, and rapid deployment in demanding environments.
Design Features
- Dual-Light Configuration – Symmetrical mounting on both sides of the camera for even beam spread
- Low-Profile Fitment – Maintains Avata 2’s compact form factor
- Secure Snap-On Interface – Firm front clip engagement designed to resist vibration and aggressive maneuvering
- Lens & Sensor Clearance – No interference with camera FOV
- Field-Serviceable Design – Easy removal for charging or maintenance

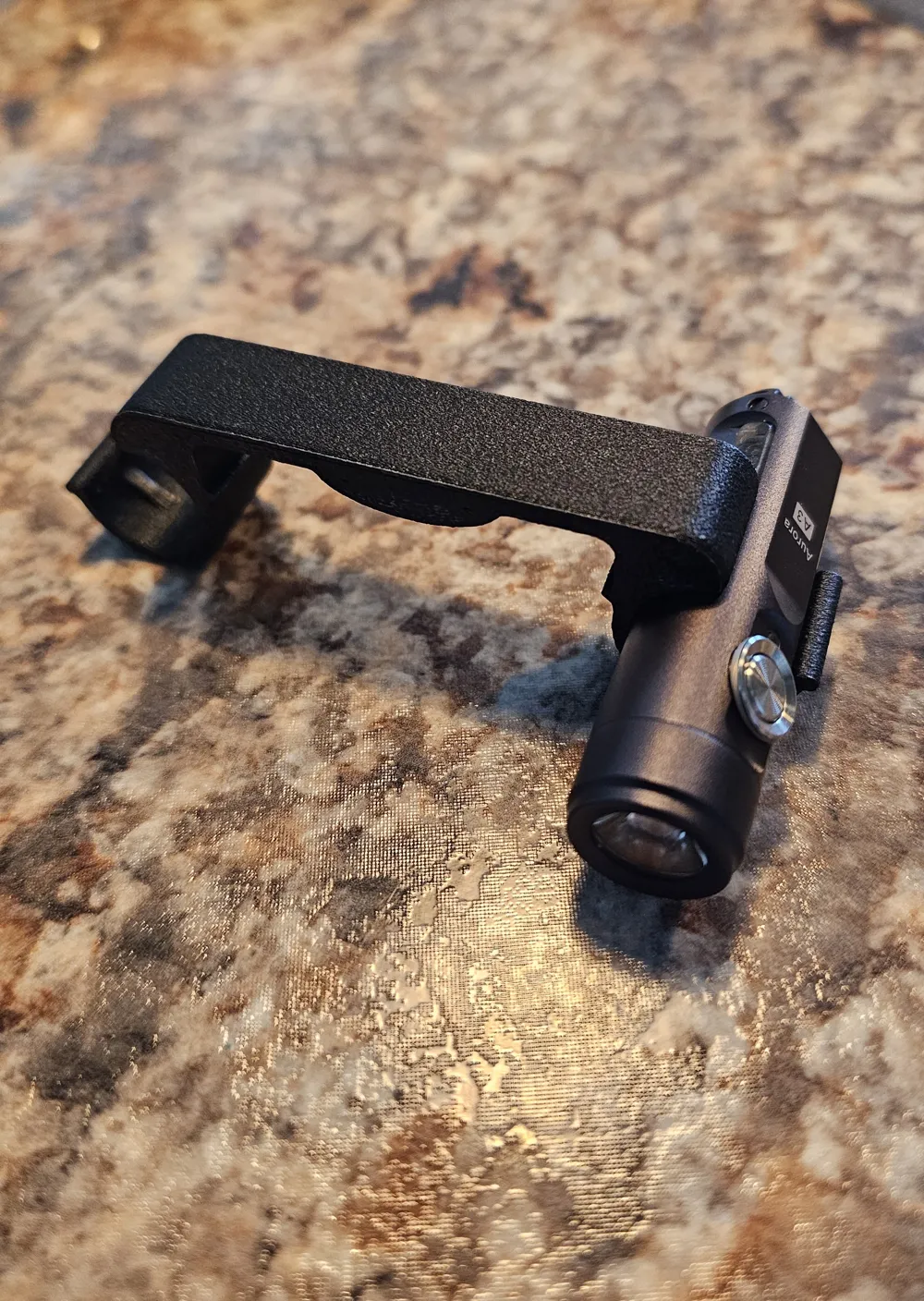

- USB-C Rechargeable Compatibility – Designed specifically around Aurora A3 form factor lights, with secure holding points for each light
Recommended Materials (IMPORTANT)
This mount is designed for strength and impact resistance.
PLA is NOT recommended
PLA may deform under heat, impact, or extended operational stress.
Minimum Material: PETG (PETG-CF or PET-CF is also acceptable)
PETG provides adequate durability for light-duty and recreational use.
Best Performance: PA6-CF (Carbon Fiber Nylon)
Carbon fiber reinforced nylon provides:
- Superior impact resistance
- Heat stability
- Reduced flex under vibration
- Professional-grade rigidity
The included PA6-CF profile is tuned specifically for “high-performance structural prints” and has been tested for this application. If you have CF capability, this is the preferred option.
Use Case Applications
- Low-light navigation
- Indoor exploration
- Structure searches
- Inspection work
- Technical entry scenarios
- Training evolutions

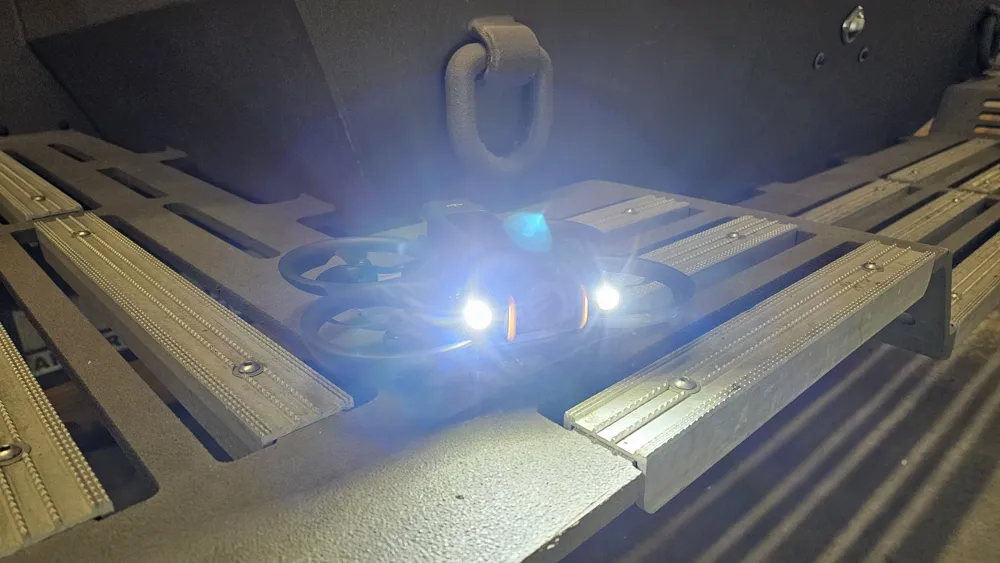

Balanced illumination dramatically improves depth perception in confined environments while maintaining full FPV visibility.
Included Print Profiles
- PA6-CF Optimized Profile
- NOTE: DO NOT use this profile for filaments other than CF based ones.
- PETG Profile (minimum recommended material)
Both profiles are ready to slice and print in Bambu Studio or directly from the Handy App.
Print Notes
- Ensure good bed adhesion (CF materials especially).
- Dry PA6-CF thoroughly before printing.
- Inspect clip engagement before flight.
- Always test at low altitude before operational use.
Disclaimer
This is an aftermarket accessory. Always conduct pre-flight checks and operate in accordance with local laws and aviation regulations.
If you’ve been looking for a clean, purpose-built way to add serious illumination to your Avata 2 without bulky brackets or DIY hacks, this is it.
If you print it, post your makes and setups.
