Modular Wall Mounted Spray Gun Dock System
Print Profile(4)
Description

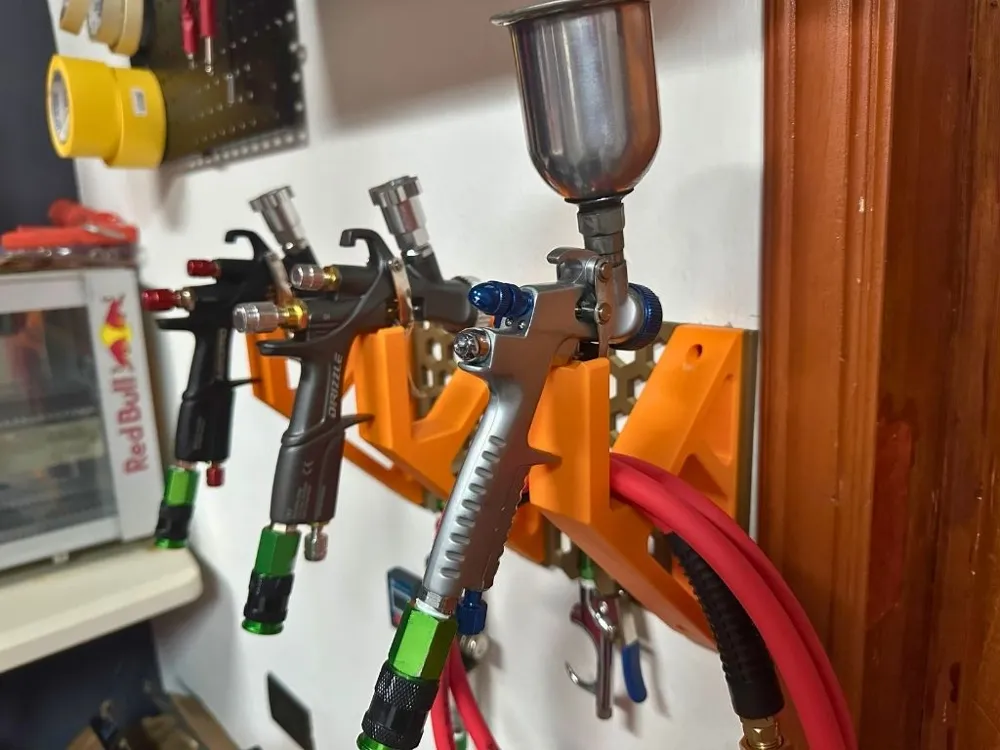

Each dock holds your spray gun in a secure angled position with proper clearance for triggers and air fittings. The system is modular, allowing you to run a single dock or expand your setup by adding multiple units.
Print Compatibility
Spray gun dock fits on Bambu Lab A1 Mini
⚠️ Back panels require a larger build volume (A1, P1, X1, etc.)
Configuration Options
The dock can be used:
- As a standalone wall mount
- With a small panel profile

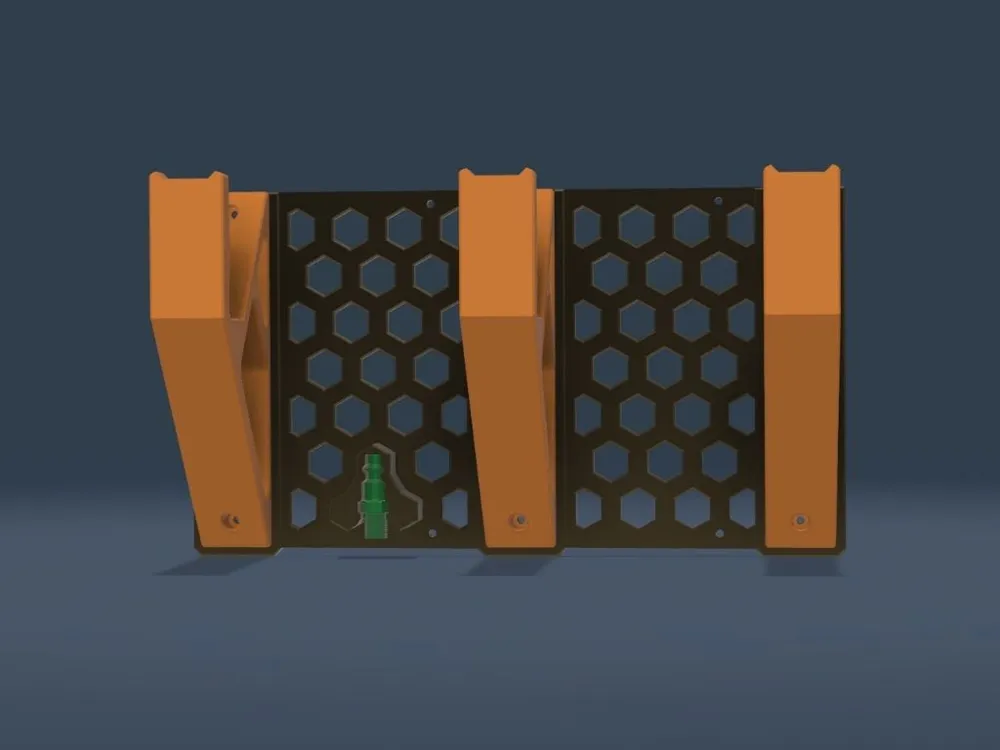

- With a full hex panel system
Multiple back panel options included:

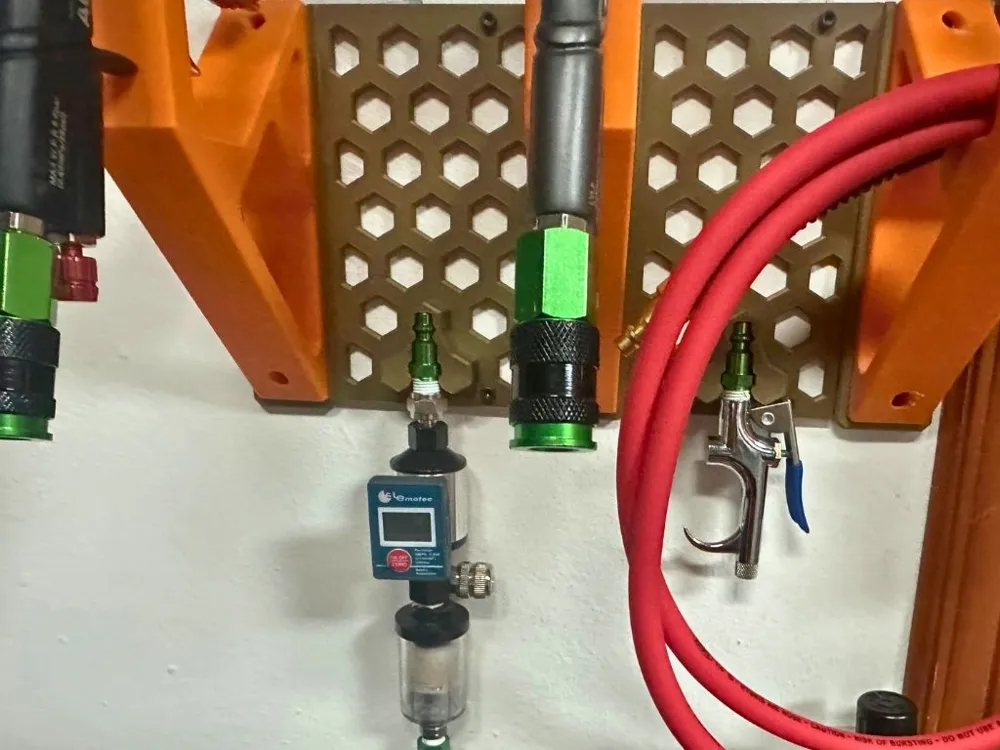

- Hex panel with integrated 1/4" tip holder
- Clean hex panel version
- Minimal standalone configuration
Build a compact single mount or scale into a full spray station layout depending on your printer size and workspace.
Hardware Requirements
Panel + Dock Assembly:
- 2x M4x30mm Allen screws (dock to panel)
- 2x M4x20mm Allen screws (panel mounting)
Standalone Dock:
- 2x M4x30mm Allen screws
Features
✔ Modular & expandable
✔ Standalone or panel-based mounting
✔ Optional integrated 1/4" tip holder
✔ Designed for real shop organization
✔ Compatible with most HVLP / LVLP spray guns
