How To Directions & Calibration Cube Internal Calibration (X-Y Compensation) Bambu X1 X1C P1P P1S

I wanted to calibrate both inside and outside size at same time, I have also added a small radius to top of block bore to prevent top layer from causing hole to read smaller.

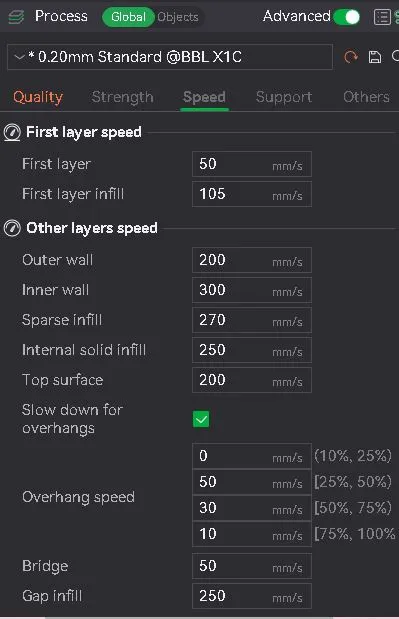

Calibrate Layers, Temp, Speed, Exterior & Inside Size.

Print Model

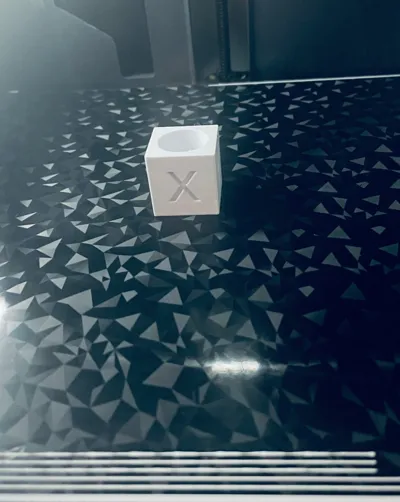

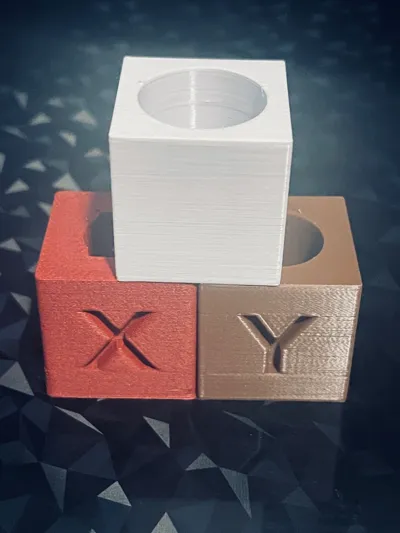

Nominal outside is 1"x1"x1" (Adjust X-Y Compensation)

Nominal inside is .750" (Adjust X-Y Contour Compensation)

****.05mm will change size approx .002"

I used smooth plate

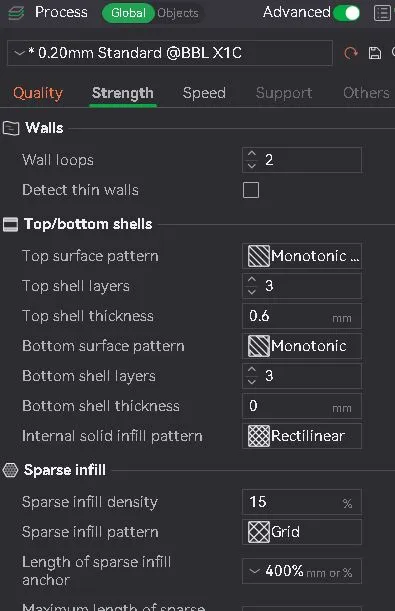

3 Top/Bottom layers

2 walls

15% infill

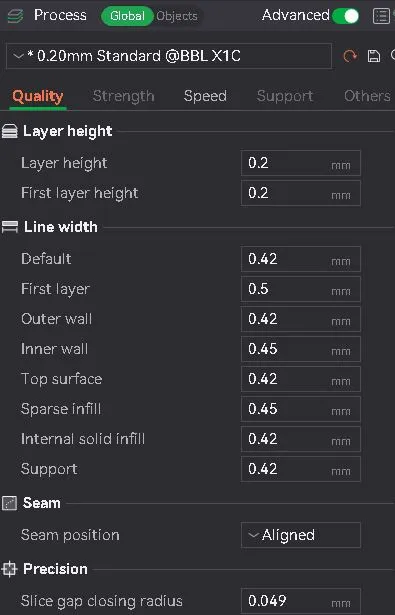

.2 layer height

This is my first time uploading on any site, here or… the other, if this gains some likes I will add many more models I have created over the years.

Thank You!
