Minimalist Rotating Jewelry Tower (Modular Design)

Functional jewelry organizer, featuring a modular "swivel" design, this box allows you to access your accessories with a simple swing. Designed for easy assembly, it uses a central dowel for stability and magnets for a satisfying, tactile snap-to-close feel.

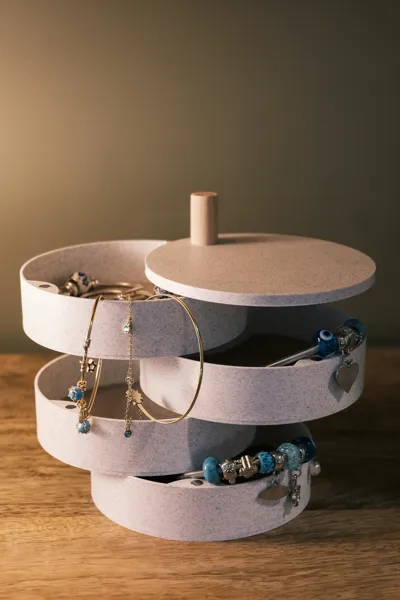

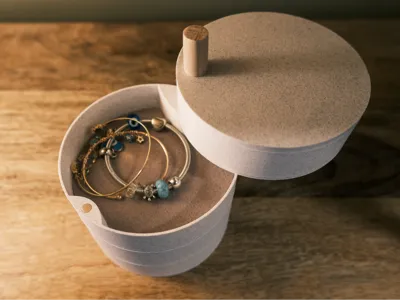

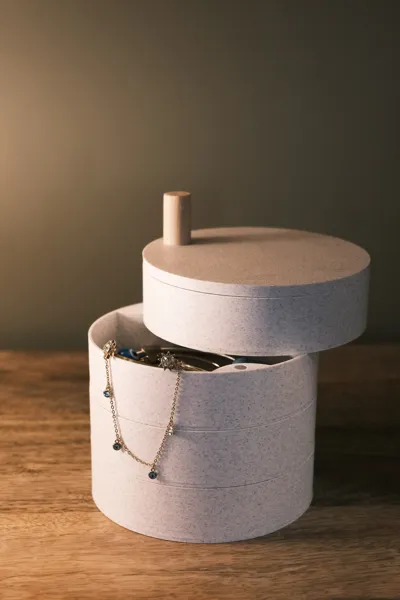

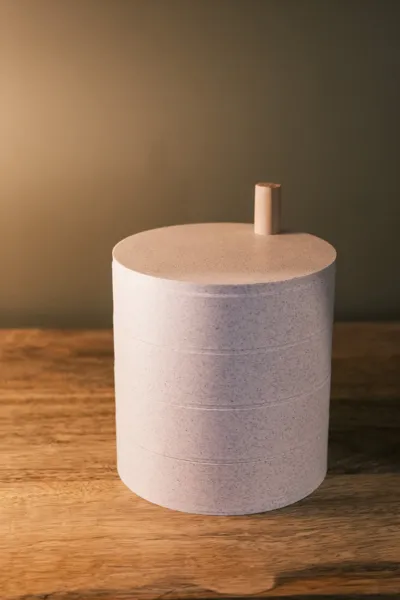

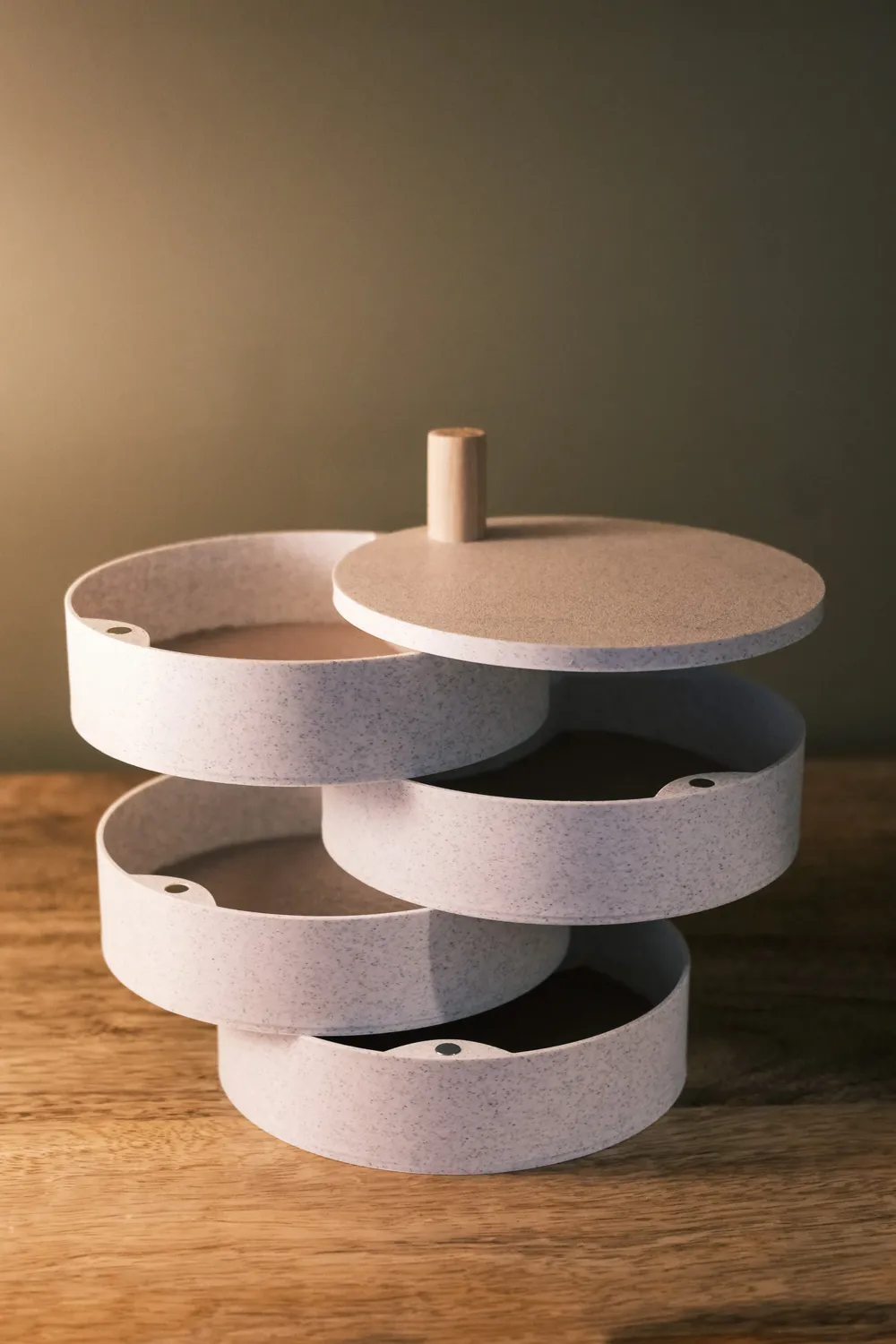

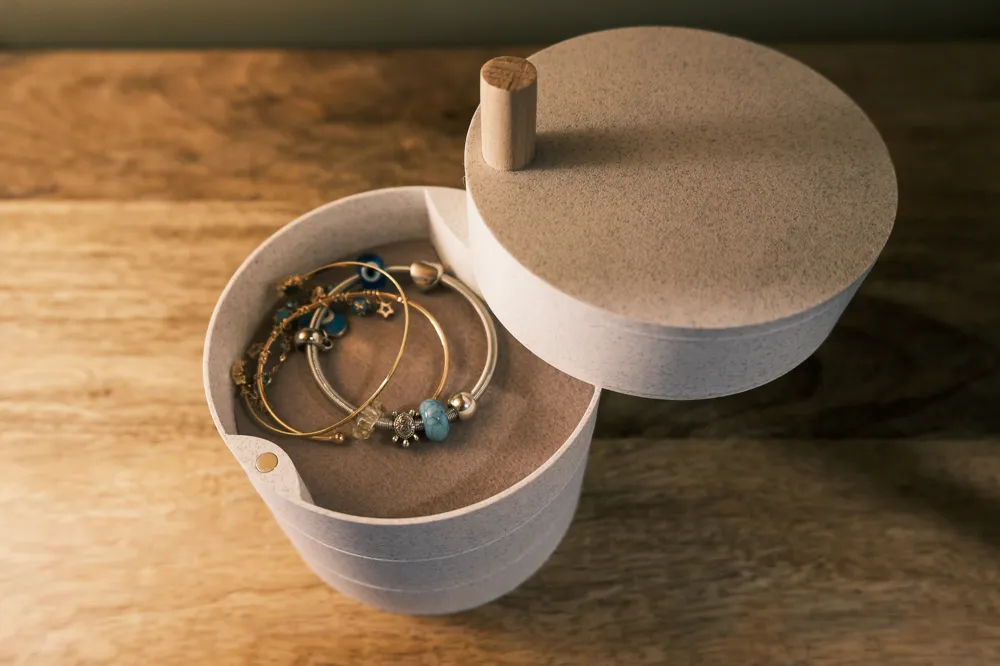

The photos show a 4-tier configuration printed in Bambu Lab PLA Marble, which provides a beautiful natural stone finish.

Key Features

• Modular Growth: Print as many "Middle Sections" as you need to stack it as high as you want.
• Magnetic Alignment: Uses 6x2mm magnets to ensure each tray stays perfectly centered when closed.
• Minimalist Aesthetic: Clean lines with a wooden accent handle for a modern look.
• Internal Protection: The interior is designed to accommodate optional felt lining (as seen in photos) to protect delicate jewelry.

Specifications & Dimensions

• Diameter: 12cm
• Tray Height: 3cm (per section)
• Lid Thickness: 0.5cm
• Hardware Required:
  • Magnets: 6x2mm round magnets (2 per section/lid).
  • Central Rod: 15mm diameter wooden dowel (cut to length based on how many tiers you print).

Assembly Tips

1. Dowel: Cut your 15mm dowel to the total height of your stacked sections plus the lid. The center hole is designed for a snug fit; depending on your dowel's tolerance, you might need to lightly sand or polish the wood for a smooth rotation.
2. Magnets: Ensure the polarity is correct before inserting! The tolerances for the 6x2mm magnet recesses are intentionally tight for a secure hold; you may need to apply a bit of force (or use a small pair of pliers/mallet) to press them fully into place.
