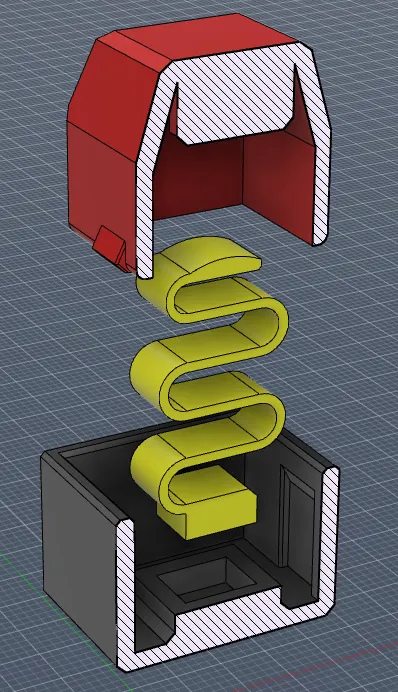

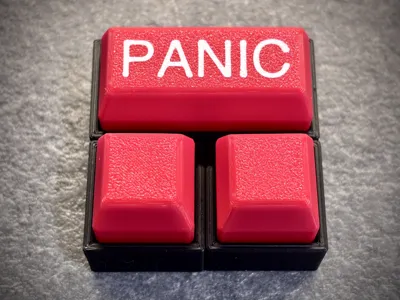

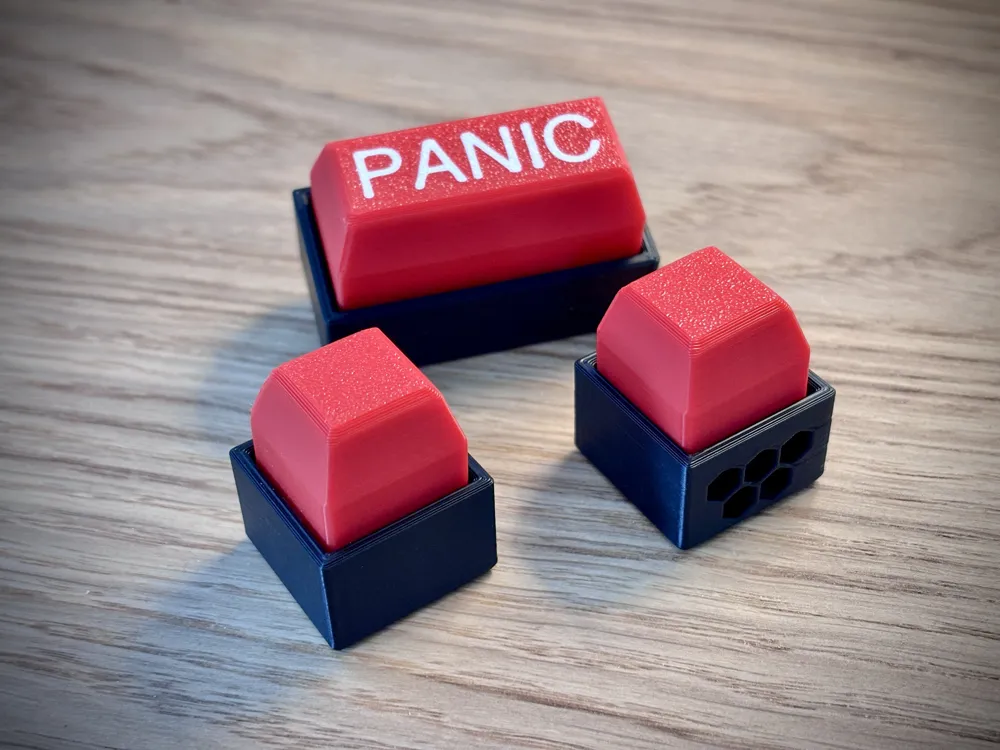

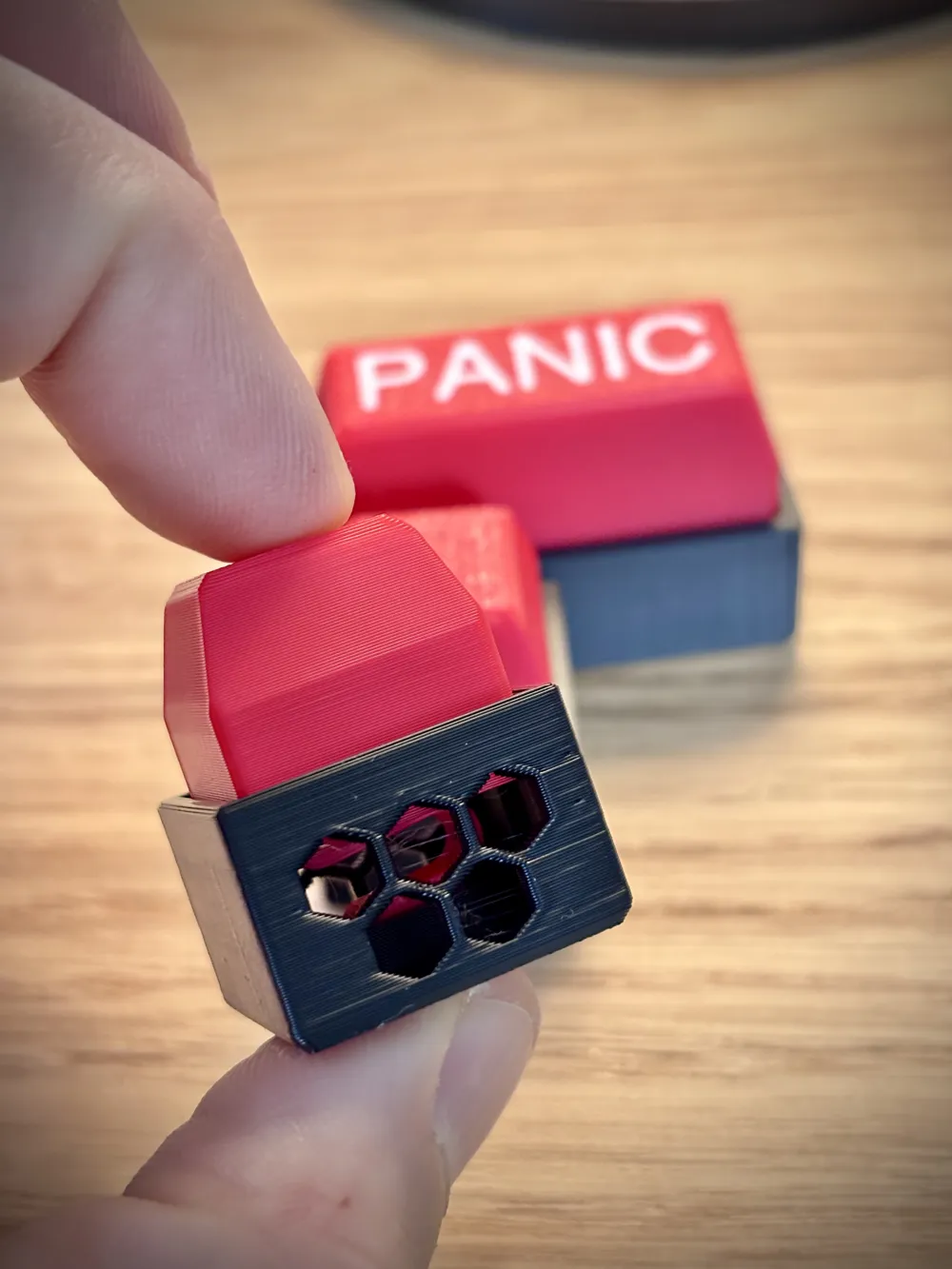

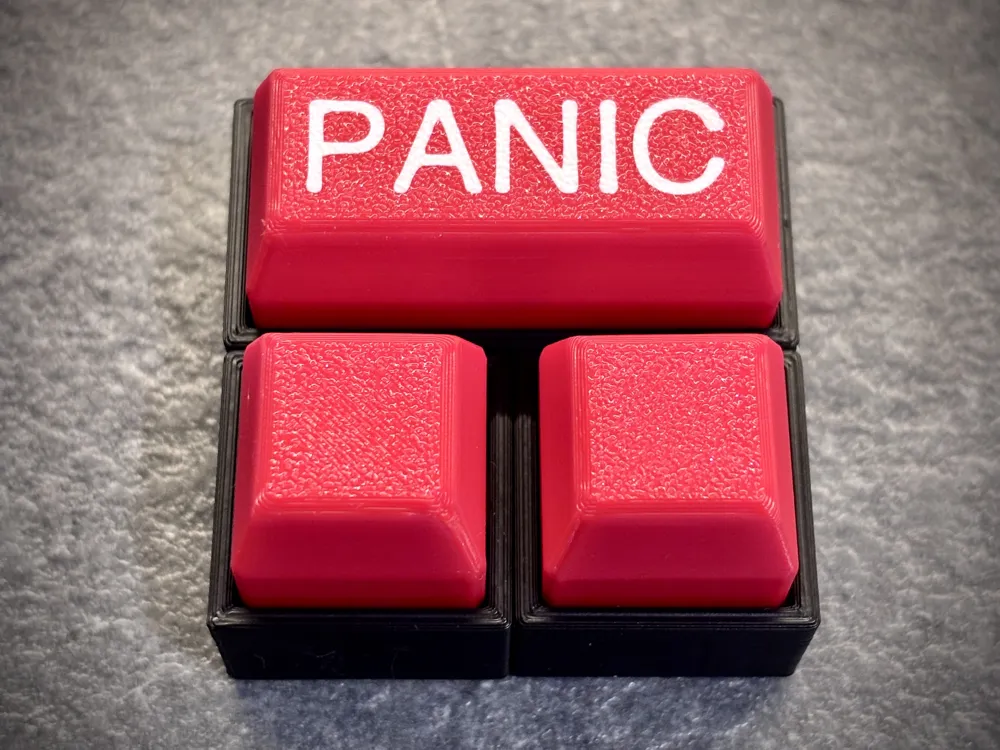

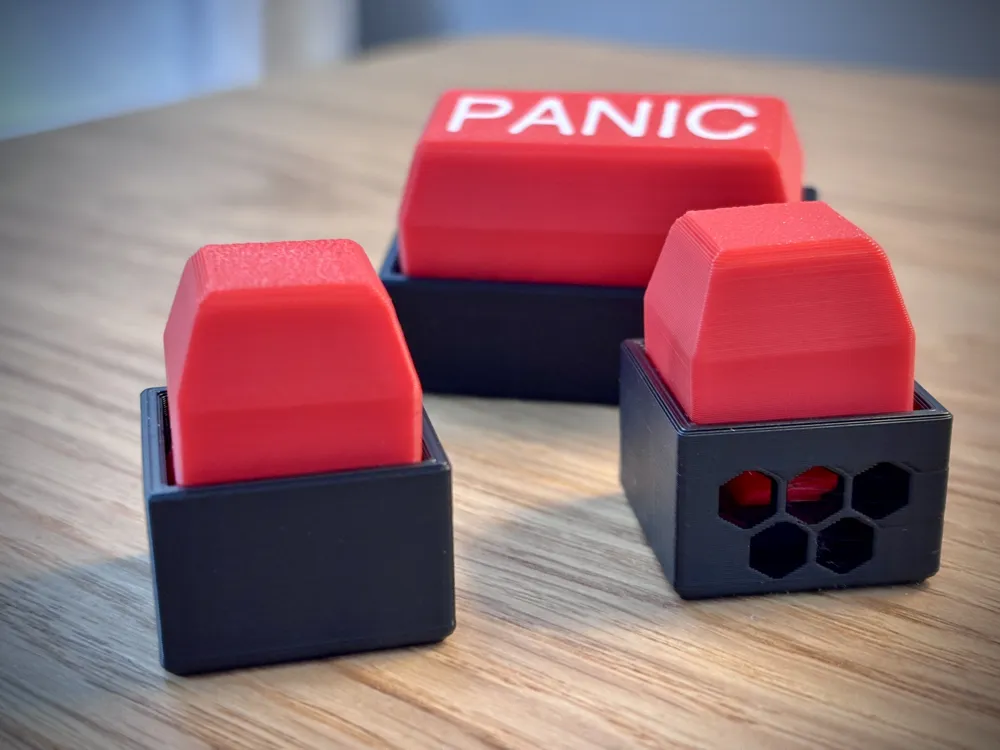

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost me up if you like my work. Thanks!</boostcontent></boostme><h2>Keyboard (PANIC) button</h2><p>&nbsp;</p><p>This was a request from my son - can you make it? Since I was only able to find buttons that required micro switch and other fully printed had mixed reviews I present this one:</p><ul><li>fully printed - no micro switch needed</li><li>two versions - small and wide</li><li>spring works even printed in PLA - although PETG will be more durable</li><li>it was tested by a teenager who performed professional stress tests - PASSED ;)</li><li>I added super satisfying wide version with AMS print profile that gives you PANIC button :)</li><li>small buttons come with solid case and see thru one so that you can see spring in action</li></ul><p>&nbsp;</p><figure class="table"><table><tbody><tr><td><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002426670/design/c60645a68467c073.png"></td><td><h3>Assembly instructions:</h3><ol><li>Put the spring in the socket - make sure to push it all the way in. Use a pen or pencil to push it thru and make sure that it is pointing straight up.</li><li>Align the button<ol><li>Note that button has two elements on the sides - they go into the “rails” in the case. </li><li>button has two little walls inside in the top section - the spring should go inside and between them</li></ol></li><li>Push the button in the case - tilt the button a little to the side, push it a bit in and then push in the other side. Push further until it clicks in place. </li><li>Test if it works fine</li><li>Enjoy!</li></ol></td></tr></tbody></table></figure><p>&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p>

Keyboard fidget - PANIC button

ASIA

Print Profile(5)

Description

Keyboard (PANIC) button

Assembly instructions:
