Description

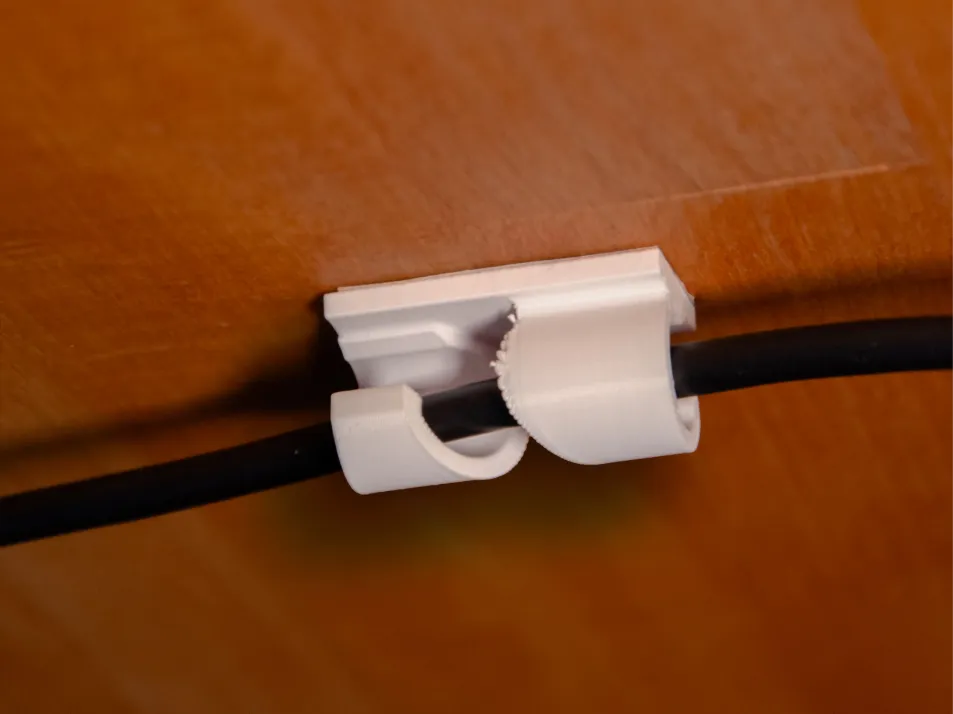

Parametric Cable Clip – Perfect Cable Management
Eliminate cable clutter with this smart, minimalist cable clip. The design is fully parametric, allowing you to precisely adapt it to your hardware and needs in Fusion 360
Boost Me (for free)
If you want to support my work, I would be very happy about boosts

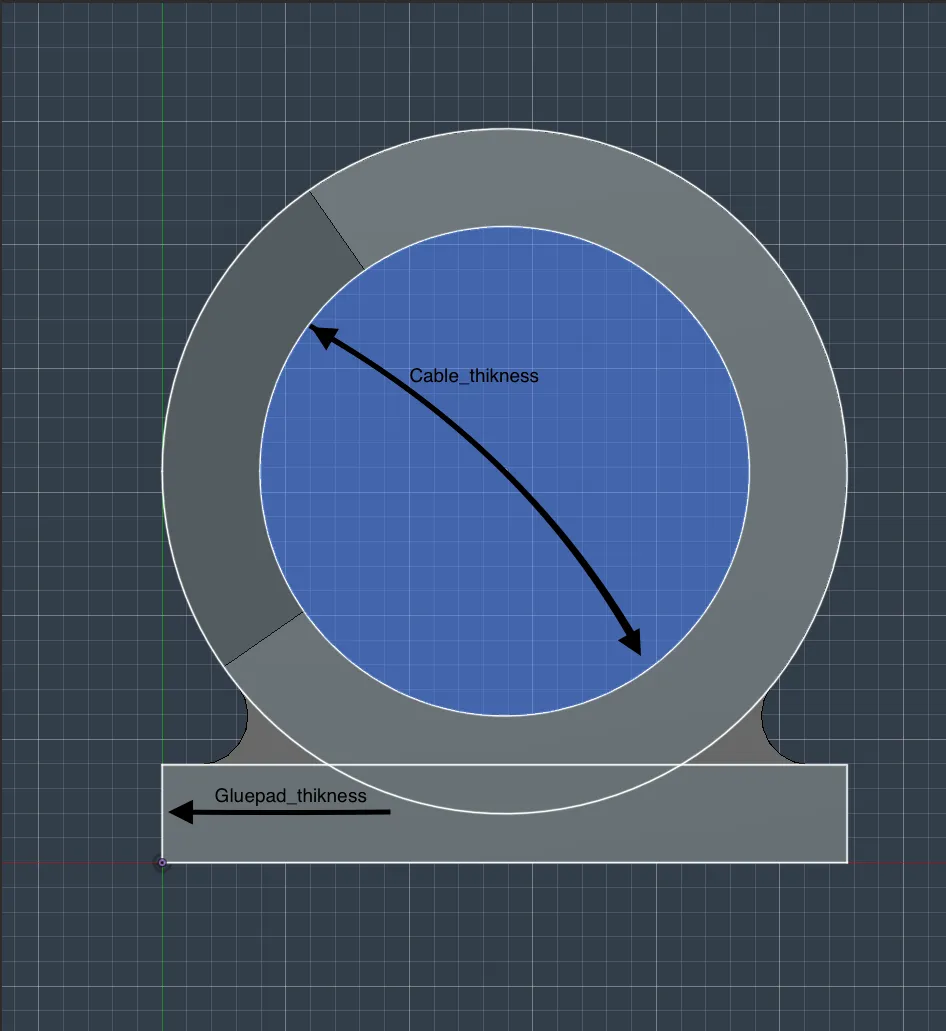

⚙️ Customizable Parameters
- cable_thickness (Cable Thickness): The diameter of the cable to be held
- Pro Tip: Enter approximately 0.5 mm to 1.0 mm more than the actual cable diameter here, so that the cable snaps in with a pleasant "snap"
- gluepad_thickness (Adhesive Base Thickness): With this, you define the thickness of the base plate on the model. A thicker base provides more stability for heavy cables
🖨️ Printing Notes
- Orientation: The model is optimized for printing upright (opening facing up)
- Support: Since the clip is printed upright, support structure (Support) is required. I recommend "Tree Support" (tree structures) as they are easy to remove and leave a good surface quality
- Material: PETG is ideal as it is flexible enough for the retaining arms. PLA is also possible, but should be handled more carefully
- Wall Lines: Use 3-4 wall lines to strengthen the structure of the retaining arms
🛠️ Assembly
Clean the adhesive surface thoroughly. Attach a suitable double-sided adhesive tape (e.g. 3M VHB or Tesa Powerstrips) to the underside of the printed base and press the clip firmly into the desired position
