Designer Lamp RA05
Print Profile(2)
Description
This lamp is inspired by a true Scandinavian classic. At the same time, it is an original design of its own, carefully optimized for 3D printing.
It is not a print‑and‑go design, which makes it a refreshing contrast to the many one‑piece lampshades available for download.
Printability
The individual parts are generally easy to print, but some of them are quite large, which increases the overall difficulty.
There are two versions of the lampshade available: a 300 mm original version and a 250 mm version for smaller printers.
Compatibility

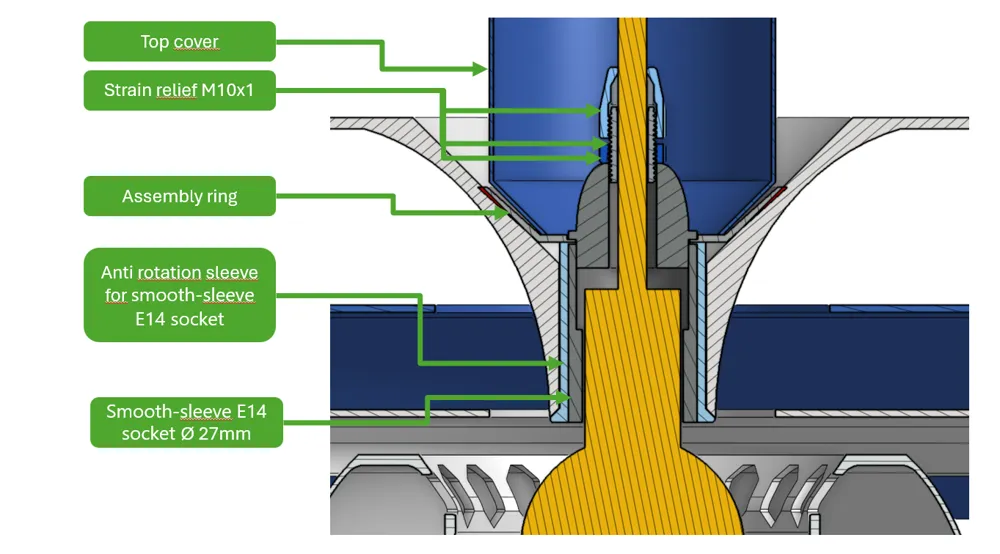

The lamp was designed for a common European E14 smooth-sleeve socket with an M10x1 strain relief.
Link
However, I fully trust the Maker community — if adjustments are needed, they can certainly be made.
Screws & Accessories

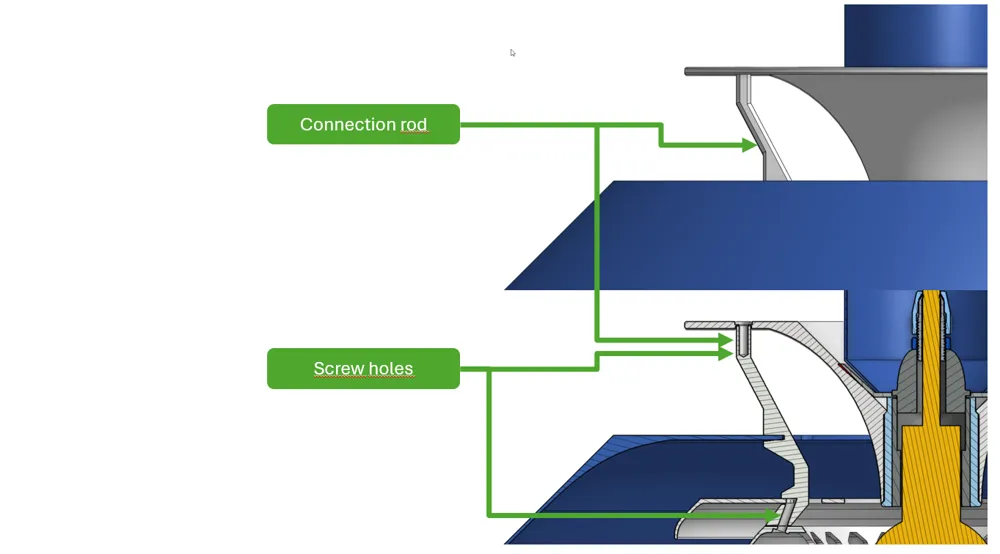

I have linked the screws I used. Additionally, I included a second set of connector rods so that the Bambu MakerSupply 2×8 mm screws should work as well. Overall 6 small screws are needed.
Personal Note
This is my first more complex model, so I would really appreciate a like, adding it to a collection, or even a boost!
Enjoy printing!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
