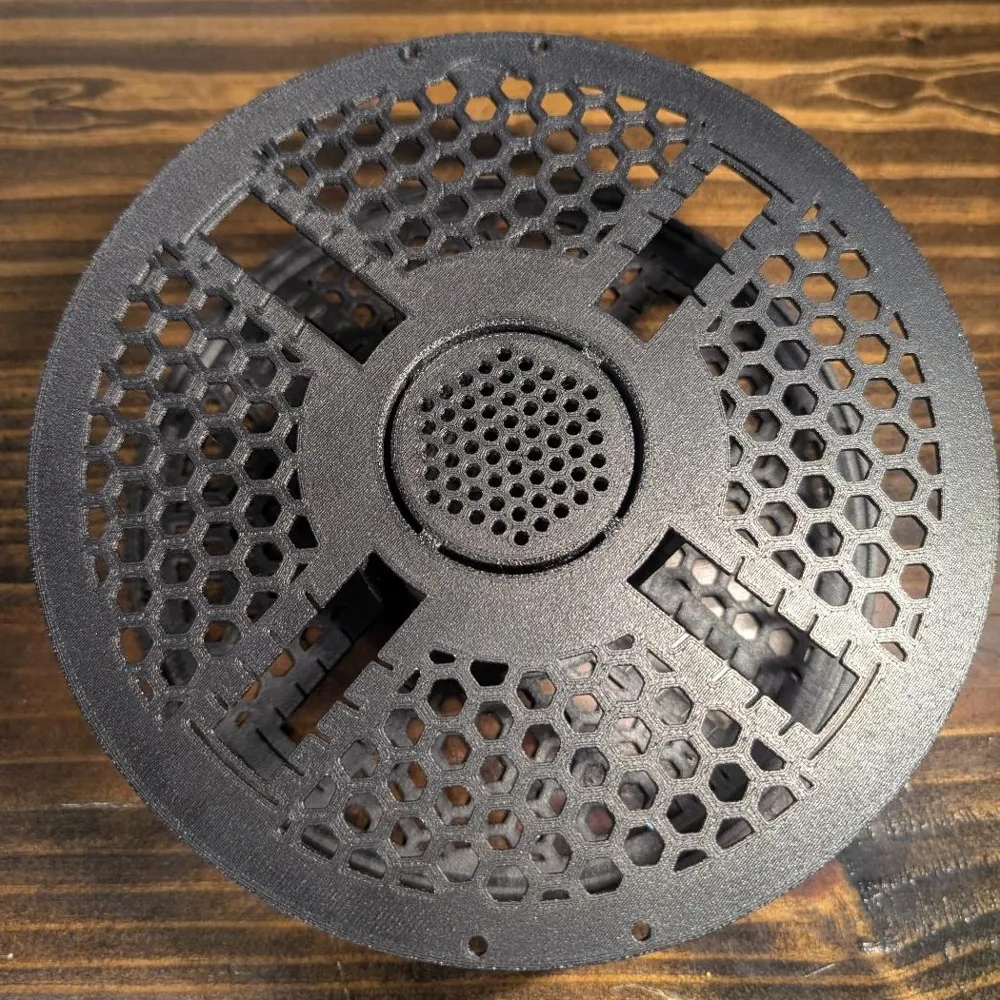

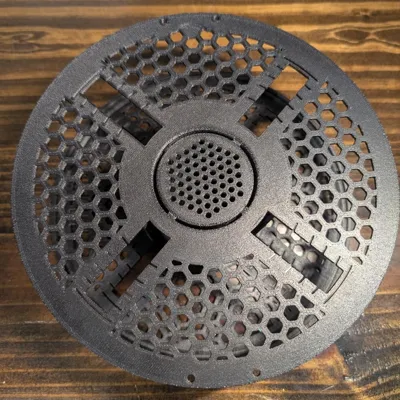

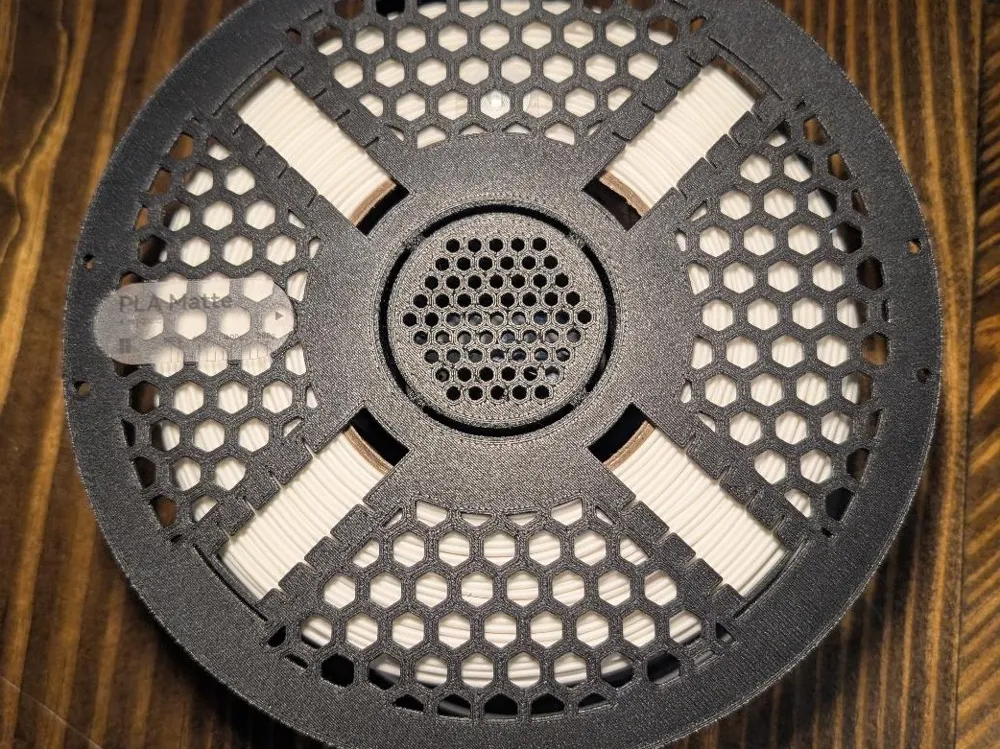

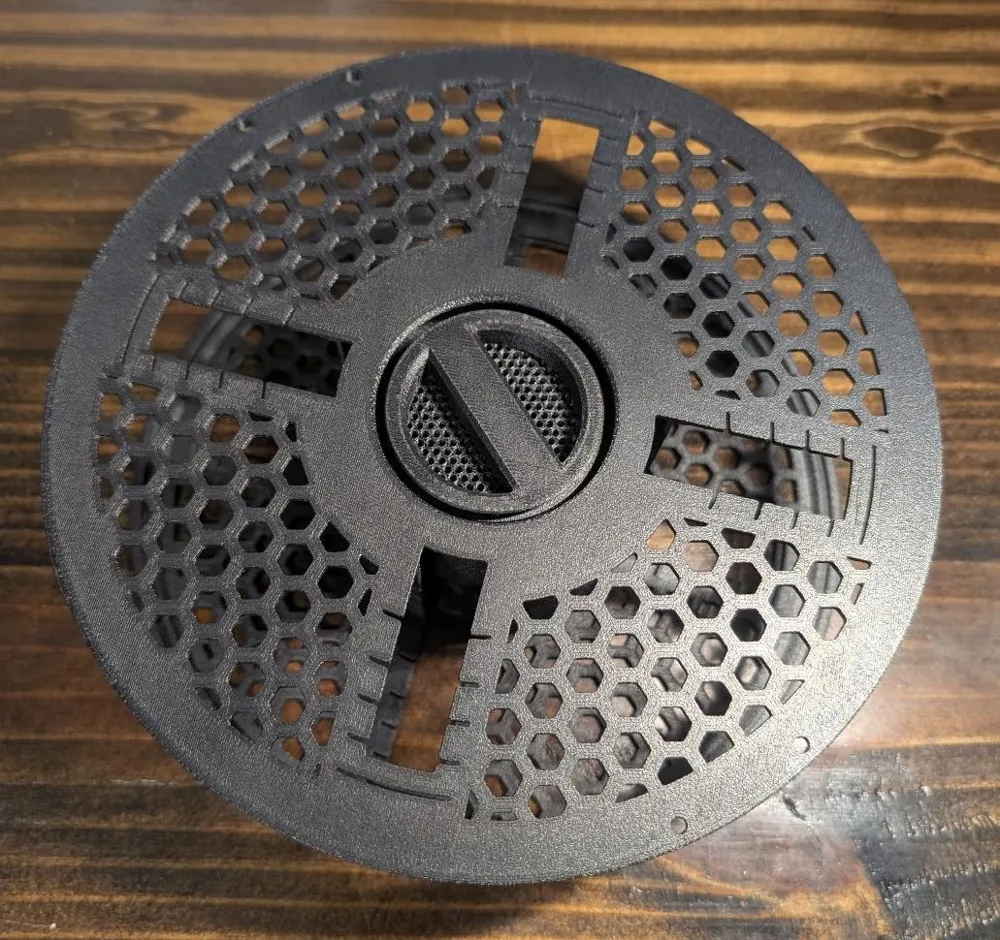

The spool that has everything! There are a ton of great printable spools. But every one seemed to missing at least one feature. So I designed to the Final Spool to have everything:



  1. No additional hardware or parts required

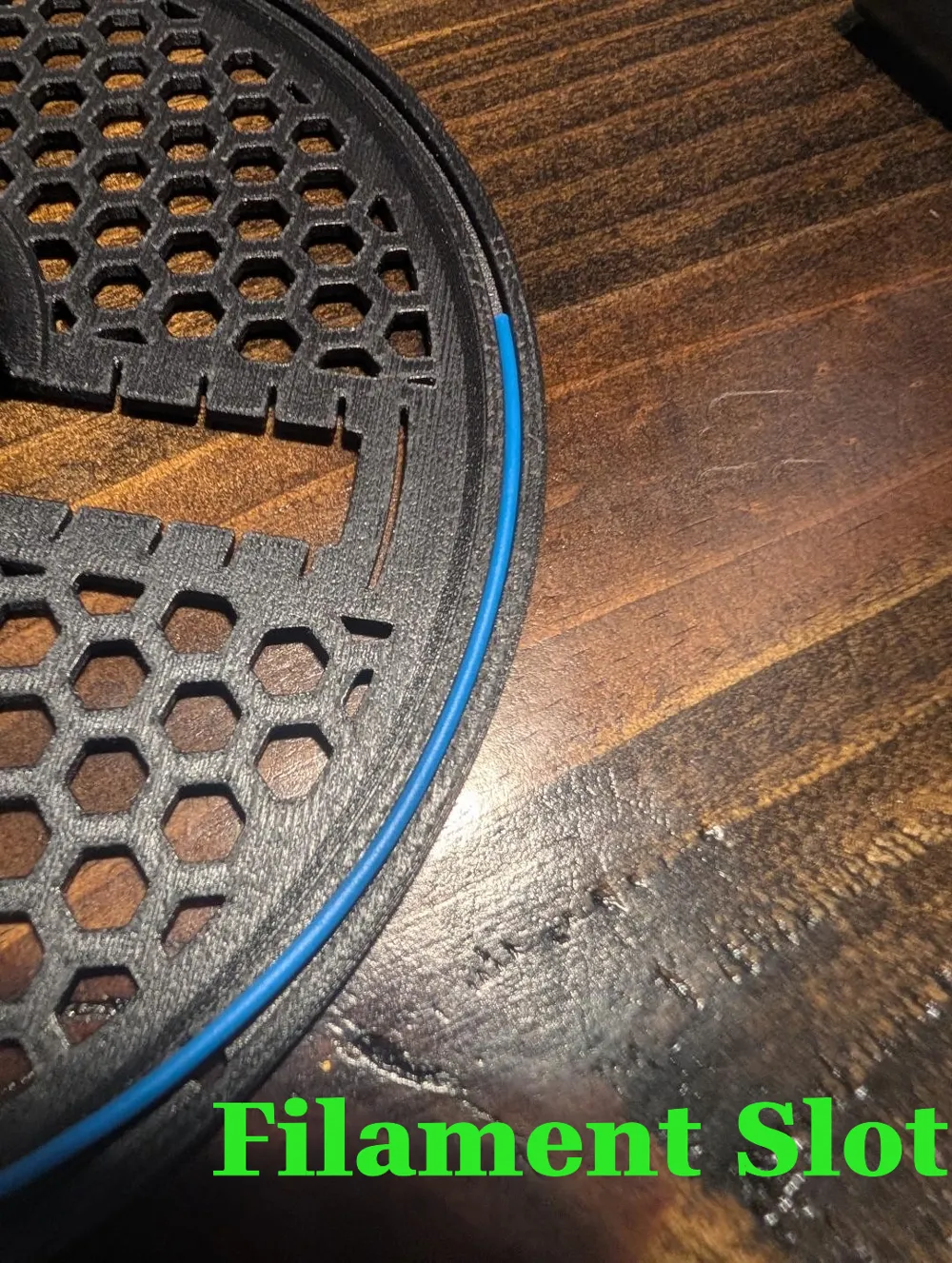

  2. Built in filament clip that doesn't interfere with AMS2 rotation when drying

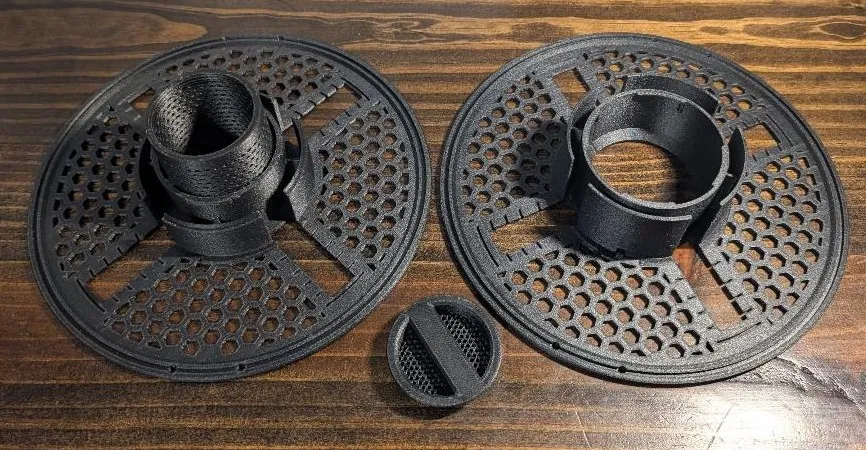

  3. Built in internal desiccant container that does not require opening when changing out filament

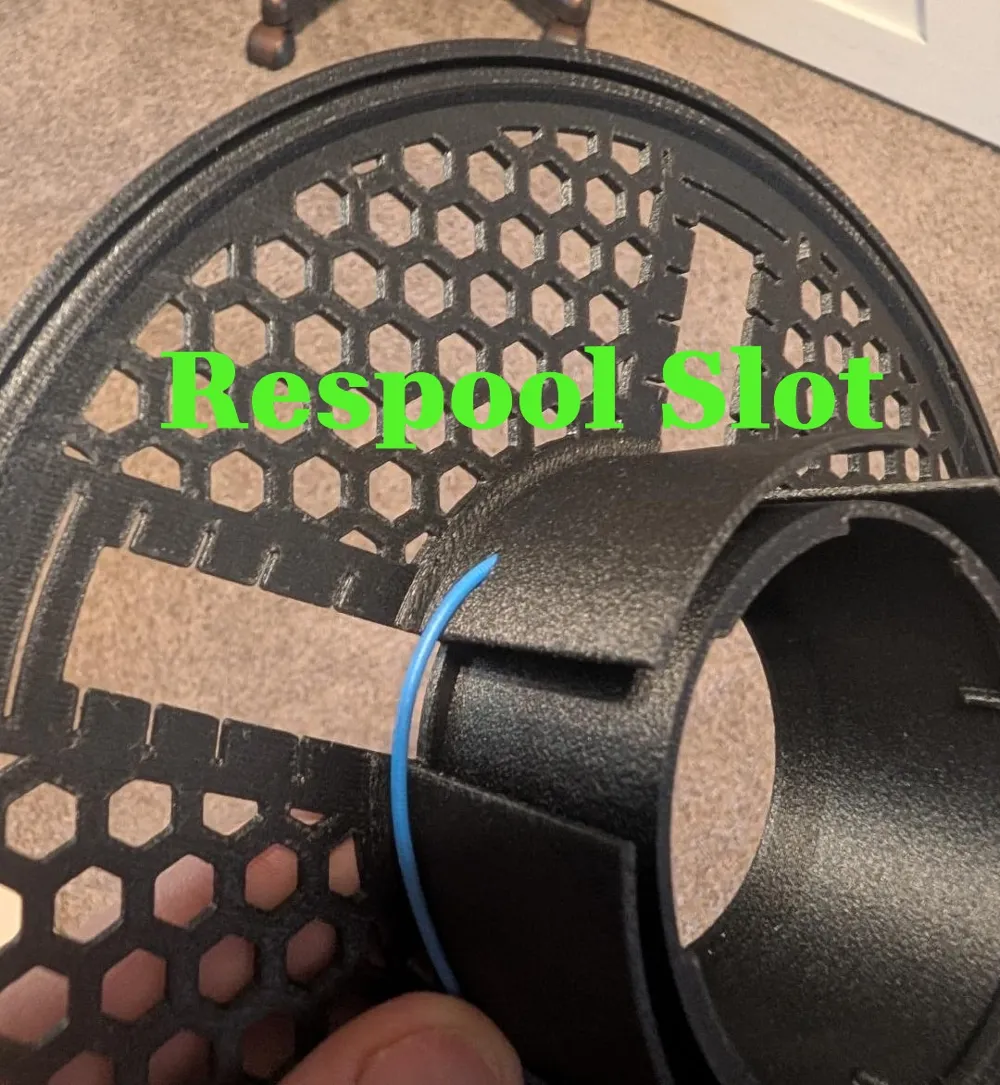

  4. Respooling slot that holds tight for respool but easily releases when using

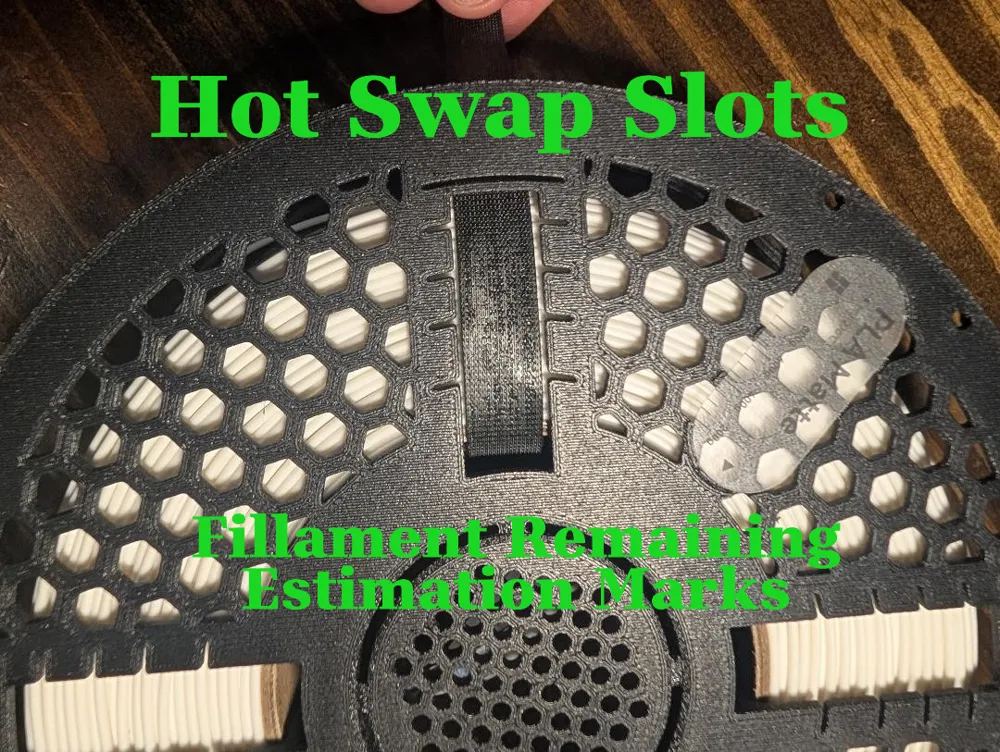

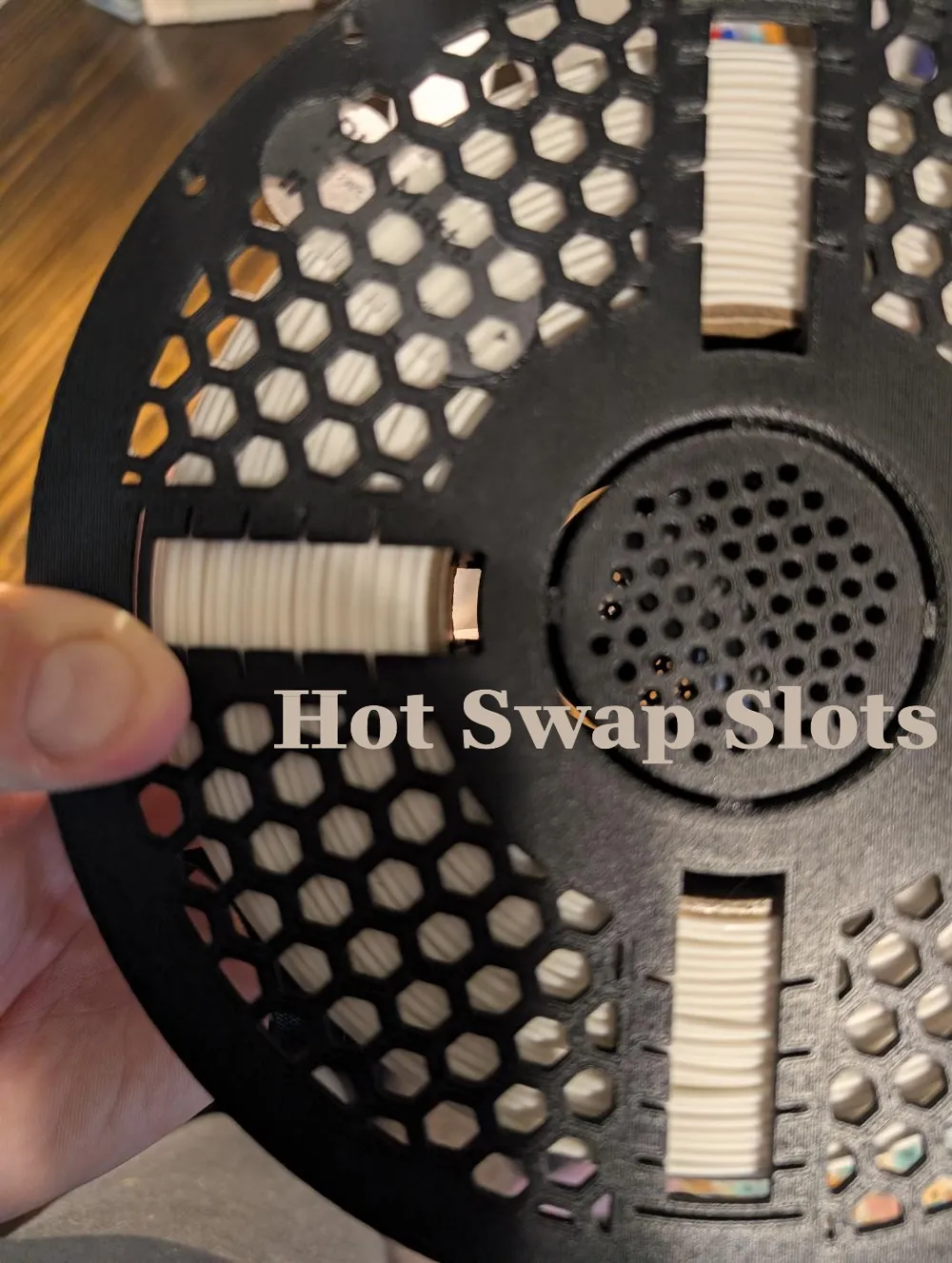

  5. Slots to allow Velcro bands through for hot swapping spools
  6. integrated filament remaining estimation marks that can actually be seen while in the AMS
  7. Bonus: uses a hex design that everyone loves

Printed in ABS GF so it can be used in an AMS HT at full drying temps. Uses 160 grams of filament per spool when printed in ABS GF. Designed around the original Bambu spool. No supports required.
