Gusset Bracket (3030)
Print Profile(1)
Description
Optimized prints. Clean CAD. Complete drawings. Modular T-slot accessories for engineers who care about complete design packages.

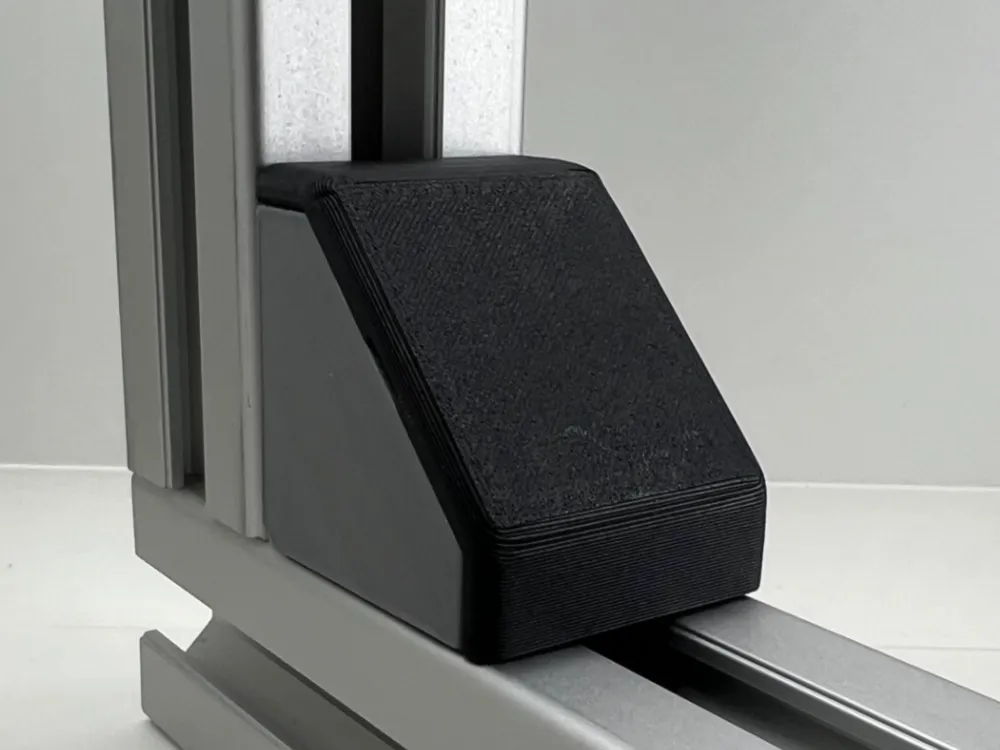

This is an L-shaped corner connector with a Gusset and Cover for 30x30 T-slot aluminum extrusion profiles strong enough for moderate strength structures. The cover snaps on and is easily removed by hand. The gusset greatly improves strength.
If two colors are desired, print them separately!

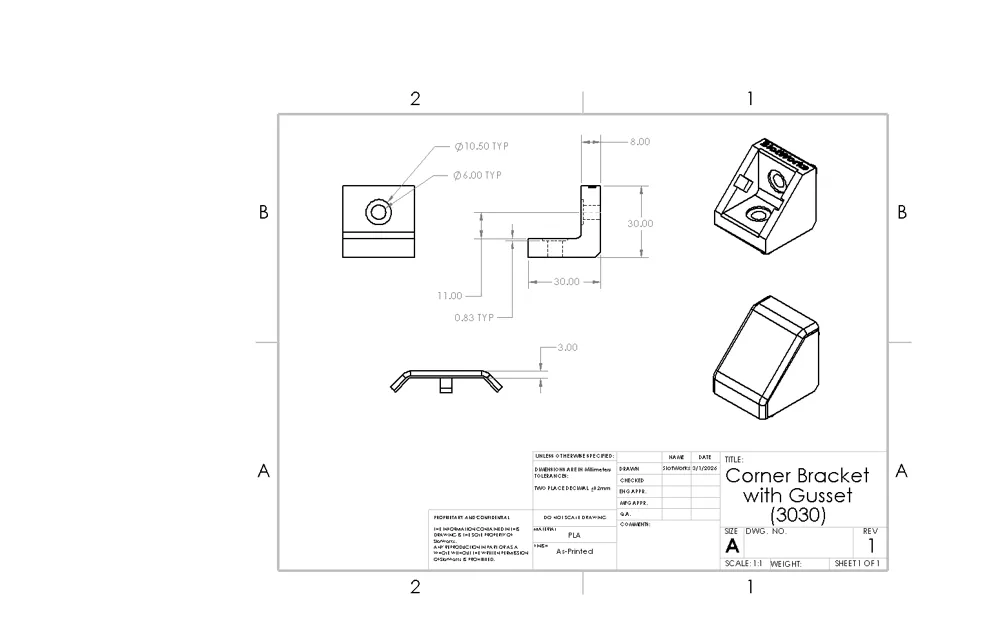

All dimensions are in millimeters.
Like, Boost and Follow me for more!
Recommended Print Settings
Material: PLA
Layer Height: 0.2 mm
Wall Loops: 4+
Infill: 20-100% up to solid (depending on strength needs)
Supports: Engineered Supports (Do not include supports)
Orientation: Print on corner (This is done for optimal strength)
Compatibility
Designed for M6 Screw with 16mm length: T-Slotted Framing, End-Feed Nut and M6 Button Head, 30mm Rail, Sliver | McMaster-Carr
Designed and Tested on 3030 T-slot Aluminum Extrusion: T-Slotted Framing, Single 4-Slot Rail, Black, 30 mm High x 30 mm Wide, Hollow | McMaster-Carr
If anyone has any improvements, suggestions, or requests please DM me.
