Amplified Car Radio Boombox AC Wall Plug
Print Profile(1)
Description

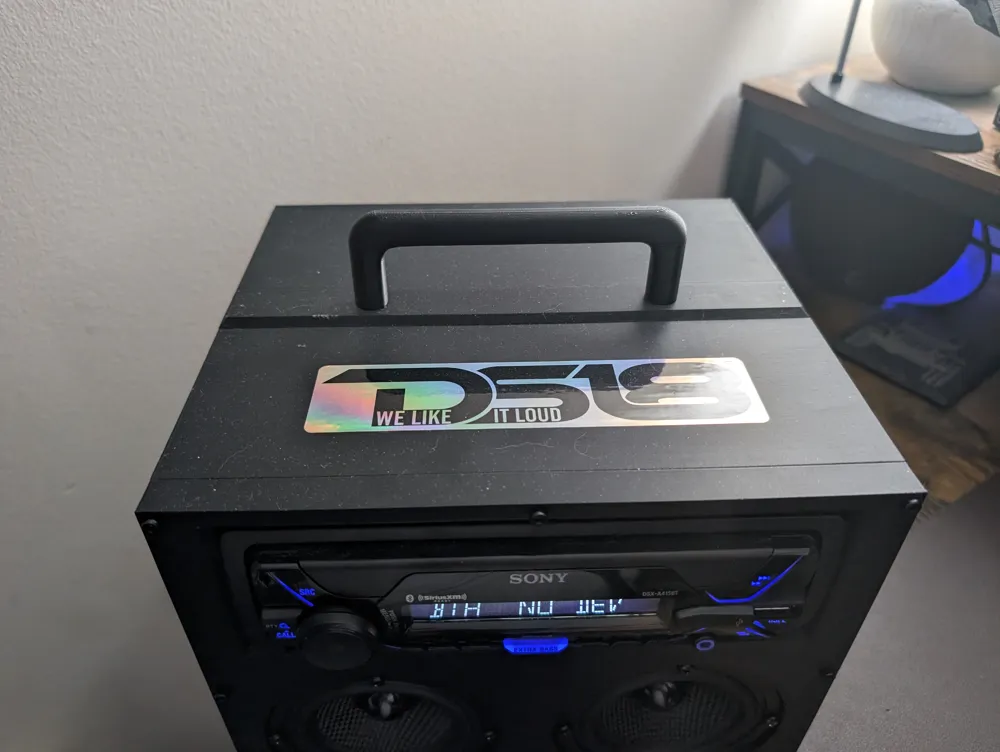

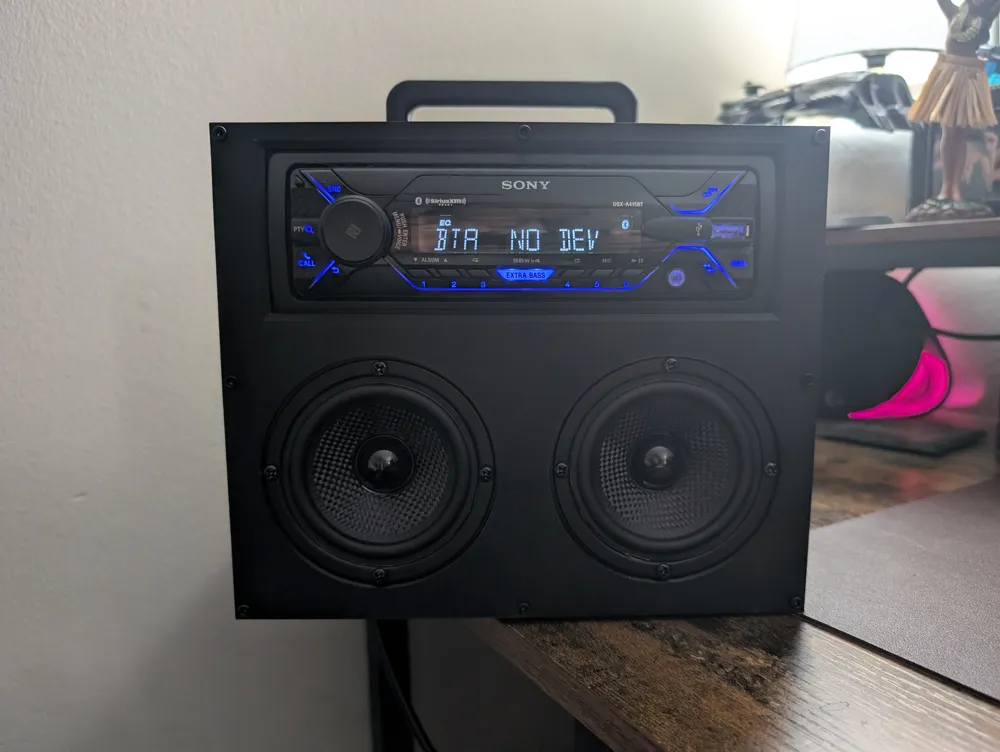

This is a remix of the original boombox created by Rickdod3. My goal was to convert the design into a fully self-powered, wall-plug boombox using a dedicated amplifier and standard AC power supply instead of relying on portable power.

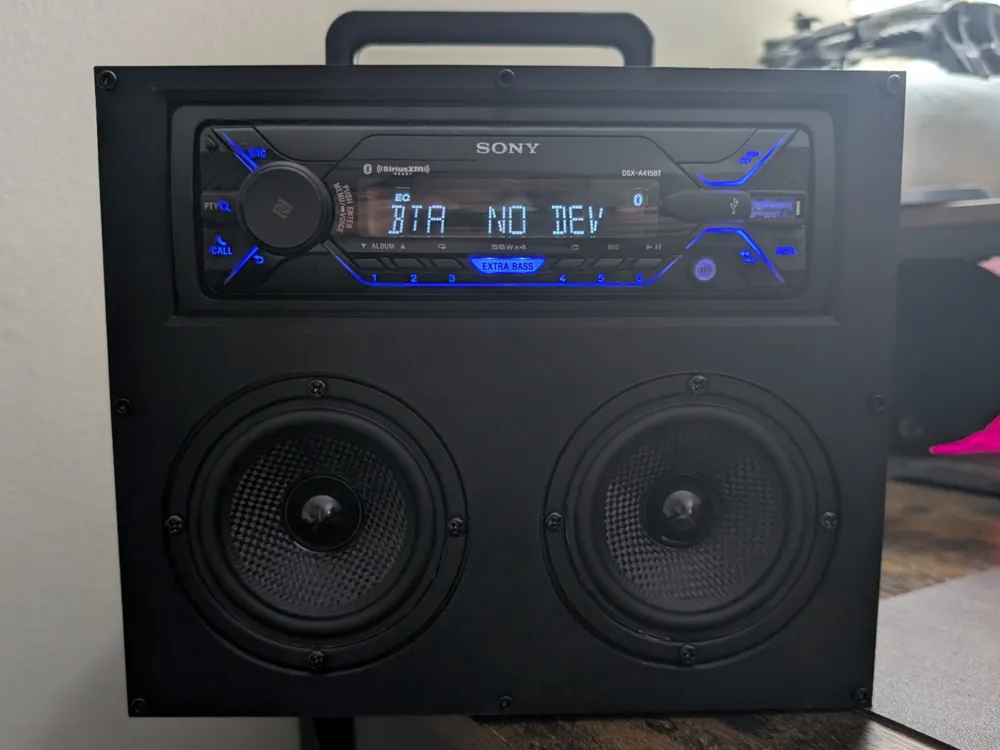

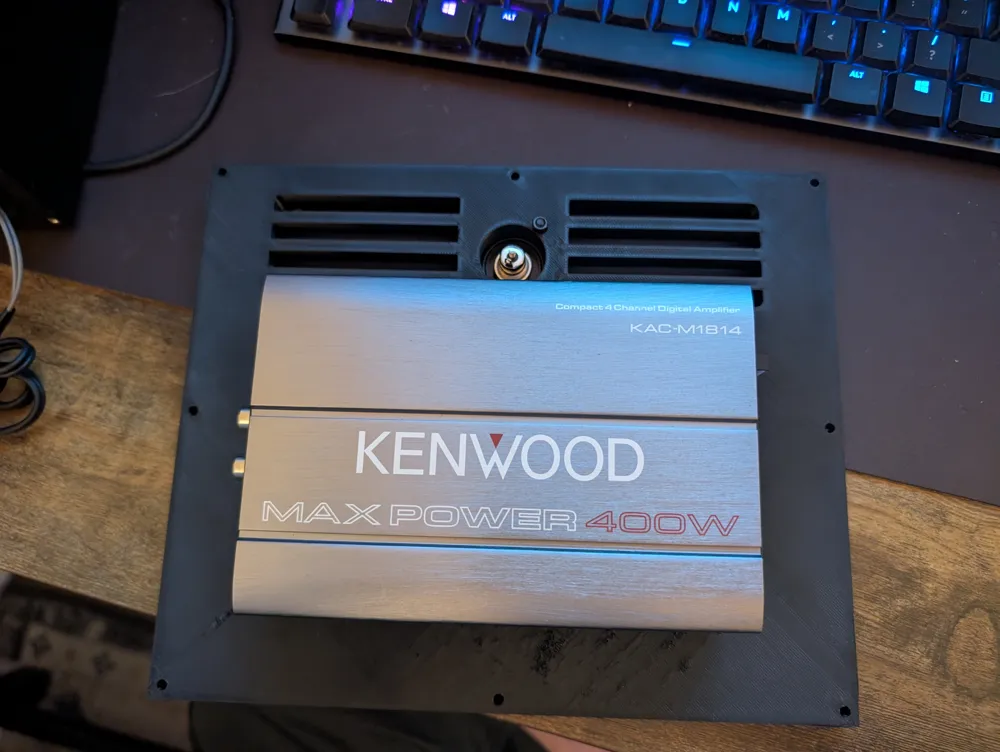

I also redesigned the front speaker mounting face to fit DS18 speakers and modified the rear mounting plate to support the Kenwood amplifier listed below.

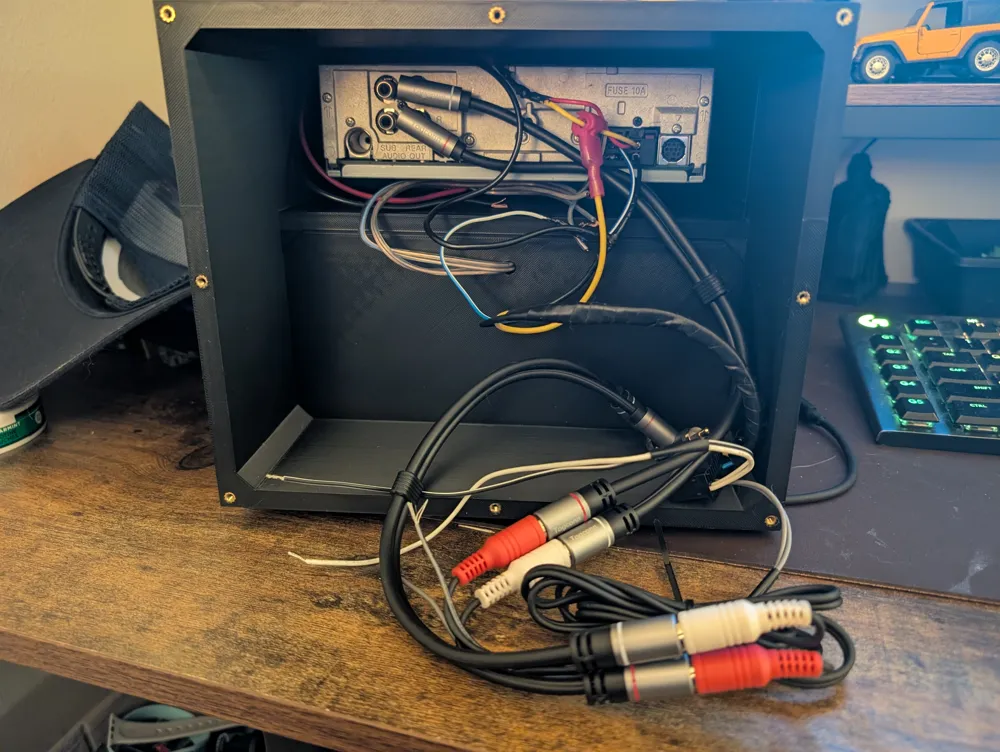

I chose the radio and amplifier because I already had them available as spare car audio components. Other single-DIN radios may work, but you should compare the chassis depth and dimensions to ensure proper fitment. The rear mounting holes in this design are specifically aligned for the Kenwood KAC-M1814 amplifier.
If you use this amplifier, it is important to use the recommended power supply listed below to ensure sufficient current delivery and proper operation.
Print Information
Printed using Bambu PETG Black.
- Main enclosure used approximately 800 g of filament
- Total project filament usage will be close to or exceed 1 kg
- I recommend having two 1 kg spools of PETG available to complete the full project
PETG is recommended for its strength, durability, and heat resistance.
Assembly Hardware
This enclosure is designed to be assembled using:
- M3 screws and bolts
- M3 heat-set inserts
Heat-set inserts are required for proper structural strength and repeated assembly/disassembly.
Materials List
Heat-Set Inserts:
https://www.amazon.com/dp/B0CXXS3LHD
M3 Hardware Kit:
https://www.amazon.com/dp/B0CSX4NX7R
Speakers (DS18):
https://www.amazon.com/dp/B09GBJYNF4

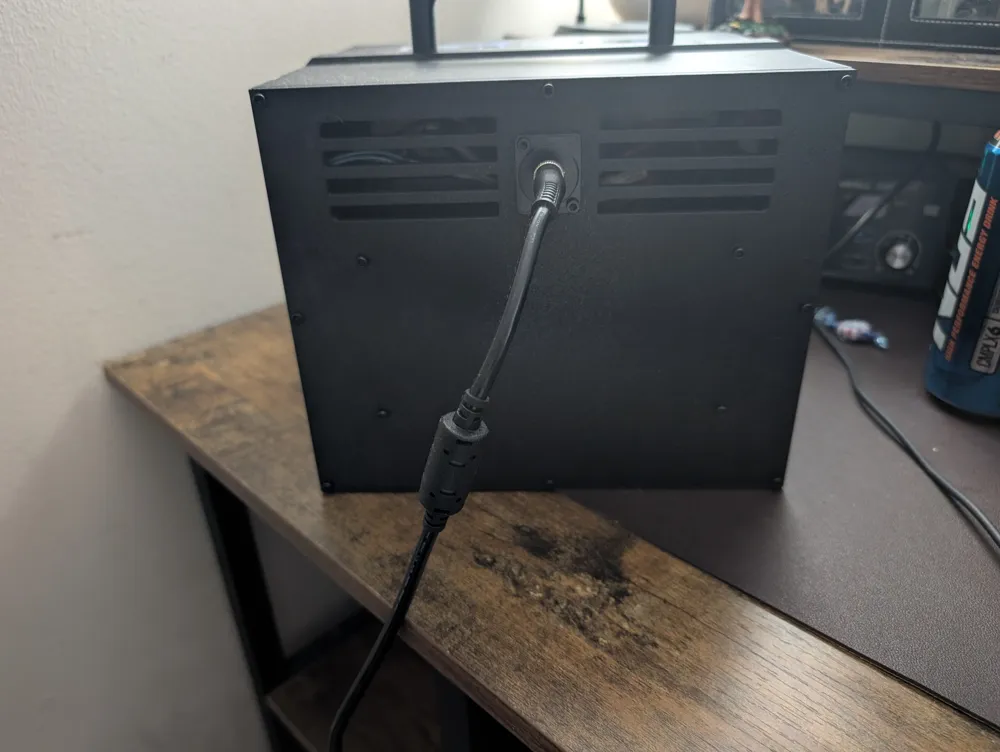

Panel-Mount Power Port:
https://www.amazon.com/dp/B0BJ6TNHC4
Power Supply (Required for listed amplifier):
https://www.amazon.com/dp/B0CZ76B6RN
Amplifier:
Kenwood KAC-M1814 Compact 4-Channel Amplifier
https://www.amazon.com/dp/B097DGV7FG
90-Degree RCA Extensions:
https://www.amazon.com/dp/B0C4H4B41R
RCA Cable:
Included with the amplifier
Compatibility Notes
- Designed specifically around the Kenwood KAC-M1814 amplifier
- Designed specifically for DS18 speakers listed above
- Other radios and amplifiers may work but are not guaranteed
- Always verify dimensions before purchasing alternative components
Credits
Original boombox design by Rickdod3
This remix modifies the enclosure to support wall power, an external amplifier, and alternative speakers.
