4 nozzle bag dryer for silicone reusable bags
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
8.4 h
1 plate
Open in Bambu Studio
Boost
4
11
4
0
1
1
Released
Bill of Materials
List other parts
- (optional) panel mount for the power x 1: https://amzn.to/4nJC8jM
- 30mm fan x 4: https://amzn.to/3MNTi1o
- 12v power supply x 1: https://amzn.to/3ZPLOOs
- 12mm latching switches x 1: https://amzn.to/40puHDi
Description

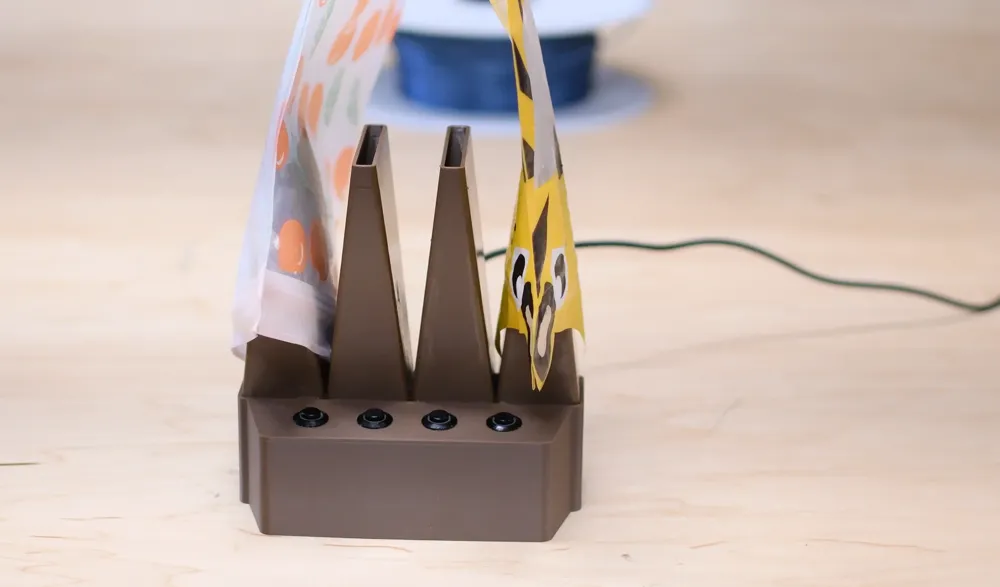

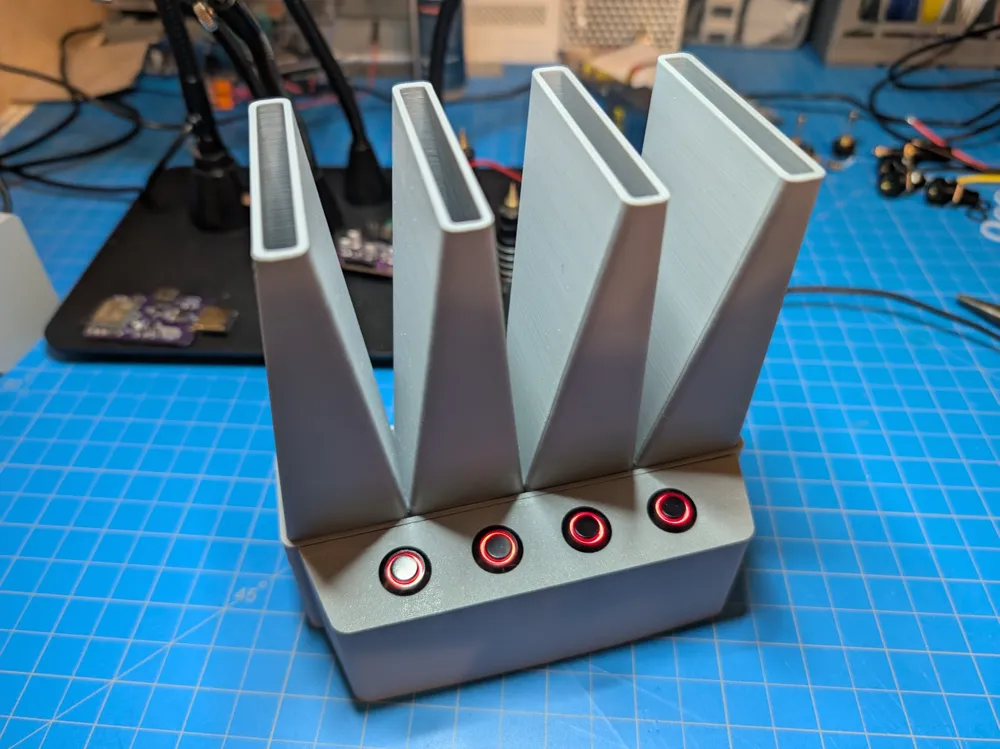

This is a 4 nozzle bag dryer. You could also use it to dry gloves. We use it to dry reusable sillicone bags.
You need 4 switches, a 12v power supply and four 30mm fans

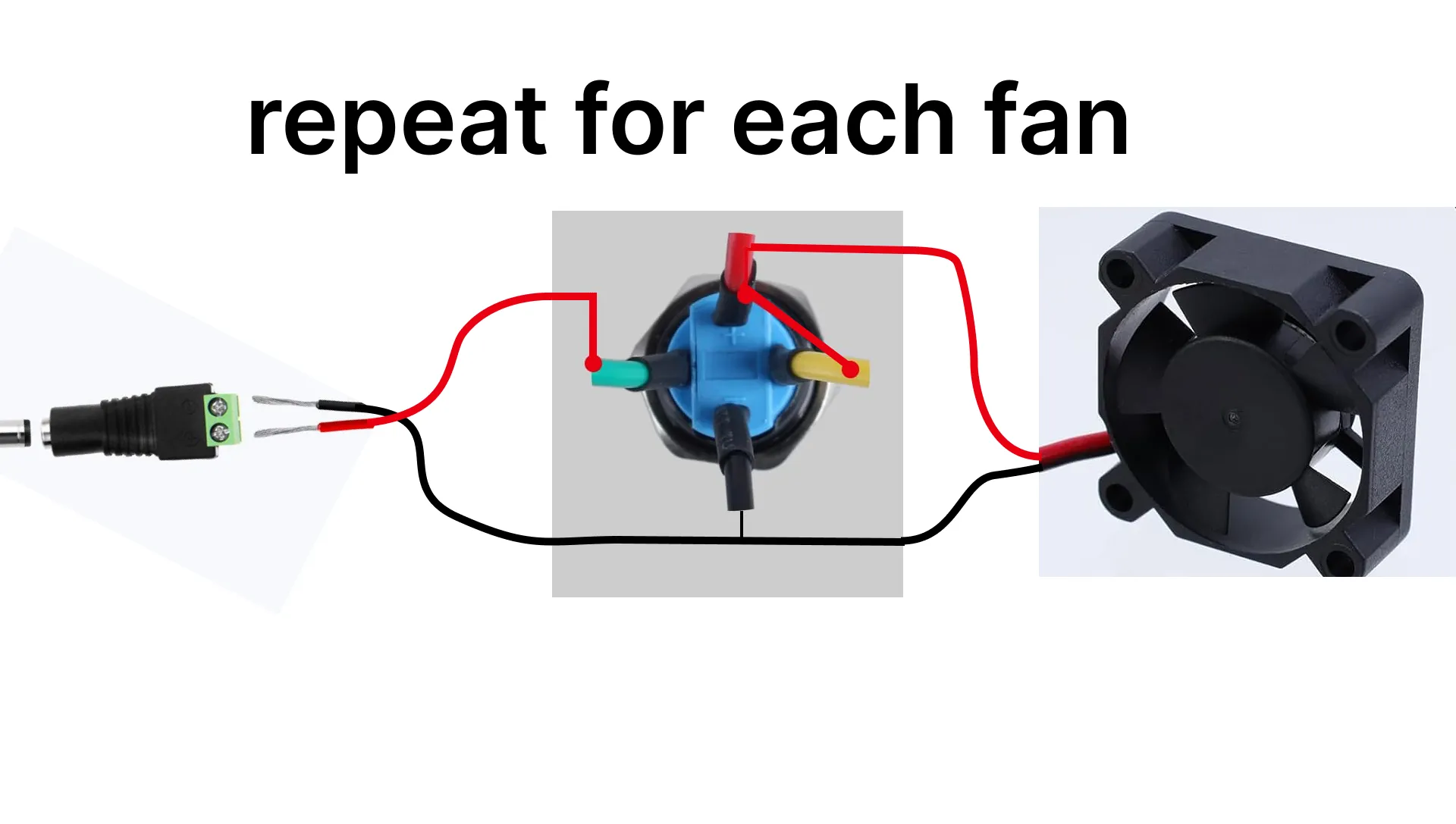

WIRING:

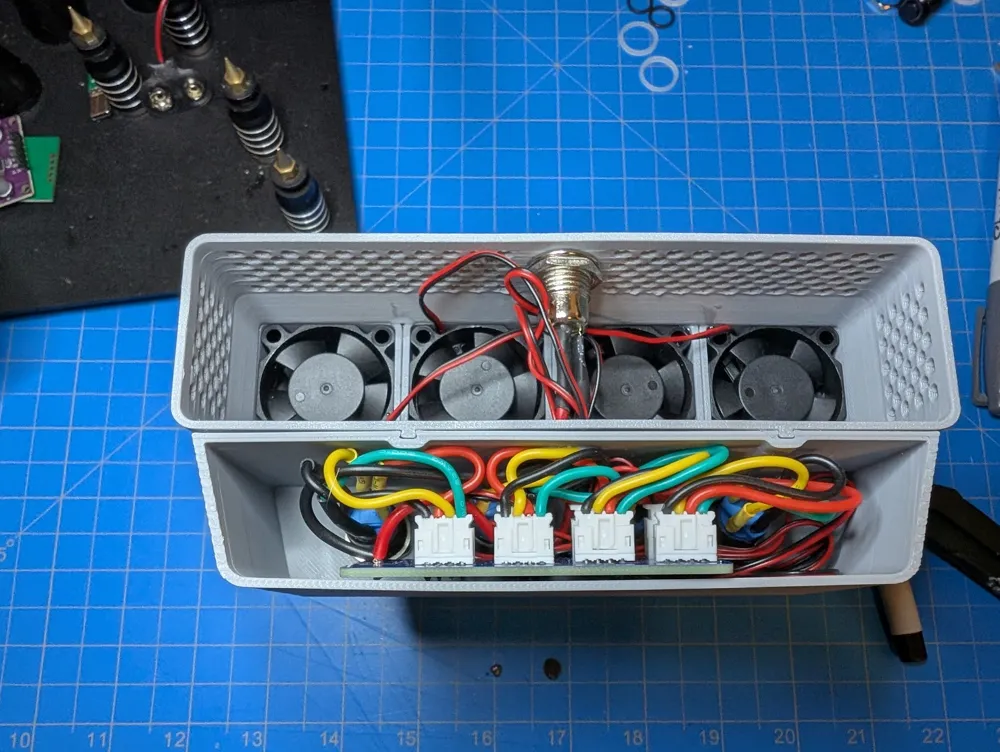

The video shows a PCB, but this is not required, I made it when I was thinking about possibly selling this design, but the wiring is very simple.
12v input positive (red) goes to all 4 switches GREEN wire
12v input negative(black) goes to all 4 switches BLACK wire + all 4 fans black wire (basically conenct all black wires)
Yellow + Red from switch goes to the fan it control's red wire
that's it!
Here's a video where I show this off:
