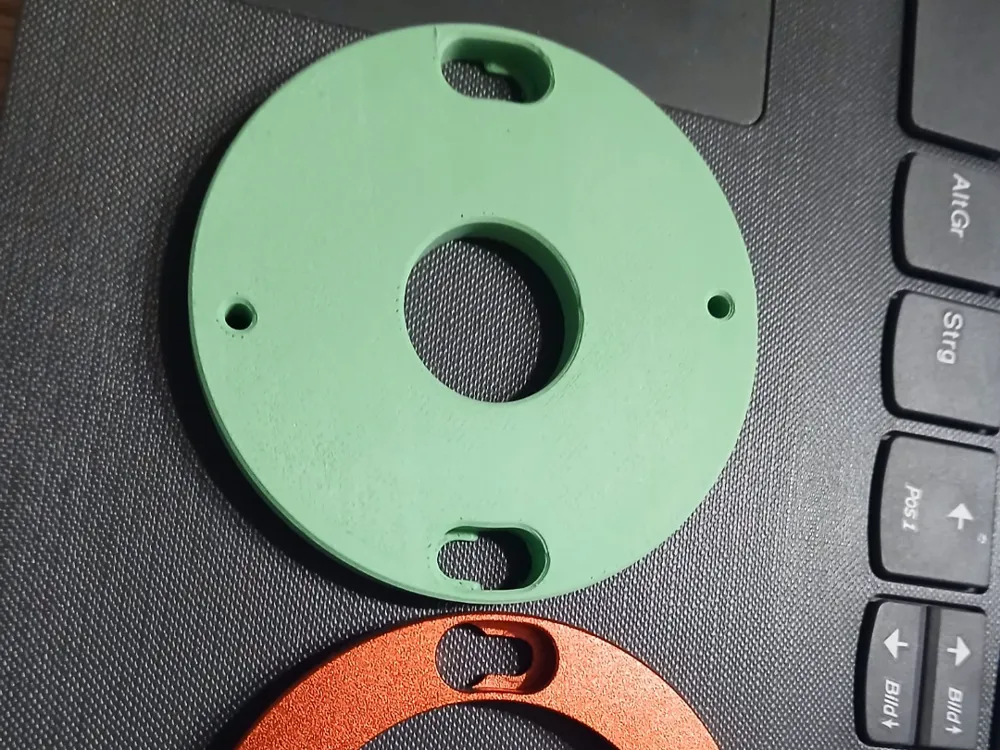

Insert Plates for Router Lift – Ø 65 mm / Ø 30 mm
Precisely manufactured insert plate for router lift systems
Ideal for reducing the opening around the router bit and for clean, safe routing work
Dimensions
- Outer diameter: 65 mm
- Inner diameter: 30 mm
Perfectly suited for router bits with a 30 mm diameter or as a reduction insert for appropriately designed router lifts.
Advantages
- Clean workpiece support
- Reduced gap around the router bit
- Less tear-out on the underside
- Increased safety for smaller workpieces
Print Settings (Recommendation)
Printed on a Bambu Lab P1S
- Material: PLA / PETG (recommended for higher stress: PETG or ABS)
- 35–50% Infill
- 4–5 wall lines
- 0.2 mm layer height
Notes
- Check fit before first use.
For very high speeds or continuous stress, use more heat-resistant material.
