MP5 9mm Magazine Speed Loader / Unloader
Print Profile(2)
Description
This is a NEW Magazine Speed Loader / Unloader for the MP5 9mm!
This Loader like my others uses minimal hardware and can be printed in just a few hours!
If you need to unload your Mags quietly use the “step” in the Trigger to Unload the Magazine!
Also like my others this is designed to be printed in PLA (ESUN) and uses a single screw and spring!
Function video below
Needed to complete
1x m3 x 25mm Socket head screw for the Trigger Hinge pin
1x spring 8mm OD, 0.8 wire, 20mm long for the Magazine Release
Amazon Hardware links
Spring
Screws kit
https://a.co/d/0hvuWZ19

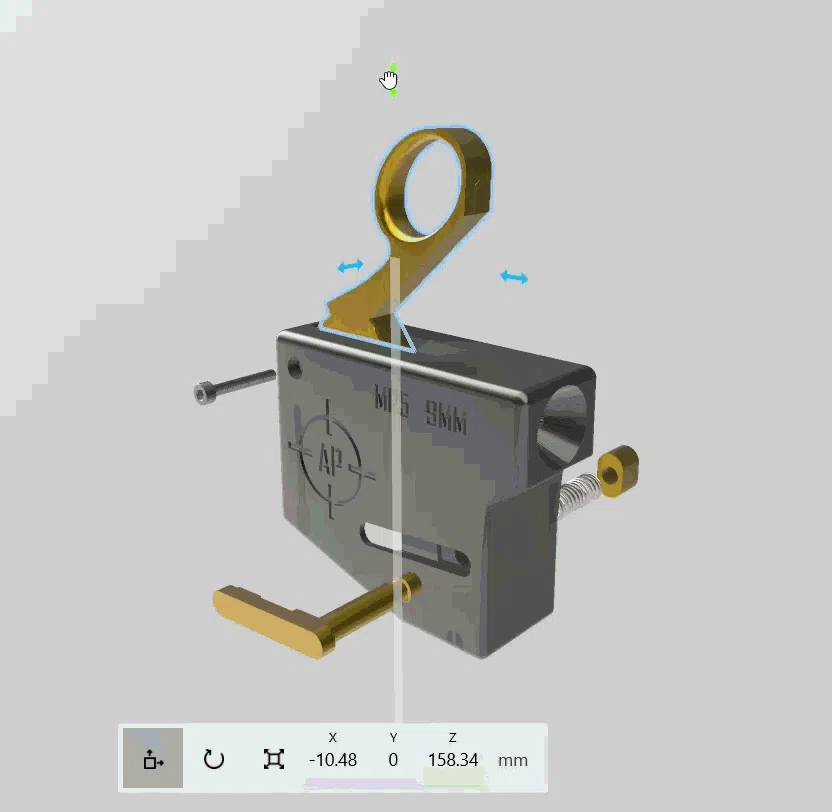

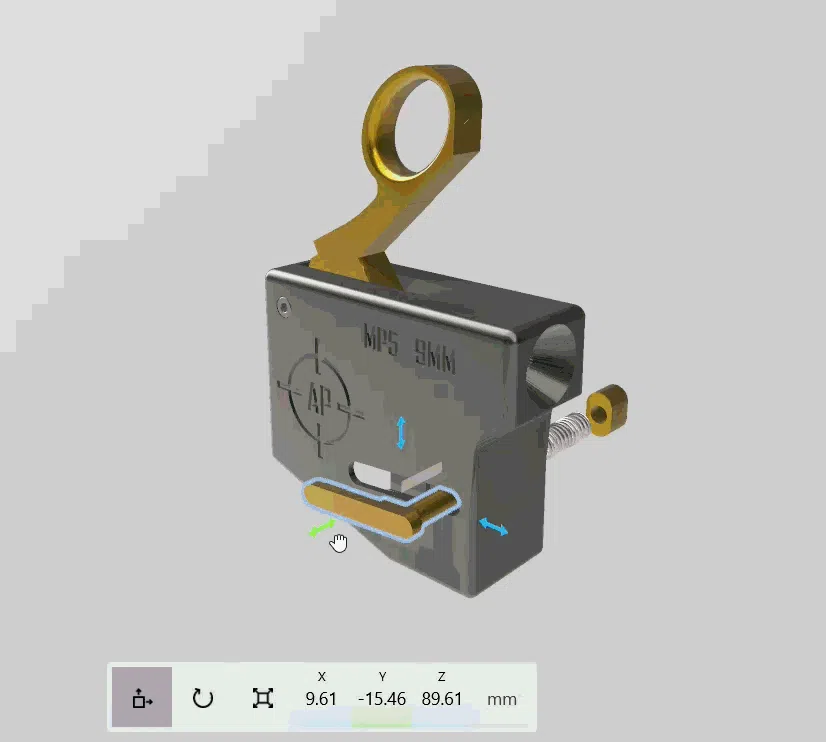

Assembly is simple, see images
NOTE
While this loader looks and feels the same as my others, it requires a little attention to the first round being loaded. After inserting the first round (and potentially others after) make sure it lies flat within the loader on top of the follower. Due to the geometry of the 9mm round and lever, the rounds can stand up vertically and prevent proper operation. Simply give a gently shake to lay the round down and begin loading.
Happy Loading
