Rapoo Gen 2 PCB in Endgame Gear OP1 Shape Mouse

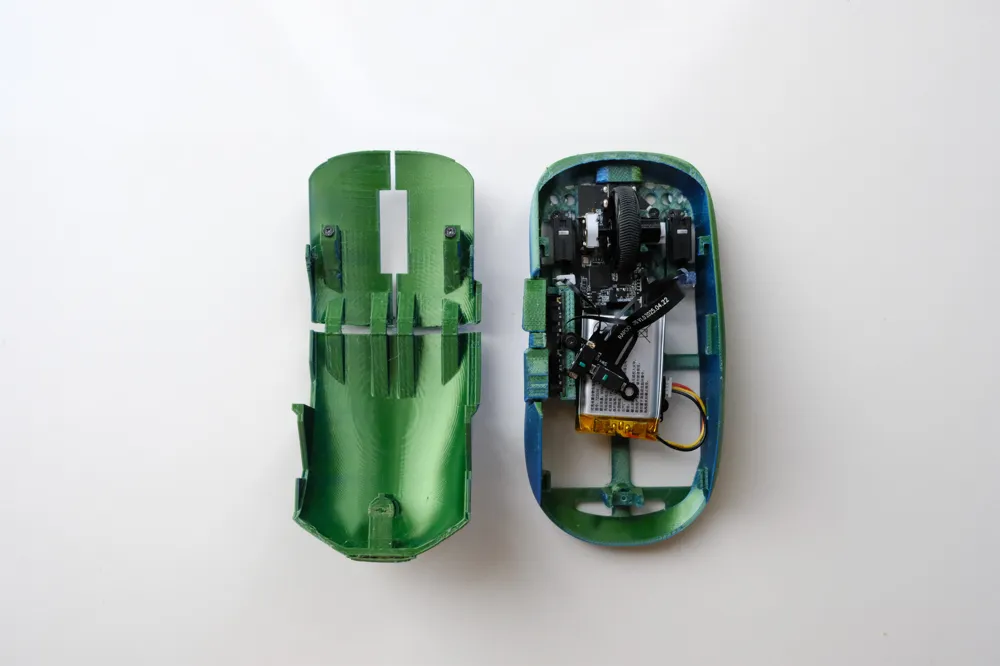

Op1 inspired shape like the original by zoroseerus, but using Rapoo Gen 2 PCB. I used VT1 standard internals. But it should work with any Gen 2 mice (same PCB) with 11 cm encoder or shorter, so most of the lineup. Side button PCBs should be the same but I cannot confirm.

Top / hump variants

- Op1

- X2H medium

- Duckbill

- Np01s Ergo (experimental)

Bottom and side variants

- Op1

- Np01s ergo

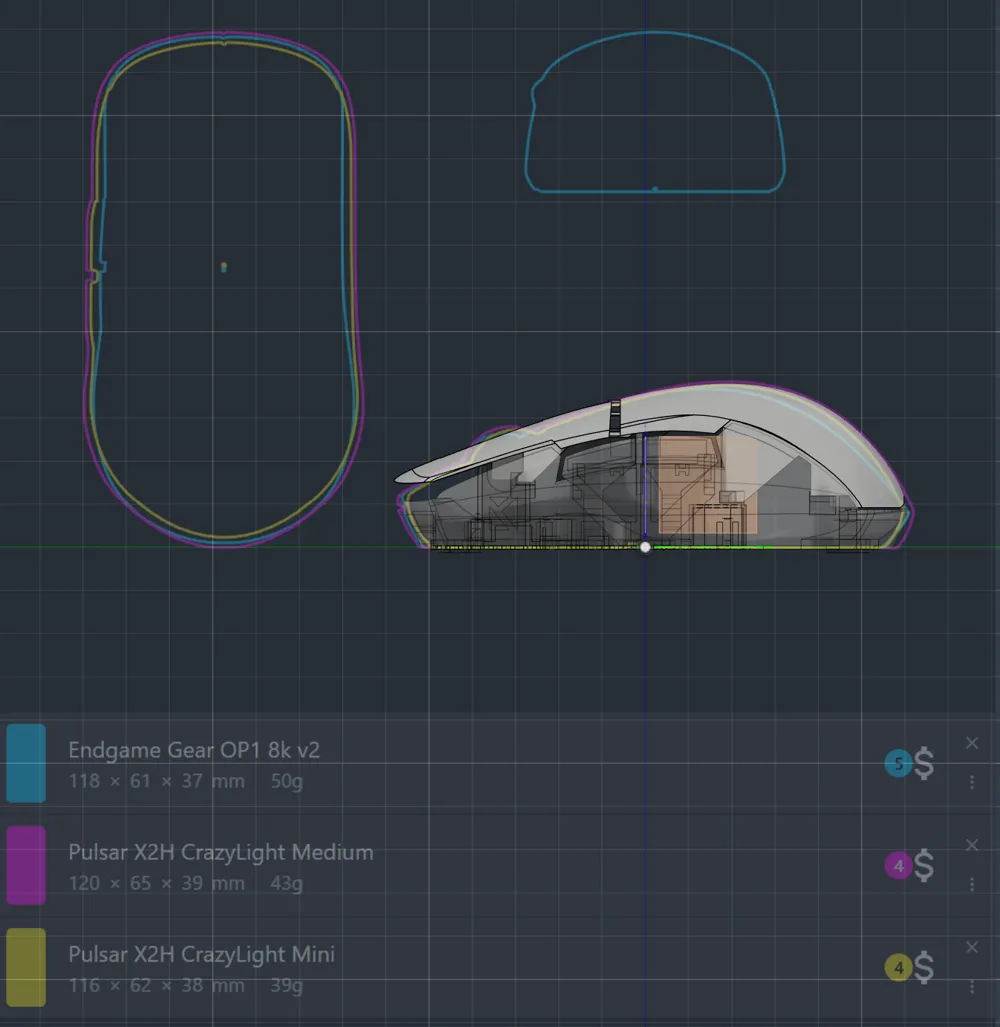

See ManPhalanges's extremely helpful sheet: https://docs.google.com/spreadsheets/d/12jjOAsstn5d8HCQ5f5Y3wgKbxemBJBxaIzOqEDu6hTc

This is a good platform to build more tops with different shaped humps. Feel free to remix and upload so we have more variety of shapes we can quickly swap between. Switch holder can be used to test the click feel with just the shell and two mechanical switches.

Credits:

- zoroseerus for the base model and the mechanism

- 冰神ICEKING / Westlab for publishing a Rapoo pcb mount and collecting shapes used to guide the mod.
