Bally C-812-1 Relay Switch Actuator 4 Slot/3 Row
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill AMS required PLA/PETG
Designer
25 min
1 plate
Open in Bambu Studio
Boost
2
6
2
0
2
1
Released
Description

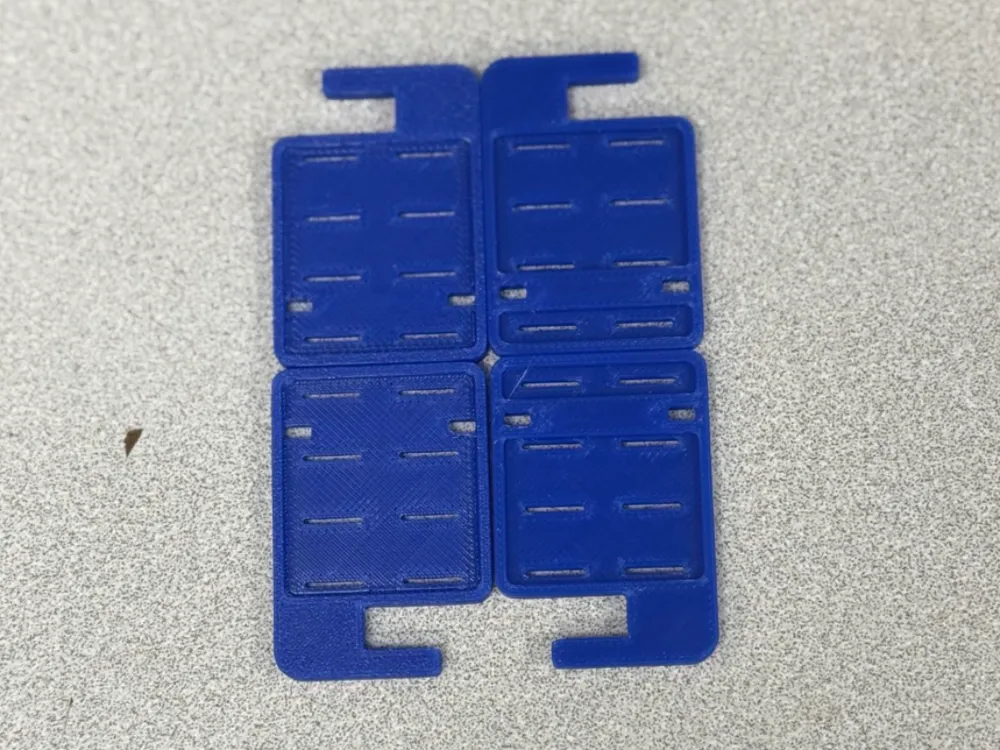

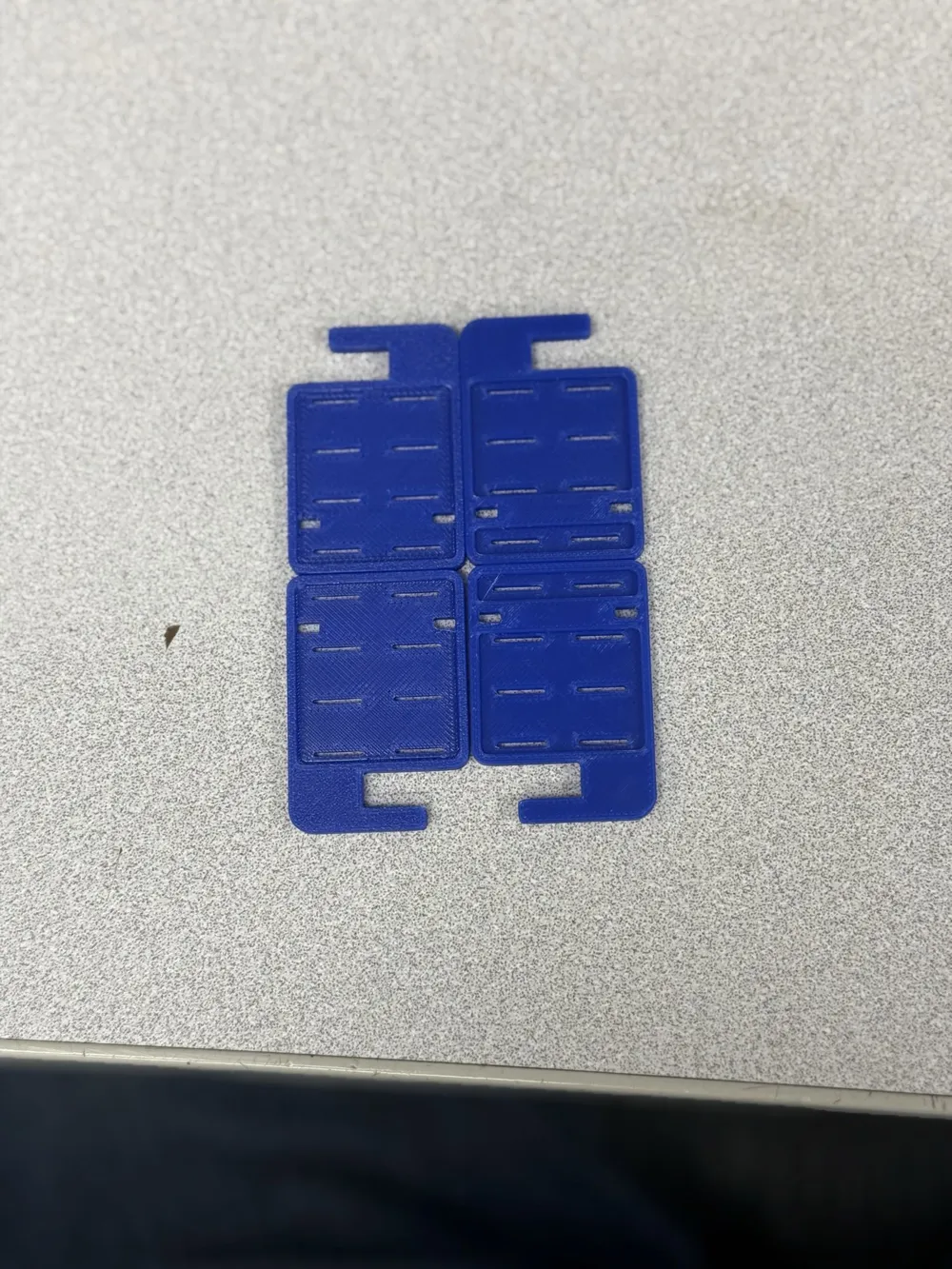

Plastic switch actuator for relay assemblies in many Bally EM pinball machines made between 1971 and 1977.

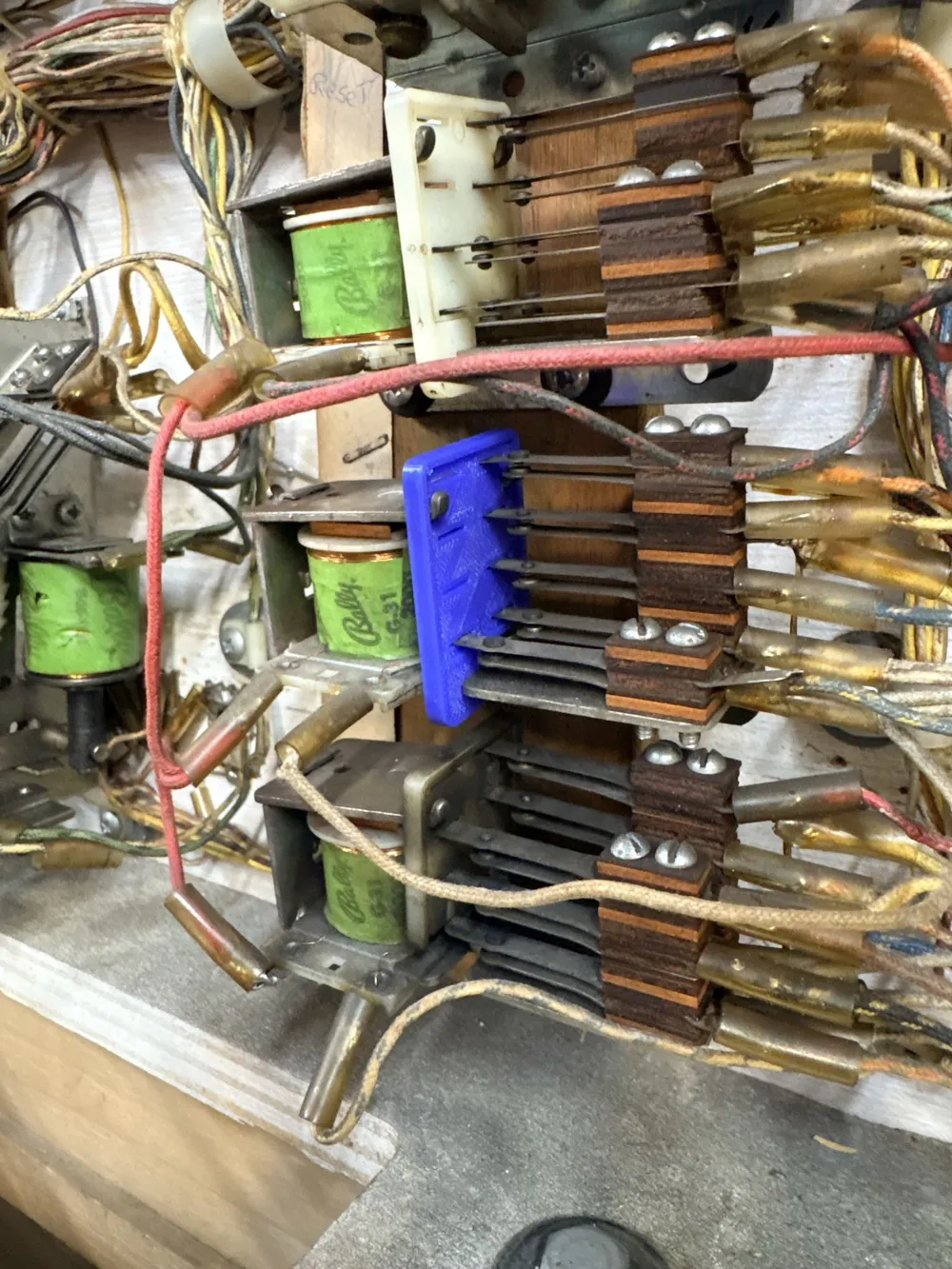

Mounts to metal relay armature and actuates relay leaf switches when relay is energized. Accommodates up to 8 switches in 2 rows. Measures approx. 1-11/16 inch x 1-3/16 inch.
Please make sure your game uses this shape/style actuator before printing, as a few different styles and sizes were used over the years.
