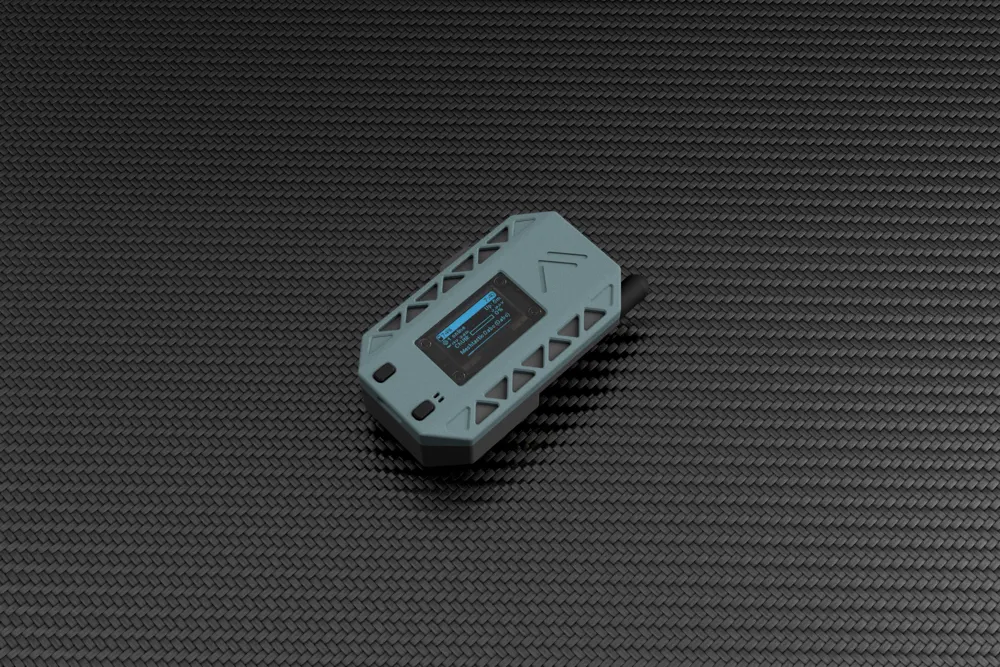

Heltec LoRa v4 case with interchangeable color shells
Print Profile(2)
Description
Note:
Prepare 4 M2x10 flat head screws;
3 M2x14 screws;
1 M2x3 screw;
One 103040 (1200mAh) lithium battery;
SMA antenna base + rubber duck antenna;
Installation tutorial:
Shell replacement tutorial:

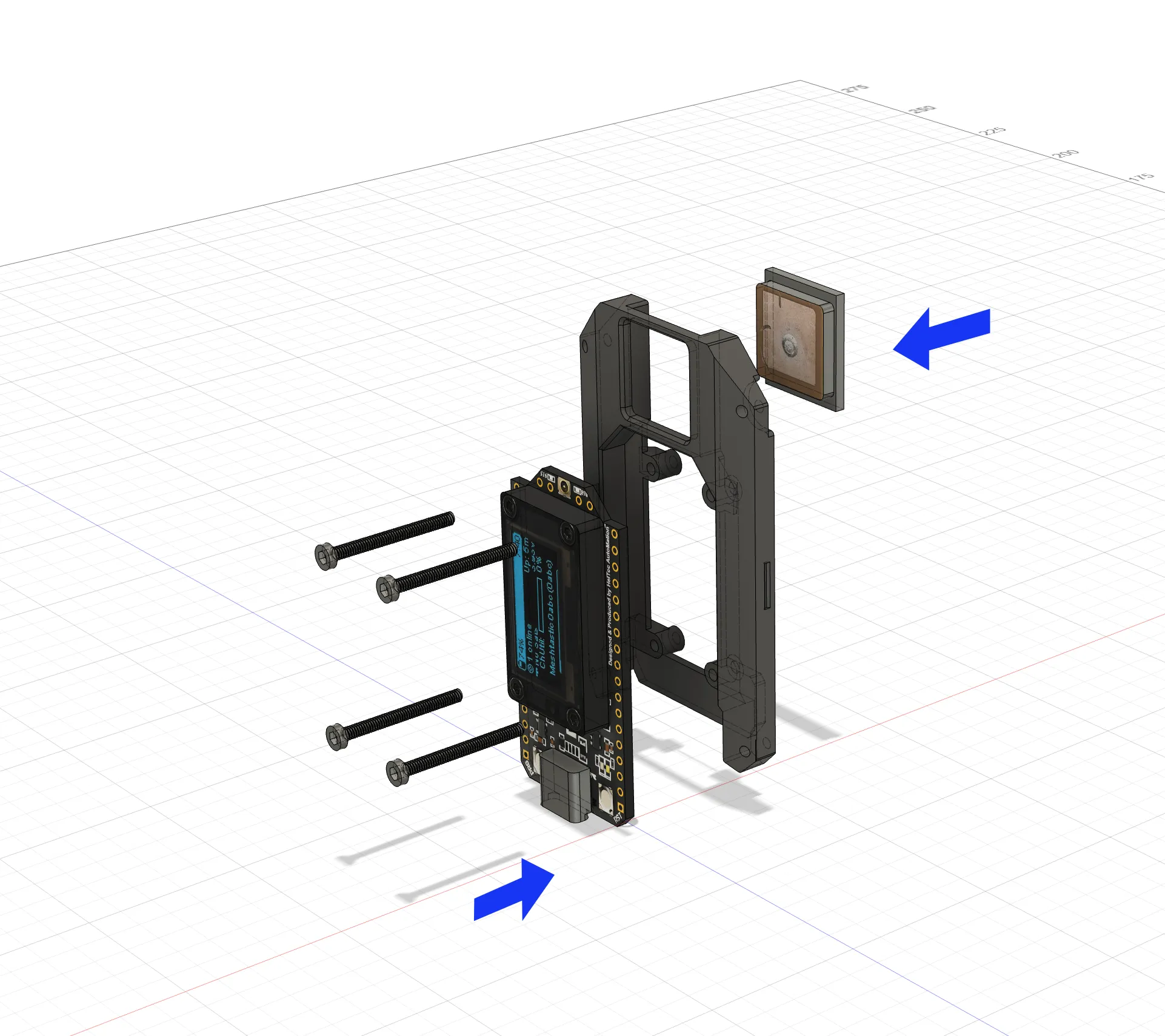

Step1: Remove the original 4 screws from the development board, and install the GPS and development board onto the frame with 4 M2x10 flat head screws

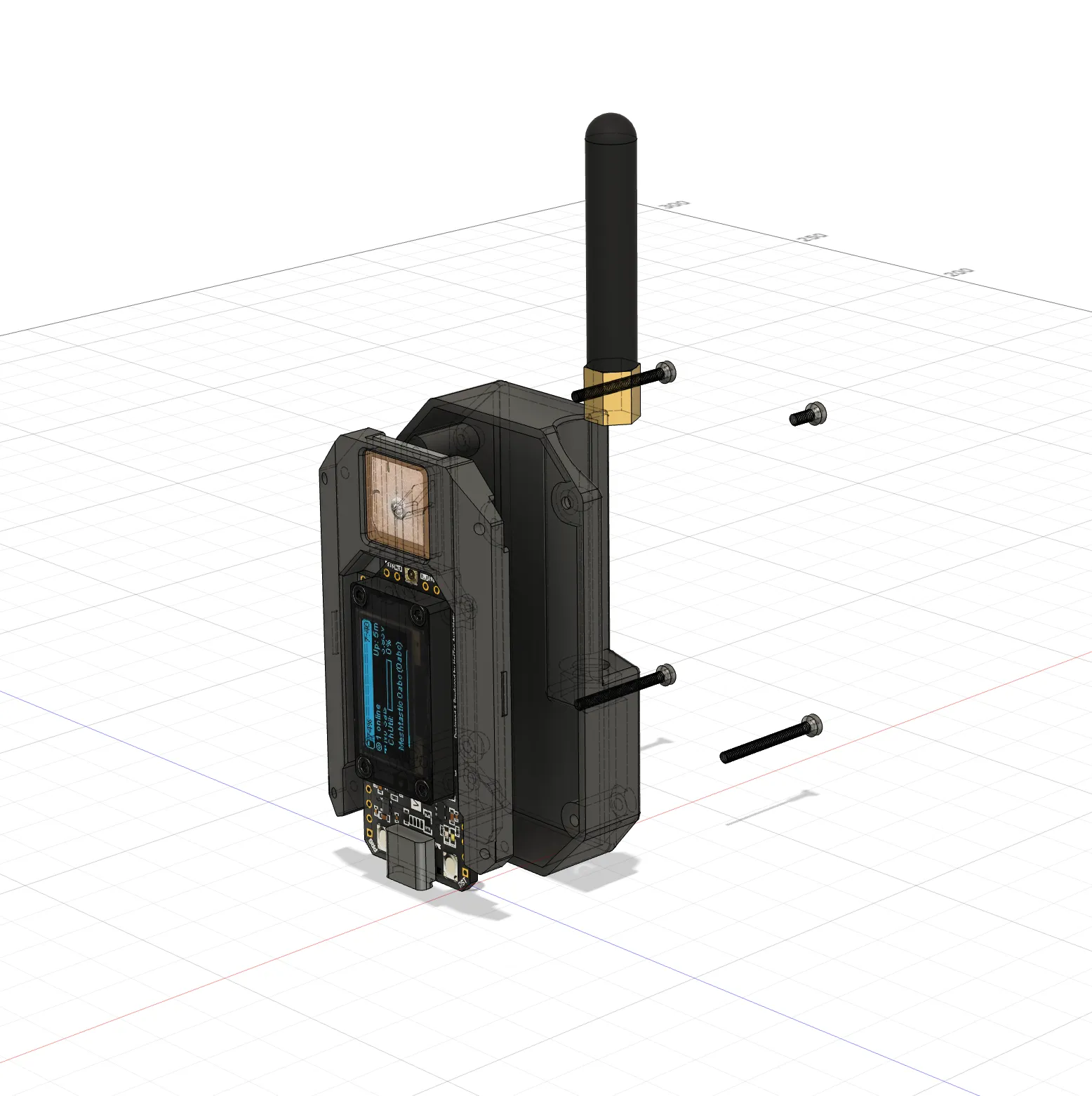

Step2: Install the SMA antenna and battery onto the back case, then attach the frame to the back case with 3 M2X14 screws and 1 M2X3 screw;

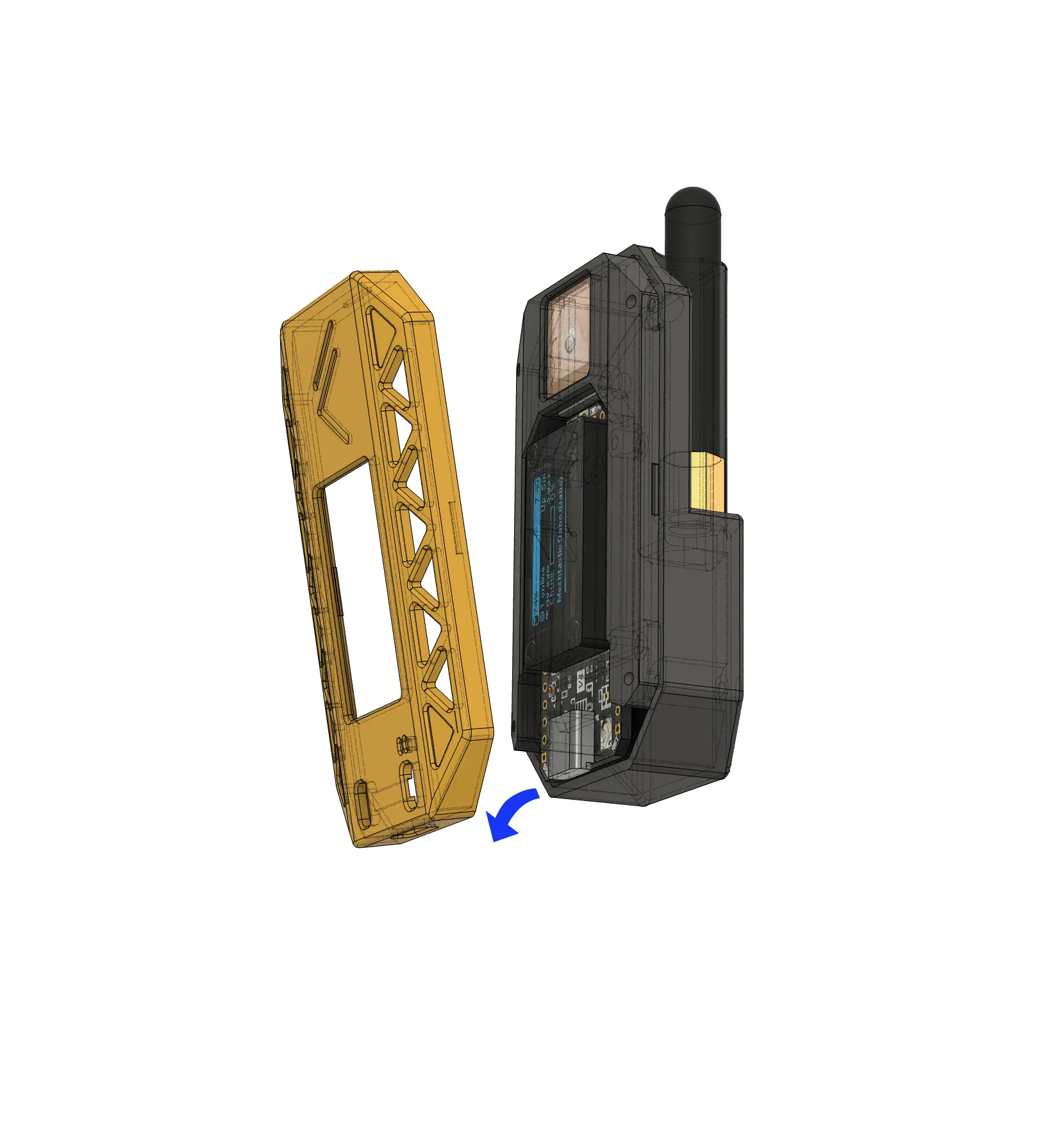

Step3: Insert the colored case from the bottom into the USB port to install it; if unsure, please watch the installation video;
