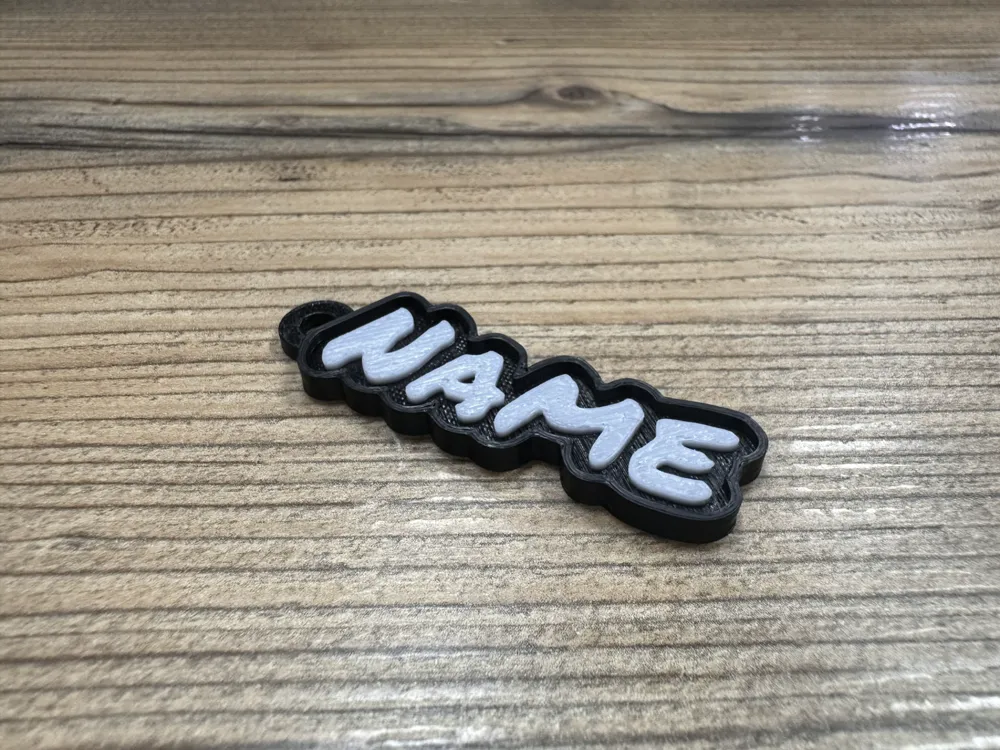

Ultimate 100-Font Name Tag Maker | Customizer
IP Report
This model is created by Parametric Model Maker
Make Your Model
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
28 min
1 plate
Open in Bambu Studio
Boost
19
51
0
6
100
28
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
Boost Me (for free)
Please consider boosting me if it's helpful for you. It would be a great support for me.
Project Features
- Massive Font Library: Access 100 curated fonts organized into 5 thematic groups (20 fonts each). From bold modern sans to elegant scripts, there is a style for everyone.
- Instant 2x10 Grid Preview: Use the "All" mode (Font_Index = 0) to render all 20 fonts in a group at once. Compare styles side-by-side in seconds!
- Parametric Keychain Loop: Fully adjustable hanging hole. Fine-tune the diameter, anchor thickness, and precise X/Y positioning to fit your specific keyring or lanyard.
- Raised Decorative Rim: Toggle the "Enable_Wall" feature to add a professional border. It’s the perfect detail for high-contrast, multi-color prints.
- Visual Color Presets: Built-in simulation for 8 popular filament colors (Ghost White, FireBrick, Royal Blue, Gold, etc.) to help you plan your design directly in the previewer.
- Mobile Friendly: Fully compatible with the MakerWorld Customizer—design and generate on your phone or desktop.
Detailed Instructions
1. Basic Configuration
- Text_String: Enter your name or preferred text.
- Group_Number: Select a font group (1 to 5). Each group contains a different aesthetic mix.
- Font_Index:
- Set to 0 (All): Displays a 2-column grid of all 20 fonts in that group.
- Set to 1–20: Selects the specific font you want for your final model.
- Show_Labels: Keep this ON while browsing. Switch to OFF before exporting your STL to remove the ID tags.
2. Structure & Styling
- Enable_Wall: Turn this on to add a professional raised outer rim.
- Base_Thickness: Adjust the thickness of the backing plate (2.0mm recommended).
- Wall_Height: Set the rim height (3.5mm is the default for a distinct multi-color effect).
3. Positioning the Keychain Hole
- Hole_Diameter: Standard size is 4.0mm.
- Hole_X/Y_Adjust: If your text is long or a specific shape, use these sliders to shift the loop so it doesn't overlap with the characters.
4. Printing Tips
- Multi-Color: This model is optimized for layer-based filament swaps.
- Layer Height: A height of 0.16mm or 0.2mm is ideal. For script fonts with fine details, 0.12mm is recommended for the best finish.
- Ironing: Enable "Ironing" on the top surface for a smooth, premium look.
Boost Me (for free)
Please consider boosting me if it's helpful for you. It would be a great support for me.
