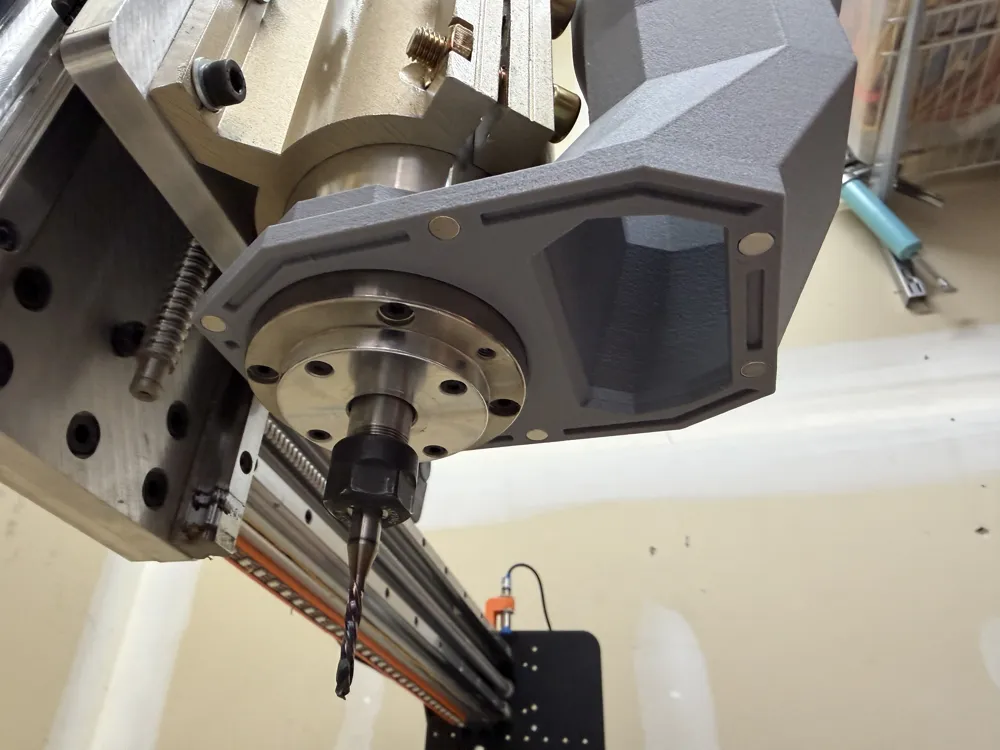

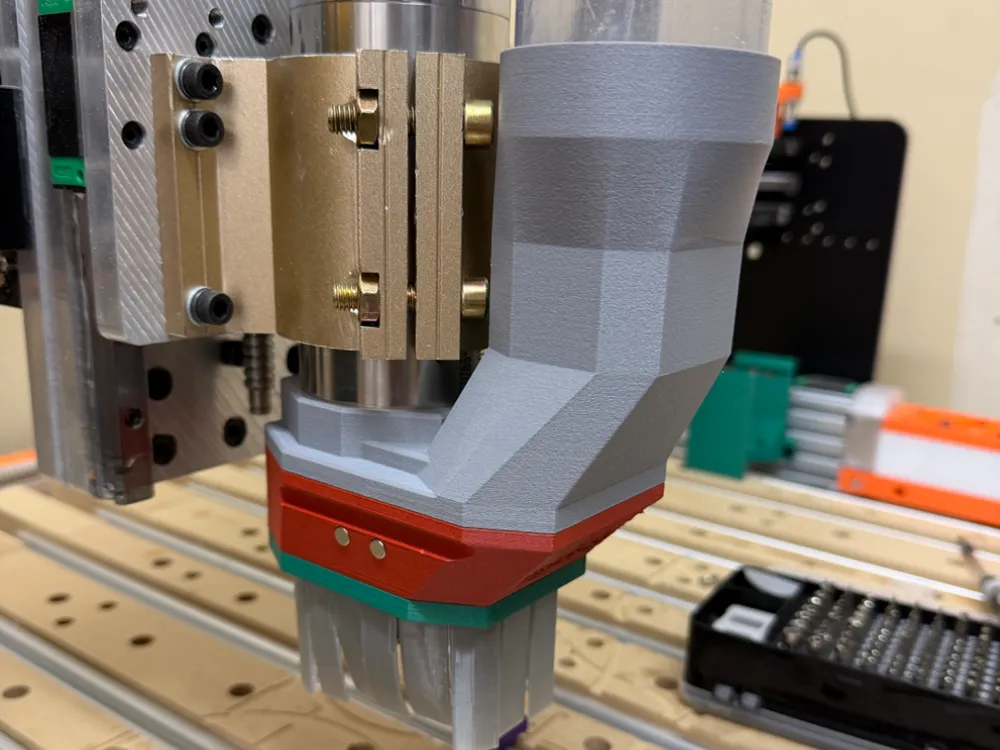

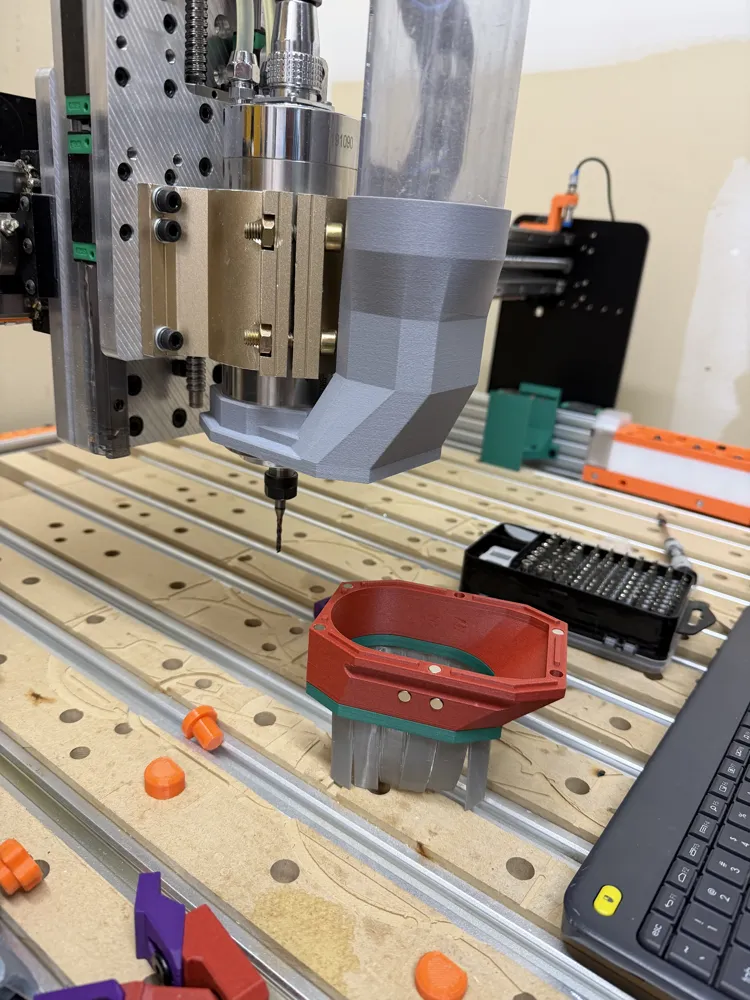

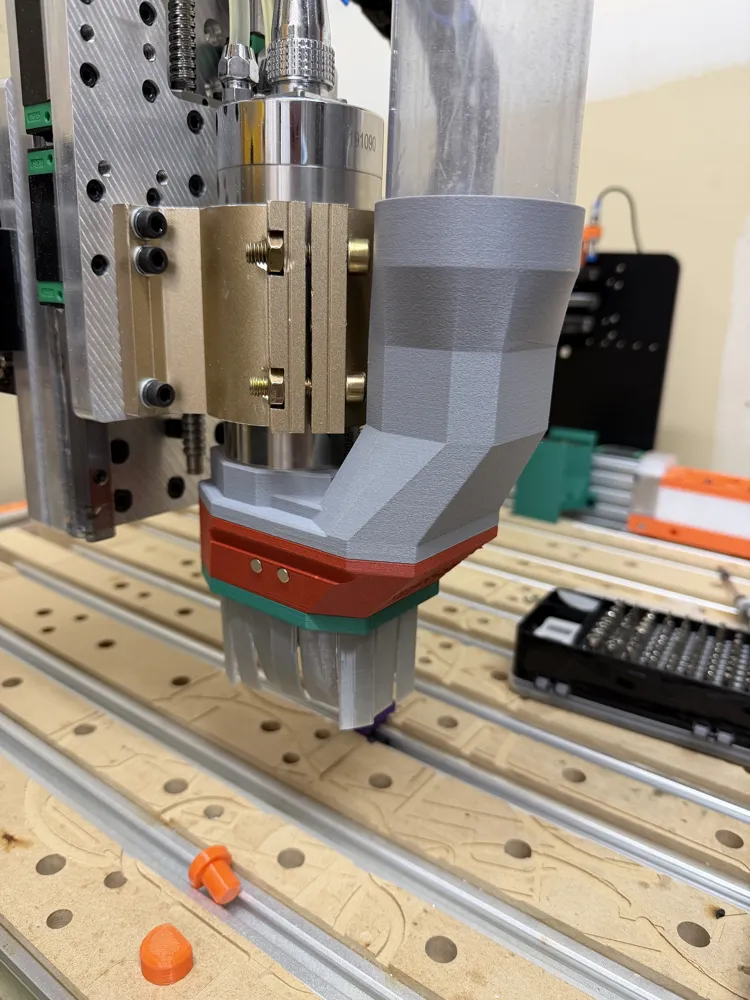

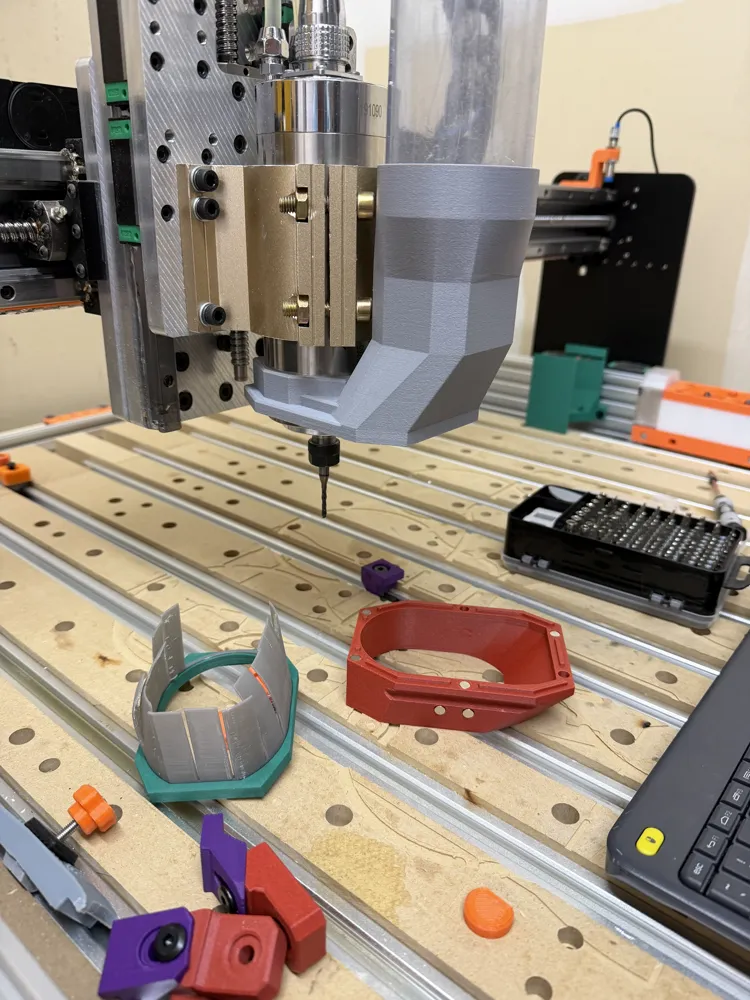

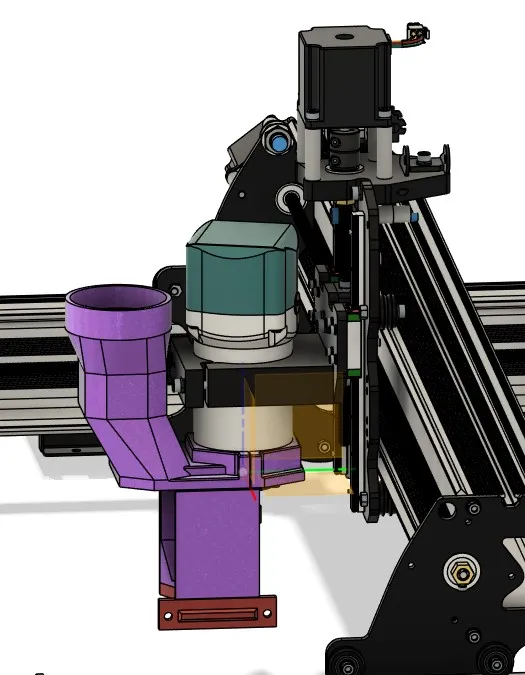

Dust Docker Dust Boot

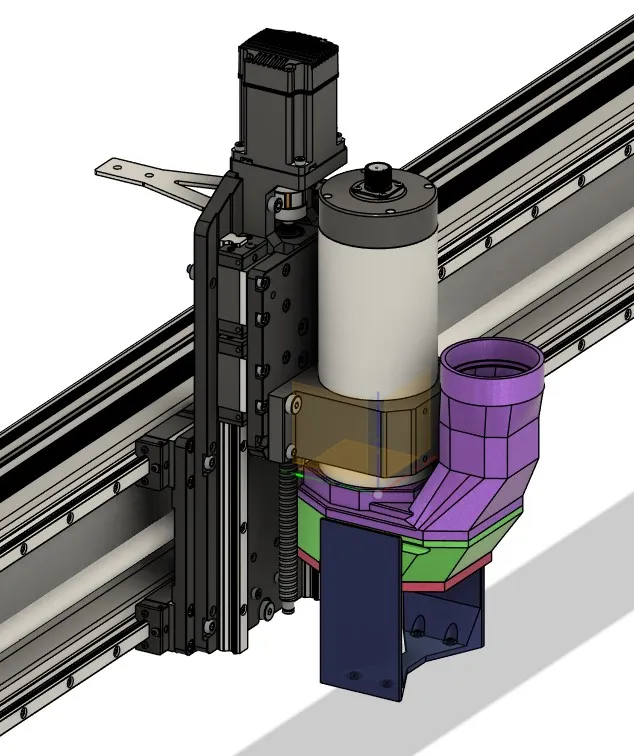

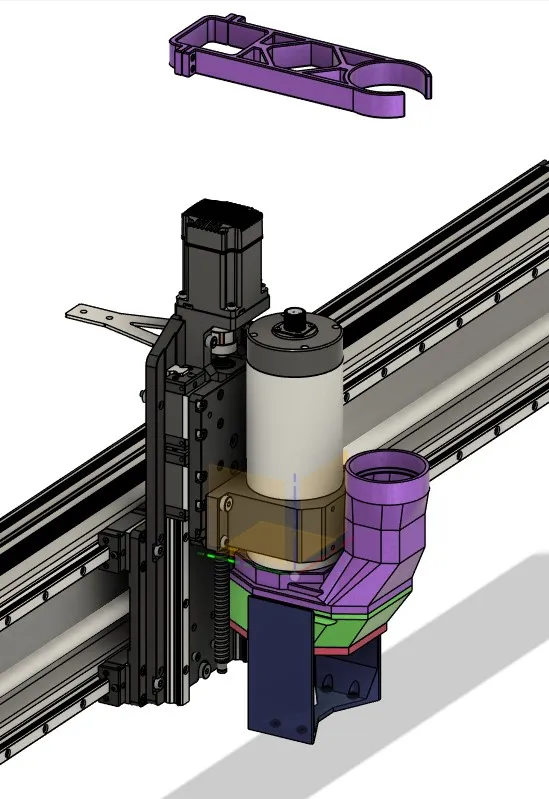

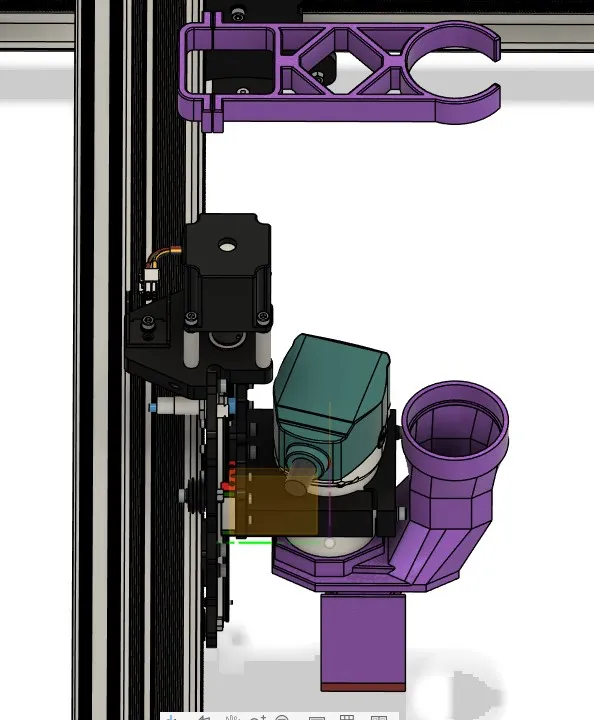

This dust boot design represents a dozen iteration and hours of learning Fusion for me and I am happy to share it here with the CNC and 3D Printer community.
Hopefully some of you can find it useful for your setups, I am sure I have missed or forgot something so please reach out with any advise or improvements.

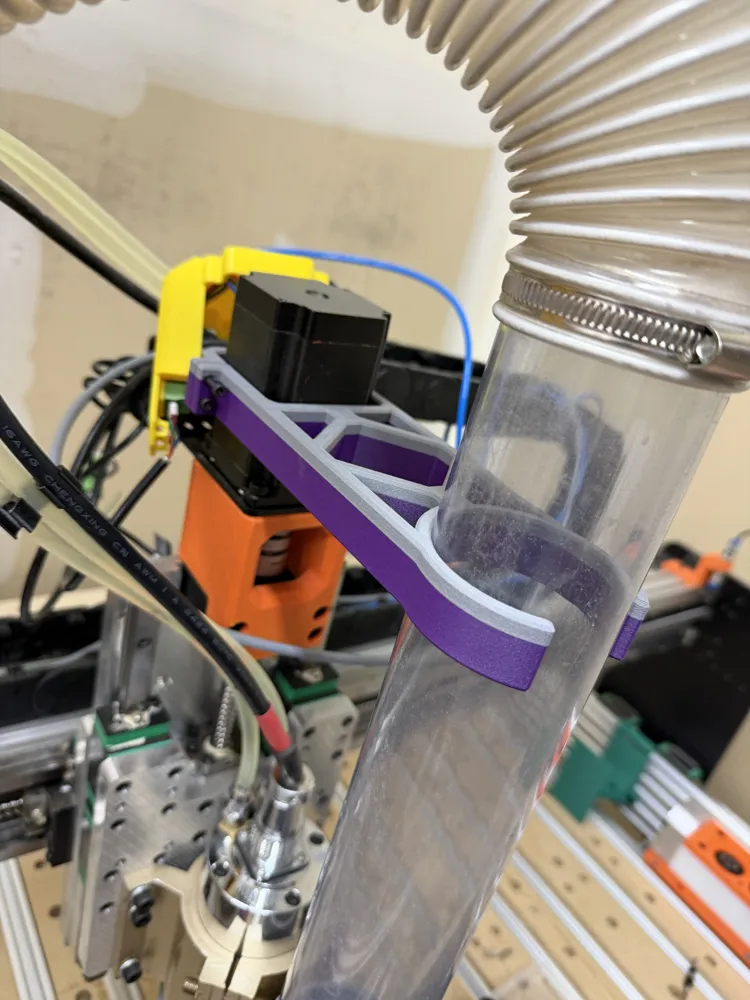

I have added Print Profiles for several of the most common combinations to support 65mm and 80mm Spindles as well as 2.5" and 4" Dust Hoses so please see those above.
**Due to the way the Bristles are generated the Maker World Generator is very slow, I have added the Bristles to the Print Profiles above and I am looking at ways to make this faster but you might want to use Fusion if you really want to customize the Bristles as it gets pretty frustrating pretty fast.

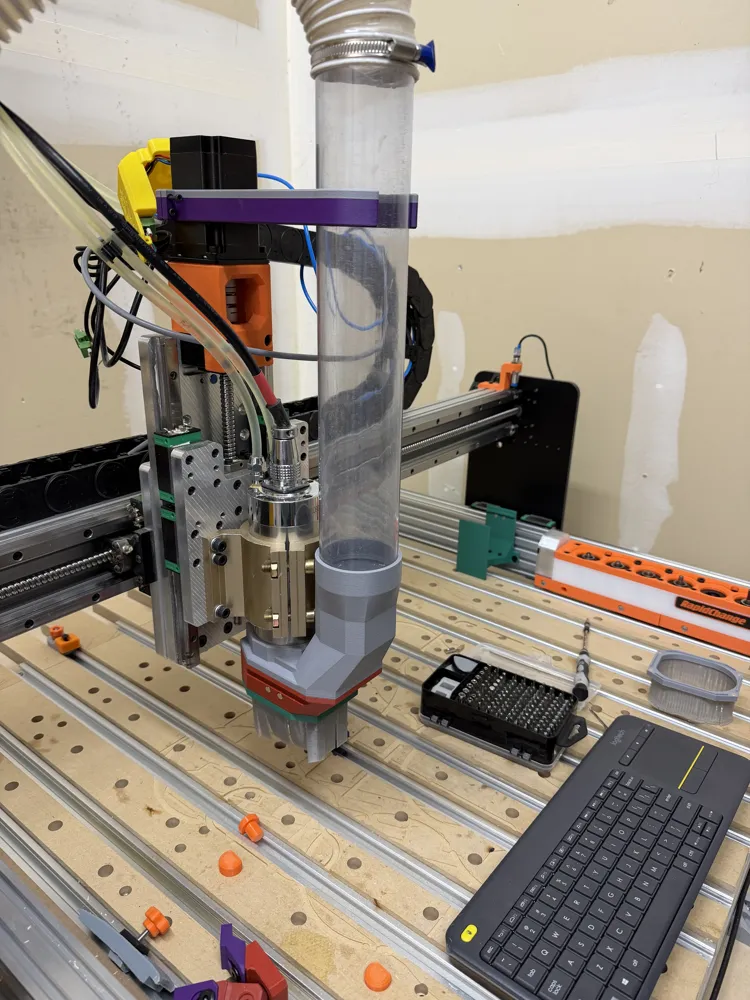

The model has been tested now with several CNC models including the AltMill, Longmill and the Genmitsu Prover 4030 with 80mm Spindle.

Due to constraints with the Z axis design this will not fit Onefinity machines with a 80mm spindle, but may fit if you have a 65mm spindle.

If you find this model helpful I would really apricate a Boost it would help me out and possibly get my model featured for more people to find it.

If you want to help and support me in getting an 80mm Spindle to further my CNC goals you can do that here:
https://ko-fi.com/sparkstech

You will need a few things to complete the build.

6 x m3 x 16 Socket head bolts
6 x m3x5x4 Heatset Inserts  https://a.co/d/006kLdxT

28 x 6mmx3mm Magnets https://a.co/d/0gTwieVZ

Macros
***These are example values based on my machine, don't use these values on your machine.

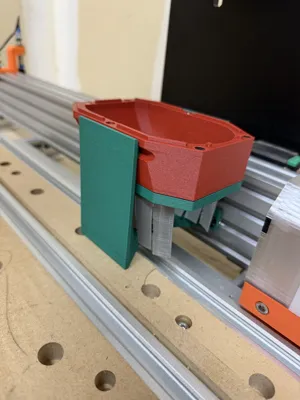

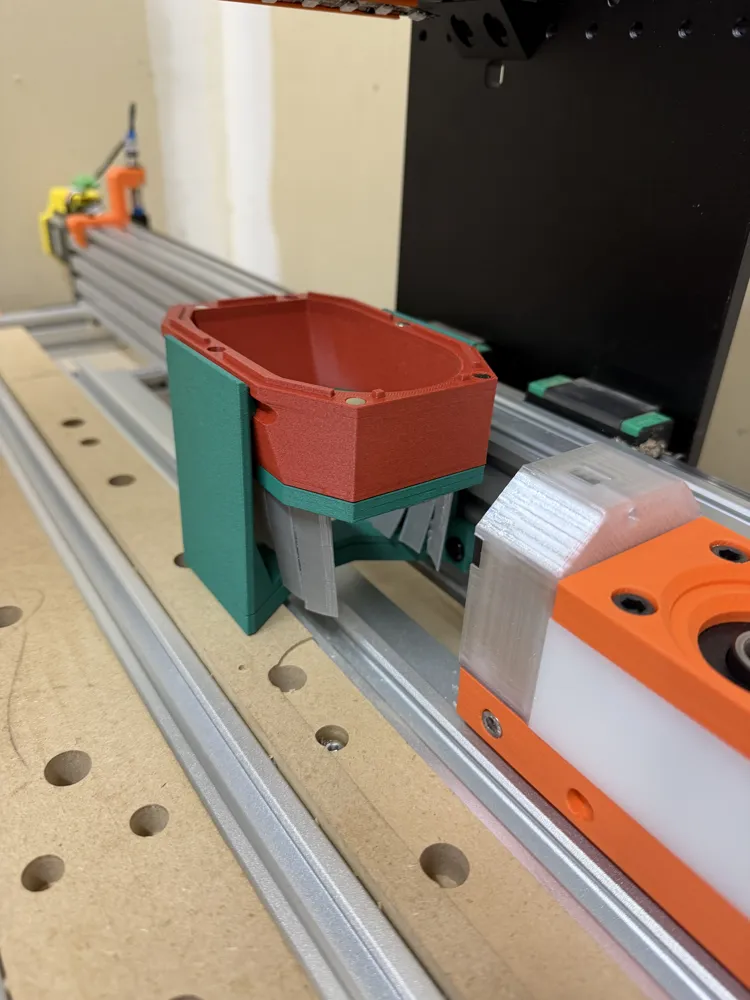

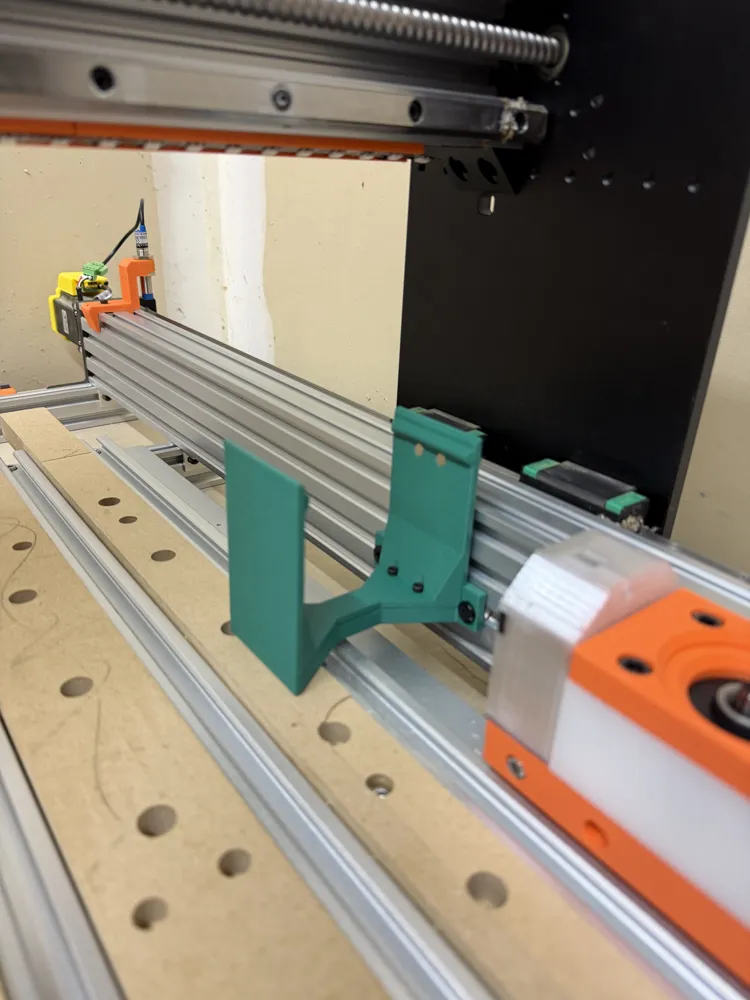

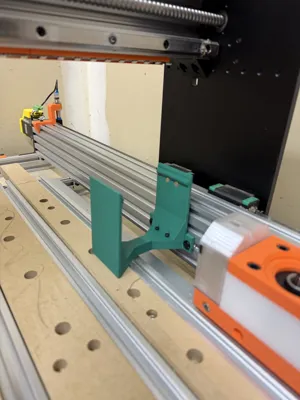

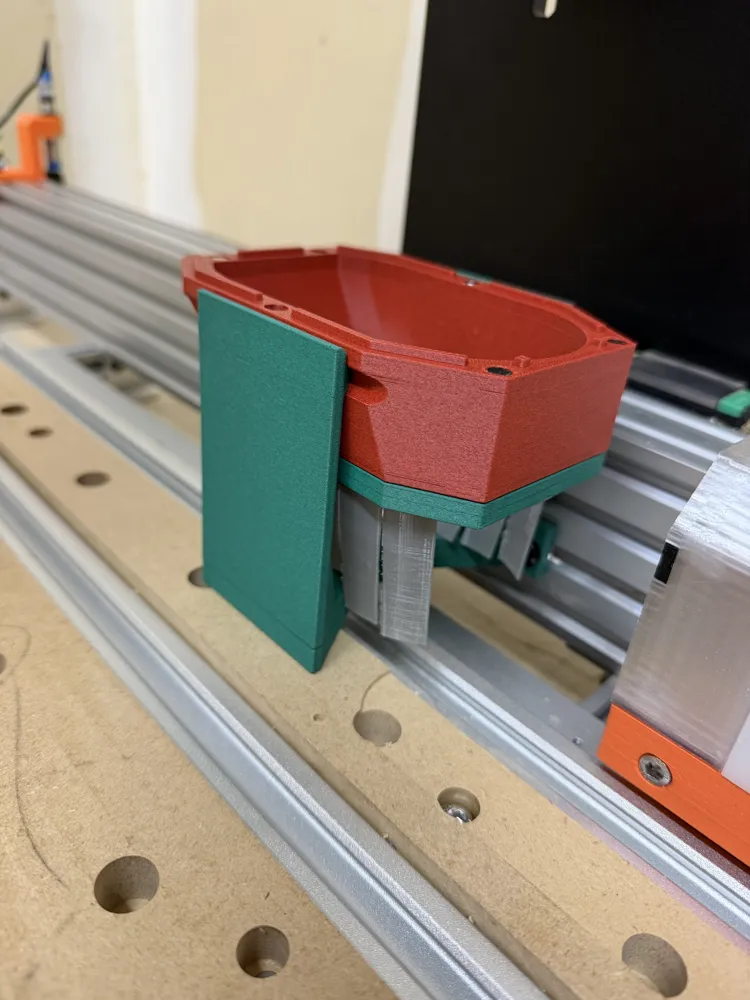

Dock Dust Boot:
G53 G1 G90 F1200 Z0
G53 G1 G90 F1800 X-22.547 Y-152.080
G53 G1 G90 F1200 Z-138.247
G53 G1 G90 F1800 X-22.547 Y-252.080
G53 G1 G90 F2000 Z0

Attach Dust Boot:
G53 G1 G90 F1500 Z0
G53 G1 G90 F1800 X-22.547 Y-252.080
G53 G1 G90 F1200 Z-138.247
G53 G1 G90 F1800 X-22.547 Y-152.080
G53 G1 G90 F1500 Z0

I have a YouTube build guide here:
