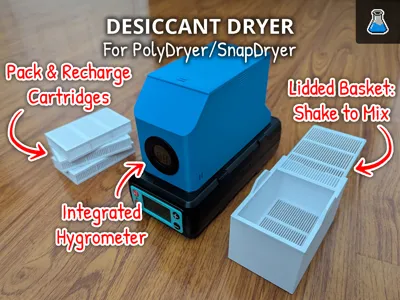

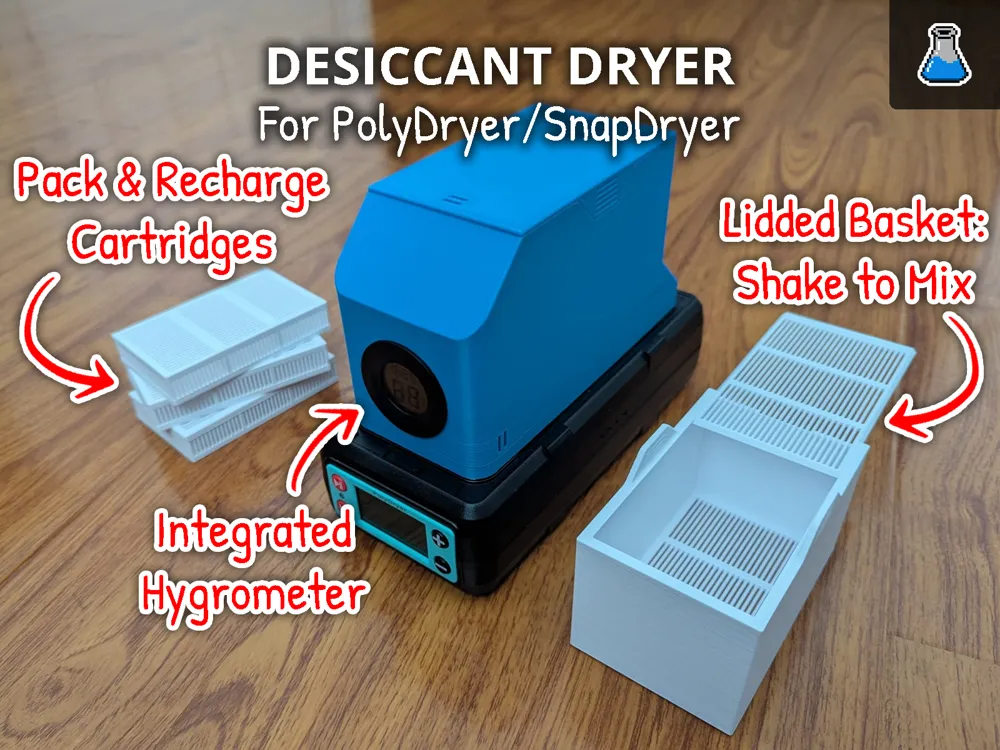

Desiccant Dryer with Hygrometer for PolyDryer

The Ultimate PolyDryer/SnapDryer Desiccant Mod.

Transform your PolyDryer or SnapDryer into a high-capacity desiccant powerhouse. This attachment is designed for maximum efficiency with a directional airflow path, ensuring your desiccant goes back to optimal condition in the least about of time.

Streamline Your Workflow: The modular cartridge system is designed to eliminate the mess of loose desiccant. By allowing you to pack, use, and recharge without ever emptying the container, it turns a tedious maintenance task into a simple swap-and-go process.

Usage Instructions

1. Load & Lock: Fill your basket or cartridges with desiccant and snap the lid shut to secure.
2. Dry to Recharge: Place the unit on your PolyDryer and run the dryer on level 3. A full basket typically takes 1–2 hours to reach a full recharge.
3. Stir for Efficiency: For the most even results, give the lidded basket a quick shake or stir every 20–30 minutes.
4. Monitor: Watch the integrated hygrometer to track your progress and ensure your desiccant is ready for action.

Support Me!

Features

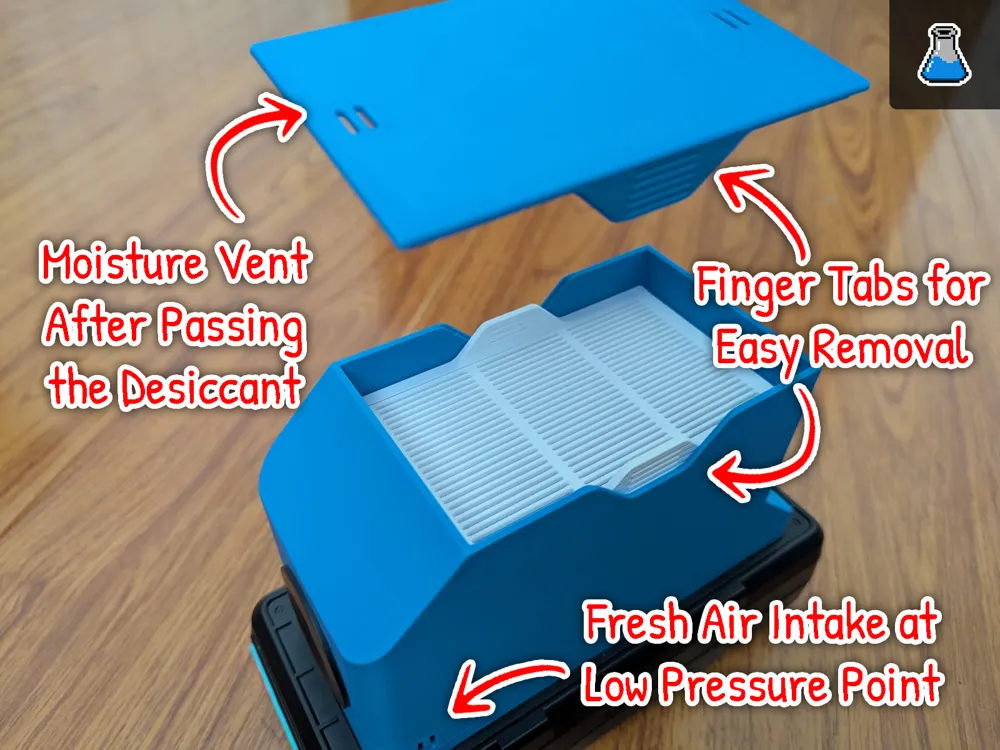

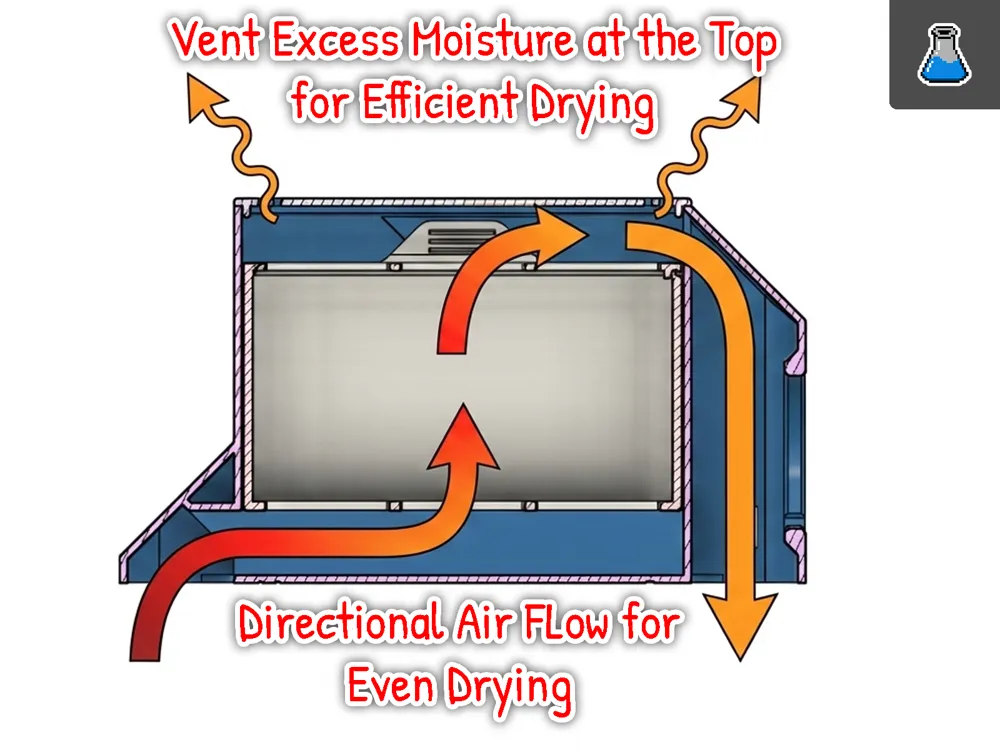

• Optimized Airflow: Engineered directional flow with a 5% fresh air exchange at the intake and exhaust. This creates a high-pressure zone after the desiccant to vent moisture without losing heat efficiency.
• User-Centric Design: Includes integrated finger tabs for effortless lid and basket removal.
• Shake-to-Mix Basket: The basket features a secure lid, allowing you to shake and redistribute desiccant for even drying without any risk of spilling.

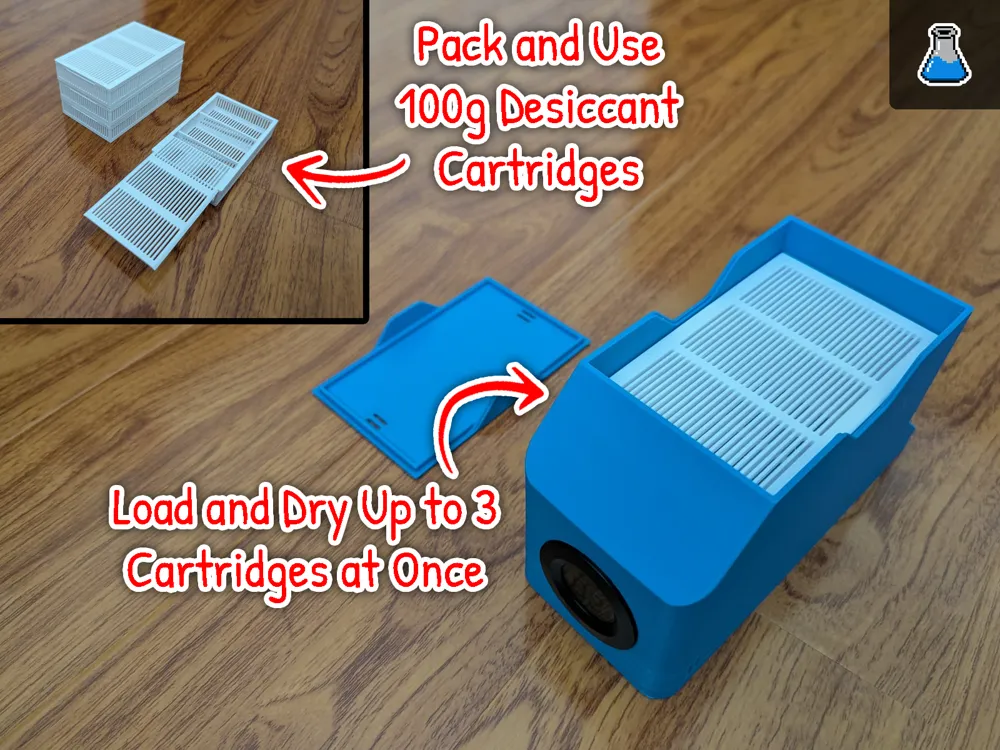

• Workflow-Integrated Cartridges: Includes Rechargeable Desiccant Cartridges—pack them once, use them, and recharge them directly in the cartridge.
• Integrated Monitoring: Built-in hygrometer port to monitor real-time drying performance.
• Print-Friendly Geometry: Optimized with 45° features to be a "No Support" print (only the hygrometer overhang requires a small amount of support).

Specifications

• Compatibility: PolyMaker PolyDryer & Snapmaker SnapDryer.
• Filament Type: PET-G recommend. Print in high temp filaments due to trying temps.
• Basket Capacity: Basket holds 300g (with room to stir/shake) or 350g (filled to brim).
• Cartridge Capacity: Holds up to three 100g rechargeable cartridges.
• Hygrometer: Common round hydrometer. Available in Maker Supply. (Listed in Bill of Materials)

Credits / Licensing

• Design by PixelFanLabs – With a curious mind, integrity, and your hands in the soil, you can create anything.
• License –  All Rights Reserved
  • Personal Use Only: You may print this for your own use.
  • No Redistribution: Do not re-upload or distribute these digital files on any other platform.
  • No Derivatives: Modification of this design—including the removal of the engraved PixelFanLabs signature—is strictly prohibited.
